09180-03430 TIMER ASSY, AUTOMA Denso Cross

Information timer assy, automa

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy TIMER ASSY, AUTOMA 09180-03430 genuine, new aftermarket engine parts with delivery

KIT List:

Timer assy, automa	No Application
Timer assy, automa	No Application

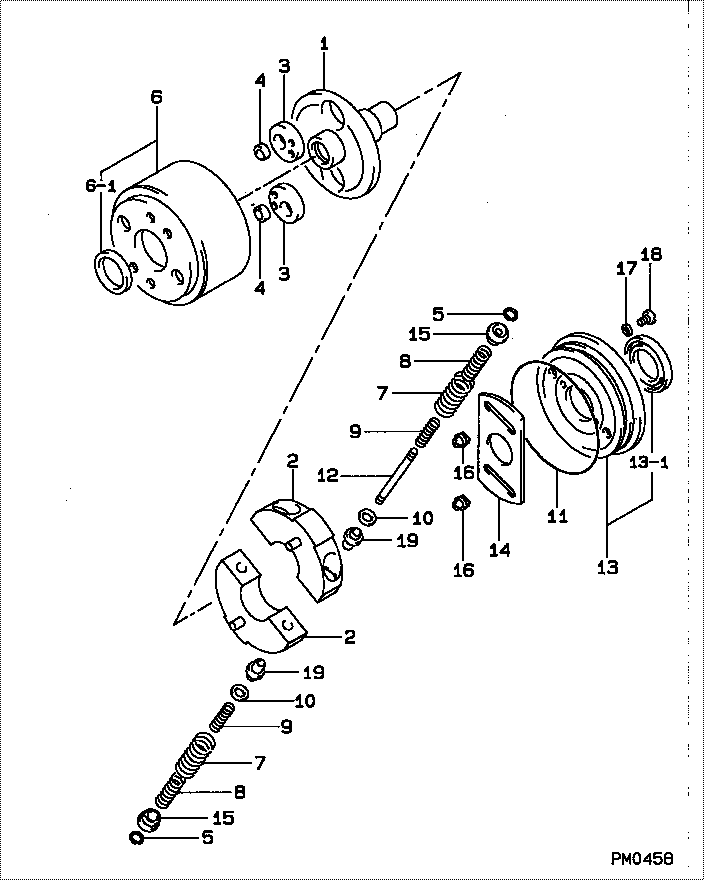

Scheme ###:

000.	[01]	09180-03430	TIMER ASSY, AUTOMA
001.	[01]	09181-11670	HUB, TIMER
002.	[02]	09183-60920	WEIGHT SUB-ASSY, T
003.	[02]	09189-50290	CAM, TIMER
004.	[02]	09189-50300	CAM, TIMER
005.	[04]	94907-10880	WASHER, SNAP	22518-1110A
006.	[01]	09184-00990	FLANGE, TIMER DRIV
006-001.	[01]	94915-02600	SEAL, OIL	22827-1490A
007.	[04]	09181-92440	SPRING, TIMER
008.	[04]	09181-80950	SPRING, TIMER SUB
009.	[04]	09181-92870	SPRING, TIMER
010.	[8C]	94901-38920	WASHER, PLATE, SK
010.	[8C]	94901-38910	WASHER, PLATE, SK
010.	[8C]	94901-38200	WASHER, PLATE, SK	22885-5890A
010.	[8C]	94901-38190	WASHER, PLATE, SK	22885-5880A
010.	[8C]	94901-38180	WASHER, PLATE, SK	22885-5870A
011.	[01]	94914-06430	O-RING
012.	[02]	09188-40110	SUPPORT, TIMER SPR	22535-1140A
013.	[01]	09187-00160	COVER SUB-ASSY, TI
013-001.	[01]	94915-02610	SEAL, OIL	22827-1500A
014.	[01]	09186-70270	PLATE, TIMER DRIVI	22513-2270A
015.	[04]	09181-70310	SEAT	22517-1510A
016.	[02]	09188-20060	ROLLER, TIMER	22522-1060A
017.	[02]	94901-81020	WASHER, COPPER PLA	22867-1500A
018.	[02]	09186-20010	SCREW, TIMER HUB	22865-1270A
019.	[04]	09181-70320	SEAT

Include in #3:

09180-03430 as TIMER ASSY, AUTOMA

09200-00290

Cross reference number

Part num	Firm num	Firm	Name
09180-03430			TIMER ASSY, AUTOMA

Information:

Illustration 1 g06221137
(1) Back flow connector
Illustration 2 g06221138
(2) 423-3253 Connector (Old back flow connector with check valve)
(3) 516-2663 Connector As (PCA connector without check valve)The new and the former connector assembly part numbers are listed in the Table 1.
Table 1
Qty New Part Number Description Former Part Number
1 516-2663 Connector As 423-3253
Illustration 3 g06224488
Bosch Diesel Exhaust Fluid Pump with the part number stamping
The Bosch part number is stamped on the pump, refer to Illustration 3. The Cat® part number equivalent to the Bosch part number for the pump is given in Table 2.
Table 2
Qty Cat® Part Number Description Bosch Part Number
1 485-9753 Diesel Exhaust Fluid Pump Gp (24V) 0 444042168
1 398-4746 Diesel Exhaust Fluid Pump Gp (14 V) 0 444042166 Note: The change is effective on the PETU and DEF pump serial numbers listed in Table 3.
Table 3
PETU Serial No: PET034589M
PUMP Serial No: 0171013500
