Information timer assy, automa
Rating:
KIT List:
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |

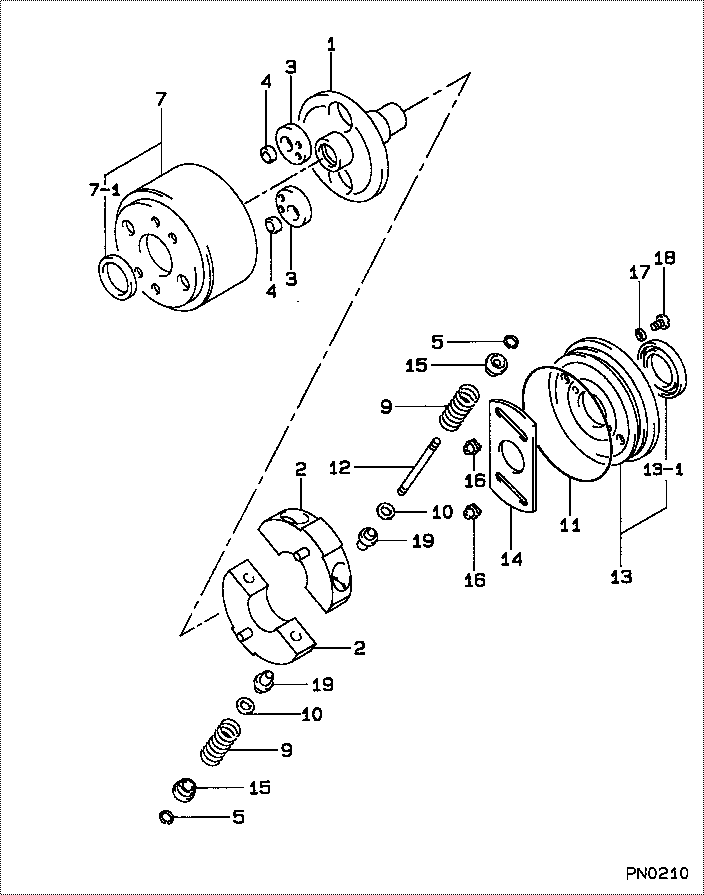

Scheme ###:
| 000. | [01] | 09180-03260 | TIMER ASSY, AUTOMA | |
| 001. | [01] | 09181-11450 | HUB, TIMER | |
| 002. | [02] | 09183-60880 | WEIGHT SUB-ASSY, T | |
| 003. | [02] | 09189-50270 | CAM, TIMER | |
| 004. | [02] | 09189-50280 | CAM, TIMER | |
| 005. | [04] | 94907-10880 | WASHER, SNAP | 22518-1110A |
| 007. | [01] | 09184-00970 | FLANGE, TIMER DRIV | |
| 007-001. | [01] | 94915-02600 | SEAL, OIL | 22827-1490A |
| 009. | [4C] | 09181-80750 | SPRING, TIMER SUB | |
| 009. | [4C] | 09181-80760 | SPRING, TIMER SUB | |
| 010. | [8C] | 94901-38920 | WASHER, PLATE, SK | |
| 010. | [8C] | 94901-38910 | WASHER, PLATE, SK | |
| 010. | [8C] | 94901-38200 | WASHER, PLATE, SK | 22885-5890A |
| 010. | [8C] | 94901-38190 | WASHER, PLATE, SK | 22885-5880A |
| 010. | [8C] | 94901-38180 | WASHER, PLATE, SK | 22885-5870A |
| 011. | [01] | 94914-06430 | O-RING | |
| 012. | [02] | 09188-40110 | SUPPORT, TIMER SPR | 22535-1140A |
| 013. | [01] | 09187-00160 | COVER SUB-ASSY, TI | |
| 013-001. | [01] | 94915-02610 | SEAL, OIL | 22827-1500A |
| 014. | [01] | 09186-70270 | PLATE, TIMER DRIVI | 22513-2270A |
| 015. | [04] | 09181-70310 | SEAT | 22517-1510A |
| 016. | [02] | 09188-20060 | ROLLER, TIMER | 22522-1060A |
| 017. | [02] | 94901-81020 | WASHER, COPPER PLA | 22867-1500A |
| 018. | [02] | 09186-20010 | SCREW, TIMER HUB | 22865-1270A |
| 019. | [04] | 09181-70320 | SEAT |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09180-03260 | TIMER ASSY, AUTOMA |
Information:
Introduction
A new steel engine oil lines group is available for the engines that are listed above. The Engine Oil Lines Group is available for repair of the flexible high pressure oil line that is on the Hydraulic Electronic Unit Injector Pump. The engine oil lines group is adaptable to the serial numbers that are listed above. The engine oil lines group is effective with the following serial numbers: 5GG6100-UP, BEJ6915-UP and 3GS2119-UP.
Table 1
Required Tools
Tool Part Number Description
A 180-0186 Removal Tool
Table 2
Components in Engine Oil Lines Group
Callout Part Number Description Quantity
16 247-3755 Tube As 1
17 6V-8636 Connector 1
18 221-3494 O-Ring Seal 2
19 214-7568 O-Ring Seal 2
20 6V-8724 Elbow 1 Removal of the Flexible Oil Line
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Caterpillar products.Dispose of all fluids according to local regulations and mandates.
Illustration 1 g01068766
Inlet fuel line (fuel transfer pump to cylinder head) (1) Connector (2) Hose assembly (3) Fuel transfer pump
Remove connector (1) and hose assembly (2) from the fuel transfer pump (3). Refer to Illustration 1. Retain these parts for the reinstallation.
Illustration 2 g01068729
Outlet fuel line (fuel transfer pump to secondary fuel filter) (4) Adapter (5) Tee (6) Elbow (7) Hose assembly
Remove adapter (4), tee (5), elbow (6), and hose assembly (7) from the fuel transfer pump (3). Refer to Illustration 2. Retain these parts for the reinstallation.Note: Modifications to the tools may need to be made in order to reduce interference with engine components. Refer to Illustration 3.
Illustration 3 g01007381
Modified 2P-5494 crowfoot wrench
Illustration 4 g01068745
(3) Fuel transfer pump (8) Bolt (9) Bolt (10) Washer (11) Adapter (15) HEUI pump (21) Clip
Remove the bolt (8) and the clip (21) from the top of the fuel transfer pump. Refer to Illustration 4.
Remove the bolt (9) and the washer (10) from the bottom of the fuel transfer pump (3). Refer to Illustration 4.
Remove fuel transfer pump (3). Refer to Illustration 4.
Illustration 5 g01068776
(12) 45 ° adapter (13) Hose assembly (14) Straight connector (15) HEUI pump
Remove hose assembly (13) from 45 degree adapter (12) and straight connector (14) by using removal tool (A). Refer to Illustration 5.
Remove 45 degree adapter (12) from the HEUI pump (15). Remove straight adapter (14) from the cylinder head. Discard the parts. Refer to Illustration 5.Installation of the Engine Oil Lines Group
Illustration 6 g01068779
(16) 247-3755 Tube As
A new steel engine oil lines group is available for the engines that are listed above. The Engine Oil Lines Group is available for repair of the flexible high pressure oil line that is on the Hydraulic Electronic Unit Injector Pump. The engine oil lines group is adaptable to the serial numbers that are listed above. The engine oil lines group is effective with the following serial numbers: 5GG6100-UP, BEJ6915-UP and 3GS2119-UP.
Table 1
Required Tools
Tool Part Number Description
A 180-0186 Removal Tool
Table 2
Components in Engine Oil Lines Group
Callout Part Number Description Quantity
16 247-3755 Tube As 1
17 6V-8636 Connector 1
18 221-3494 O-Ring Seal 2
19 214-7568 O-Ring Seal 2
20 6V-8724 Elbow 1 Removal of the Flexible Oil Line
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Caterpillar products.Dispose of all fluids according to local regulations and mandates.
Illustration 1 g01068766
Inlet fuel line (fuel transfer pump to cylinder head) (1) Connector (2) Hose assembly (3) Fuel transfer pump
Remove connector (1) and hose assembly (2) from the fuel transfer pump (3). Refer to Illustration 1. Retain these parts for the reinstallation.
Illustration 2 g01068729
Outlet fuel line (fuel transfer pump to secondary fuel filter) (4) Adapter (5) Tee (6) Elbow (7) Hose assembly
Remove adapter (4), tee (5), elbow (6), and hose assembly (7) from the fuel transfer pump (3). Refer to Illustration 2. Retain these parts for the reinstallation.Note: Modifications to the tools may need to be made in order to reduce interference with engine components. Refer to Illustration 3.
Illustration 3 g01007381
Modified 2P-5494 crowfoot wrench
Illustration 4 g01068745
(3) Fuel transfer pump (8) Bolt (9) Bolt (10) Washer (11) Adapter (15) HEUI pump (21) Clip
Remove the bolt (8) and the clip (21) from the top of the fuel transfer pump. Refer to Illustration 4.
Remove the bolt (9) and the washer (10) from the bottom of the fuel transfer pump (3). Refer to Illustration 4.
Remove fuel transfer pump (3). Refer to Illustration 4.
Illustration 5 g01068776
(12) 45 ° adapter (13) Hose assembly (14) Straight connector (15) HEUI pump
Remove hose assembly (13) from 45 degree adapter (12) and straight connector (14) by using removal tool (A). Refer to Illustration 5.
Remove 45 degree adapter (12) from the HEUI pump (15). Remove straight adapter (14) from the cylinder head. Discard the parts. Refer to Illustration 5.Installation of the Engine Oil Lines Group
Illustration 6 g01068779
(16) 247-3755 Tube As
