Information timer assy, automa
Rating:
KIT List:
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |

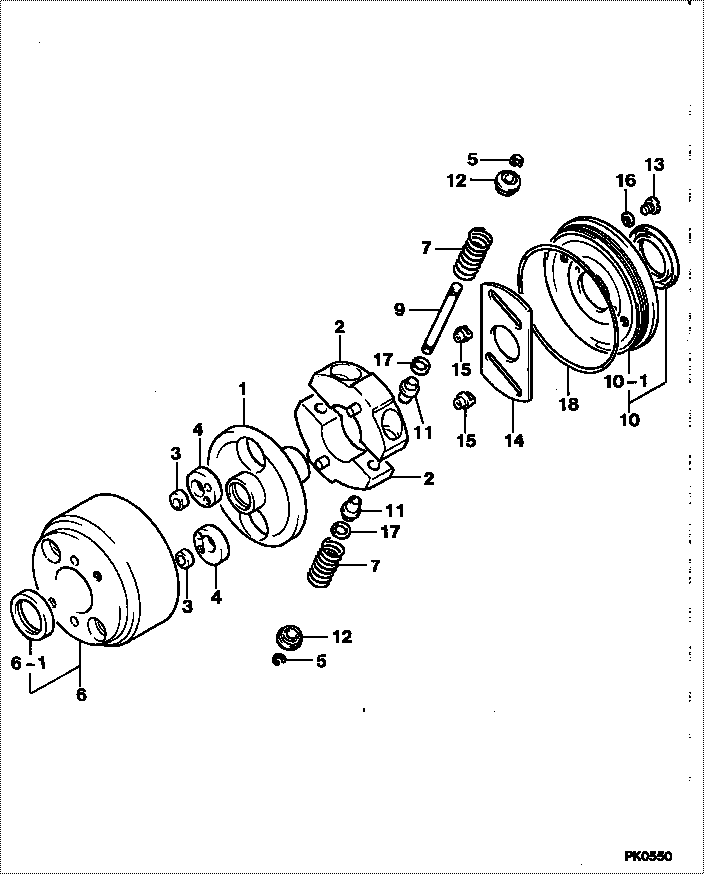

Scheme ###:
| 000. | [01] | 09180-03020 | TIMER ASSY, AUTOMA | |
| 001. | [01] | 09181-11520 | HUB, TIMER | 22516-1740A |
| 002. | [02] | 09183-60830 | WEIGHT SUB-ASSY, T | 22514-2600A |
| 003. | [02] | 09189-50020 | CAM, TIMER | 22545-1020A |
| 004. | [02] | 09189-50011 | CAM, TIMER | 22545-1010A |
| 005. | [04] | 94907-10880 | WASHER, SNAP | 22518-1110A |
| 006. | [01] | 09184-00940 | FLANGE, TIMER DRIV | |
| 006-001. | [01] | 94915-02600 | SEAL, OIL | 22827-1490A |
| 007. | [04] | 09181-80510 | SPRING, TIMER SUB | 22515-3740A |
| 009. | [02] | 09188-40090 | SUPPORT, TIMER SPR | 22535-1100A |
| 009. | [02] | 09188-40140 | SUPPORT, TIMER SPR | |
| 010. | [01] | 09187-00140 | COVER SUB-ASSY, TI | 22512-1570A |
| 010-001. | [01] | 94915-02610 | SEAL, OIL | 22827-1500A |
| 011. | [04] | 09181-70290 | SEAT | |
| 012. | [04] | 09181-70270 | SEAT | 22517-1310A |
| 012. | [04] | 09181-70500 | SEAT | |
| 013. | [02] | 09186-20010 | SCREW, TIMER HUB | 22865-1270A |
| 014. | [01] | 09186-70240 | PLATE, TIMER DRIVI | 22513-2110A |
| 015. | [02] | 09188-20030 | ROLLER, TIMER | 22522-1040A |
| 016. | [02] | 94901-81020 | WASHER, COPPER PLA | 22867-1500A |
| 017. | [4C] | 94901-38180 | WASHER, PLATE, SK | 22885-5870A |
| 017. | [4C] | 94901-38910 | WASHER, PLATE, SK | |
| 017. | [4C] | 94901-38920 | WASHER, PLATE, SK | |
| 018. | [01] | 94914-03950 | O-RING | 22817-1930A |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09180-03020 | TIMER ASSY, AUTOMA |
Information:
Introduction
This special instruction covers the procedure to install a Flow Through Diesel Particulate Filter on AD30 (S/N: DXR366-UP) Underground Articulated Trucks equipped with Ventilation Reduction Package and the correct low sulphur fuel and low ash oil. This supplemental product support literature should be used with the appropriate Service Manual and the appropriate Parts Manual that is available for this standard machine.Note: This procedure cannot be used in Canadian provinces that require "CANMET "certification. This procedure will invalidate the existing "CANMET " approval for an engine.Read the entire Special Instruction. Understand the information before you perform any procedures. Understand the information before you order any parts.ReferenceDisassembly & Assembly Supplement, RENR6908, "AD30 Underground Articulated Truck, C15 Engine".ReferenceSpecial Instruction, REHS5843, "Procedure to Install the Ventilation Reduction Package on AD30 Underground Articulated Trucks".Safety Section
Work safely. Most accidents that involve product operation, maintenance, and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person should also have the necessary training, skills, and tools in order to perform these functions properly.Safety precautions and warnings are provided in this instruction and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard. Therefore, the warnings in this publication and the warnings that are on the product are not all inclusive.Ensure that all personnel are safe when using a tool, procedure, work method, or operating technique not recommended by Caterpillar. Ensure that the product will not be damaged or the product made unsafe by the operation, lubrication, maintenance, or the repair procedures that are used.
Hot oil and hot components can cause personal injury. Do not allow hot oil or hot components to contact the skin.
Personal injury or death can result from machine articulation or movement. Machine frames can move and a person can be crushed. Connect the steering frame lock between the front and rear frames before working on the machine.Before operating the machine, place the steering frame lock in the stored position.Failure to place the steering frame lock into the stored position before operating can result in loss of steering.
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Parts Required
Table 1
Required Parts (1) (2)
QTY New Part Number Description
1 395-0217 Diesel Particulate Filter Gp
1 349-8603 Film (1)
349-8604 Film (2)
1 350-0684 Film
1 1W-6100 Clamp
6 8N-2729 Metal Seal Ring
( 1 ) 349-8603 is ANSI film (US & CANADA).
( 2 ) 349-8604 is ISO film (REST of WORLD).Machine Preparation
Move the machine to a hard level surface away from operating machines and away from personnel.
Engage the parking brake. Place
This special instruction covers the procedure to install a Flow Through Diesel Particulate Filter on AD30 (S/N: DXR366-UP) Underground Articulated Trucks equipped with Ventilation Reduction Package and the correct low sulphur fuel and low ash oil. This supplemental product support literature should be used with the appropriate Service Manual and the appropriate Parts Manual that is available for this standard machine.Note: This procedure cannot be used in Canadian provinces that require "CANMET "certification. This procedure will invalidate the existing "CANMET " approval for an engine.Read the entire Special Instruction. Understand the information before you perform any procedures. Understand the information before you order any parts.ReferenceDisassembly & Assembly Supplement, RENR6908, "AD30 Underground Articulated Truck, C15 Engine".ReferenceSpecial Instruction, REHS5843, "Procedure to Install the Ventilation Reduction Package on AD30 Underground Articulated Trucks".Safety Section
Work safely. Most accidents that involve product operation, maintenance, and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person should also have the necessary training, skills, and tools in order to perform these functions properly.Safety precautions and warnings are provided in this instruction and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard. Therefore, the warnings in this publication and the warnings that are on the product are not all inclusive.Ensure that all personnel are safe when using a tool, procedure, work method, or operating technique not recommended by Caterpillar. Ensure that the product will not be damaged or the product made unsafe by the operation, lubrication, maintenance, or the repair procedures that are used.
Hot oil and hot components can cause personal injury. Do not allow hot oil or hot components to contact the skin.
Personal injury or death can result from machine articulation or movement. Machine frames can move and a person can be crushed. Connect the steering frame lock between the front and rear frames before working on the machine.Before operating the machine, place the steering frame lock in the stored position.Failure to place the steering frame lock into the stored position before operating can result in loss of steering.
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Parts Required
Table 1
Required Parts (1) (2)
QTY New Part Number Description
1 395-0217 Diesel Particulate Filter Gp
1 349-8603 Film (1)
349-8604 Film (2)
1 350-0684 Film
1 1W-6100 Clamp
6 8N-2729 Metal Seal Ring
( 1 ) 349-8603 is ANSI film (US & CANADA).
( 2 ) 349-8604 is ISO film (REST of WORLD).Machine Preparation
Move the machine to a hard level surface away from operating machines and away from personnel.
Engage the parking brake. Place
