09180-01540 TIMER ASSY, AUTOMA Denso Cross




Information timer assy, automa

09180-01540 TIMER ASSY, AUTOMA
Rating:
46
Buy TIMER ASSY, AUTOMA 09180-01540 genuine, new aftermarket engine parts with delivery

KIT List:

Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050
Timer assy, automa 0918030050

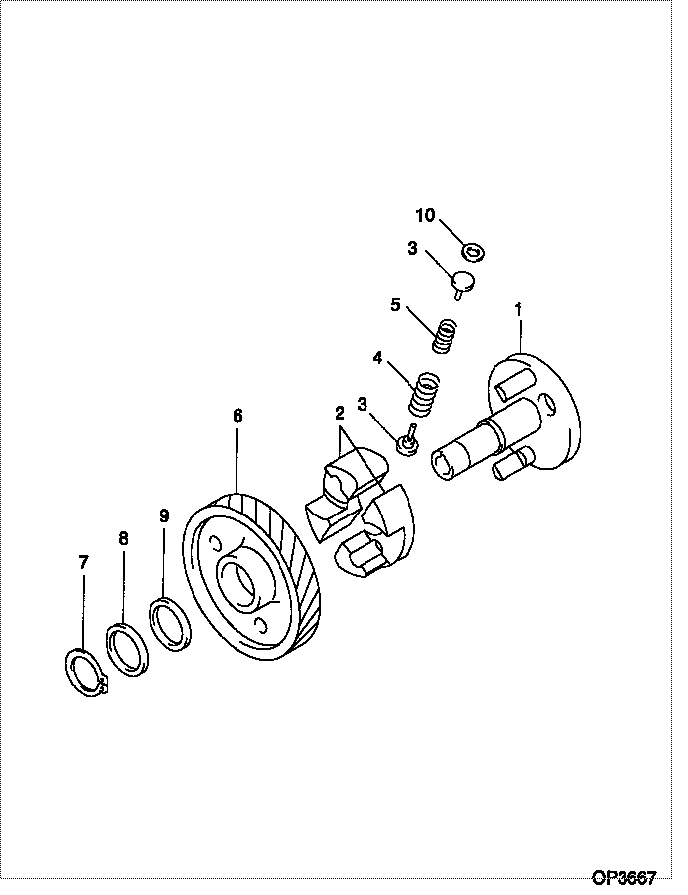

Scheme ###:

000. [01] 09180-01540 TIMER ASSY, AUTOMA 22610-68011
001. [01] 09181-00940 HUB ASSY, TIMER 22616-68011
002. [02] 09183-60023 WEIGHT SUB-ASSY, T 22614-68010
003. [04] 09181-70051 SEAT 22629-68010
004. [02] 09181-91210 SPRING, TIMER 22615-68012
005. [02] 09181-80130 SPRING, TIMER SUB 22628-68011
006. [01] 09185-00210 GEAR, DRIVE 22626-68010
007. [01] 90557-28000 RING, SHAFT SNAP 90096-90021
008. [01] 94901-32770 WASHER, PLATE, SK 90099-01471
009. [1C] 94901-32760 WASHER, PLATE, SK 90099-01470
009. [1C] 94901-32950 WASHER, PLATE, SK 90099-01472
010. [2C] 94901-31480 WASHER, PLATE, SK 90099-01194
010. [2C] 94901-31960 WASHER, PLATE, SK 90099-02315
010. [2C] 94901-31970 WASHER, PLATE, SK 90099-01369
010. [2C] 94901-31980 WASHER, PLATE, SK 90099-01381
010. [2C] 94901-31990 WASHER, PLATE, SK 90099-01382

Cross reference number



Part num Firm num Firm Name
09180-01540  22610-6801  TIMER ASSY, AUTOMA
26106-8020    TOYOTA TIMER ASSY, AUTOMA
22610-68011    TOYOTA TIMER ASSY, AUTOMA




Information:

Start By:a. remove timing gear cover
Do not disconnect the air line from the air compressor governor until the air pressure is zero.
1. Loosen the bleed valves, and release the air pressure in the air tank. 2. Disconnect the lines from air compressor (1), and remove the air compressor. 3. Remove sleeve (2) from air compressor drive gear (3). 4. Remove the nut and washer that holds the air compressor drive gear to the air compressor. Use tooling (A) to remove air compressor drive gear (3) from the air compressor. 5. Remove nuts (4) and plate (5). Remove gear assembly (6) from the shaft. 6. If damaged, remove bearing (7) from gear assembly (6) with tooling (B) and a press. 7. Remove three nuts (8) and the washers from the adapter assembly studs.
Typical Example8. Remove adapter assembly (9) from the timing gear plate. 9. Remove shaft (10), O-ring seal (11) and sleeve (12) from the adapter assembly.Install Air Compressor And Accessory Drive
1. Install sleeve (12) into the adapter assembly.2. Install shaft (10) and O-ring seal (11) on the adapter assembly. 3. Put adapter assembly (9) in position on the timing gear plate. Fasten it with the three nuts and washers. 4. Install the bearing in gear assembly (6) with tooling (A) and a press. Install the bearing until it is 1.5 0.5 mm (.06 .02 in.) below the surface of the gear as shown. 5. Put gear assembly (6) in position on the shaft.6. Put plate (5) in position, and install three nuts (4) to hold it. 7. Put air compressor drive gear (3) in position on the air compressor shaft, and install the washer and nut (13). Tighten the nut to a torque of 200 25 N m (150 18 lb.in.). Tap the gear with a hammer and tighten nut (13) again to a torque of 200 25 N m (150 18 lb.ft.). 8. Install sleeve (2) on gear (3). 9. Put a gasket in position on air compressor (1) and install the air compressor on the timing cover plate.End By:a. install timing gear cover
