09180-01281 TIMER ASSY, AUTOMA Denso Cross

Information timer assy, automa

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy TIMER ASSY, AUTOMA 09180-01281 genuine, new aftermarket engine parts with delivery

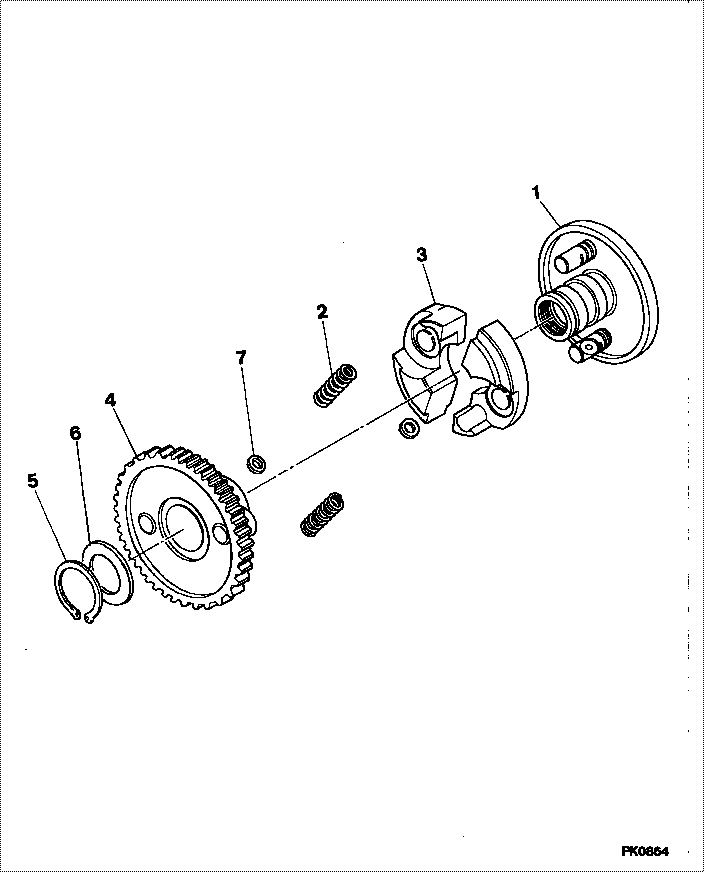

Scheme ###:

000.	[01]	09180-01280	TIMER ASSY, AUTOMA	ME036901
000.	[01]	09180-01281	TIMER ASSY, AUTOMA	ME036901
001.	[01]	09181-00700	HUB ASSY, TIMER	ME702210
001.	[01]	09181-00701	HUB ASSY, TIMER	ME702210
001.	[01]	09181-00702	HUB ASSY, TIMER	ME702210
001.	[01]	09181-00703	HUB ASSY, TIMER	ME702210
002.	[02]	09181-91030	SPRING, TIMER
002.	[02]	09181-91190	SPRING, TIMER	ME702211
003.	[02]	09183-60136	WEIGHT SUB-ASSY, T	ME702212
003.	[02]	09183-60134	WEIGHT SUB-ASSY, T	ME702212
003.	[02]	09183-60132	WEIGHT SUB-ASSY, T	ME702212
004.	[01]	09185-00130	GEAR, DRIVE	ME702213
005.	[01]	90557-28000	RING, SHAFT SNAP	ME702214
006.	[ C]	94901-32950	WASHER, PLATE, SK	ME022268
006.	[ C]	94901-32770	WASHER, PLATE, SK	ME702216
006.	[ C]	94901-32760	WASHER, PLATE, SK	ME022266
007.	[ C]	94901-31960	WASHER, PLATE, SK	ME702866
007.	[ C]	94901-31970	WASHER, PLATE, SK	ME702867
007.	[ C]	94901-31980	WASHER, PLATE, SK	ME023379
007.	[ C]	94901-31990	WASHER, PLATE, SK	ME023380
007.	[ C]	94901-31480	WASHER, PLATE, SK	ME702215

Include in #3:

09180-01281 as TIMER ASSY, AUTOMA

Cross reference number

Part num	Firm num	Firm	Name
09180-01281	ME036901		TIMER ASSY, AUTOMA

Information:

1. Remove oil filter element (1). 2. Remove two bolts (4).3. Remove four bolts (3).4. Remove six bolts (2). Remove oil filter base, gaskets and O-rings. The following steps are for the installation of the oil filter and oil filter base. Position gaskets and install all bolts finger tight before tightening to the standard torque.5. Be sure the O-rings are in place on oil filter base. Position gaskets and oil filter base. Install six bolts (2).6. Install four bolts (3).7. Position gasket. Install two bolts (4). Tighten all the bolts to standard torque.8. Install oil filter element (1).Disassemble & Assemble Oil Filter Base
Start By:a. remove oil filter base 1. Remove the O-rings. Remove bolt (1). 2. Remove relief valve group (2). 3. Remove four bolts and remove covers (3). Remove oil cooler by-pass valve (5), oil cooler by-pass valve spring (4) and spool (6). 4. Remove plug (7). Remove oil filter by-pass valve (8). The following steps are for the assembly of the oil filter base.5. Install by-pass valve (8) and plug (7).6. Install oil cooler by-pass valve (5), oil pump by-pass valve (6) and spring (4). Position covers (3). Install four bolts.7. Position relief valve group (2). Install bolt (1). Install O-ring seals.End By:a. install oil filter base
