Information timer assy, automa
Rating:

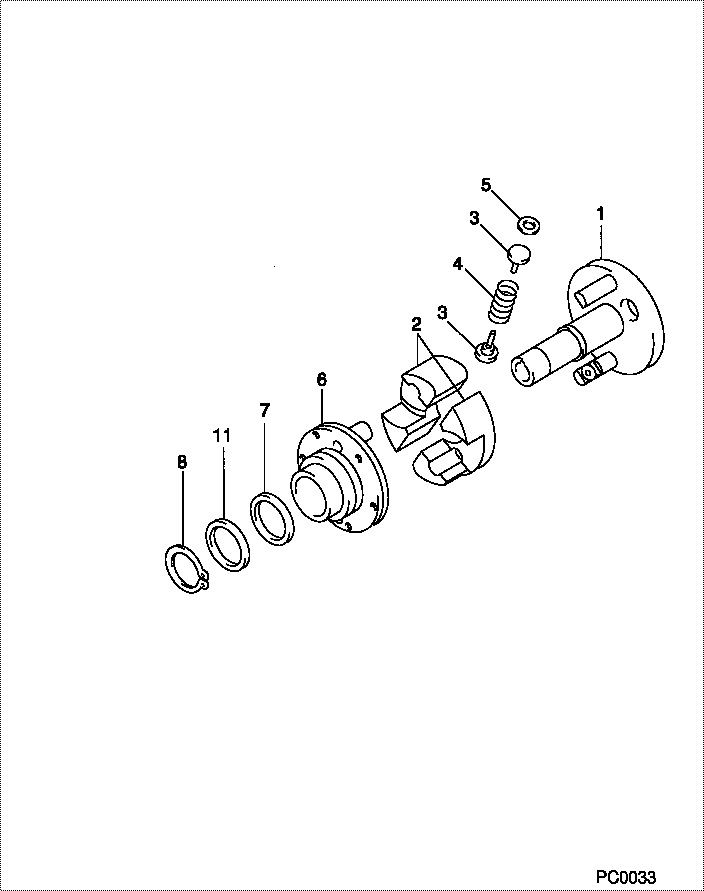

Scheme ###:
| 000. | [01] | 09180-00740 | TIMER ASSY, AUTOMA | ME023723 |
| 001. | [01] | 09181-00740 | HUB ASSY, TIMER | |
| 002. | [02] | 09183-60023 | WEIGHT SUB-ASSY, T | ME703610 |
| 003. | [04] | 09181-70051 | SEAT | ME703592 |
| 004. | [02] | 09181-90600 | SPRING, TIMER | 09181-90600 |
| 005. | [2C] | 94901-31990 | WASHER, PLATE, SK | ME023380 |
| 005. | [2C] | 94901-31980 | WASHER, PLATE, SK | ME023379 |
| 005. | [2C] | 94901-31970 | WASHER, PLATE, SK | ME702867 |
| 005. | [2C] | 94901-31960 | WASHER, PLATE, SK | ME702866 |
| 005. | [2C] | 94901-31480 | WASHER, PLATE, SK | ME702215 |
| 006. | [01] | 09184-00141 | FLANGE, TIMER DRIV | ME022269 |
| 007. | [01] | 94901-32770 | WASHER, PLATE, SK | ME702216 |
| 008. | [01] | 90557-28000 | RING, SHAFT SNAP | ME702214 |
| 011. | [1C] | 94901-32760 | WASHER, PLATE, SK | ME022266 |
| 011. | [1C] | 94901-32950 | WASHER, PLATE, SK | ME022268 |
Include in #3:
09000-07024
as TIMER ASSY, AUTOMA
09180-00740
Cross reference number
| Part num | Firm num | Firm | Name |
| 09180-00740 | ME023723 | TIMER ASSY, AUTOMA | |
| ME023723 | MITSUBISHI | TIMER ASSY, AUTOMA |
Information:
} } @media print { div.divFooter { position: fixed; bottom: 0; right: 0; } } Caterpillar: Confidential Yellow
PARTS STOCK ACTION ONLY - INJECTION PUMP GROUPS FOR USE IN D346 AND D348 ENGINES NEED TO BE REMOVED FROM PARTS STOCK - PI7 257 - MAILED US AND CANADA, CACO, COFA, BRAZIL, CFEL, COSA
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-236 A-165 AU-148 B-46 E-142 O-182 PARTS STOCK ACTION ONLY 1251 PI7257 Termination Date
February 28, 1991
Problem
Some 3S1467 Pump Groups-Fuel Injection in dealer parts stock may not have the correct internal metal seal. Pump groups assembled without the correct seal may leak when the pump is installed and pressure is applied to the seal joint. It is not possible to leak test the pump before installation on the engine.
Action Required
Inspect all 3S1467 Pump Groups-Fuel Injection in parts stock for a date code in the location shown in the illustration. The date code is located on the bottom face (gear end) of the pump body between the part number and the o-ring groove. If no date code exists, remove the pump group from parts stock. Pump groups that have a date code in this location have the correct seal and should not be removed from parts stock. ****** IMAGE: SEBE4456.00001.001 CAPTION:
Service Claim Allowances
Submit one claim for all 3S1467 Pump Groups-Fuel Injection removed from parts stock.
Parts Disposition
***** U.S. and Canadian Dealers ***** Return all 3S1467 Pump Groups-Fuel Injection
PARTS STOCK ACTION ONLY - INJECTION PUMP GROUPS FOR USE IN D346 AND D348 ENGINES NEED TO BE REMOVED FROM PARTS STOCK - PI7 257 - MAILED US AND CANADA, CACO, COFA, BRAZIL, CFEL, COSA
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-236 A-165 AU-148 B-46 E-142 O-182 PARTS STOCK ACTION ONLY 1251 PI7257 Termination Date
February 28, 1991
Problem
Some 3S1467 Pump Groups-Fuel Injection in dealer parts stock may not have the correct internal metal seal. Pump groups assembled without the correct seal may leak when the pump is installed and pressure is applied to the seal joint. It is not possible to leak test the pump before installation on the engine.
Action Required
Inspect all 3S1467 Pump Groups-Fuel Injection in parts stock for a date code in the location shown in the illustration. The date code is located on the bottom face (gear end) of the pump body between the part number and the o-ring groove. If no date code exists, remove the pump group from parts stock. Pump groups that have a date code in this location have the correct seal and should not be removed from parts stock. ****** IMAGE: SEBE4456.00001.001 CAPTION:
Service Claim Allowances
Submit one claim for all 3S1467 Pump Groups-Fuel Injection removed from parts stock.
Parts Disposition
***** U.S. and Canadian Dealers ***** Return all 3S1467 Pump Groups-Fuel Injection
