09130-07710 GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR ASSY, MEC 09130-07710 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec	1908900720
Governor assy, mec	1908900720

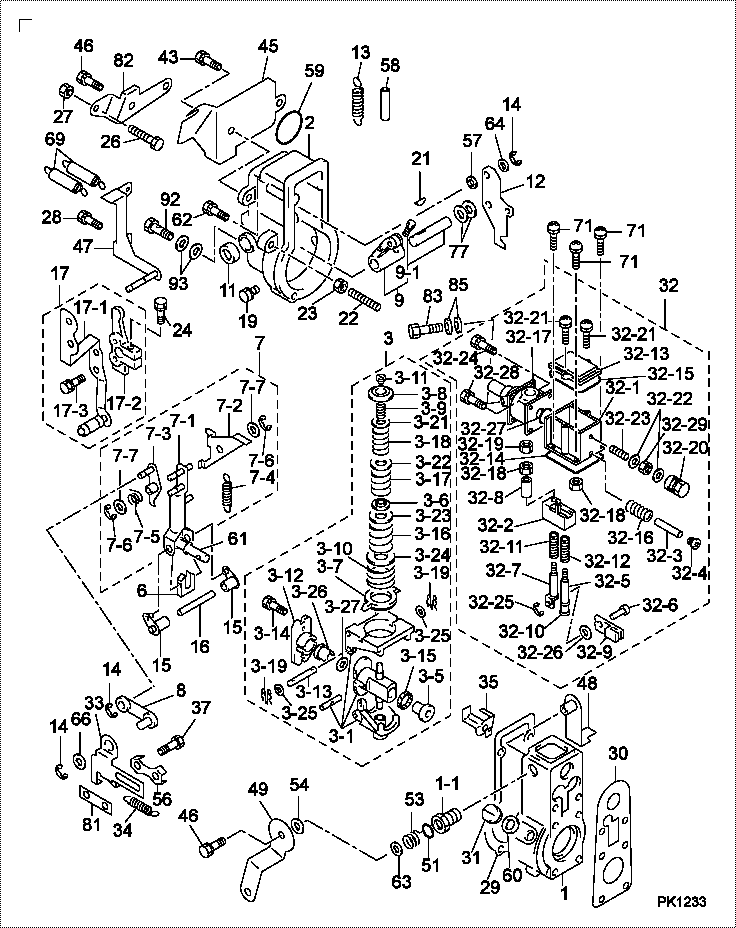

Scheme ###:

000.	[01]	09130-07710	GOVERNOR ASSY, MEC	S2231-07270-A
001.	[01]	09131-00320	HOUSING SUB-ASSY,	S2230-11840-A
001-001.	[01]	09101-60020	BUSHING, BEARING	S2232-21180-A
002.	[01]	09145-00970	COVER ASSY, GOVERN	S2238-02410-A
003.	[01]	09133-01741	FLYWEIGHT ASSY	S2236-02270-A
003-001.	[01]	09137-00101	FLYWEIGHT SUB-ASSY	S2230-41780-A
003-005.	[01]	09134-00081	BUSHING ASSY, CAMS	S2232-22380-A
003-006.	[02]	09137-70371	SEAT, GOVERNOR SPR	S2235-11920-A
003-007.	[02]	09136-30050	SEAT, GOVERNOR SPR	S2235-11810-A
003-008.	[02]	09139-30100	GUIDE, SPRING	S2238-52440-A
003-009.	[02]	09091-81710	SPRING, MECHANICAL	S2234-12160-A
003-010.	[02]	09138-91171	SPRING, IDLING	S2241-21280-A
003-011.	[02]	09139-50050	NUT, ADJUSTING	S2282-52310-A
003-012.	[01]	09140-50090	BUSHING, GUIDE	S2232-22230-A
003-013.	[01]	09140-10061	BOLT, BELLCRANK	S2281-53600-A
003-014.	[02]	94904-78260	BOLT, W/WASHER	S2281-53410-A
003-015.	[06]	09133-70100	DAMPER, FLYWEIGHT	S2238-51900-A
003-016.	[02]	09138-91230	SPRING, IDLING	S2241-12730-A
003-017.	[02]	09139-10630	SPRING, SPEED CONT	S2232-13580-A
003-018.	[02]	09139-10571	SPRING, SPEED CONT	S2232-14360-A
003-019.	[02]	09089-40101	E-RING	S2245-61260-A
003-021.	[6C]	09140-30650	WASHER, LOCK	S2286-32120-A
003-021.	[6C]	09140-30640	WASHER, LOCK	S2286-32110-A
003-021.	[6C]	09140-30570	WASHER, LOCK	S2286-32100-A
003-021.	[6C]	09140-30560	WASHER, LOCK	S2286-32090-A
003-022.	[6C]	09140-30600	WASHER, LOCK	S2286-32050-A
003-022.	[6C]	09140-30610	WASHER, LOCK	S2286-32060-A
003-022.	[6C]	09140-30680	WASHER, LOCK	S2286-32070-A
003-022.	[6C]	09140-30690	WASHER, LOCK	S2286-32080-A
003-023.	[6C]	09140-30630	WASHER, LOCK	S2286-32040-A
003-023.	[6C]	09140-30620	WASHER, LOCK	S2286-32030-A
003-023.	[6C]	09140-30550	WASHER, LOCK	S2286-32020-A
003-023.	[6C]	09140-30540	WASHER, LOCK	S2286-32010-A
003-024.	[6C]	09140-30670	WASHER, LOCK	S2286-32000-A
003-024.	[6C]	09140-30660	WASHER, LOCK	S2286-31990-A
003-024.	[6C]	09140-30590	WASHER, LOCK	S2286-31980-A
003-024.	[6C]	09140-30580	WASHER, LOCK	S2286-31970-A
003-025.	[02]	09140-30800	WASHER, LOCK	S2286-32450-A
003-026.	[01]	09133-40100	NUT, ROUND	S2253-51120-A
003-027.	[1C]	09133-10200	SHIM	S2288-52540-A
003-027.	[1C]	09133-10210	SHIM	S2288-52550-A
003-027.	[1C]	09133-10220	SHIM	S2288-52560-A
003-027.	[1C]	09133-10230	SHIM	S2288-55950-A
003-027.	[1C]	09133-10240	SHIM	S2288-55960-A
003-027.	[1C]	09133-10250	SHIM	S2288-55970-A
003-027.	[1C]	09133-10190	SHIM	S2288-52530-A
003-027.	[1C]	09133-10180	SHIM	S2288-52520-A
003-027.	[1C]	09133-10170	SHIM	S2288-52510-A
003-027.	[1C]	09133-10110	SHIM	S2288-52450-A
003-027.	[1C]	09133-10120	SHIM	S2288-52460-A
003-027.	[1C]	09133-10130	SHIM	S2288-52470-A
003-027.	[1C]	09133-10140	SHIM	S2288-52480-A
003-027.	[1C]	09133-10150	SHIM	S2288-52490-A
003-027.	[1C]	09133-10160	SHIM	S2288-52500-A
006.	[01]	09142-60081	SLIDER	S2234-91131-A
007.	[01]	09143-00161	LEVER ASSY, FLOATI	S2204-11440-A
007-001.	[01]	09143-60300	LEVER SUB-ASSY, FL	S2204-11450-A
007-002.	[01]	09169-50041	STOPPER SUB-ASSY,	S2235-71091-A
007-003.	[01]	09094-00630	LEVER SUB-ASSY, CO	S2235-02530-A
007-004.	[01]	09104-22070	SPRING, RETURN	S2234-15100-A
007-005.	[01]	09104-22050	SPRING, RETURN	S2234-15110-A
007-006.	[02]	09089-40020	E-RING	S2287-31390-A
007-007.	[ C]	94901-31390	WASHER, PLATE, SK	S2288-51920-A
007-007.	[ C]	94901-32370	WASHER, PLATE, SK	S2288-51930-A
007-007.	[ C]	94901-33960	WASHER, PLATE, SK	S2288-51030-A
007-007.	[ C]	94901-35080	WASHER, PLATE, SK	S2288-51270-A
007-007.	[ C]	94901-35090	WASHER, PLATE, SK	S2288-51280-A
008.	[01]	09098-00341	SHACKLE SUB-ASSY	S2204-51110-A
009.	[01]	09148-00380	ARM ASSY, GUIDE	S2230-72580-A
009-001.	[01]	19089-00790	OVER-HAUL KIT, GOV	S2230-72720-A
011.	[01]	94915-02522	SEAL, OIL	S2282-71530-A
012.	[01]	09101-70420	PLATE, CAM	S2236-93940-A
013.	[01]	09104-20600	SPRING, RETURN	S2234-11710-A
014.	[03]	09089-40020	E-RING	S2287-31390-A
015.	[02]	09156-00021	LEVER SUB-ASSY, SU	S2235-02340-A
016.	[01]	09156-30050	SHAFT, LEVER SUPPO	S2235-81410-A
017.	[01]	09129-01361	LEVER SET	S2235-02510-A
017-001.	[01]	09129-10581	LEVER SET	S2231-92520-A
017-002.	[01]	09107-14500	LEVER, ADJUSTING	S2241-52180-A
017-003.	[02]	91418-06161	BOLT, W/WASHER	S2281-51380-A
019.	[02]	09116-70110	PLUG, SCREW	S2284-51250-A
021.	[01]	94913-00030	KEY, WOODRUFF	S2289-11060-A
022.	[01]	09082-10254	STOPPER	S2286-51320-A
023.	[01]	09116-90024	NUT	S2282-51890-A
024.	[01]	91418-06201	BOLT, W/WASHER	S2281-51290-A
026.	[01]	94904-07220	BOLT, HEXAGON	S2281-52950-A
027.	[01]	90160-06051	NUT, HEXAGON	S2282-51480-A
028.	[02]	94904-71760	BOLT, W/WASHER	S2281-51860-A
029.	[01]	09151-70130	GASKET, COVER	S2284-72620-A
030.	[01]	09011-90160	GASKET, PUMP BODY	S2284-72510-A
031.	[01]	09154-30040	PLUG, SCREW	S2284-51490-A
032.	[01]	09169-04160	HOUSING SUB-ASSY,
032-001.	[01]	09169-10051	HOUSING, FULL LOAD	S2237-02240-A
032-002.	[01]	09148-70231	BLOCK, SLIDING	S2243-41111-A
032-003.	[01]	09156-30060	SHAFT, LEVER SUPPO	S2233-81090-A
032-004.	[01]	09031-70270	PLUG, SCREW	S2284-51480-A
032-005.	[01]	09091-90321	ADAPTER	2 242 2780 31
032-006.	[01]	09098-30300	PIN, CONNECTING	S2245-51230-A
032-007.	[01]	09091-90740	ADAPTER	S2232-22520-A
032-008.	[01]	09083-50140	COLLAR	S2233-21980-A
032-009.	[01]	09152-13890	CAM, FULL STOP
032-010.	[01]	09095-30181	BUSHING	S2232-21701-A
032-011.	[01]	09091-82890	SPRING, MECHANICAL	S2232-13930-A
032-012.	[01]	09091-82880	SPRING, MECHANICAL	S2232-13940-A
032-013.	[01]	09105-10651	PLATE, COVER	22371-1240A
032-014.	[01]	09169-40230	GASKET	S2284-72690-A
032-015.	[01]	09169-40220	GASKET	S2284-72590-A
032-016.	[01]	09091-82110	SPRING, MECHANICAL	S2241-11800-A
032-017.	[01]	19260-01830	COMPENSATOR SUB-AS
032-018.	[02]	90160-06051	NUT, HEXAGON	S2282-51480-A
032-019.	[01]	90170-06361	NUT, HEXAGON	SL120-00604
032-020.	[01]	09103-10220	NUT, CAP	S2234-21650-A
032-021.	[02]	94904-81460	BOLT, WASHER HEAD	S2281-53490-A
032-022.	[02]	09024-80010	WASHER, DRAIN SCRE	S2284-71730-A
032-023.	[01]	09152-40390	SCREW, STOPPER	S2239-51480-A
032-024.	[03]	91418-06161	BOLT, W/WASHER	S2281-51380-A
032-025.	[01]	09089-40020	E-RING	S2287-31390-A
032-026.	[1C]	94901-36730	WASHER, PLATE, SK
032-026.	[1C]	94901-35030	WASHER, PLATE, SK	S2288-51450-A
032-026.	[1C]	94901-35020	WASHER, PLATE, SK	S2288-51440-A
032-026.	[1C]	94901-32370	WASHER, PLATE, SK	S2288-51930-A
032-027.	[01]	90801-20260	O-RING	S2284-72140-A
032-028.	[01]	94904-74620	BOLT, W/WASHER	S2281-52920-A
032-029.	[01]	09116-90080	NUT	S2282-12820-A
033.	[01]	09115-90670	ARM SUB-ASSY	S2230-72650-A
034.	[01]	09104-20590	SPRING, RETURN	S2234-11700-A
035.	[01]	09087-80280	PLATE	S2234-35550-A
037.	[02]	09057-30160	BOLT, DIAPHRAGM CO	S2281-52990-A
040.	[01]	09133-40100	NUT, ROUND	S2253-51120-A
043.	[02]	91418-06161	BOLT, W/WASHER	S2281-51380-A
045.	[01]	09105-11220	PLATE, COVER	S2238-62040-A
046.	[03]	91418-06141	BOLT, W/WASHER	S2281-51480-A
047.	[01]	09069-70100	BRACKET SUB-ASSY,	S2234-35530-A
048.	[01]	09115-90660	ARM SUB-ASSY	S2230-72660-A
049.	[01]	09109-82810	STOPPER	S2230-72661-A
051.	[01]	94914-00130	O-RING	S2281-71440-A
053.	[01]	09104-21000	SPRING, RETURN	S2234-15120-A
054.	[01]	94901-32220	WASHER, PLATE, SK	S2288-55220-A
056.	[01]	09140-30460	WASHER, LOCK	S2287-71990-A
057.	[01]	09140-30420	WASHER, LOCK	S2287-71880-A
058.	[01]	94933-06540	TUBE, RUBBER	S2238-51800-A
059.	[01]	94914-02190	O-RING	S2284-71540-A
060.	[01]	09169-40160	GASKET	S2284-72400-A
061.	[1C]	09141-10320	SHAFT, SLIDING WEI	S2231-81250-A
061.	[1C]	09141-10450	SHAFT, SLIDING WEI	S2231-81450-A
061.	[1C]	09141-10380	SHAFT, SLIDING WEI	S2231-81310-A
061.	[1C]	09141-10370	SHAFT, SLIDING WEI	S2231-81300-A
061.	[1C]	09141-10360	SHAFT, SLIDING WEI	S2231-81290-A
061.	[1C]	09141-10350	SHAFT, SLIDING WEI	S2231-81280-A
061.	[1C]	09141-10340	SHAFT, SLIDING WEI	S2231-81270-A
061.	[1C]	09141-10330	SHAFT, SLIDING WEI	S2231-81260-A
062.	[05]	91418-06351	BOLT, W/WASHER	S2281-51920-A
063.	[1C]	94901-31980	WASHER, PLATE, SK	S2288-53450-A
063.	[1C]	94901-31970	WASHER, PLATE, SK	S2288-53440-A
063.	[1C]	94901-31960	WASHER, PLATE, SK	S2288-53430-A
064.	[1C]	09140-30300	WASHER, LOCK	S2287-71360-A
064.	[1C]	09140-30310	WASHER, LOCK	S2287-71370-A
064.	[1C]	09140-30320	WASHER, LOCK	S2287-71380-A
064.	[1C]	09140-30330	WASHER, LOCK	S2287-71390-A
066.	[01]	94901-16220	WASHER, STEEL PLAT	S2287-71320-A
069.	[02]	09104-10820	SPRING SUB-ASSY, R	S2234-13290-A
071.	[04]	94904-81460	BOLT, WASHER HEAD	S2281-53490-A
077.	[2C]	09140-30290	WASHER, LOCK	S2287-71460-A
077.	[2C]	09140-30280	WASHER, LOCK	S2287-71450-A
077.	[2C]	09140-30270	WASHER, LOCK	S2287-71440-A
077.	[2C]	09140-30260	WASHER, LOCK	S2287-71430-A
077.	[2C]	09140-30250	WASHER, LOCK	S2287-71420-A
077.	[2C]	09140-30240	WASHER, LOCK	S2287-71410-A
077.	[2C]	09140-30230	WASHER, LOCK	S2287-71400-A
081.	[01]	09072-10150	PLATE	S2234-33180-A
082.	[01]	09069-12190	BRACKET, STOP WIRE	S2234-37340-A
083.	[01]	94918-00060	SCREW, HOLLOW	S2283-51110-A
085.	[02]	94901-02470	WASHER	S2284-71900-A
092.	[01]	94918-00050	SCREW, HOLLOW	S2283-51280-A
093.	[02]	94901-02480	WASHER	S2284-71940-A

Include in #3:

09130-07710 as GOVERNOR ASSY, MEC

09200-05560

Cross reference number

Part num	Firm num	Firm	Name
09130-07710	S2231-0727		GOVERNOR ASSY, MEC
S2231-07270-A		HINO	GOVERNOR ASSY, MEC
