09130-07620 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09130-07620 GOVERNOR ASSY, MEC
Rating:
9
Buy GOVERNOR ASSY, MEC 09130-07620 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900720
Governor assy, mec 1908900720

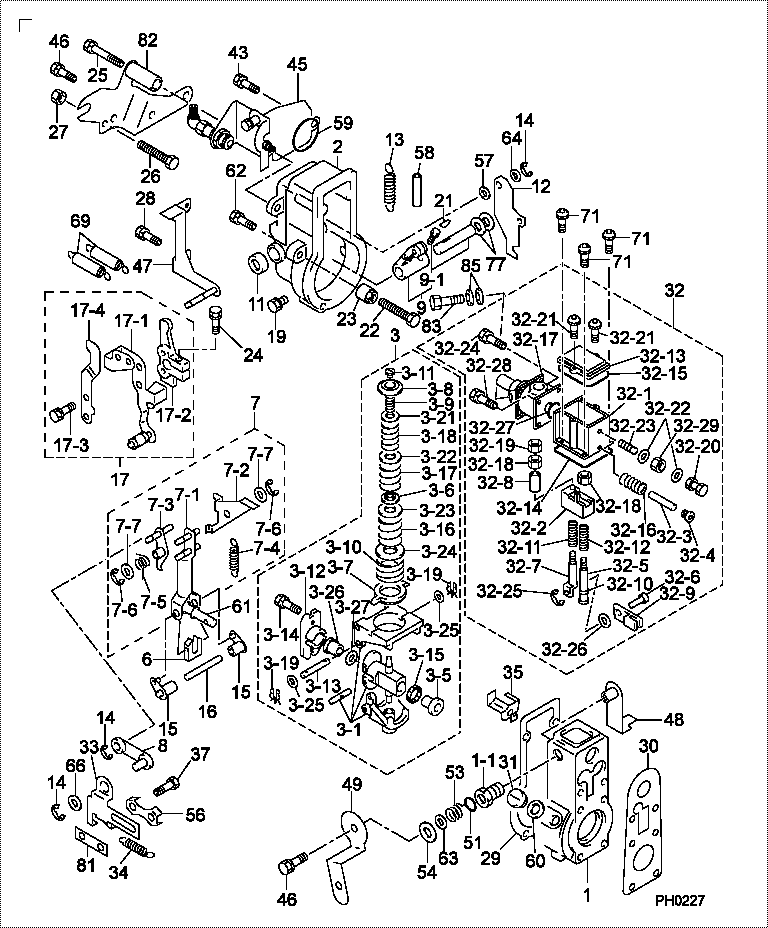

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09130-07620 GOVERNOR ASSY, MEC
001. [01] 09131-00320 HOUSING SUB-ASSY, S2230-11840-A
001-001. [01] 09101-60020 BUSHING, BEARING S2232-21180-A
002. [01] 09145-00950 COVER ASSY, GOVERN S2238-02390-A
003. [01] 09133-01920 FLYWEIGHT ASSY S2236-02260-A
003-001. [01] 09137-00101 FLYWEIGHT SUB-ASSY S2230-41780-A
003-005. [01] 09134-00081 BUSHING ASSY, CAMS S2232-22380-A
003-006. [02] 09137-70371 SEAT, GOVERNOR SPR S2235-11920-A
003-007. [02] 09136-30050 SEAT, GOVERNOR SPR S2235-11810-A
003-008. [02] 09139-30100 GUIDE, SPRING S2238-52440-A
003-009. [02] 09091-81710 SPRING, MECHANICAL S2234-12160-A
003-010. [02] 09138-91280 SPRING, IDLING S2241-12660-A
003-011. [02] 09139-50050 NUT, ADJUSTING S2282-52310-A
003-012. [01] 09140-50090 BUSHING, GUIDE S2232-22230-A
003-013. [01] 09140-10061 BOLT, BELLCRANK S2281-53600-A
003-014. [02] 94904-78260 BOLT, W/WASHER S2281-53410-A
003-015. [06] 09133-70100 DAMPER, FLYWEIGHT S2238-51900-A
003-016. [02] 09138-91290 SPRING, IDLING S2241-12670-A
003-017. [02] 09139-10620 SPRING, SPEED CONT S2232-13920-A
003-018. [02] 09139-10571 SPRING, SPEED CONT S2232-14360-A
003-019. [02] 09089-40101 E-RING S2245-61260-A
003-021. [6C] 09140-30650 WASHER, LOCK S2286-32120-A
003-021. [6C] 09140-30640 WASHER, LOCK S2286-32110-A
003-021. [6C] 09140-30570 WASHER, LOCK S2286-32100-A
003-021. [6C] 09140-30560 WASHER, LOCK S2286-32090-A
003-022. [6C] 09140-30600 WASHER, LOCK S2286-32050-A
003-022. [6C] 09140-30610 WASHER, LOCK S2286-32060-A
003-022. [6C] 09140-30680 WASHER, LOCK S2286-32070-A
003-022. [6C] 09140-30690 WASHER, LOCK S2286-32080-A
003-023. [6C] 09140-30630 WASHER, LOCK S2286-32040-A
003-023. [6C] 09140-30620 WASHER, LOCK S2286-32030-A
003-023. [6C] 09140-30550 WASHER, LOCK S2286-32020-A
003-023. [6C] 09140-30540 WASHER, LOCK S2286-32010-A
003-024. [6C] 09140-30670 WASHER, LOCK S2286-32000-A
003-024. [6C] 09140-30660 WASHER, LOCK S2286-31990-A
003-024. [6C] 09140-30590 WASHER, LOCK S2286-31980-A
003-024. [6C] 09140-30580 WASHER, LOCK S2286-31970-A
003-025. [02] 09140-30800 WASHER, LOCK S2286-32450-A
003-026. [01] 09133-40100 NUT, ROUND S2253-51120-A
003-027. [1C] 09133-10200 SHIM S2288-52540-A
003-027. [1C] 09133-10210 SHIM S2288-52550-A
003-027. [1C] 09133-10220 SHIM S2288-52560-A
003-027. [1C] 09133-10230 SHIM S2288-55950-A
003-027. [1C] 09133-10240 SHIM S2288-55960-A
003-027. [1C] 09133-10250 SHIM S2288-55970-A
003-027. [1C] 09133-10190 SHIM S2288-52530-A
003-027. [1C] 09133-10180 SHIM S2288-52520-A
003-027. [1C] 09133-10170 SHIM S2288-52510-A
003-027. [1C] 09133-10110 SHIM S2288-52450-A
003-027. [1C] 09133-10120 SHIM S2288-52460-A
003-027. [1C] 09133-10130 SHIM S2288-52470-A
003-027. [1C] 09133-10140 SHIM S2288-52480-A
003-027. [1C] 09133-10150 SHIM S2288-52490-A
003-027. [1C] 09133-10160 SHIM S2288-52500-A
006. [01] 09142-60081 SLIDER S2234-91131-A
007. [01] 09143-00161 LEVER ASSY, FLOATI S2204-11440-A
007-001. [01] 09143-60300 LEVER SUB-ASSY, FL S2204-11450-A
007-002. [01] 09169-50041 STOPPER SUB-ASSY, S2235-71091-A
007-003. [01] 09094-00630 LEVER SUB-ASSY, CO S2235-02530-A
007-004. [01] 09104-22070 SPRING, RETURN S2234-15100-A
007-005. [01] 09104-22050 SPRING, RETURN S2234-15110-A
007-006. [02] 09089-40020 E-RING S2287-31390-A
007-007. [ C] 94901-31390 WASHER, PLATE, SK S2288-51920-A
007-007. [ C] 94901-32370 WASHER, PLATE, SK S2288-51930-A
007-007. [ C] 94901-33960 WASHER, PLATE, SK S2288-51030-A
007-007. [ C] 94901-35080 WASHER, PLATE, SK S2288-51270-A
007-007. [ C] 94901-35090 WASHER, PLATE, SK S2288-51280-A
008. [01] 09098-00341 SHACKLE SUB-ASSY S2204-51110-A
009. [01] 09148-00380 ARM ASSY, GUIDE S2230-72580-A
009-001. [01] 19089-00790 OVER-HAUL KIT, GOV S2230-72720-A
011. [01] 94915-02522 SEAL, OIL S2282-71530-A
012. [01] 09101-70420 PLATE, CAM S2236-93940-A
013. [01] 09104-20600 SPRING, RETURN S2234-11710-A
014. [03] 09089-40020 E-RING S2287-31390-A
015. [02] 09156-00021 LEVER SUB-ASSY, SU S2235-02340-A
016. [01] 09156-30050 SHAFT, LEVER SUPPO S2235-81410-A
017. [01] 09129-01460 LEVER SET S2235-02450-A
017-001. [01] 09129-10720 LEVER SET 22319-2490A
017-002. [01] 09107-14500 LEVER, ADJUSTING S2241-52180-A
017-003. [02] 91418-06201 BOLT, W/WASHER S2281-51290-A
017-004. [01] 09107-15960 LEVER, ADJUSTING S2241-52960-A
019. [02] 09116-70110 PLUG, SCREW S2284-51250-A
021. [01] 94913-00030 KEY, WOODRUFF S2289-11060-A
022. [01] 09082-10254 STOPPER S2286-51320-A
023. [01] 09116-90024 NUT S2282-51890-A
024. [01] 91418-06201 BOLT, W/WASHER S2281-51290-A
025. [01] 94904-71750 BOLT, W/WASHER S2281-51490-A
026. [01] 94904-07220 BOLT, HEXAGON S2281-52950-A
027. [01] 90160-06051 NUT, HEXAGON S2282-51480-A
028. [02] 94904-71760 BOLT, W/WASHER S2281-51860-A
029. [01] 09151-70130 GASKET, COVER S2284-72620-A
030. [01] 09011-90160 GASKET, PUMP BODY S2284-72510-A
031. [01] 09154-30040 PLUG, SCREW S2284-51490-A
032. [01] 09169-04090 HOUSING SUB-ASSY,
032-001. [01] 09169-10051 HOUSING, FULL LOAD S2237-02240-A
032-002. [01] 09148-70231 BLOCK, SLIDING S2243-41111-A
032-003. [01] 09156-30060 SHAFT, LEVER SUPPO S2233-81090-A
032-004. [01] 09031-70270 PLUG, SCREW S2284-51480-A
032-005. [01] 09091-90321 ADAPTER 2 242 2780 31
032-006. [01] 09098-30300 PIN, CONNECTING S2245-51230-A
032-007. [01] 09091-90740 ADAPTER S2232-22520-A
032-008. [01] 09083-50140 COLLAR S2233-21980-A
032-009. [01] 09152-13840 CAM, FULL STOP
032-010. [01] 09095-30181 BUSHING S2232-21701-A
032-011. [01] 09091-82890 SPRING, MECHANICAL S2232-13930-A
032-012. [01] 09091-82880 SPRING, MECHANICAL S2232-13940-A
032-013. [01] 09105-10651 PLATE, COVER 22371-1240A
032-014. [01] 09169-40230 GASKET S2284-72690-A
032-015. [01] 09169-40220 GASKET S2284-72590-A
032-016. [01] 09091-82110 SPRING, MECHANICAL S2241-11800-A
032-017. [01] 19260-01780 COMPENSATOR SUB-AS
032-018. [02] 90160-06051 NUT, HEXAGON S2282-51480-A
032-019. [01] 90170-06361 NUT, HEXAGON SL120-00604
032-020. [01] 09103-10220 NUT, CAP S2234-21650-A
032-021. [02] 94904-81460 BOLT, WASHER HEAD S2281-53490-A
032-022. [02] 09024-80010 WASHER, DRAIN SCRE S2284-71730-A
032-023. [01] 09152-40390 SCREW, STOPPER S2239-51480-A
032-024. [03] 91418-06161 BOLT, W/WASHER S2281-51380-A
032-025. [01] 09089-40020 E-RING S2287-31390-A
032-026. [1C] 94901-36730 WASHER, PLATE, SK
032-026. [1C] 94901-35030 WASHER, PLATE, SK S2288-51450-A
032-026. [1C] 94901-35020 WASHER, PLATE, SK S2288-51440-A
032-026. [1C] 94901-32370 WASHER, PLATE, SK S2288-51930-A
032-027. [01] 90801-20260 O-RING S2284-72140-A
032-028. [01] 94904-74620 BOLT, W/WASHER S2281-52920-A
032-029. [01] 09116-90080 NUT S2282-12820-A
033. [01] 09115-90670 ARM SUB-ASSY S2230-72650-A
034. [01] 09104-20590 SPRING, RETURN S2234-11700-A
035. [01] 09087-80280 PLATE S2234-35550-A
037. [02] 09057-30160 BOLT, DIAPHRAGM CO S2281-52990-A
043. [01] 91418-06161 BOLT, W/WASHER S2281-51380-A
045. [01] 09069-70320 BRACKET SUB-ASSY, S2234-37890-A
046. [03] 91418-06141 BOLT, W/WASHER S2281-51480-A
047. [01] 09069-70100 BRACKET SUB-ASSY, S2234-35530-A
048. [01] 09115-90660 ARM SUB-ASSY S2230-72660-A
049. [01] 09109-82591 STOPPER S2239-51930-A
051. [01] 94914-00130 O-RING S2281-71440-A
053. [01] 09104-20690 SPRING, RETURN S2234-11750-A
054. [01] 94901-32220 WASHER, PLATE, SK S2288-55220-A
056. [01] 09140-30460 WASHER, LOCK S2287-71990-A
057. [01] 09140-30420 WASHER, LOCK S2287-71880-A
058. [01] 94933-06540 TUBE, RUBBER S2238-51800-A
059. [01] 94914-02190 O-RING S2284-71540-A
060. [01] 09169-40160 GASKET S2284-72400-A
061. [1C] 09141-10320 SHAFT, SLIDING WEI S2231-81250-A
061. [1C] 09141-10450 SHAFT, SLIDING WEI S2231-81450-A
061. [1C] 09141-10380 SHAFT, SLIDING WEI S2231-81310-A
061. [1C] 09141-10370 SHAFT, SLIDING WEI S2231-81300-A
061. [1C] 09141-10360 SHAFT, SLIDING WEI S2231-81290-A
061. [1C] 09141-10350 SHAFT, SLIDING WEI S2231-81280-A
061. [1C] 09141-10340 SHAFT, SLIDING WEI S2231-81270-A
061. [1C] 09141-10330 SHAFT, SLIDING WEI S2231-81260-A
062. [05] 91418-06351 BOLT, W/WASHER S2281-51920-A
063. [1C] 94901-31980 WASHER, PLATE, SK S2288-53450-A
063. [1C] 94901-31970 WASHER, PLATE, SK S2288-53440-A
063. [1C] 94901-31960 WASHER, PLATE, SK S2288-53430-A
064. [1C] 09140-30300 WASHER, LOCK S2287-71360-A
064. [1C] 09140-30310 WASHER, LOCK S2287-71370-A
064. [1C] 09140-30320 WASHER, LOCK S2287-71380-A
064. [1C] 09140-30330 WASHER, LOCK S2287-71390-A
066. [01] 94901-16220 WASHER, STEEL PLAT S2287-71320-A
069. [02] 09104-11061 SPRING SUB-ASSY, R S2234-14800-A
071. [04] 94904-81460 BOLT, WASHER HEAD S2281-53490-A
077. [2C] 09140-30290 WASHER, LOCK S2287-71460-A
077. [2C] 09140-30280 WASHER, LOCK S2287-71450-A
077. [2C] 09140-30270 WASHER, LOCK S2287-71440-A
077. [2C] 09140-30260 WASHER, LOCK S2287-71430-A
077. [2C] 09140-30250 WASHER, LOCK S2287-71420-A
077. [2C] 09140-30240 WASHER, LOCK S2287-71410-A
077. [2C] 09140-30230 WASHER, LOCK S2287-71400-A
081. [01] 09072-10150 PLATE S2234-33180-A
082. [01] 09069-00780 BRACKET SUB-ASSY, 22343-6760A
083. [01] 94918-00060 SCREW, HOLLOW S2283-51110-A
085. [02] 94901-02470 WASHER S2284-71900-A

Include in #3:

09130-07620 as GOVERNOR ASSY, MEC
09200-05530

Cross reference number



Part num Firm num Firm Name
09130-07620    GOVERNOR ASSY, MEC




Information:

Maintenance Intervals
The Maintenance Schedule requires all previous interval maintenance items to be performed first. For instance, if the PM Level 2 maintenance is being performed, then the PM Level 1 and Daily maintenance items must be completed BEFORE performing the PM Level 2 maintenance.Interval Terminology
Engine components can generally be grouped into speed sensitive and load sensitive categories. Therefore, the maintenance interval for each item listed in the Maintenance Schedule is primarily based on the item and its relationship to either engine speed or load. Speed sensitive items such as water pumps, alternators, air compressors, etc., are not primarily affected by the load on your engine during operation. The load on an engine will not significantly accelerate the repair or replacement cycle for speed sensitive items. Therefore, the maintenance intervals established for speed sensitive items are based on time and service hour intervals. Load sensitive items are affected by the load on your engine during operation. Generally speaking, the lower the load, the longer the engine life and conversely, the higher the load, the shorter the engine life. A heavy load on an engine will accelerate the repair or replacement cycle for load sensitive items.Load sensitive items are normally internal engine components. The amount of fuel consumed is directly related to the load on your engine. The amount of fuel consumed is a better indicator of when to perform maintenance than time, however Caterpillar recognizes that fuel consumption is difficult to document in some applications. An estimated fuel consumption figure can be used to determine some intervals.Maintenance Options
Rebuild with New Parts - Genuine Caterpillar parts are constantly tested and modified to incorporate the latest design advancements. Caterpillar may rebuild or provide the parts needed for overhauling your engine. Your benefit; long lasting replacement parts at competitive prices. New Components - Replace worn or failing components with new components. Repair Kits - These useful kits may be obtained from Caterpillar. These kits include all the necessary parts and instructions to repair the components in the owner's maintenance shop or at a Caterpillar servicing facility. Repair kits simplify parts ordering, help speed repairs and reduce parts cost. Exchange - This cost-cutting service permits you to exchange worn engine components for quality Caterpillar Remanufactured components on an over-the-counter basis. When you need them, these parts are ready for a substantial savings in both time and money. Caterpillar Factory Remanufactured Components - The latest remanufacturing techniques and procedures are used to restore components to like-new performance capability and to Caterpillar's original functional specifications.Usually Caterpillar Remanufactured Components have a warranty identical to that of a new part. Remanufactured parts may not be available in your area. If there is a component you need, contact Caterpillar to see if it is offered under an Exchange Component Program. The Maintenance Schedules follow in this manual. Ensure that the recommendations are adhered to with emphasis on air cleaner restriction, oil, oil filter, oil sampling, fuel and fuel filter maintenance.

Have questions with 09130-07620?





19080-02390 GOVERNOR ASSY, MEC 09130-07610 09130-07601 09130-07591 09130-07590
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 09130-07620
