09130-07330 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09130-07330 GOVERNOR ASSY, MEC
Rating:
37
Buy GOVERNOR ASSY, MEC 09130-07330 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900720
Governor assy, mec 1908900720

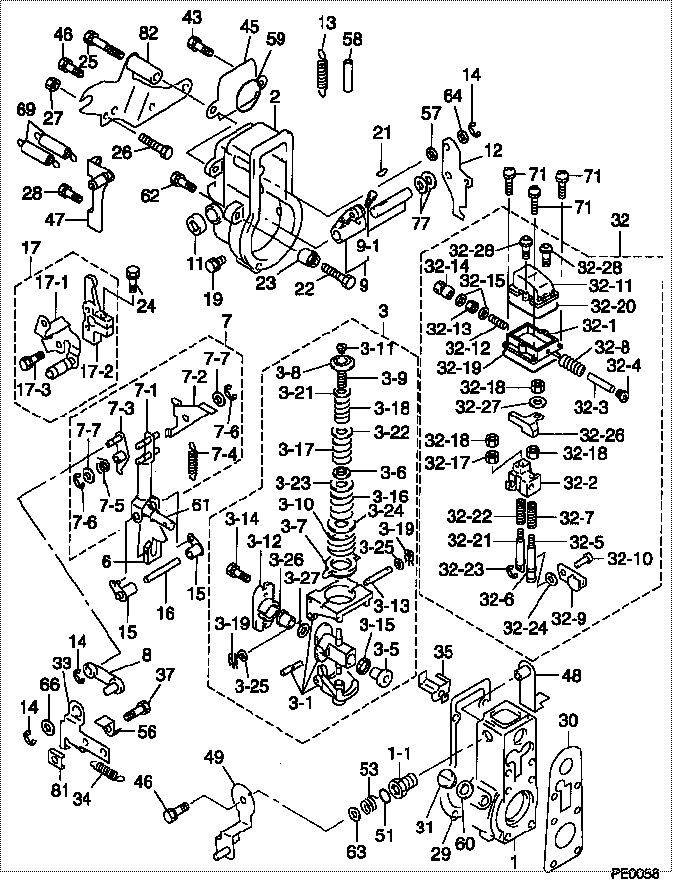

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09130-07330 GOVERNOR ASSY, MEC
001. [01] 09131-00320 HOUSING SUB-ASSY, 22301-1840A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
002. [01] 09145-00950 COVER ASSY, GOVERN 22380-2390A
003. [01] 09133-02140 FLYWEIGHT ASSY
003-001. [01] 09137-00101 FLYWEIGHT SUB-ASSY 22304-1780A
003-005. [01] 09134-00081 BUSHING ASSY, CAMS 22322-2380A
003-006. [02] 09137-70381 SEAT, GOVERNOR SPR 22351-2010A
003-007. [02] 09136-30050 SEAT, GOVERNOR SPR 22351-1810A
003-008. [02] 09139-30111 GUIDE, SPRING 22385-3110A
003-009. [02] 09091-81710 SPRING, MECHANICAL 22341-2160A
003-010. [02] 09138-91280 SPRING, IDLING 22411-2660A
003-011. [02] 09139-50050 NUT, ADJUSTING 22825-2310A
003-012. [01] 09140-50090 BUSHING, GUIDE 22322-2230A
003-013. [01] 09140-10061 BOLT, BELLCRANK 22815-3600A
003-014. [02] 94904-78260 BOLT, W/WASHER 22815-3410A
003-015. [06] 09133-70100 DAMPER, FLYWEIGHT 22385-1900A
003-016. [02] 09138-91090 SPRING, IDLING 22411-2530A
003-017. [02] 09139-10811 SPRING, SPEED CONT 22321-4470A
003-018. [02] 09139-10802 SPRING, SPEED CONT 22321-4390A
003-019. [02] 09089-40101 E-RING 22456-1260A
003-021. [6C] 09140-30650 WASHER, LOCK 22863-2120A
003-021. [6C] 09140-30640 WASHER, LOCK 22863-2110A
003-021. [6C] 09140-30570 WASHER, LOCK 22863-2100A
003-021. [6C] 09140-30560 WASHER, LOCK 22863-2090A
003-022. [6C] 09140-30600 WASHER, LOCK 22863-2050A
003-022. [6C] 09140-30610 WASHER, LOCK 22863-2060A
003-022. [6C] 09140-30680 WASHER, LOCK 22863-2070A
003-022. [6C] 09140-30690 WASHER, LOCK 22863-2080A
003-023. [6C] 09140-30630 WASHER, LOCK 22863-2040A
003-023. [6C] 09140-30620 WASHER, LOCK 22863-2030A
003-023. [6C] 09140-30550 WASHER, LOCK 22863-2020A
003-023. [6C] 09140-30540 WASHER, LOCK 22863-2010A
003-024. [6C] 09140-30670 WASHER, LOCK 22863-2000A
003-024. [6C] 09140-30660 WASHER, LOCK 22863-1990A
003-024. [6C] 09140-30590 WASHER, LOCK 22863-1980A
003-024. [6C] 09140-30580 WASHER, LOCK 22863-1970A
003-025. [02] 09140-30800 WASHER, LOCK 22863-2450A
003-026. [01] 09133-40100 NUT, ROUND 22535-1120A
003-027. [1C] 09133-10200 SHIM 22885-2540A
003-027. [1C] 09133-10210 SHIM 22885-2550A
003-027. [1C] 09133-10220 SHIM 22885-2560A
003-027. [1C] 09133-10230 SHIM 22885-5950A
003-027. [1C] 09133-10240 SHIM 22885-5960A
003-027. [1C] 09133-10250 SHIM 22885-5970A
003-027. [1C] 09133-10190 SHIM 22885-2530A
003-027. [1C] 09133-10180 SHIM 22885-2520A
003-027. [1C] 09133-10170 SHIM 22885-2510A
003-027. [1C] 09133-10160 SHIM 22885-2500A
003-027. [1C] 09133-10150 SHIM 22885-2490A
003-027. [1C] 09133-10140 SHIM 22885-2480A
003-027. [1C] 09133-10130 SHIM 22885-2470A
003-027. [1C] 09133-10120 SHIM 22885-2460A
003-027. [1C] 09133-10110 SHIM 22885-2450A
006. [01] 09142-60081 SLIDER 22349-1131A
007. [01] 09143-00161 LEVER ASSY, FLOATI 22041-1440A
007-001. [01] 09143-60300 LEVER SUB-ASSY, FL 22041-1450A
007-002. [01] 09169-50041 STOPPER SUB-ASSY, 22357-1091A
007-003. [01] 09094-00630 LEVER SUB-ASSY, CO 22350-2530A
007-004. [01] 09104-22070 SPRING, RETURN 22341-5100A
007-005. [01] 09104-22050 SPRING, RETURN 22341-5110A
007-006. [02] 09089-40020 E-RING 22873-1390A
007-007. [ C] 94901-35090 WASHER, PLATE, SK 22885-1280A
007-007. [ C] 94901-35080 WASHER, PLATE, SK 22885-1270A
007-007. [ C] 94901-33960 WASHER, PLATE, SK 22885-1030A
007-007. [ C] 94901-32370 WASHER, PLATE, SK 22885-1930A
007-007. [ C] 94901-31390 WASHER, PLATE, SK 22885-1920A
008. [01] 09098-00341 SHACKLE SUB-ASSY 22045-1110A
009. [01] 09148-00380 ARM ASSY, GUIDE 22307-2580A
009-001. [01] 19089-00790 OVER-HAUL KIT, GOV 22307-2720A
011. [01] 94915-02522 SEAL, OIL 22827-1530A
012. [01] 09101-70410 PLATE, CAM 22369-4130A
013. [01] 09104-20600 SPRING, RETURN 22341-1710A
014. [03] 09089-40020 E-RING 22873-1390A
015. [02] 09156-00021 LEVER SUB-ASSY, SU 22350-2340A
016. [01] 09156-30050 SHAFT, LEVER SUPPO 22358-1410A
017. [01] 09129-01432 LEVER SET 22415-3450A
017-001. [01] 09129-10702 LEVER SET 22415-3220A
017-002. [01] 09107-16040 LEVER, ADJUSTING 22415-3160A
017-003. [02] 91418-06161 BOLT, W/WASHER 22815-1380A
019. [02] 09116-70110 PLUG, SCREW 22845-1250A
021. [01] 94913-00030 KEY, WOODRUFF 22891-1060A
022. [01] 09082-10254 STOPPER 22865-1320A
023. [01] 09116-90024 NUT 22825-1890A
024. [01] 91418-06201 BOLT, W/WASHER 22815-1290A
025. [01] 94904-71750 BOLT, W/WASHER 22815-1490A
026. [01] 94904-03840 BOLT, HEXAGON 22396-1020A
027. [01] 90160-06051 NUT, HEXAGON 22825-1480A
028. [02] 94904-71760 BOLT, W/WASHER 22815-1860A
029. [01] 09151-70130 GASKET, COVER 22847-2620A
030. [01] 09011-90160 GASKET, PUMP BODY 22847-2510A
031. [01] 09154-30040 PLUG, SCREW 22845-1490A
032. [01] 09169-03860 HOUSING SUB-ASSY,
032-001. [01] 09169-10110 HOUSING, FULL LOAD 22371-1130A
032-002. [01] 09148-70270 BLOCK, SLIDING 22434-1140A
032-003. [01] 09156-30040 SHAFT, LEVER SUPPO 22338-1070A
032-004. [01] 09031-70270 PLUG, SCREW 22845-1480A
032-005. [01] 09091-90710 ADAPTER 22385-2970A
032-006. [01] 09095-30181 BUSHING 22322-1701A
032-007. [01] 09091-82880 SPRING, MECHANICAL 22321-3940A
032-008. [01] 09091-82910 SPRING, MECHANICAL 22411-2810A
032-009. [01] 09152-13620 CAM, FULL STOP
032-010. [01] 09098-30300 PIN, CONNECTING 22455-1230A
032-011. [01] 09105-11200 PLATE, COVER 22386-2010A
032-012. [01] 09152-40500 SCREW, STOPPER 22395-2140A
032-013. [01] 09634-20010 NUT, LOCK 22821-1530A
032-014. [01] 09103-10250 NUT, CAP 22342-1820A
032-015. [02] 09024-80010 WASHER, DRAIN SCRE 22847-1730A
032-017. [01] 90160-06051 NUT, HEXAGON 22825-1480A
032-018. [03] 90170-06361 NUT, HEXAGON 92100-6040A
032-019. [01] 09169-40230 GASKET 22847-2690A
032-020. [01] 09169-40220 GASKET 22847-2590A
032-021. [01] 09091-90721 ADAPTER 22385-3120A
032-022. [01] 09091-82890 SPRING, MECHANICAL 22321-3930A
032-023. [01] 09089-40020 E-RING 22873-1390A
032-024. [1C] 94901-35030 WASHER, PLATE, SK 22885-1450A
032-024. [1C] 94901-35020 WASHER, PLATE, SK 22885-1440A
032-024. [1C] 94901-32370 WASHER, PLATE, SK 22885-1930A
032-026. [01] 09103-60121 CUP, SPRING 22414-1360A
032-027. [01] 94901-32120 WASHER, PLATE, SK 22885-7660A
032-028. [02] 94904-81460 BOLT, WASHER HEAD 22815-3490A
033. [01] 09115-90670 ARM SUB-ASSY 22307-2650A
034. [01] 09104-20590 SPRING, RETURN 22341-1700A
035. [01] 09087-80280 PLATE 22343-5550A
037. [02] 09057-30160 BOLT, DIAPHRAGM CO 22815-2990A
043. [01] 91418-06161 BOLT, W/WASHER 22815-1380A
045. [01] 09105-10540 PLATE, COVER 22386-1390A
046. [03] 91418-06141 BOLT, W/WASHER 22815-1480A
047. [01] 09069-70240 BRACKET SUB-ASSY, 22343-7480A
048. [01] 09115-90660 ARM SUB-ASSY 22307-2660A
049. [01] 09109-01700 LEVER SUB-ASSY, ST 22348-4670A
051. [01] 94914-00130 O-RING 22817-1440A
053. [01] 09104-21000 SPRING, RETURN 22341-5120A
056. [01] 09140-30460 WASHER, LOCK 22877-1990A
057. [01] 09140-30420 WASHER, LOCK 22877-1880A
058. [01] 94933-06540 TUBE, RUBBER 22385-1800A
059. [01] 94914-02190 O-RING 22847-1540A
060. [01] 09169-40160 GASKET 22847-2400A
061. [1C] 09141-10320 SHAFT, SLIDING WEI 22318-1250A
061. [1C] 09141-10330 SHAFT, SLIDING WEI 22318-1260A
061. [1C] 09141-10340 SHAFT, SLIDING WEI 22318-1270A
061. [1C] 09141-10350 SHAFT, SLIDING WEI 22318-1280A
061. [1C] 09141-10360 SHAFT, SLIDING WEI 22318-1290A
061. [1C] 09141-10370 SHAFT, SLIDING WEI 22318-1300A
061. [1C] 09141-10380 SHAFT, SLIDING WEI 22318-1310A
061. [1C] 09141-10450 SHAFT, SLIDING WEI 22318-1450A
062. [05] 91418-06351 BOLT, W/WASHER 22815-1920A
063. [1C] 94901-31960 WASHER, PLATE, SK 22885-3430A
063. [1C] 94901-31970 WASHER, PLATE, SK 22885-3440A
063. [1C] 94901-31980 WASHER, PLATE, SK 22885-3450A
064. [1C] 09140-30300 WASHER, LOCK 22877-1360A
064. [1C] 09140-30310 WASHER, LOCK 22877-1370A
064. [1C] 09140-30320 WASHER, LOCK 22877-1380A
064. [1C] 09140-30330 WASHER, LOCK 22877-1390A
066. [01] 94901-16220 WASHER, STEEL PLAT 22877-1320A
069. [02] 09104-11080 SPRING SUB-ASSY, R 22341-4640A
071. [04] 94904-81460 BOLT, WASHER HEAD 22815-3490A
077. [2C] 09140-30230 WASHER, LOCK 22877-1400A
077. [2C] 09140-30240 WASHER, LOCK 22877-1410A
077. [2C] 09140-30250 WASHER, LOCK 22877-1420A
077. [2C] 09140-30260 WASHER, LOCK 22877-1430A
077. [2C] 09140-30270 WASHER, LOCK 22877-1440A
077. [2C] 09140-30280 WASHER, LOCK 22877-1450A
077. [2C] 09140-30290 WASHER, LOCK 22877-1460A
081. [01] 09072-10150 PLATE 22343-3180A
082. [01] 09069-01050 BRACKET SUB-ASSY, 22343-7550A

Include in #3:

09130-07330 as GOVERNOR ASSY, MEC
09200-05180

Cross reference number



Part num Firm num Firm Name
09130-07330    GOVERNOR ASSY, MEC
