09130-07110 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09130-07110 GOVERNOR ASSY, MEC
Rating:
33
Buy GOVERNOR ASSY, MEC 09130-07110 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900271
Governor assy, mec 1908900271

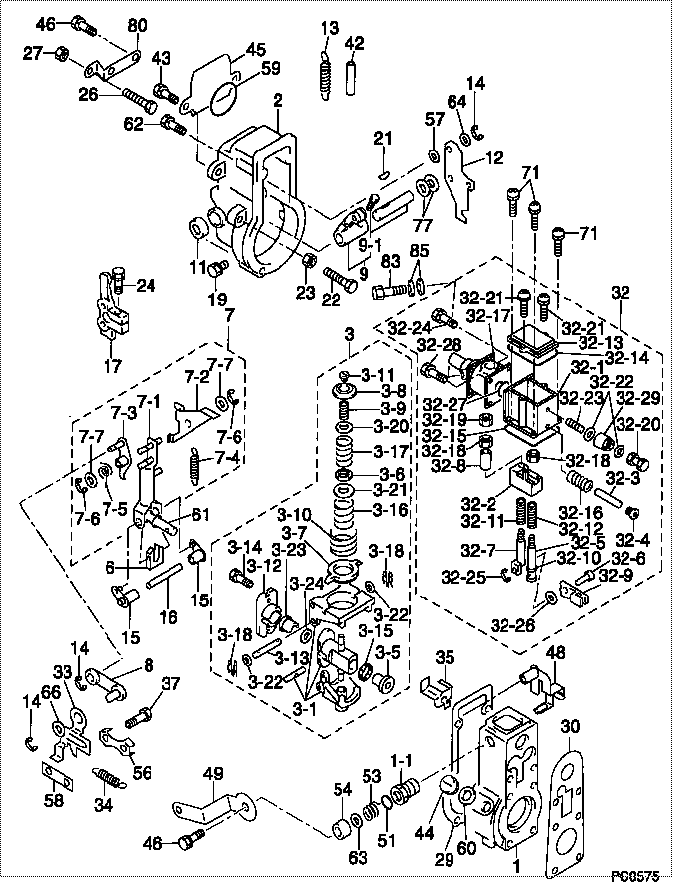

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09130-07110 GOVERNOR ASSY, MEC
001. [01] 09131-00280 HOUSING SUB-ASSY,
001-001. [01] 09101-60020 BUSHING, BEARING
002. [01] 09145-00463 COVER ASSY, GOVERN
003. [01] 09133-02030 FLYWEIGHT ASSY
003-001. [01] 09137-00092 FLYWEIGHT SUB-ASSY
003-005. [01] 09134-00081 BUSHING ASSY, CAMS
003-006. [02] 09137-70343 SEAT, GOVERNOR SPR
003-007. [02] 09136-30010 SEAT, GOVERNOR SPR
003-008. [02] 09139-30091 GUIDE, SPRING
003-009. [02] 09091-81710 SPRING, MECHANICAL
003-010. [02] 09138-90890 SPRING, IDLING
003-011. [02] 09139-50050 NUT, ADJUSTING
003-012. [01] 09140-50071 BUSHING, GUIDE
003-013. [01] 09140-10061 BOLT, BELLCRANK
003-014. [02] 94904-78260 BOLT, W/WASHER
003-015. [06] 09133-70100 DAMPER, FLYWEIGHT
003-016. [02] 09138-90740 SPRING, IDLING
003-017. [02] 09139-10440 SPRING, SPEED CONT
003-019. [02] 09089-40101 E-RING
003-020. [2C] 09140-30190 WASHER, LOCK
003-020. [2C] 09140-30200 WASHER, LOCK
003-020. [2C] 09140-30410 WASHER, LOCK
003-020. [2C] 09140-30700 WASHER, LOCK
003-020. [2C] 09140-30710 WASHER, LOCK
003-021. [2C] 09140-30160 WASHER, LOCK
003-021. [2C] 09140-30170 WASHER, LOCK
003-021. [2C] 09140-30180 WASHER, LOCK
003-021. [2C] 09140-30400 WASHER, LOCK
003-022. [02] 09140-30800 WASHER, LOCK
003-023. [01] 09133-40100 NUT, ROUND
003-024. [1C] 09133-10250 SHIM
003-024. [1C] 09133-10240 SHIM
003-024. [1C] 09133-10230 SHIM
003-024. [1C] 09133-10220 SHIM
003-024. [1C] 09133-10210 SHIM
003-024. [1C] 09133-10200 SHIM
003-024. [1C] 09133-10190 SHIM
003-024. [1C] 09133-10180 SHIM
003-024. [1C] 09133-10170 SHIM
003-024. [1C] 09133-10110 SHIM
003-024. [1C] 09133-10120 SHIM
003-024. [1C] 09133-10130 SHIM
003-024. [1C] 09133-10140 SHIM
003-024. [1C] 09133-10150 SHIM
003-024. [1C] 09133-10160 SHIM
006. [01] 09142-60081 SLIDER
007. [01] 09143-00110 LEVER ASSY, FLOATI
007-001. [01] 09143-60212 LEVER SUB-ASSY, FL
007-002. [01] 09169-50041 STOPPER SUB-ASSY,
007-003. [01] 09094-00410 LEVER SUB-ASSY, CO
007-004. [01] 09104-20580 SPRING, RETURN
007-005. [01] 09104-20610 SPRING, RETURN
007-006. [02] 09089-40020 E-RING
007-007. [1C] 94901-35080 WASHER, PLATE, SK
007-007. [1C] 94901-35090 WASHER, PLATE, SK
007-007. [1C] 94901-33960 WASHER, PLATE, SK
007-007. [1C] 94901-32370 WASHER, PLATE, SK
007-007. [1C] 94901-31390 WASHER, PLATE, SK
008. [01] 09098-00341 SHACKLE SUB-ASSY
009. [01] 09148-00060 ARM ASSY, GUIDE
009-001. [01] 19089-00820 OVER-HAUL KIT, GOV
011. [01] 94915-02522 SEAL, OIL
012. [01] 09101-70051 PLATE, CAM
013. [01] 09104-20600 SPRING, RETURN
014. [03] 09089-40020 E-RING
015. [02] 09156-00021 LEVER SUB-ASSY, SU
016. [01] 09156-30050 SHAFT, LEVER SUPPO
017. [01] 09107-14500 LEVER, ADJUSTING
019. [02] 09116-70110 PLUG, SCREW
021. [01] 94913-00030 KEY, WOODRUFF
022. [01] 09082-10310 STOPPER
023. [01] 09116-90024 NUT
024. [01] 91418-06201 BOLT, W/WASHER
026. [01] 94904-07220 BOLT, HEXAGON
027. [01] 90160-06051 NUT, HEXAGON
029. [01] 09151-70090 GASKET, COVER
030. [01] 09011-90160 GASKET, PUMP BODY
032. [01] 09169-03690 HOUSING SUB-ASSY,
032-001. [01] 09169-10051 HOUSING, FULL LOAD
032-002. [01] 09148-70051 BLOCK, SLIDING
032-003. [01] 09156-30060 SHAFT, LEVER SUPPO
032-004. [01] 09031-70270 PLUG, SCREW
032-005. [01] 09091-90321 ADAPTER
032-006. [01] 09098-30300 PIN, CONNECTING
032-007. [01] 09091-90421 ADAPTER
032-008. [01] 09083-50050 COLLAR
032-009. [01] 09152-13460 CAM, FULL STOP
032-010. [01] 09095-30181 BUSHING
032-011. [01] 09091-82050 SPRING, MECHANICAL
032-012. [01] 09091-81630 SPRING, MECHANICAL
032-013. [01] 09105-10651 PLATE, COVER
032-014. [01] 09169-40230 GASKET
032-015. [01] 09169-40220 GASKET
032-016. [01] 09091-82110 SPRING, MECHANICAL
032-017. [01] 19260-01470 COMPENSATOR SUB-AS
032-018. [02] 90160-06051 NUT, HEXAGON
032-019. [01] 90170-06361 NUT, HEXAGON
032-020. [01] 09003-20180 CAP
032-021. [02] 94904-81460 BOLT, WASHER HEAD
032-022. [02] 09024-80010 WASHER, DRAIN SCRE
032-023. [01] 09152-40320 SCREW, STOPPER
032-024. [03] 91418-06161 BOLT, W/WASHER
032-025. [01] 09089-40020 E-RING
032-026. [1C] 94901-35020 WASHER, PLATE, SK
032-026. [1C] 94901-32370 WASHER, PLATE, SK
032-026. [1C] 94901-35030 WASHER, PLATE, SK
032-027. [01] 90801-20260 O-RING
032-028. [01] 94904-74620 BOLT, W/WASHER
032-029. [01] 09634-20010 NUT, LOCK
033. [01] 09115-90700 ARM SUB-ASSY
034. [01] 09104-20590 SPRING, RETURN
035. [01] 09087-80300 PLATE
037. [02] 09057-30160 BOLT, DIAPHRAGM CO
042. [01] 94933-06540 TUBE, RUBBER
043. [02] 91418-06161 BOLT, W/WASHER
044. [01] 09154-30031 PLUG, SCREW
045. [01] 09105-10540 PLATE, COVER
046. [03] 91418-06141 BOLT, W/WASHER
048. [01] 09115-90710 ARM SUB-ASSY
049. [01] 09109-82910 STOPPER
051. [01] 94914-00130 O-RING
053. [01] 09104-20690 SPRING, RETURN
056. [01] 09140-30460 WASHER, LOCK
057. [01] 09140-30420 WASHER, LOCK
058. [01] 09072-10150 PLATE
059. [01] 94914-02190 O-RING
060. [01] 09169-40170 GASKET
061. [1C] 09141-10400 SHAFT, SLIDING WEI
061. [1C] 09141-10410 SHAFT, SLIDING WEI
061. [1C] 09141-10420 SHAFT, SLIDING WEI
061. [1C] 09141-10430 SHAFT, SLIDING WEI
061. [1C] 09141-10440 SHAFT, SLIDING WEI
061. [1C] 09141-10460 SHAFT, SLIDING WEI
061. [1C] 09141-10390 SHAFT, SLIDING WEI
061. [1C] 09141-10240 SHAFT, SLIDING WEI
061. [1C] 09141-10230 SHAFT, SLIDING WEI
061. [1C] 09141-10220 SHAFT, SLIDING WEI
061. [1C] 09141-10210 SHAFT, SLIDING WEI
061. [1C] 09141-10200 SHAFT, SLIDING WEI
061. [1C] 09141-10190 SHAFT, SLIDING WEI
061. [1C] 09141-10180 SHAFT, SLIDING WEI
061. [1C] 09141-10470 SHAFT, SLIDING WEI
062. [06] 91418-06351 BOLT, W/WASHER
063. [1C] 94901-31960 WASHER, PLATE, SK
063. [1C] 94901-31970 WASHER, PLATE, SK
063. [1C] 94901-31980 WASHER, PLATE, SK
064. [1C] 09140-30330 WASHER, LOCK
064. [1C] 09140-30320 WASHER, LOCK
064. [1C] 09140-30310 WASHER, LOCK
064. [1C] 09140-30300 WASHER, LOCK
066. [01] 94901-16220 WASHER, STEEL PLAT
071. [04] 94904-81460 BOLT, WASHER HEAD
077. [2C] 09140-30290 WASHER, LOCK
077. [2C] 09140-30280 WASHER, LOCK
077. [2C] 09140-30270 WASHER, LOCK
077. [2C] 09140-30260 WASHER, LOCK
077. [2C] 09140-30250 WASHER, LOCK
077. [2C] 09140-30240 WASHER, LOCK
077. [2C] 09140-30230 WASHER, LOCK
080. [01] 09069-11100 BRACKET, STOP WIRE
083. [01] 94918-00060 SCREW, HOLLOW
085. [02] 94901-02470 WASHER

Include in #3:

09130-07110 as GOVERNOR ASSY, MEC
09200-04840

Cross reference number



Part num Firm num Firm Name
09130-07110    GOVERNOR ASSY, MEC




Information:


3306B Model Views: Air Cleaner (1), Turbocharger (2), Exhaust (3), Service (Hour) Meter (4), Crankcase Breather (5), Instrument Panel (6), Lifting Eye (7), Oil Filler (8), Fuel Pressure Gauge (9), Fuel Filter (10), Fuel Priming Pump (11), Fumes Disposal Tube (12), Magnetic Pickup Location (13), Crankshaft Vibration Damper (14), Flywheel Housing (15), Oil Drain (16), Oil Level Gauge (17), and Oil Filter (18).
Standby Generator Set: Control and Power Panel (1), Optional Battery Charger Mounting Location (2), Air Cleaner (3), Solenoid (4), Fuel Priming Pump (5), Exhaust (6), Governor Control Lever (7), Crankcase Breather (8), Radiator Fill Cap (9), Circuit Breaker (10), Optional Radiator Vent Hose (11), Lifting Location (12), Starting Motor (13), Oil Drain (14), Fuel Filter (15), and Water Drain (16).
Building Service Standby (BSSB) Generator Set: Control and Power Panel (1), Optional Total Enclosure (2), Air Cleaner (3), Fuel Priming Pump (4), Governor Control Lever (5), Crankcase Breather (6), Radiator Fill Cap (7), Lifting Location (8), Starting Motor (9), Fuel Filter (10), and Oil Drain (11).
Prime Generator Set: Control and Power Panel (1), Air Inlet (2), Solenoid (3), Turbocharger (4), Exhaust (5), Governor Control Lever (6), Crankcase Breather (7), Fuel Pressure Gauge (8), Radiator Fill Cap (9), Lifting Location (10), Starting Motor (11), Fuel Priming Pump (12), Fuel Filter (13), Oil Drain (14), and Water Drain (15).Engine Information
The engines are available with direct fuel injection. The engines can be naturally aspirated, turbocharged, or turbocharged with jacket water aftercooling. The 3306B is also available turbocharged with air-to-air aftercooling (ATAAC).A full-range hydramechanical governor controls the fuel injection pump output, maintaining the engine rpm selected by the operator. Individual injection pumps (one for each cylinder) meter and pump fuel under high pressure to injection nozzles. Automatic timing advance provides the best fuel injection timing over the full range of engine speed.The cooling system consists of: * a gear driven centrifugal pump (with one thermostat which regulates the engine coolant temperature)* an oil cooler, and* a radiator (incorporating a shunt system).The engine lubricating oil, which is both cooled and filtered, is supplied by a gear-type pump. Bypass valves provide unrestricted flow of lubrication oil to the engine parts if oil viscosity is high, or if the oil cooler or the oil filter elements become plugged.Engine efficiency, efficiency of emission controls, and engine performance depend on adherence to proper operation and maintenance recommendations. Engine performance and efficiency also depend on the use of recommended fuels and lubrication oils. Follow the recommended Maintenance Schedule found in this publication, paying attention to emission related components, air cleaner, oil, oil filter, fuel and fuel filter maintenance.
