09130-03702 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09130-03702 GOVERNOR ASSY, MEC
Rating:
50
Buy GOVERNOR ASSY, MEC 09130-03702 genuine, new aftermarket engine parts with delivery

Scheme ###:

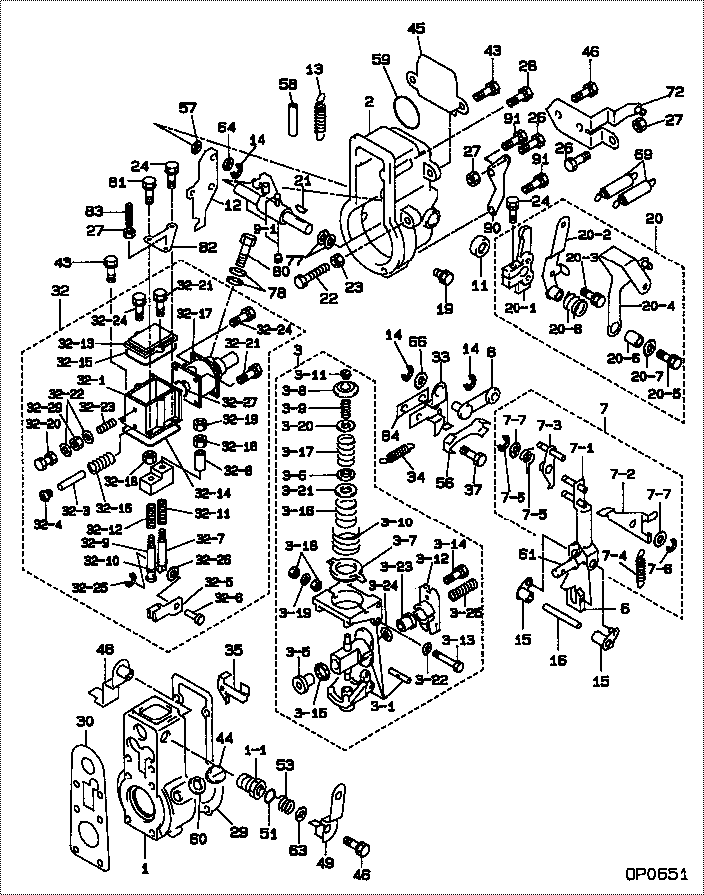

GOVERNOR ASSY, MEC
000. [01] 09130-03702 GOVERNOR ASSY, MEC
001. [01] 09131-00210 HOUSING SUB-ASSY,
001. [01] 09101-70041 PLATE, CAM 22369-1320A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
002. [01] 09145-00223 COVER ASSY, GOVERN 22380-1340A
003. [01] 09133-00964 FLYWEIGHT ASSY
003-001. [01] 09137-00092 FLYWEIGHT SUB-ASSY 22304-1700A
003-005. [01] 09134-00081 BUSHING ASSY, CAMS 22322-2380A
003-006. [02] 09137-70351 SEAT, GOVERNOR SPR 22351-1680A
003-007. [02] 09136-30010 SEAT, GOVERNOR SPR 22351-1370A
003-008. [02] 09139-30091 GUIDE, SPRING 22385-1471A
003-009. [02] 09091-81710 SPRING, MECHANICAL 22341-2160A
003-010. [02] 09138-90570 SPRING, IDLING 22411-1660A
003-011. [02] 09139-50020 NUT, ADJUSTING 22825-1350A
003-011. [02] 09139-50050 NUT, ADJUSTING
003-012. [01] 09140-50080 BUSHING, GUIDE 22322-2020A
003-013. [01] 09140-10061 BOLT, BELLCRANK
003-013. [01] 09140-10040 BOLT, BELLCRANK 22815-1940A
003-014. [02] 91418-06161 BOLT, W/WASHER 22815-1380A
003-014. [02] 94904-78260 BOLT, W/WASHER 22815-3410A
003-015. [06] 09133-70100 DAMPER, FLYWEIGHT 22385-1900A
003-016. [02] 09138-90580 SPRING, IDLING 22411-2510A
003-017. [02] 09139-10410 SPRING, SPEED CONT
003-018. [02] 90160-06051 NUT, HEXAGON 22825-1480A
003-018. [02] 09089-40101 E-RING
003-019. [01] 09140-30010 WASHER, LOCK 22863-1190A
003-020. [2C] 09140-30710 WASHER, LOCK 22877-2260A
003-020. [2C] 09140-30700 WASHER, LOCK 22877-2250A
003-020. [2C] 09140-30410 WASHER, LOCK 22877-1900A
003-020. [2C] 09140-30200 WASHER, LOCK 22877-1310A
003-020. [2C] 09140-30190 WASHER, LOCK 22877-1300A
003-021. [2C] 09140-30400 WASHER, LOCK 22877-1890A
003-021. [2C] 09140-30180 WASHER, LOCK 22877-1290A
003-021. [2C] 09140-30170 WASHER, LOCK 22877-1280A
003-021. [2C] 09140-30160 WASHER, LOCK 22877-1270A
003-022. [01] 94901-33970 WASHER, PLATE, SK 22885-1740A
003-022. [02] 09140-30800 WASHER, LOCK
003-023. [01] 09133-40100 NUT, ROUND
003-024. [1C] 09133-10200 SHIM 22885-2540A
003-024. [1C] 09133-10210 SHIM 22885-2550A
003-024. [1C] 09133-10220 SHIM 22885-2560A
003-024. [1C] 09133-10230 SHIM 22885-5950A
003-024. [1C] 09133-10240 SHIM 22885-5960A
003-024. [1C] 09133-10250 SHIM 22885-5970A
003-024. [1C] 09133-10190 SHIM 22885-2530A
003-024. [1C] 09133-10180 SHIM 22885-2520A
003-024. [1C] 09133-10170 SHIM 22885-2510A
003-024. [1C] 09133-10110 SHIM 22885-2450A
003-024. [1C] 09133-10120 SHIM 22885-2460A
003-024. [1C] 09133-10130 SHIM 22885-2470A
003-024. [1C] 09133-10140 SHIM 22885-2480A
003-024. [1C] 09133-10150 SHIM 22885-2490A
003-024. [1C] 09133-10160 SHIM 22885-2500A
003-025. [01] 09138-90940 SPRING, IDLING 22411-2300A
006. [01] 09142-60081 SLIDER 22349-1131A
007. [01] 09143-00110 LEVER ASSY, FLOATI 22041-1140A
007-001. [01] 09143-60212 LEVER SUB-ASSY, FL 22350-1182A
007-002. [01] 09169-50041 STOPPER SUB-ASSY, 22357-1091A
007-003. [01] 09094-00410 LEVER SUB-ASSY, CO 22042-1190A
007-004. [01] 09104-20580 SPRING, RETURN 22341-1680A
007-005. [01] 09104-20610 SPRING, RETURN 22341-1690A
007-006. [02] 09089-40020 E-RING 22873-1390A
007-007. [ C] 94901-35090 WASHER, PLATE, SK 22885-1280A
007-007. [ C] 94901-35080 WASHER, PLATE, SK 22885-1270A
007-007. [ C] 94901-33960 WASHER, PLATE, SK 22885-1030A
007-007. [ C] 94901-32370 WASHER, PLATE, SK 22885-1930A
007-007. [ C] 94901-31390 WASHER, PLATE, SK 22885-1920A
008. [01] 09098-00341 SHACKLE SUB-ASSY 22045-1110A
009. [01] 09148-00350 ARM ASSY, GUIDE 22340-1110A
009-001. [01] 19089-00780 OVER-HAUL KIT, GOV
011. [01] 94915-02522 SEAL, OIL 22827-1530A
012. [01] 09101-70041 PLATE, CAM 22369-1320A
013. [01] 09104-20600 SPRING, RETURN 22341-1710A
014. [03] 09089-40020 E-RING 22873-1390A
015. [02] 09156-00021 LEVER SUB-ASSY, SU 22350-1190A
016. [01] 09156-30050 SHAFT, LEVER SUPPO 22358-1410A
019. [02] 09116-70110 PLUG, SCREW 22845-1250A
020. [01] 09129-00931 LEVER SET 22350-1831A
020-001. [01] 09107-13742 LEVER, ADJUSTING 22415-1760A
020-002. [01] 09107-14790 LEVER, ADJUSTING 22309-3950A
020-003. [01] 91418-06161 BOLT, W/WASHER 22815-1380A
020-004. [01] 09129-10061 LEVER SET 22319-2011A
020-005. [01] 91418-06351 BOLT, W/WASHER 22815-1920A
020-006. [01] 94919-26651 COLLAR, STEEL 22332-1841A
020-007. [01] 90200-06241 WASHER, PLATE 28241-1030A
020-008. [01] 09104-21690 SPRING, RETURN 22341-3310A
021. [01] 94913-00030 KEY, WOODRUFF 22891-1060A
022. [01] 09082-10310 STOPPER 22865-1360A
023. [01] 09116-90024 NUT 22825-1890A
024. [02] 91418-06201 BOLT, W/WASHER 22815-1290A
026. [02] 94904-07220 BOLT, HEXAGON 22815-2950A
027. [03] 90160-06051 NUT, HEXAGON 22825-1480A
028. [04] 91418-06351 BOLT, W/WASHER 22815-1920A
029. [01] 09151-70090 GASKET, COVER 22847-2370A
030. [01] 09011-90080 GASKET, PUMP BODY
030. [01] 09011-90160 GASKET, PUMP BODY
032. [01] 09169-01720 HOUSING SUB-ASSY,
032-001. [01] 09169-10051 HOUSING, FULL LOAD 22370-1040A
032-003. [01] 09156-30060 SHAFT, LEVER SUPPO 22338-1090A
032-004. [01] 09031-70270 PLUG, SCREW 22845-1480A
032-005. [01] 09152-11303 CAM, FULL STOP 22369-2063A
032-006. [01] 09098-30300 PIN, CONNECTING 22455-1230A
032-007. [01] 09091-90421 ADAPTER 22385-1610A
032-008. [01] 09083-50050 COLLAR 22332-1590A
032-009. [01] 09091-90321 ADAPTER 22385-1670A
032-010. [01] 09095-30181 BUSHING 22322-1701A
032-011. [01] 09091-82050 SPRING, MECHANICAL 22411-1790A
032-012. [01] 09091-81630 SPRING, MECHANICAL 22411-1710A
032-013. [01] 09105-10651 PLATE, COVER 22386-1380A
032-014. [01] 94914-04200 O-RING 22817-1320A
032-014. [01] 09169-40230 GASKET 22847-2690A
032-015. [01] 94914-02030 O-RING 22817-1310A
032-015. [01] 09169-40220 GASKET 22847-2590A
032-016. [01] 09091-82110 SPRING, MECHANICAL 22411-1800A
032-017. [01] 19260-00531 COMPENSATOR SUB-AS
032-018. [02] 90160-06051 NUT, HEXAGON 22825-1480A
032-019. [01] 90170-06361 NUT, HEXAGON 92100-6040A
032-020. [01] 09003-20160 CAP 22342-1470A
032-021. [02] 94904-74620 BOLT, W/WASHER 22815-2920A
032-022. [02] 09024-80010 WASHER, DRAIN SCRE 22847-1730A
032-023. [01] 09152-40320 SCREW, STOPPER 22395-1390A
032-024. [04] 91418-06161 BOLT, W/WASHER 22815-1380A
032-025. [01] 09089-40020 E-RING 22873-1390A
032-026. [1C] 94901-35030 WASHER, PLATE, SK 22885-1450A
032-026. [1C] 94901-35020 WASHER, PLATE, SK 22885-1440A
032-026. [1C] 94901-32370 WASHER, PLATE, SK 22885-1930A
032-027. [01] 90801-20260 O-RING 22847-2140A
032-029. [01] 09634-20010 NUT, LOCK 22821-1530A
033. [01] 09115-90480 ARM SUB-ASSY
034. [01] 09104-20590 SPRING, RETURN 22341-1700A
035. [01] 09087-80190 PLATE
037. [02] 09057-30160 BOLT, DIAPHRAGM CO
043. [04] 91418-06161 BOLT, W/WASHER 22815-1380A
044. [01] 09154-30031 PLUG, SCREW 22845-1261A
045. [01] 09105-10540 PLATE, COVER 22386-1390A
046. [03] 91418-06141 BOLT, W/WASHER 22815-1480A
048. [01] 09115-90141 ARM SUB-ASSY 22348-1300A
049. [01] 09109-82150 STOPPER 22395-1720A
051. [01] 94914-00130 O-RING 22817-1440A
053. [01] 09104-21350 SPRING, RETURN
056. [01] 09140-30460 WASHER, LOCK 22877-1990A
057. [01] 09140-30420 WASHER, LOCK 22877-1880A
058. [01] 94933-06540 TUBE, RUBBER 22385-1800A
059. [01] 94914-02190 O-RING 22847-1540A
060. [01] 09169-40170 GASKET 22847-2360A
061. [1C] 09141-10470 SHAFT, SLIDING WEI 22318-1390A
061. [1C] 09141-10460 SHAFT, SLIDING WEI 22318-1380A
061. [1C] 09141-10240 SHAFT, SLIDING WEI 22318-1190A
061. [1C] 09141-10230 SHAFT, SLIDING WEI 22318-1180A
061. [1C] 09141-10220 SHAFT, SLIDING WEI 22318-1170A
061. [1C] 09141-10210 SHAFT, SLIDING WEI 22318-1160A
061. [1C] 09141-10200 SHAFT, SLIDING WEI 22318-1150A
061. [1C] 09141-10190 SHAFT, SLIDING WEI 22318-1140A
061. [1C] 09141-10180 SHAFT, SLIDING WEI 22318-1130A
063. [1C] 94901-32220 WASHER, PLATE, SK 22885-5220A
063. [1C] 94901-31980 WASHER, PLATE, SK 22885-3450A
063. [1C] 94901-31970 WASHER, PLATE, SK 22885-3440A
063. [1C] 94901-31960 WASHER, PLATE, SK 22885-3430A
064. [1C] 09140-30330 WASHER, LOCK 22877-1390A
064. [1C] 09140-30320 WASHER, LOCK 22877-1380A
064. [1C] 09140-30310 WASHER, LOCK 22877-1370A
064. [1C] 09140-30300 WASHER, LOCK 22877-1360A
066. [01] 94901-16220 WASHER, STEEL PLAT 22877-1320A
069. [02] 09104-10820 SPRING SUB-ASSY, R 22341-3290A
072. [01] 09097-30050 ARM, SPRING 22343-4400A
072. [01] 09097-30051 ARM, SPRING 22343-4400A
077. [2C] 09140-30290 WASHER, LOCK 22877-1460A
077. [2C] 09140-30280 WASHER, LOCK 22877-1450A
077. [2C] 09140-30270 WASHER, LOCK 22877-1440A
077. [2C] 09140-30260 WASHER, LOCK 22877-1430A
077. [2C] 09140-30250 WASHER, LOCK 22877-1420A
077. [2C] 09140-30240 WASHER, LOCK 22877-1410A
077. [2C] 09140-30230 WASHER, LOCK 22877-1400A
078. [02] 94901-02470 WASHER 22847-1900A
080. [01] 94918-00060 SCREW, HOLLOW 22835-1110A
081. [01] 94904-72700 BOLT, W/WASHER 22815-2030A
082. [01] 09069-11420 BRACKET, STOP WIRE
083. [01] 09266-40020 SCREW, LEVER STOP 22865-1390A
084. [01] 09072-10150 PLATE 22343-3180A
090. [01] 09069-11770 BRACKET, STOP WIRE 22343-4390A
091. [02] 94904-71760 BOLT, W/WASHER 22815-1860A
