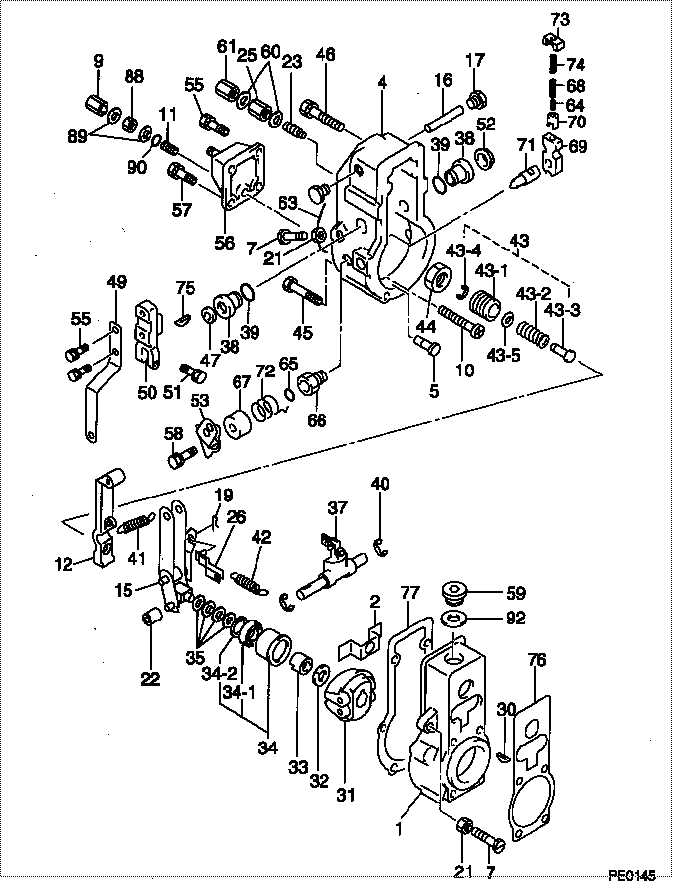

09080-09340 GOVERNOR ASSY, MEC Denso Cross

02Aug2013
(Revised 13Aug2013)
N016
N030
N035
N039
N061
N08K
N08P
Containment -
After Failure Only
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR REPLACING FUEL INJECTORS ON CERTAIN 793F, AND 795F OFF-HIGHWAY TRUCKS
1290 1251 1254 1713 PS61224
This Containment Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer and service rep. Obtain the service reps Goodwill Approver Code before completing the repair. EAME dealers should use their standard Industry Group specific goodwill approval codes. The Goodwill Approver Code must be included when submitting the claim.
When reporting the repair, use "PS61224" as the Part Number and "7777" as the Group Number. Use "96" as Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 02Aug2013 Service Letter. Changes have been made to the Title, Problem, Parts Needed, and Service Claim Allowances.
TERMINATION DATE
31Aug2014
PROBLEM
The existing 331-5895 Fuel Injector can fail and trigger a dash seven (-7) code on certain 793F Off-Highway Trucks. The existing 331-5894 Fuel Injector can fail and trigger a dash seven (-7) code on certain 795F Off-Highway Trucks. If the existing fuel injector fails with a -7 code it will result in degraded performance of the engine.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
793F SSP00144-00149, 153-154, 158-161, 262-263, 280-281, 284-285, 288-289, 299, 301, 308, 318, 348, 350, 353, 384-386, 408-409, 435, 437, 439-440, 537, 539-540, 544, 550, 573, 575, 578, 581, 610, 618, 627-632, 646-647, 732, 734, 750, 757, 759, 762, 807, 878, 923-924, 932-933, 938-939
*******Group 2*******
795F AC ERM00173-00178, 183, 190, 202-204, 228, 232-233, 249, 251-254, 259
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
64 8T2223 BOLT-SOCKET HD (4-64 as needed)
16 10R8998 INJECTOR GP-FUEL (1-16 as needed)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 16% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
64 8T2223 BOLT-S
