09080-09072 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-09072 GOVERNOR ASSY, MEC
Rating:
56
Buy GOVERNOR ASSY, MEC 09080-09072 genuine, new aftermarket engine parts with delivery

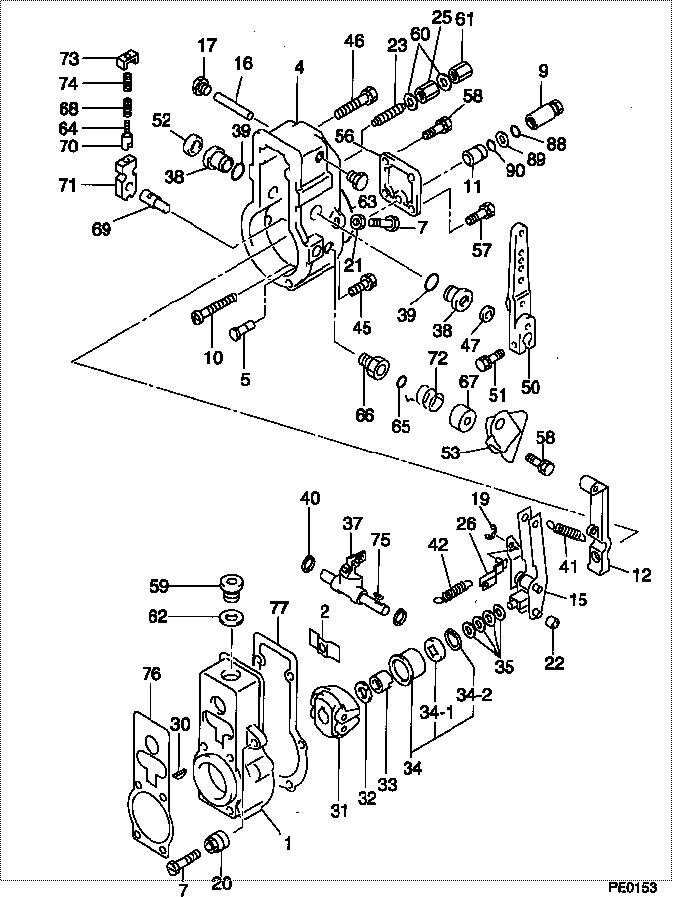

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-09072 GOVERNOR ASSY, MEC 22330-1710
001. [01] 09081-10810 HOUSING, GOVERNOR 22301-1230A
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE 22343-1460A
004. [01] 09101-11670 COVER, GOVERNOR 22302-1420A
005. [01] 09101-40090 PIN, STOP 22393-1100A
007. [02] 09102-40031 SCREW, ADJUSTING 22395-1010A
009. [01] 09116-90061 NUT 22342-1580A
010. [01] 09100-60190 SCREW, STROKE ADJU 22396-1320A
011. [01] 09094-40310 BUSHING 22322-1370A
012. [01] 09090-10150 LEVER, TENSION 22308-1170A
015. [01] 09093-00510 LEVER ASSY, CONTRO 22307-1920A
016. [01] 09098-90010 SHAFT, LEVER SUPPO 22318-1240A
017. [02] 09099-10010 PLUG, SCREW 22845-1210A
019. [01] 09089-40010 E-RING 22863-1810A
020. [01] 09116-90034 NUT 22825-1950A
021. [01] 94805-30051 NUT, HEXAGON, W/HO 22825-1080A
022. [01] 09104-60010 SLIDER, SUPPORTING 22322-1620A
023. [01] 09056-00150 CAPSULE, FULL STOP 22402-1330A
025. [01] 09092-30060 NUT, ADAPTER LOCK 22825-1400A
026. [01] 09097-00170 SHACKLE ASSY 22317-1140A
030. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
031. [01] 09084-00310 FLYWEIGHT ASSY 22360-1380A
032. [01] 94901-50500 WASHER, SPRING 22877-1540A
033. [01] 09084-40010 NUT, ROUND 22353-1070A
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 22305-1080A
034-001. [01] 09086-80030 PLATE, THRUST
034-002. [01] 90567-30000 RING, HOLE SNAP 22887-1010
035. [4C] 94901-34100 WASHER, PLATE, SK 22885-5160A
035. [4C] 94901-34090 WASHER, PLATE, SK 22885-5150A
035. [4C] 94901-34080 WASHER, PLATE, SK 22885-5140A
035. [4C] 94901-34070 WASHER, PLATE, SK 22885-5130A
035. [4C] 94901-34060 WASHER, PLATE, SK 22885-5120A
037. [01] 09088-00120 LEVER ASSY, SWIEVE 22360-1090A
037. [01] 09088-00140 LEVER ASSY, SWIEVE 22306-1300A
038. [02] 09089-20080 BUSHING, LEVER 22322-1360A
038. [02] 09089-20160 BUSHING, LEVER
039. [02] 90801-20160 O-RING 22817-1060A
040. [02] 94907-10090 WASHER, SNAP 22887-1050A
041. [01] 09099-20480 SPRING, SPEED CONT 22321-2390A
042. [01] 09099-30010 SPRING, START 22331-1280A
045. [04] 94904-71760 BOLT, W/WASHER 22815-1860A
046. [02] 94904-71750 BOLT, W/WASHER 22815-1490A
047. [01] 94915-00210 SEAL, OIL 22827-1370A
050. [01] 09107-00350 LEVER SUB-ASSY, AD 22309-1070A
051. [01] 94904-71190 BOLT, W/WASHER 22815-1230A
052. [01] 09109-40060 CAP, LEVER 22322-1350A
053. [01] 09109-00830 LEVER SUB-ASSY, ST 22348-2010A
056. [01] 09105-00410 PLATE SUB-ASSY, CO 22386-1620A
057. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
058. [01] 91418-06141 BOLT, W/WASHER 22815-1480A
059. [01] 09022-40110 SCREW,PLUG 22845-1110A
060. [02] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
061. [01] 09103-10030 NUT, CAP 22825-2060A
062. [01] 94901-81550 WASHER, COPPER PLA 96542-2150A
063. [01] 94906-21270 PACKING, RUBBER PL 22817-1070A
064. [01] 09103-80040 SPRING, B 22341-1610A
065. [01] 94914-00130 O-RING 22817-1440A
066. [01] 09101-60360 BUSHING, BEARING 22322-2570
066. [01] 09101-60020 BUSHING, BEARING 22322-1180A
067. [01] 09104-30010 COVER, SPRING 22351-1650A
068. [01] 09103-80050 SPRING, B 22341-1620A
069. [01] 09103-50240 SHAFT, MECHANICAL 22349-1120A
070. [01] 09103-60010 CUP, SPRING 22358-1490A
071. [01] 09103-40130 LEVER, SUPPORT 22045-1030A
072. [01] 09104-20030 SPRING, RETURN 22341-2500A
073. [01] 09103-30030 PLATE, CAP 22351-1330A
074. [01] 09103-80030 SPRING, B 22351-1320A
075. [01] 94913-00030 KEY, WOODRUFF 22891-1060A
076. [01] 09082-30170 GASKET 22847-1100
076. [01] 09082-30240 GASKET 22847-1570A
076. [01] 09082-30460 GASKET 22847-2490A
077. [01] 09082-30180 GASKET 22847-1200A
077. [01] 09082-30230 GASKET 22847-2070A
077. [01] 09082-30420 GASKET 22847-2630A
088. [01] 90801-10060 O-RING
089. [01] 94901-02640 WASHER 22847-1870A
090. [01] 90801-10120 O-RING 22817-1080A

Include in #3:

09080-09072 as GOVERNOR ASSY, MEC
19000-08853

Cross reference number



Part num Firm num Firm Name
09080-09072  22330-1710  GOVERNOR ASSY, MEC




Information:

(10) Distance four dowels extend above the surface of governor housing (2) ... 6.0 0.5 mm (.24 .02 in.)(11) Distance two dowels extend above the surface of the governor housing ... 3.0 0.5 mm (.12 .02 in.) (12) Distance from the surface of block (9) to the end of the dowel ... 62.00 0.75 mm (2.44 .03 in.) (13) Tighten the plug to a torque of ... 11 2 N m (8 1 lb ft)(14) Depth of plug from face ... 4 1 mm (.157 .040 in.)(15) Tighten the body to a torque of ... 6.25 1.35 N m (4.6 1.0 lb ft)(16) Tighten the insulator to a torque of ... 3.4 0.5 N m (31 4 lb in)(17) Valve.(18) Seal.(19) Ring.(20) Guide.(21) Depth of guide from face ... 1.40 0.25 mm (.055 .010 in.)

Have questions with 09080-09072?





19080-02390 GOVERNOR ASSY, MEC 09130-00302 09130-00292 09130-00281 09130-00275
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533
