Information governor assy, mec
Rating:
KIT List:
| Governor assy, mec | NO APPLICATION |
| Governor assy, mec | NO APPLICATION |

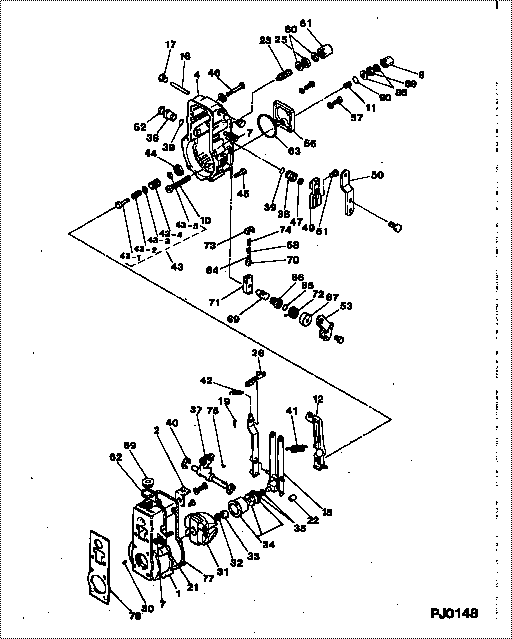

Scheme ###:
| 000. | [01] | 09080-08720 | GOVERNOR ASSY, MEC | 22330-1220 |
| 001. | [01] | 09081-00370 | HOUSING SUB-ASSY, | |
| 001. | [01] | 09081-00390 | HOUSING SUB-ASSY, | 22301-1300A |
| 002. | [01] | 09087-80040 | PLATE | 22343-3060A |
| 004. | [01] | 09101-11670 | COVER, GOVERNOR | 22302-1420A |
| 004. | [01] | 09101-11640 | COVER, GOVERNOR | 22302-1220A |
| 005. | [01] | 09101-40090 | PIN, STOP | 22393-1100A |
| 007. | [02] | 09102-40031 | SCREW, ADJUSTING | 22395-1010A |
| 009. | [01] | 09103-10151 | NUT, CAP | 22342-1430A |
| 010. | [01] | 09100-60150 | SCREW, STROKE ADJU | 22396-1060A |
| 011. | [01] | 09094-40310 | BUSHING | 22322-1370A |
| 012. | [01] | 09090-10150 | LEVER, TENSION | 22308-1170A |
| 015. | [01] | 09093-00280 | LEVER ASSY, CONTRO | 22415-1580A |
| 016. | [01] | 09098-90010 | SHAFT, LEVER SUPPO | 22318-1240A |
| 017. | [02] | 09099-10010 | PLUG, SCREW | 22845-1210A |
| 019. | [01] | 09089-40010 | E-RING | 22456-1180A |
| 021. | [02] | 94805-30051 | NUT, HEXAGON, W/HO | 22825-1080 |
| 022. | [01] | 09104-60010 | SLIDER, SUPPORTING | 22322-1620A |
| 023. | [01] | 09056-00140 | CAPSULE, FULL STOP | 22402-1290A |
| 025. | [01] | 09092-30060 | NUT, ADAPTER LOCK | 22825-1400A |
| 026. | [01] | 09097-00350 | SHACKLE ASSY | 22317-1760A |
| 030. | [01] | 94913-00050 | KEY, WOODRUFF | 22895-1020A |
| 031. | [01] | 09084-00520 | FLYWEIGHT ASSY | 22360-1350A |
| 032. | [01] | 94901-50500 | WASHER, SPRING | 22877-1220A |
| 033. | [01] | 09084-40010 | NUT, ROUND | 22353-1070A |
| 034. | [01] | 09086-00200 | SLEEVE SUB-ASSY, F | 22305-1080A |
| 034-001. | [01] | 09086-80040 | PLATE, THRUST | |
| 034-002. | [01] | 90567-30000 | RING, HOLE SNAP | 22887-1010 |
| 035. | [4C] | 94901-34100 | WASHER, PLATE, SK | 22885-5160A |
| 035. | [4C] | 94901-34090 | WASHER, PLATE, SK | 22885-5150A |
| 035. | [4C] | 94901-34080 | WASHER, PLATE, SK | 22885-5140A |
| 035. | [4C] | 94901-34070 | WASHER, PLATE, SK | 22885-5130A |
| 035. | [4C] | 94901-34060 | WASHER, PLATE, SK | 22885-5120A |
| 037. | [01] | 09088-00140 | LEVER ASSY, SWIEVE | |
| 037. | [01] | 09088-00120 | LEVER ASSY, SWIEVE | 22360-1090A |
| 038. | [02] | 09089-20080 | BUSHING, LEVER | 22322-1360A |
| 039. | [02] | 90801-20160 | O-RING | 22817-1060A |
| 040. | [02] | 94907-10090 | WASHER, SNAP | 22887-1050A |
| 041. | [01] | 09099-20480 | SPRING, SPEED CONT | 22321-2390A |
| 042. | [01] | 09099-30270 | SPRING, START | 22331-1330A |
| 043. | [01] | 09091-01410 | ADAPTER ASSY | 22404-1590A |
| 043-001. | [01] | 09091-90010 | ADAPTER | 22385-2190A |
| 043-002. | [01] | 09091-82120 | SPRING, MECHANICAL | 22411-2090A |
| 043-003. | [ C] | 94901-37880 | WASHER, PLATE, SK | 22885-6810A |
| 043-003. | [ C] | 94901-34040 | WASHER, PLATE, SK | 22877-1480A |
| 043-003. | [ C] | 94901-34030 | WASHER, PLATE, SK | 22885-5550A |
| 043-003. | [ C] | 94901-34020 | WASHER, PLATE, SK | 22885-5540A |
| 043-003. | [ C] | 94901-33880 | WASHER, PLATE, SK | 22885-5530A |
| 043-004. | [01] | 09091-10010 | SCREW, ADPTER | 22385-2060A |
| 043-005. | [01] | 09089-40010 | E-RING | 22456-1180A |
| 044. | [01] | 09092-30011 | NUT, ADAPTER LOCK | 22825-2090A |
| 045. | [04] | 94904-71760 | BOLT, W/WASHER | 22815-1860A |
| 046. | [02] | 94904-71750 | BOLT, W/WASHER | 22815-1490A |
| 047. | [01] | 94915-00210 | SEAL, OIL | 22827-1370A |
| 049. | [01] | 09107-11420 | LEVER, ADJUSTING | 22415-1500A |
| 050. | [01] | 09107-12700 | LEVER, ADJUSTING | |
| 051. | [01] | 94904-71190 | BOLT, W/WASHER | 22815-1230A |
| 052. | [01] | 09109-40060 | CAP, LEVER | 22322-1350A |
| 053. | [01] | 09109-00570 | LEVER SUB-ASSY, ST | 22348-2110A |
| 053. | [01] | 09109-00940 | LEVER SUB-ASSY, ST | 22348-2170A |
| 055. | [02] | 91418-06161 | BOLT, W/WASHER | 22815-1380A |
| 056. | [01] | 09105-10480 | PLATE, COVER | 22386-1540A |
| 057. | [02] | 94904-71790 | BOLT, W/WASHER | 22815-1430A |
| 058. | [03] | 91418-06141 | BOLT, W/WASHER | 22815-1480A |
| 059. | [01] | 09022-40110 | SCREW,PLUG | 22845-1110A |
| 060. | [02] | 09024-10010 | WASHER, AIR BLEEDE | 22847-2150A |
| 061. | [01] | 09103-10030 | NUT, CAP | 22825-2060A |
| 062. | [01] | 94901-81550 | WASHER, COPPER PLA | 96542-2150A |
| 063. | [01] | 94906-21270 | PACKING, RUBBER PL | 22817-1070A |
| 064. | [01] | 09103-80040 | SPRING, B | 22341-1610A |
| 065. | [01] | 94914-00130 | O-RING | 22817-1440A |
| 066. | [01] | 09101-60020 | BUSHING, BEARING | 22322-1180A |
| 066. | [01] | 09101-60360 | BUSHING, BEARING | |
| 067. | [01] | 09104-30010 | COVER, SPRING | 22351-1650A |
| 068. | [01] | 09103-80050 | SPRING, B | 22341-1620A |
| 069. | [01] | 09103-50240 | SHAFT, MECHANICAL | 22349-1120A |
| 070. | [01] | 09103-60010 | CUP, SPRING | 22358-1490A |
| 071. | [01] | 09103-40130 | LEVER, SUPPORT | 22045-1030A |
| 072. | [01] | 09104-20030 | SPRING, RETURN | 22341-2500A |
| 073. | [01] | 09103-30030 | PLATE, CAP | 22351-1330A |
| 074. | [01] | 09103-80030 | SPRING, B | 22351-1320A |
| 075. | [01] | 94913-00030 | KEY, WOODRUFF | 22891-1060A |
| 076. | [01] | 09011-90040 | GASKET, PUMP BODY | 22891-1060A |
| 076. | [01] | 09011-90160 | GASKET, PUMP BODY | 22847-2510A |
| 077. | [01] | 09082-30230 | GASKET | 22847-2070A |
| 077. | [01] | 09082-30420 | GASKET | |
| 088. | [01] | 94905-03390 | NUT, HEXAGON | 22825-1100A |
| 088. | [01] | 94905-01020 | NUT, HEXAGON | 22825-2050A |
| 088. | [01] | 94905-03900 | NUT, HEXAGON | 22825-2040A |
| 089. | [02] | 94901-81020 | WASHER, COPPER PLA | 22867-1500A |
| 090. | [01] | 90801-10120 | O-RING | 22817-1080A |
Include in #3:
09080-08720
as GOVERNOR ASSY, MEC
Cross reference number
| Part num | Firm num | Firm | Name |
| 09080-08720 | 22330-1220 | GOVERNOR ASSY, MEC | |
| 22330-1220A | HINO | GOVERNOR ASSY, MEC | |
| 22330-1220 | HINO | GOVERNOR ASSY, MEC |
