09080-08580 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-08580 GOVERNOR ASSY, MEC
Rating:
19
Buy GOVERNOR ASSY, MEC 09080-08580 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

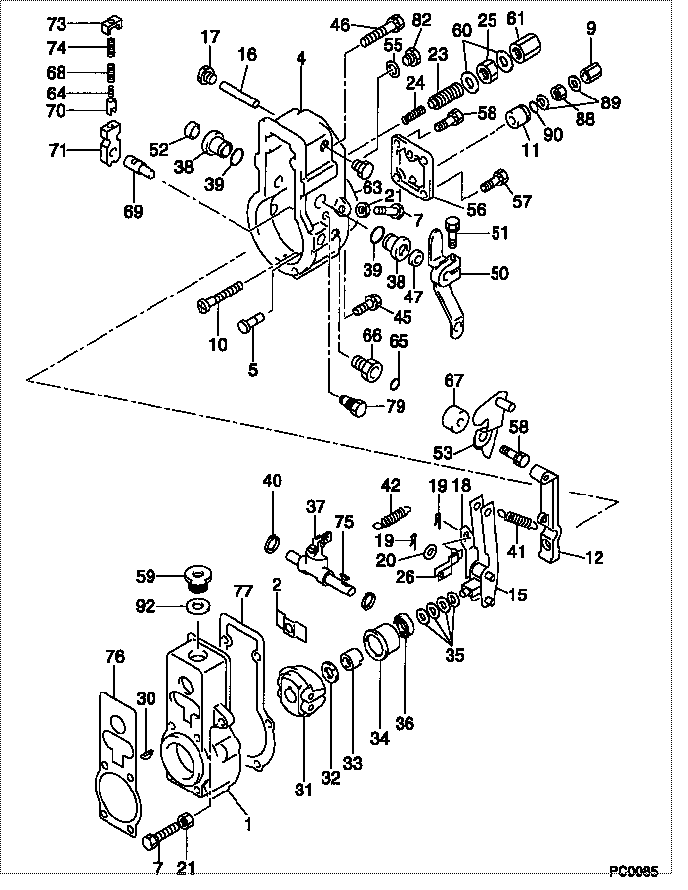

Scheme ###:

000. [01] 09080-08580 GOVERNOR ASSY, MEC
001. [01] 09081-10631 HOUSING, GOVERNOR 09081-10631
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
004. [01] 09101-11732 COVER, GOVERNOR
004. [01] 09101-11381 COVER, GOVERNOR 09101-11381
005. [01] 09101-40090 PIN, STOP
007. [02] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [01] 09103-10151 NUT, CAP 09103-10151
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10200 LEVER, TENSION
012. [01] 09090-10150 LEVER, TENSION
015. [01] 09095-90040 LEVER ASSY, GUIDE 09095-90040
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
018. [01] 09094-00270 LEVER SUB-ASSY, CO 09094-00270
019. [02] 90400-02101 PIN, SPLIT 90400-02101
020. [01] 09098-70010 SHIM 85264-0048
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
023. [01] 09102-70011 SPRING, IDLING 09102-70011
024. [01] 09102-80050 SCREW, ADJUSTING 09102-80050
025. [01] 94905-02460 NUT, HEXAGON 85264-00061
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00570 FLYWEIGHT ASSY
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-10010 SLEEVE, GOVERNOR 85264-00027
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
036. [01] 94910-00010 BEARING, BALL 85264-00028
037. [01] 09088-00120 LEVER ASSY, SWIEVE 09088-00120
037. [01] 09088-00140 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20020 SPRING, SPEED CONT 09099-20020
042. [01] 09099-30010 SPRING, START 09099-30010
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
050. [01] 09107-00553 LEVER SUB-ASSY, AD
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00371 LEVER SUB-ASSY, ST
055. [01] 94901-80350 WASHER, COPPER PLA 94901-80350
056. [01] 09105-10480 PLATE, COVER 09105-10480
057. [02] 94904-71790 BOLT, W/WASHER 94904-71790
058. [03] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10010 NUT, CAP 09103-10010
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60360 BUSHING, BEARING
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40161 LEVER, SUPPORT
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30460 GASKET
076. [01] 09082-30240 GASKET
077. [01] 09082-30180 GASKET 09082-30180
077. [01] 09082-30420 GASKET
079. [01] 09108-40050 PIN, TORQUE CONTRO 09108-40050
082. [01] 09022-40081 SCREW,PLUG MM500485
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
088. [01] 94905-01020 NUT, HEXAGON 85264-00056
089. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081
092. [01] 94901-81550 WASHER, COPPER PLA

Include in #3:

09080-08580 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
09080-08580    GOVERNOR ASSY, MEC




Information:

Cylinder Head and Valve Mechanisms
Removal of Rocker Shaft Assembly
(1) Loosen the adjusting screws on the rockers by rotating each screw about one turn.
Removal of rocker shaft assembly(2) Loosen the short bolts on the rocker shaft brackets first, then loosen the long bolts to remove the rocker shaft assembly from the cylinder head.
Incorrect bolt loosening sequence can result in the damage to the rocker shaft brackets.
(3) Remove the pushrods.Disassembly of Rocker Shaft Assembly
Arrange the disassembled rockers in the order of removal, so that the rockers can be reinstalled exactly in the opposite sequence.This ensures the same rocker shaft clearances as before.
Disassembly of rocker shaft assemblyRemoval of Cylinder Head Bolts
Remove the cylinder head bolts from the cylinder head, and lift the cylinder head vertically to detach it from the crankcase. If there is any problem in the cylinder head, before removing the bolts, examine the cylinder head bolt tightening condition by checking the bolt tightening torque with a torque wrench.
Removal of cylinder head boltRemoval of Valves and lave Springs
Using the valve spring pusher, compress the valve spring squarely, then remove the valve cotter. If the valves are to be reused, mark them to indicate their original installation positions.
Removal of valve and valve springRemoval of Valve Stem Seals
To remove steam seals, pull with pliers.
Removal of valve stem seal Do not reuse the removed stem seals.Cleaning of Cylinder Head Bottom Surface
Remove adhered gasket pieces from the bottom surface of the cylinder head, making sure not to scratch the surface. Use a scraper to remove large pieces first, then remove remaining small pieces by using an oilstone dampened with engine oil.
Cleaning of cylinder head bottom surfacesMeasurement of Piston Protrusions
Determine the amount of the protrusion of the piston. If the amount of piston protrusion does not conform to the standard, be sure to inspect and repair each bearing.(1) Determine the top dead center of the piston with a dial gage.(2) Attach a dial gage on the top surface of the crankcase, and set the indicator to zero (0).(3) Check the piston protrusion at three locations on the top surface of the piston, and obtain the average valve. Subtract the amount of piston protrusion from the compressed thickness of the gasket to determine the clearance between the piston top and cylinder head.
Measure of piston protrusion
Piston protrusion must comply with the standard to ensure proper engine performance and prevent the interference between the valves and pistons.
Flywheel
Measure of piston protrusionRemoval of Flywheel
(1) To prevent the flywheel from rotating, have someone hold the crankshaft pulley with a wrench.
Removal of the flywheel(2) Remove one of the flywheel mounting bolts.
The person holding the flywheel in place should exercise utmost caution, and communicate with the person removing the flywheel during the removal process to ensure safety.
(3) Screw a safety bar (M12x1.25mm) in the threaded hole from which the bolt was removed in the above step, then remove the remaining bolts.(4) Hold the flywheel securely with both hands, jiggle it back and forth, and pull it straight out.
When removing the flywheel, be
