09080-08370 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-08370 GOVERNOR ASSY, MEC
Rating:
57
Buy GOVERNOR ASSY, MEC 09080-08370 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900190
Governor assy, mec 1908900190
Governor assy, mec 1908900190

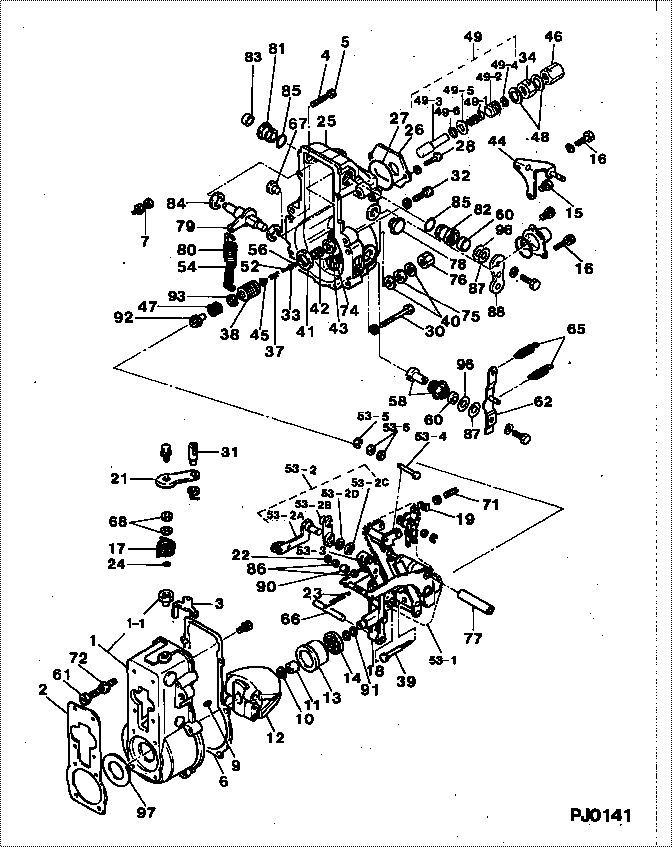

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-08370 GOVERNOR ASSY, MEC 22310-2640
001. [01] 09081-00360 HOUSING SUB-ASSY, 22390-1150A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
002. [01] 09011-90030 GASKET, PUMP BODY 22352-1130A
002. [01] 09011-90140 GASKET, PUMP BODY
003. [01] 09115-90100 ARM SUB-ASSY 22348-1090A
004. [01] 09152-40160 SCREW, STOPPER 22865-1110A
005. [01] 94805-30130 NUT, HEXAGON, W/HO 22825-1060A
005. [01] 94805-30121 NUT, HEXAGON, W/HO 22825-1330A
006. [01] 09082-30400 GASKET 22847-2390A
006. [01] 09082-30141 GASKET 22847-1800A
007. [01] 09128-40080 SCREW, ADJUSTING 22395-1470A
009. [01] 94913-00050 KEY, WOODRUFF 22895-1020A
010. [01] 94901-50500 WASHER, SPRING 22877-1220A
011. [01] 09084-40010 NUT, ROUND 22353-1070A
012. [01] 09084-00450 FLYWEIGHT ASSY 22360-1190A
013. [01] 09086-10010 SLEEVE, GOVERNOR 22305-1110A
014. [01] 94910-00010 BEARING, BALL 22837-1120A
015. [03] 91418-06201 BOLT, W/WASHER 22815-1290A
016. [01] 94904-71770 BOLT, W/WASHER 22815-1450A
017. [01] 09104-20751 SPRING, RETURN 22341-1870A
018. [01] 09095-90280 LEVER ASSY, GUIDE 22307-1630A
019. [01] 09140-30100 WASHER, LOCK 22877-1210A
021. [01] 09109-81010 STOPPER 22348-1210A
021. [01] 09109-81011 STOPPER 22348-1210A
022. [04] 90577-05000 E-RING 22887-1170A
023. [01] 09099-30180 SPRING, START 22331-1020A
024. [01] 94914-00130 O-RING 22817-1440A
025. [01] 09101-10743 COVER, GOVERNOR 22381-1050A
026. [01] 09105-10200 PLATE, COVER 22386-1240A
027. [01] 94914-02030 O-RING 22817-1310A
028. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
029. [01] 90400-02151 PIN, SPLIT 22456-1040A
030. [04] 94904-71740 BOLT, W/WASHER 22815-1460A
031. [01] 09096-40280 PIN 22455-1160A
031. [01] 09096-40263 PIN 22455-1160A
032. [02] 94904-71780 BOLT, W/WASHER 22815-1470A
033. [ C] 94901-35040 WASHER, PLATE, SK 22885-1210A
033. [ C] 94901-31360 WASHER, PLATE, SK 22885-1200A
034. [01] 94805-30090 NUT, HEXAGON, W/HO 22825-1270A
035. [01] 90200-08221 WASHER, PLATE 22867-1050A
035. [01] 90200-06241 WASHER, PLATE 22867-1050A
037. [01] 09091-81600 SPRING, MECHANICAL 22411-1460A
038. [01] 09091-10220 SCREW, ADPTER 22375-1060A
039. [01] 09091-90380 ADAPTER 22385-1550A
040. [02] 09025-10010 WASHER, INJECTION 22865-1290A
041. [01] 09092-30050 NUT, ADAPTER LOCK 22825-1030A
042. [01] 09091-10230 SCREW, ADPTER 22375-1050A
043. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
044. [01] 09097-50440 ARM, SPRING 22343-1420A
045. [01] 09091-70070 SEAT, SPRING 22351-1030A
046. [01] 09003-20040 CAP 22342-1110A
047. [01] 09091-82220 SPRING, MECHANICAL 22411-1930A
048. [02] 94901-80350 WASHER, COPPER PLA 22847-1950A
049. [01] 09091-00421 ADAPTER ASSY 22404-1480A
049-001. [01] 09091-80441 SPRING, MECHANICAL 6 306 1350 10
049-002. [01] 09091-10061 SCREW, ADPTER 22385-1370
049-003. [01] 09091-90170 ADAPTER 6 306 1341 80
049-004. [01] 09089-40010 E-RING 22863-1810A
049-005. [01] 90208-05000 WASHER, PLATE
049-006. [ C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
049-006. [ C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
050. [01] 09105-10320 PLATE, COVER 22351-1010A
051. [01] 94914-01900 O-RING 22817-1550A
052. [01] 09091-81591 SPRING, MECHANICAL 22411-1470A
053. [01] 09092-90130 ASSY DRAWING, CONT
053-001. [01] 09092-00230 LEVER KIT, CONTROL 22350-1290A
053-002. [01] 09093-00520 LEVER ASSY, CONTRO
053-004. [01] 09098-30190 PIN, CONNECTING 22455-1040A
053-005. [01] 90577-05000 E-RING 22887-1170A
053-006. [ C] 94901-33970 WASHER, PLATE, SK 22885-1740A
053-006. [ C] 94901-33960 WASHER, PLATE, SK 22885-1030A
053-006. [ C] 94901-33950 WASHER, PLATE, SK 22855-1020A
053-02A. [01] 09097-00230 SHACKLE ASSY 22042-1090A
053-02B. [01] 09094-00460 LEVER SUB-ASSY, CO 22042-1270A
053-02C. [01] 90557-05000 RING, SHAFT SNAP
053-02D. [01] 94901-34110 WASHER, PLATE, SK 22885-1220A
054. [01] 09133-70061 DAMPER, FLYWEIGHT 22835-1290A
056. [03] 94901-35550 WASHER, PLATE, SK 22885-1490A
058. [01] 09102-60010 SHAFT & BUSHING KI 22420-1010A
060. [02] 94915-01150 SEAL, OIL 22331-1150A
061. [02] 09102-40070 SCREW, ADJUSTING 22395-1070A
061. [02] 09102-40030 SCREW, ADJUSTING 22395-1010A
062. [01] 09107-01362 LEVER SUB-ASSY, AD 22309-2350A
065. [02] 09104-10140 SPRING SUB-ASSY, R 22341-1760A
066. [01] 09098-90020 SHAFT, LEVER SUPPO 22338-1060A
067. [01] 09099-10010 PLUG, SCREW 22845-1210A
068. [ C] 94901-31960 WASHER, PLATE, SK 22885-3430A
068. [ C] 94901-31970 WASHER, PLATE, SK 22885-3440A
068. [ C] 94901-31980 WASHER, PLATE, SK 22885-3450A
068. [ C] 94901-32220 WASHER, PLATE, SK 22885-5220A
071. [01] 09152-40190 SCREW, STOPPER 22395-1090A
072. [02] 94905-30140 NUT, HEXAGON, W/ H 22825-1250A
073. [01] 90177-06361 NUT, HEXAGON 22825-1220A
074. [01] 09100-60070 SCREW, STROKE ADJU 22396-1170A
075. [01] 94905-03060 NUT, HEXAGON 22825-1260A
076. [01] 09003-20080 CAP 22342-1180A
077. [01] 09103-50183 SHAFT, MECHANICAL 22318-1020A
078. [02] 09101-60221 BUSHING, BEARING 22845-1370A
079. [01] 09104-80110 LEVER SUB-ASSY, SU 22306-1050A
080. [01] 09099-20600 SPRING, SPEED CONT 22321-1610A
081. [01] 09089-20011 BUSHING, LEVER 22322-1440A
082. [01] 09089-20040 BUSHING, LEVER 22322-1590A
083. [01] 09109-40010 CAP, LEVER 22855-1060A
084. [02] 94907-10090 WASHER, SNAP 22887-1050A
085. [02] 94914-00080 O-RING 22817-1190A
086. [02] 09104-90250 COLLAR 22332-1140A
087. [02] 09154-60010 SHIM 22885-1800A
088. [01] 09107-10941 LEVER, ADJUSTING 22415-1400A
090. [01] 09104-90260 COLLAR 22332-1150A
091. [ C] 94901-34060 WASHER, PLATE, SK 22885-5120A
091. [ C] 94901-34070 WASHER, PLATE, SK 22885-5130A
091. [ C] 94901-34080 WASHER, PLATE, SK 22885-5140A
091. [ C] 94901-34090 WASHER, PLATE, SK 22885-5150A
091. [ C] 94901-34100 WASHER, PLATE, SK 22885-5160A
092. [01] 09104-90330 COLLAR 22332-1250A
093. [ C] 09091-70210 SEAT, SPRING 22885-5080A
093. [ C] 09091-70200 SEAT, SPRING 22885-5070A
093. [ C] 09091-70190 SEAT, SPRING 22885-5060A
093. [ C] 09091-70180 SEAT, SPRING 22885-5050A
093. [ C] 09091-70170 SEAT, SPRING 22885-5040A
093. [ C] 09091-70160 SEAT, SPRING 22885-5030A
093. [ C] 09091-70150 SEAT, SPRING 22885-5020A
093. [ C] 09091-70140 SEAT, SPRING 22885-5010A
093. [ C] 09091-70130 SEAT, SPRING 22885-5000A
093. [ C] 09091-70120 SEAT, SPRING 22885-4990A
093. [ C] 09091-70110 SEAT, SPRING 22885-4980A
093. [ C] 09091-70100 SEAT, SPRING 22885-4970A
093. [ C] 09091-70090 SEAT, SPRING 22885-4960A
096. [ C] 09154-60080 SHIM 22885-5080A
096. [ C] 09154-60050 SHIM 22885-5080A
096. [ C] 09154-60040 SHIM 22885-5080A
096. [ C] 09154-60030 SHIM 22885-5080A
097. [ C] 94901-13280 WASHER, STEEL PLAT 22885-5080A
097. [ C] 94901-13270 WASHER, STEEL PLAT 22885-5080A
097. [ C] 94901-13260 WASHER, STEEL PLAT 22885-5080A
097. [ C] 94901-13250 WASHER, STEEL PLAT 22885-5080A
097. [ C] 94901-13240 WASHER, STEEL PLAT 22885-5080A
099. [ C] 94901-33950 WASHER, PLATE, SK 22885-5080A
099. [ C] 94901-33960 WASHER, PLATE, SK 22885-5080A
099. [ C] 94901-33970 WASHER, PLATE, SK 22885-5080A

Include in #3:

09080-08370 as GOVERNOR ASSY, MEC
19000-07771
19000-09410

Cross reference number



Part num Firm num Firm Name
09080-08370  22310-2640  GOVERNOR ASSY, MEC
22310-2640A    HINO GOVERNOR ASSY, MEC
22310-2640    HINO GOVERNOR ASSY, MEC




Information:

Disassembly and Inspection of Oil Pump
Measurement of Clearance Between Outer Rotor and Inner Rotor
Measure the clearance between the outer rotor and inner rotor, and, if the limit value is exceeded, replace the pump assembly.
Measurement of clearance between outer rotor and inner rotorMeasurement of Rotor and Case End Play
Measure the rotor and case end play, and, if the limit value is exceeded, replace the pump assembly.
Measurement of rotor and cover end playMeasurement of Clearance Between Outer Rotor and Pump Case
Measure the clearance between the outer rotor and pump case, and, if the limit value is exceeded, replace the pump assembly.
Measure the clearance between the outer rotor and caseReassembly of Oil Pump
Install the outer rotor to the pump case, check alignment mark (indentations) on the pump case cover, and then tighten the bolts. If the alignment marks are not aligned during the reassembly, the pump will not suck oil.
Alignment marks on pump case and pump case coverOil Filter and Oil Cooler
Disassembly and Inspection of Oil Filter and Oil Cooler
Relief Valve
Inspection of Relief Valve
(1) Check the relief valve and valve seat for contact condition, and the spring for fatigue and damage, and replace any defective parts.(2) Measure the valve opening pressure (oil pressure when the engine is running at rated rpm) of the relief valve, and, if the standard valve is exceeded, remove the cap bolt and make an adjustment by increasing or decreasing the shim thickness.
Relief Valve
