09080-08310 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-08310 GOVERNOR ASSY, MEC
Rating:
20
Buy GOVERNOR ASSY, MEC 09080-08310 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

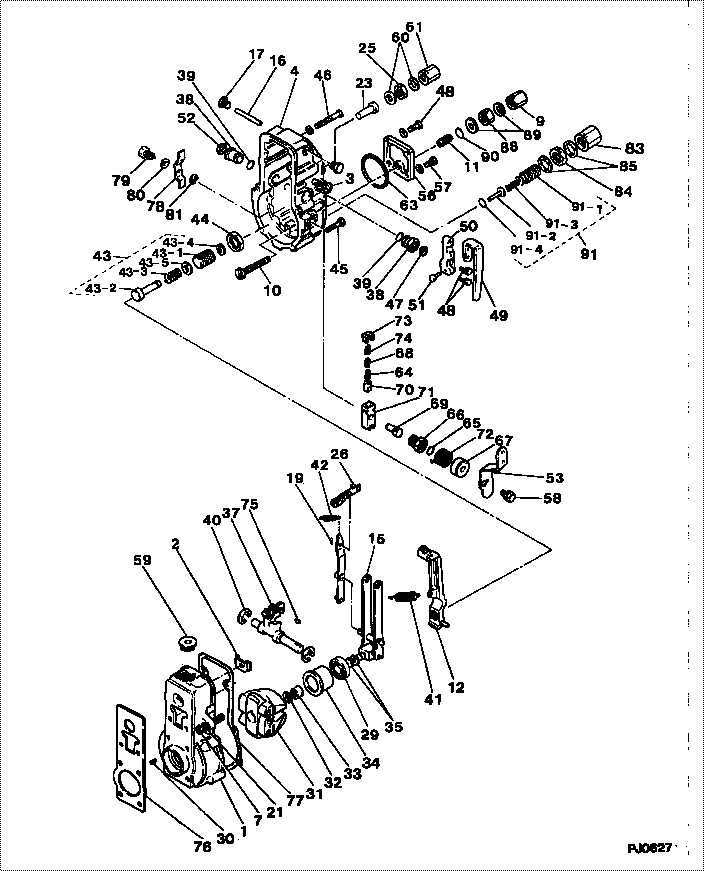

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-08310 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR ME703401
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
003. [01] 09082-10080 STOPPER MM500495
004. [01] 09101-11950 COVER, GOVERNOR ME728300
004. [01] 09101-11460 COVER, GOVERNOR ME703403
007. [01] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-00140 LEVER ASSY, TENSIO ME703488
012. [01] 09090-00220 LEVER ASSY, TENSIO ME703407
012. [01] 09090-00140 LEVER ASSY, TENSIO ME703488
015. [01] 09093-00420 LEVER ASSY, CONTRO ME703408
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
019. [01] 90400-02101 PIN, SPLIT ME023402
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
023. [01] 09056-00170 CAPSULE, FULL STOP ME703409
025. [01] 09092-30060 NUT, ADAPTER LOCK ME703410
026. [01] 09097-00170 SHACKLE ASSY ME703411
029. [01] 94910-00010 BEARING, BALL ME702914
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00550 FLYWEIGHT ASSY ME703412
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
035. [ C] 94901-34100 WASHER, PLATE, SK ME702893
035. [ C] 94901-34090 WASHER, PLATE, SK ME702892
035. [ C] 94901-34080 WASHER, PLATE, SK ME702891
035. [ C] 94901-34070 WASHER, PLATE, SK ME702890
035. [ C] 94901-34060 WASHER, PLATE, SK ME702889
037. [01] 09088-00120 LEVER ASSY, SWIEVE ME703413
037. [01] 09088-00140 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20480 SPRING, SPEED CONT ME703416
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-00870 ADAPTER ASSY ME728040
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [01] 09091-90010 ADAPTER ME703418
043-003. [01] 09091-80020 SPRING, MECHANICAL MM500517
043-004. [01] 09089-40010 E-RING ME702112
043-005. [ C] 94901-37880 WASHER, PLATE, SK ME703917
043-005. [ C] 94901-34040 WASHER, PLATE, SK ME022485
043-005. [ C] 94901-34030 WASHER, PLATE, SK ME022517
043-005. [ C] 94901-34020 WASHER, PLATE, SK ME728059
043-005. [ C] 94901-33880 WASHER, PLATE, SK ME022484
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
048. [04] 91418-06161 BOLT, W/WASHER ME702149
049. [01] 09107-11940 LEVER, ADJUSTING ME703441
050. [01] 09107-11930 LEVER, ADJUSTING ME703440
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-00410 LEVER SUB-ASSY, ST ME703420
056. [01] 09105-00410 PLATE SUB-ASSY, CO ME703421
057. [02] 94904-72700 BOLT, W/WASHER ME702204
058. [01] 91418-06141 BOLT, W/WASHER ME702592
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10030 NUT, CAP ME022202
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
066. [01] 09101-60360 BUSHING, BEARING ME743361
067. [01] 09104-30010 COVER, SPRING ME702122
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40161 LEVER, SUPPORT ME703426
072. [01] 09104-20030 SPRING, RETURN ME702119
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 94913-00030 KEY, WOODRUFF ME702205
076. [01] 09082-30240 GASKET ME702107
077. [01] 09082-30180 GASKET ME703429
077. [01] 09082-30420 GASKET ME736188
078. [01] 09117-00050 LEVER SUB-ASSY ME703430
079. [01] 09108-40050 PIN, TORQUE CONTRO ME703431
080. [01] 90218-08250 WASHER, PLATE ME703432
081. [01] 09089-40030 E-RING ME022443
082. [01] 09003-20040 CAP ME702858
084. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
085. [02] 94901-80350 WASHER, COPPER PLA ME702922
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434
091. [01] 09091-00730 ADAPTER ASSY ME703435
091-001. [01] 09002-60080 SCREW, ADJUSTING ME703439
091-002. [01] 09091-90240 ADAPTER ME703437
091-003. [01] 09002-70150 SPRING, TORQUE ME703438
091-004. [01] 90567-12000 RING, HOLE SNAP ME703436

Include in #3:

09080-08310 as GOVERNOR ASSY, MEC
09300-00720
09300-00860

Cross reference number



Part num Firm num Firm Name
09080-08310    GOVERNOR ASSY, MEC
