09080-08300 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-08300 GOVERNOR ASSY, MEC
Rating:
15
Buy GOVERNOR ASSY, MEC 09080-08300 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

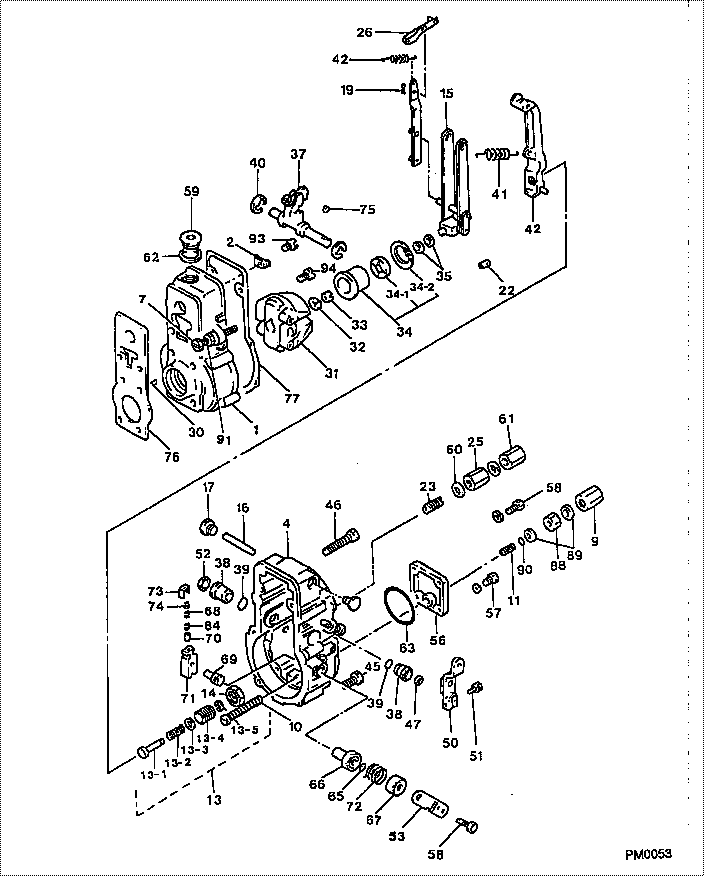

Scheme ###:

000. [01] 09080-08300 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
004. [01] 09101-11311 COVER, GOVERNOR
007. [02] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [01] 09103-10150 NUT, CAP 09103-10150
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION
012. [01] 09090-10200 LEVER, TENSION
013. [01] 09091-01300 ADAPTER ASSY
013-001. [01] 09091-90010 ADAPTER 09091-90010
013-002. [01] 09091-80010 SPRING, MECHANICAL
013-003. [ C] 94901-34040 WASHER, PLATE, SK 94901-34040
013-003. [ C] 94901-34030 WASHER, PLATE, SK 94901-34030
013-003. [ C] 94901-34020 WASHER, PLATE, SK 94901-34020
013-003. [ C] 94901-33880 WASHER, PLATE, SK 94901-33880
013-004. [01] 09091-10010 SCREW, ADPTER 09091-10010
013-005. [01] 09089-40010 E-RING 09089-40010
014. [01] 09092-30011 NUT, ADAPTER LOCK 85264-00044
015. [01] 09093-00270 LEVER ASSY, CONTRO
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
019. [01] 90400-02101 PIN, SPLIT 90400-02101
021. [01] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING 09104-60010
023. [01] 09056-00150 CAPSULE, FULL STOP
025. [01] 09092-30060 NUT, ADAPTER LOCK
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00320 FLYWEIGHT ASSY 09084-00320
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 09086-00200
034-001. [01] 09086-80040 PLATE, THRUST 09086-80040
034-002. [01] 90567-30000 RING, HOLE SNAP 90567-30000
035. [ C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [ C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [ C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [ C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [ C] 94901-34060 WASHER, PLATE, SK 94901-34060
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE 09088-00120
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20410 SPRING, SPEED CONT
042. [01] 09099-30010 SPRING, START 09099-30010
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
050. [01] 09107-00770 LEVER SUB-ASSY, AD 09107-00770
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00320 LEVER SUB-ASSY, ST
056. [01] 09105-10480 PLATE, COVER 09105-10480
057. [02] 94904-71790 BOLT, W/WASHER 94904-71790
058. [03] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10030 NUT, CAP 09103-10030
062. [01] 94901-81550 WASHER, COPPER PLA
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
066. [01] 09101-60360 BUSHING, BEARING
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40130 LEVER, SUPPORT 09103-40130
072. [01] 09104-20030 SPRING, RETURN 09104-20030
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30240 GASKET
077. [01] 09082-30180 GASKET 09082-30180
077. [01] 09082-30420 GASKET
088. [01] 94905-01020 NUT, HEXAGON 85264-00056
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
089. [01] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081
091. [01] 09116-90034 NUT

Include in #3:

09080-08300 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
09080-08300    GOVERNOR ASSY, MEC




Information:

Disassembly and Inspection of Oil Pump
Measurement of Clearance Between Outer Rotor and Inner Rotor
Measure the clearance between the outer rotor and inner rotor, and, if the limit value is exceeded, replace the pump assembly.
Measurement of clearance between outer rotor and inner rotorMeasurement of Rotor and Case End Play
Measure the rotor and case end play, and, if the limit value is exceeded, replace the pump assembly.
Measurement of rotor and cover end playMeasurement of Clearance Between Outer Rotor and Pump Case
Measure the clearance between the outer rotor and pump case, and, if the limit value is exceeded, replace the pump assembly.
Measure the clearance between the outer rotor and caseReassembly of Oil Pump
Install the outer rotor to the pump case, check alignment mark (indentations) on the pump case cover, and then tighten the bolts. If the alignment marks are not aligned during the reassembly, the pump will not suck oil.
Alignment marks on pump case and pump case coverOil Cooler and Relief Valve
Inspection of Oil Cooler and Relief Valve
Adjustment of Relief Valve
(1) Check the relief valve and valve seat for contact condition, and the spring for fatigue and damage, and replace any defective parts.(2) Measure the valve opening pressure (oil pressure when the engine is running at rated rpm) of the relief valve, and, if the standard valve is exceeded, remove the cap bolt and make an adjustment by increasing or decreasing the shim thickness.Engine oil pressure take-out port next to oil filter
Relief Valve
