09080-08000 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-08000 GOVERNOR ASSY, MEC
Rating:
4
Buy GOVERNOR ASSY, MEC 09080-08000 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

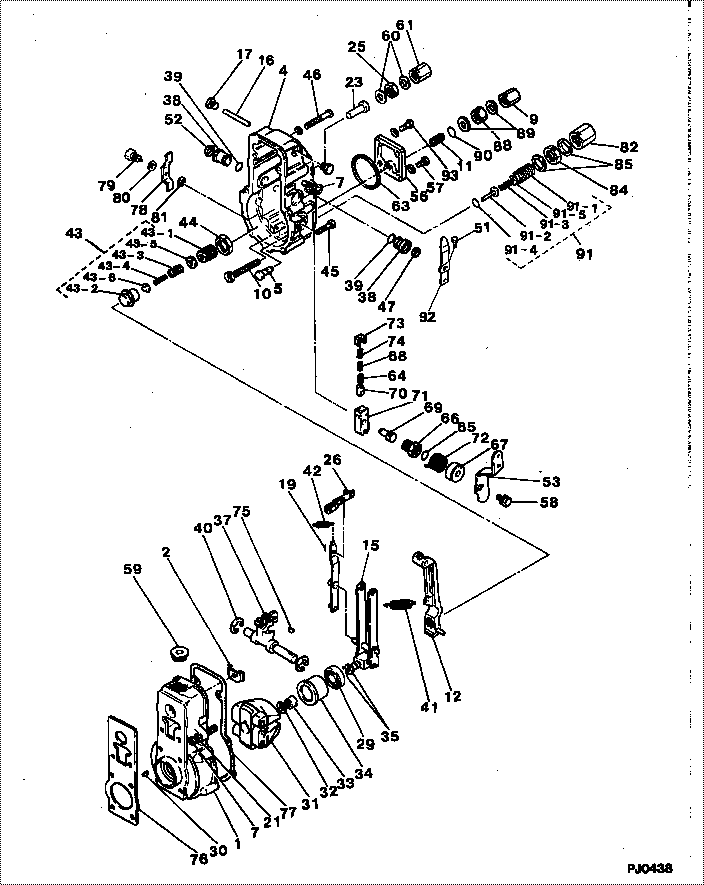

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-08000 GOVERNOR ASSY, MEC ME703484
001. [01] 09081-10810 HOUSING, GOVERNOR ME703401
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
004. [01] 09101-11950 COVER, GOVERNOR ME728300
005. [01] 09101-40090 PIN, STOP ME703487
007. [02] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-00220 LEVER ASSY, TENSIO ME703407
012. [01] 09090-00140 LEVER ASSY, TENSIO ME703488
015. [01] 09093-00550 LEVER ASSY, CONTRO ME703489
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
019. [01] 90400-02101 PIN, SPLIT ME023402
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
023. [01] 09091-00780 ADAPTER ASSY ME703490
025. [01] 94905-02460 NUT, HEXAGON ME703908
026. [01] 09097-00170 SHACKLE ASSY ME703411
029. [01] 94910-00010 BEARING, BALL ME702914
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00550 FLYWEIGHT ASSY ME703412
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
035. [ C] 94901-34060 WASHER, PLATE, SK ME702889
035. [ C] 94901-34070 WASHER, PLATE, SK ME702890
035. [ C] 94901-34080 WASHER, PLATE, SK ME702891
035. [ C] 94901-34090 WASHER, PLATE, SK ME702892
035. [ C] 94901-34100 WASHER, PLATE, SK ME702893
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE ME703413
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20051 SPRING, SPEED CONT ME022444
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-01200 ADAPTER ASSY ME703491
043-001. [01] 09091-10020 SCREW, ADPTER ME728048
043-002. [01] 09091-90341 ADAPTER ME728049
043-003. [01] 09091-81980 SPRING, MECHANICAL
043-004. [01] 09091-81991 SPRING, MECHANICAL
043-005. [ C] 94901-34110 WASHER, PLATE, SK ME728052
043-005. [ C] 94901-33890 WASHER, PLATE, SK ME728051
043-006. [ C] 94901-33750 WASHER, PLATE, SK ME728053
043-006. [ C] 94901-34450 WASHER, PLATE, SK ME728054
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-80082 STOPPER ME728362
056. [01] 09105-00380 PLATE SUB-ASSY, CO ME703492
057. [02] 94904-72700 BOLT, W/WASHER ME702204
058. [01] 91418-06141 BOLT, W/WASHER ME702592
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10010 NUT, CAP ME703911
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
067. [01] 09104-30010 COVER, SPRING ME702122
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40161 LEVER, SUPPORT ME703426
072. [01] 09104-20030 SPRING, RETURN ME702119
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 94913-00030 KEY, WOODRUFF ME702205
076. [01] 09082-30240 GASKET ME702107
077. [01] 09082-30420 GASKET ME736188
077. [01] 09082-30180 GASKET ME703429
078. [01] 09117-00050 LEVER SUB-ASSY ME703430
079. [01] 09108-40050 PIN, TORQUE CONTRO ME703431
080. [01] 90218-08250 WASHER, PLATE ME703432
081. [01] 09089-40030 E-RING ME022443
082. [01] 09003-20040 CAP ME702858
084. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
085. [02] 94901-80350 WASHER, COPPER PLA ME702922
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434
091. [01] 09091-00930 ADAPTER ASSY ME703493
091-001. [01] 09002-60080 SCREW, ADJUSTING ME703439
091-002. [01] 09091-90240 ADAPTER ME703437
091-003. [01] 09091-80251 SPRING, MECHANICAL ME703503
091-004. [01] 90567-12000 RING, HOLE SNAP ME703436
091-005. [ C] 94901-37880 WASHER, PLATE, SK ME703917
091-005. [ C] 94901-34040 WASHER, PLATE, SK ME022485
091-005. [ C] 94901-34030 WASHER, PLATE, SK ME022517
091-005. [ C] 94901-34020 WASHER, PLATE, SK ME728059
091-005. [ C] 94901-33880 WASHER, PLATE, SK ME022484
092. [01] 09107-00320 LEVER SUB-ASSY, AD ME703915
093. [02] 91418-06161 BOLT, W/WASHER ME702149

Include in #3:

09080-08000 as GOVERNOR ASSY, MEC
19000-07530
19100-04080

Cross reference number



Part num Firm num Firm Name
09080-08000  ME703484  GOVERNOR ASSY, MEC
ME703484    MITSUBISHI GOVERNOR ASSY, MEC




Information:


03Jul2007
U-305
A-248
D-257
O-277
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND REMOVING 8N7005 INJECTORS FROM DEALER PARTS STOCK THAT ARE NOT PACKAGED IN THE PROPER CATERPILLAR PACKAGE AND CATERPILLAR LABEL
1254 7750 1252 PI70234
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Oct2007
PROBLEM
Some 8N7005 Fuel Valve Nozzles have been shipped in incorrect Packaging. The package does not have the standard Caterpillar label. The Parts do not have the Caterpillar Logo.
ACTION REQUIRED
Inspect 8N7005 Fuel Valve Nozzles in inventory. Confirm that the injectors are packaged in Caterpillar packaging and Caterpillar label with Caterpillar Logo on the parts.
Image 1 shows the proper packaging and branding on the right side and the improper packaging on the left.
Image 2 shows the proper Caterpillar Logo and the left side shows the nozzles with the incorrect packaging and other identifying marks.
SERVICE CLAIM ALLOWANCES
Submit one claim for all parts removed from dealer parts stock.
PARTS DISPOSITION
Return parts to address below to the attn: Clark Hopkins
For NACD
Caterpillar Inc.
Attn: Supplier Recovery
Service Claims Room
8201 N. University
Peoria, IL 61615
