09080-07730 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-07730 GOVERNOR ASSY, MEC
Rating:
27
Buy GOVERNOR ASSY, MEC 09080-07730 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

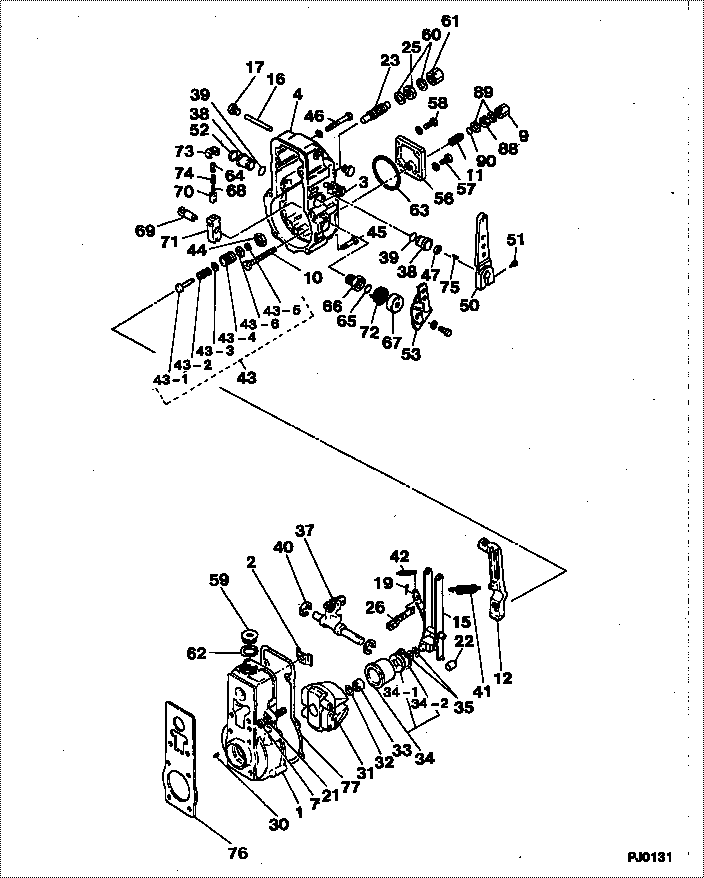

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-07730 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR 22301-1230A
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE 22343-1460A
004. [01] 09101-11311 COVER, GOVERNOR
007. [01] 09102-40031 SCREW, ADJUSTING 22395-1010A
009. [01] 09103-10150 NUT, CAP 22342-1430A
010. [01] 09100-60150 SCREW, STROKE ADJU 22396-1060A
011. [01] 09094-40310 BUSHING 22322-1370A
012. [01] 09090-10150 LEVER, TENSION 22308-1170A
015. [01] 09093-00270 LEVER ASSY, CONTRO 22307-1990A
016. [01] 09098-90010 SHAFT, LEVER SUPPO 22318-1240A
017. [02] 09099-10010 PLUG, SCREW 22845-1210A
019. [01] 90400-02101 PIN, SPLIT 22863-1820A
021. [02] 94805-30051 NUT, HEXAGON, W/HO 22825-1080A
022. [01] 09104-60010 SLIDER, SUPPORTING 22322-1620A
023. [01] 09056-00170 CAPSULE, FULL STOP 22412-1160A
025. [01] 09092-30060 NUT, ADAPTER LOCK 22825-1400A
026. [01] 09097-00170 SHACKLE ASSY 22317-1140A
030. [01] 94913-00050 KEY, WOODRUFF 22895-1020A
031. [01] 09084-00310 FLYWEIGHT ASSY 22360-1380A
032. [01] 94901-50500 WASHER, SPRING 22877-1220A
033. [01] 09084-40010 NUT, ROUND 22353-1070A
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 22305-1080A
034-001. [01] 09086-80040 PLATE, THRUST
034-002. [01] 90567-30000 RING, HOLE SNAP 22887-1010
035. [ C] 94901-34100 WASHER, PLATE, SK 22885-5160A
035. [ C] 94901-34090 WASHER, PLATE, SK 22885-5150A
035. [ C] 94901-34080 WASHER, PLATE, SK 22885-5140A
035. [ C] 94901-34070 WASHER, PLATE, SK 22885-5130A
035. [ C] 94901-34060 WASHER, PLATE, SK 22885-5120A
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE 22360-1090A
038. [02] 09089-20080 BUSHING, LEVER 22322-1360A
039. [02] 90801-20160 O-RING 22817-1060A
040. [02] 94907-10090 WASHER, SNAP 22887-1050A
041. [01] 09099-20420 SPRING, SPEED CONT 22321-2310A
042. [01] 09099-30010 SPRING, START 22331-1280A
043. [01] 09091-00180 ADAPTER ASSY
043-001. [01] 09091-90010 ADAPTER 22385-2190A
043-002. [01] 09091-80140 SPRING, MECHANICAL 22411-2110A
043-003. [ C] 94901-34040 WASHER, PLATE, SK 22877-1480A
043-003. [ C] 94901-34030 WASHER, PLATE, SK 22885-5550A
043-003. [ C] 94901-34020 WASHER, PLATE, SK 22885-5540A
043-003. [ C] 94901-33880 WASHER, PLATE, SK 22885-5530A
043-004. [01] 09091-10010 SCREW, ADPTER 22385-2060A
043-005. [01] 09089-40010 E-RING 22863-1810A
043-006. [01] 09092-10010 WASHER 6 056 1308 50
044. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
045. [04] 94904-71760 BOLT, W/WASHER 22815-1860A
046. [02] 94904-71750 BOLT, W/WASHER 22815-1490A
047. [01] 94915-00210 SEAL, OIL 22827-1370A
050. [01] 09107-00350 LEVER SUB-ASSY, AD 22309-1070A
051. [01] 94904-71190 BOLT, W/WASHER 22815-1230A
052. [01] 09109-40060 CAP, LEVER 22322-1350A
053. [01] 09109-00570 LEVER SUB-ASSY, ST 22348-2110A
053. [01] 09109-00940 LEVER SUB-ASSY, ST 22348-2110A
056. [01] 09105-10480 PLATE, COVER 22386-1540A
057. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
058. [03] 91418-06141 BOLT, W/WASHER 22815-1480A
059. [01] 09022-40110 SCREW,PLUG 22845-1110A
060. [02] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
061. [01] 09103-10030 NUT, CAP 22825-2060A
062. [01] 94901-81550 WASHER, COPPER PLA 96542-2150A
063. [01] 94906-21270 PACKING, RUBBER PL 22817-1070A
064. [01] 09103-80040 SPRING, B 22341-1610A
065. [01] 94914-00130 O-RING 22817-1440A
066. [01] 09101-60020 BUSHING, BEARING 22322-1180A
067. [01] 09104-30010 COVER, SPRING 22122-1070A
068. [01] 09103-80050 SPRING, B 22341-1620A
069. [01] 09103-50240 SHAFT, MECHANICAL 22349-1120A
070. [01] 09103-60010 CUP, SPRING 22358-1490A
071. [01] 09103-40130 LEVER, SUPPORT 22045-1030A
072. [01] 09104-20030 SPRING, RETURN 22341-2500A
073. [01] 09103-30030 PLATE, CAP 22351-1330A
074. [01] 09103-80030 SPRING, B 22351-1320A
075. [01] 94913-00030 KEY, WOODRUFF 22891-1060A
076. [01] 09082-30240 GASKET 22847-1570A
077. [01] 09082-30180 GASKET 22847-1200A
077. [01] 09082-30420 GASKET
088. [01] 94905-03390 NUT, HEXAGON 22825-1100A
089. [02] 94901-81020 WASHER, COPPER PLA 22867-1500A
090. [01] 90801-10120 O-RING 22817-1080A

Include in #3:

09080-07730 as GOVERNOR ASSY, MEC
19000-08370

Cross reference number



Part num Firm num Firm Name
09080-07730    GOVERNOR ASSY, MEC




Information:

(1) Distance from the end of the valve to the valve spring washer seat ... 2.063 .015 in.(52.40 0.38 mm)(2) Maximum permissible width of the face of the valve seat ... 120 in.(3.05 mm)(3) Angle of the face of the valve seat ... 301/4° 1/2°(4) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... .068 in.(1.73 mm)Minimum permissible (valve closed) ... .036 in.(0.91 mm)(5) Outside diameter of the valve seat ... 2.045 .005 in.(52.23 0.13 mm) Maximum permissible ... 2.065 in.(52.45 mm)(6) Diameter of the bore ... 2.150 in.(54.61 mm)(7) Maximum permissible depth of the bore to make the face of the valve seat smaller ... .170 in.(4.32 mm)Intake Valve (with valve seat insert)
TYPICAL ILLUSTRATION(1) Distance from the end of the valve to the valve spring washer seat ... 2.063 .015 in.(52.40 0.38 mm)(2) Depth of bore in head for valve seat insert ... .442 .002 in.(11.23 0.05 mm)(3) Diameter of valve seat insert ... 2.1500 .0005 in.(54.610 0.013 mm) Bore in head for valve seat insert ... 2.1470 .0005 in.(54.534 0.013 mm)(4) Maximum permissible width of the face of the valve seat insert ... .120 in.(3.05 mm)(5) Angle of the face of the valve seat insert ... 301/4° 1/2°(6) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... .068 in.(1.73 mm)Minimum permissible (valve closed) ... .036 in.(0.91 mm)(7) Outside diameter of the face of the valve seat insert ... 2.045 .005 in.(52.23 0.13 mm) Maximum permissible ... 2.065 in.(52.45 mm)(8) Angle to grind face of seat insert (to get a reduction of maximum seat diameter) ... 15°
