09080-07461 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-07461 GOVERNOR ASSY, MEC
Rating:
17
Buy GOVERNOR ASSY, MEC 09080-07461 genuine, new aftermarket engine parts with delivery

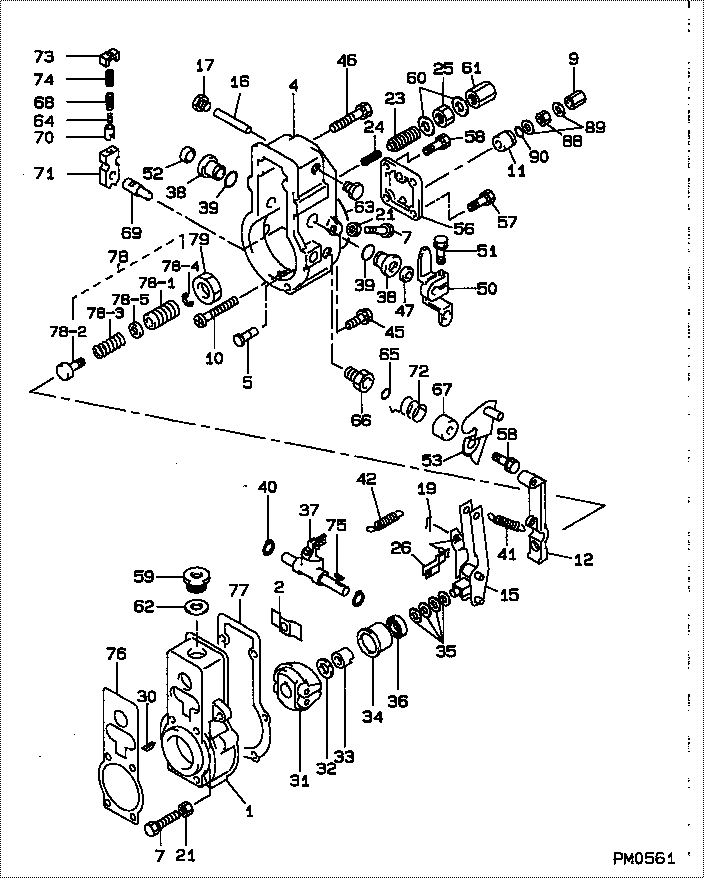

Scheme ###:

000. [01] 09080-07461 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
004. [01] 09101-11321 COVER, GOVERNOR
005. [01] 09101-40090 PIN, STOP
007. [02] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [01] 09103-10151 NUT, CAP 09103-10150
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION
012. [01] 09090-10200 LEVER, TENSION
015. [01] 09093-00041 LEVER ASSY, CONTRO
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
019. [01] 90400-02101 PIN, SPLIT 90400-02101
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
023. [01] 09102-80050 SCREW, ADJUSTING 09102-80050
024. [01] 09102-70011 SPRING, IDLING 09102-70011
025. [01] 94905-02460 NUT, HEXAGON 85264-00061
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00550 FLYWEIGHT ASSY
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-10010 SLEEVE, GOVERNOR 85264-00027
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
036. [01] 94910-00010 BEARING, BALL 85264-00028
037. [01] 09088-00120 LEVER ASSY, SWIEVE 09088-00120
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20020 SPRING, SPEED CONT 09099-20020
042. [01] 09099-30010 SPRING, START 09099-30010
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
050. [01] 09107-00553 LEVER SUB-ASSY, AD
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00750 LEVER SUB-ASSY, ST
056. [01] 09105-10480 PLATE, COVER 09105-10480
057. [02] 94904-71790 BOLT, W/WASHER 94904-71790
058. [03] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10010 NUT, CAP 09103-10010
062. [01] 94901-81550 WASHER, COPPER PLA
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
066. [01] 09101-60360 BUSHING, BEARING
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40161 LEVER, SUPPORT
072. [01] 09104-20250 SPRING, RETURN
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30240 GASKET
076. [01] 09082-30460 GASKET
077. [01] 09082-30180 GASKET 09082-30180
077. [01] 09082-30420 GASKET
078. [01] 09091-00980 ADAPTER ASSY
078-001. [01] 09091-10010 SCREW, ADPTER 09091-10010
078-002. [01] 09091-90010 ADAPTER 09091-90010
078-003. [01] 09091-81690 SPRING, MECHANICAL
078-004. [01] 09089-40010 E-RING 09089-40010
078-005. [3C] 94901-37880 WASHER, PLATE, SK
078-005. [3C] 94901-34040 WASHER, PLATE, SK 94901-34040
078-005. [3C] 94901-34030 WASHER, PLATE, SK 94901-34030
078-005. [3C] 94901-34020 WASHER, PLATE, SK 94901-34020
078-005. [3C] 94901-33880 WASHER, PLATE, SK 94901-33880
079. [01] 09092-30011 NUT, ADAPTER LOCK 85264-00044
088. [01] 94905-01020 NUT, HEXAGON 85264-00056
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
089. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081

Include in #3:

09080-07461 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
09080-07461    GOVERNOR ASSY, MEC
