09080-07220 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-07220 GOVERNOR ASSY, MEC
Rating:
4
Buy GOVERNOR ASSY, MEC 09080-07220 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

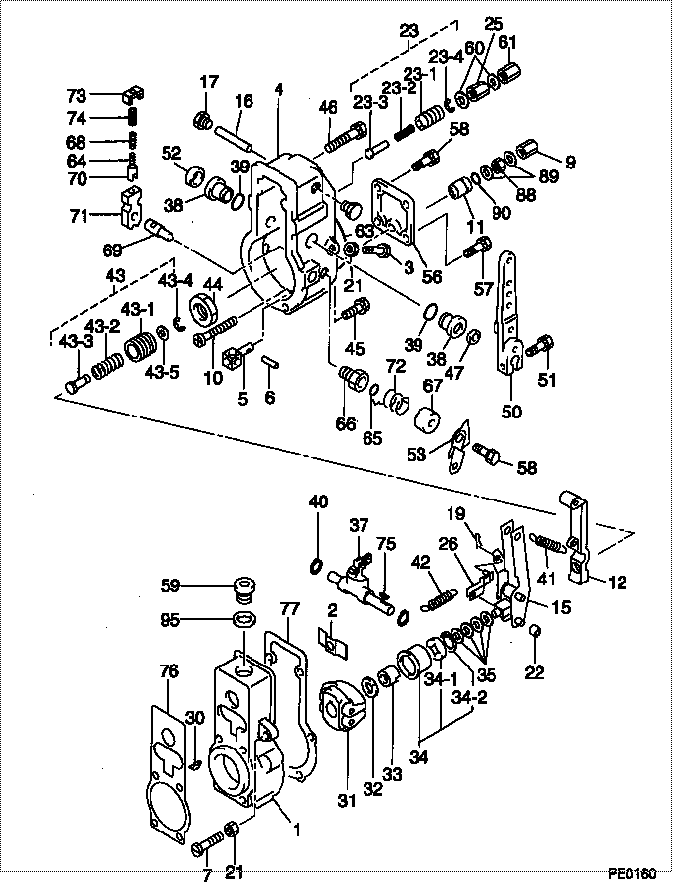

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-07220 GOVERNOR ASSY, MEC
001. [01] 09081-10631 HOUSING, GOVERNOR
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE 27771-87301-000
003. [01] 09082-10080 STOPPER
004. [01] 09101-11321 COVER, GOVERNOR
004. [01] 09101-11800 COVER, GOVERNOR
005. [01] 09101-40071 PIN, STOP 22134-73600-71
005. [01] 09101-40091 PIN, STOP
006. [01] 09101-40080 PIN, STOP 22135-73600-71
007. [01] 09102-40031 SCREW, ADJUSTING 22216-87301-000
009. [01] 09103-10150 NUT, CAP 22437-87301-000
010. [01] 09100-60150 SCREW, STROKE ADJU 22136-73600-71
011. [01] 09094-40310 BUSHING 22425-87301-000
012. [01] 09090-10150 LEVER, TENSION 21469-87301-000
015. [01] 09093-00270 LEVER ASSY, CONTRO
016. [01] 09098-90010 SHAFT, LEVER SUPPO 22478-87301-000
017. [02] 09099-10010 PLUG, SCREW 22477-87301-000
019. [01] 90400-02101 PIN, SPLIT 90095-02002-000
021. [02] 94805-30051 NUT, HEXAGON, W/HO 22441-31625-71
022. [01] 09104-60010 SLIDER, SUPPORTING 22761-87301-000
023. [01] 09091-00780 ADAPTER ASSY
023-001. [01] 09091-10290 SCREW, ADPTER
023-002. [01] 09091-81540 SPRING, MECHANICAL
023-003. [01] 09091-90310 ADAPTER
023-004. [01] 09089-40010 E-RING 22421-67011-000
025. [01] 94905-02460 NUT, HEXAGON 90099-05128-000
026. [01] 09097-00170 SHACKLE ASSY 22422-87301-000
030. [01] 94913-00050 KEY, WOODRUFF 90099-13002-000
031. [01] 09084-00310 FLYWEIGHT ASSY 22161-73600-71
032. [01] 94901-50500 WASHER, SPRING 22173-87301-000
033. [01] 09084-40010 NUT, ROUND 22451-77123-000
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 22405-87301-000
034-001. [01] 09086-80030 PLATE, THRUST
034-002. [01] 90567-30000 RING, HOLE SNAP 88365-87502-000
035. [4C] 94901-34060 WASHER, PLATE, SK 90032-01107-000
035. [4C] 94901-34070 WASHER, PLATE, SK 90032-01108-000
035. [4C] 94901-34080 WASHER, PLATE, SK 90032-01109-000
035. [4C] 94901-34090 WASHER, PLATE, SK 90032-01110-000
035. [4C] 94901-34100 WASHER, PLATE, SK 90032-01111-000
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE 21444-87301-000
038. [02] 09089-20080 BUSHING, LEVER 22468-87301-000
039. [02] 90801-20160 O-RING 22173-73600-71
040. [02] 94907-10090 WASHER, SNAP 90035-23004-000
041. [01] 09099-20480 SPRING, SPEED CONT 22726-87305-000
042. [01] 09099-30010 SPRING, START 22427-87301-000
043. [01] 09091-00520 ADAPTER ASSY
043-001. [01] 09091-10010 SCREW, ADPTER
043-002. [01] 09091-80251 SPRING, MECHANICAL
043-003. [01] 09091-90010 ADAPTER
043-004. [01] 09089-40010 E-RING 22421-67011-000
043-005. [ C] 94901-37880 WASHER, PLATE, SK
043-005. [ C] 94901-34040 WASHER, PLATE, SK 90099-01454-000
043-005. [ C] 94901-34030 WASHER, PLATE, SK 90099-01453-000
043-005. [ C] 94901-34020 WASHER, PLATE, SK
043-005. [ C] 94901-33880 WASHER, PLATE, SK
044. [01] 09092-30011 NUT, ADAPTER LOCK 22476-67010-000
045. [04] 94904-71760 BOLT, W/WASHER 90099-04328-000
046. [02] 94904-71750 BOLT, W/WASHER 22177-73600-71
047. [01] 94915-00210 SEAL, OIL 22178-73600-71
050. [01] 09107-00700 LEVER SUB-ASSY, AD
051. [01] 94904-71190 BOLT, W/WASHER 22182-73600-71
052. [01] 09109-40060 CAP, LEVER 22457-87302-000
053. [01] 09109-00510 LEVER SUB-ASSY, ST 22707-87302-000
056. [01] 09105-10480 PLATE, COVER 22186-73600-71
057. [02] 94904-71790 BOLT, W/WASHER 90099-04997-000
058. [03] 91418-06141 BOLT, W/WASHER 22188-73600-000
059. [01] 09116-70050 PLUG, SCREW 22446-87301-000
060. [02] 09024-10010 WASHER, AIR BLEEDE 22119-77020-000
061. [01] 09103-10010 NUT, CAP 22192-73600-71
063. [01] 94906-21270 PACKING, RUBBER PL 22193-73600-71
064. [01] 09103-80040 SPRING, B 22727-87302-000
065. [01] 94914-00130 O-RING 90099-14005-000
066. [01] 09101-60020 BUSHING, BEARING 22418-87301-000
067. [01] 09104-30010 COVER, SPRING 22197-73600-71
068. [01] 09103-80050 SPRING, B 22727-87303-000
069. [01] 09103-50240 SHAFT, MECHANICAL 22429-87301-000
070. [01] 09103-60010 CUP, SPRING 22778-87302-000
071. [01] 09103-40130 LEVER, SUPPORT 22409-87301-000
072. [01] 09104-20030 SPRING, RETURN
073. [01] 09103-30030 PLATE, CAP 22459-87302-000
074. [01] 09103-80030 SPRING, B 22727-87301-000
075. [01] 94913-00030 KEY, WOODRUFF 90099-13013-000
076. [01] 09082-30170 GASKET 22422-73500-71
076. [01] 09082-30240 GASKET 22442-78030-000
076. [01] 09082-30460 GASKET 22442-58260-000
077. [01] 09082-30420 GASKET
077. [01] 09082-30230 GASKET
077. [01] 09082-30180 GASKET 22217-73600-71
088. [01] 94905-03390 NUT, HEXAGON 22825-1100A-000
089. [02] 94901-81020 WASHER, COPPER PLA 90201-08106-000
090. [01] 90801-10120 O-RING 96711-19012-000
095. [01] 94901-81550 WASHER, COPPER PLA 23338-54020-000

Include in #3:

09080-07220 as GOVERNOR ASSY, MEC
19000-06201

Cross reference number



Part num Firm num Firm Name
09080-07220    GOVERNOR ASSY, MEC
