09080-07060 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-07060 GOVERNOR ASSY, MEC
Rating:
10
Buy GOVERNOR ASSY, MEC 09080-07060 genuine, new aftermarket engine parts with delivery

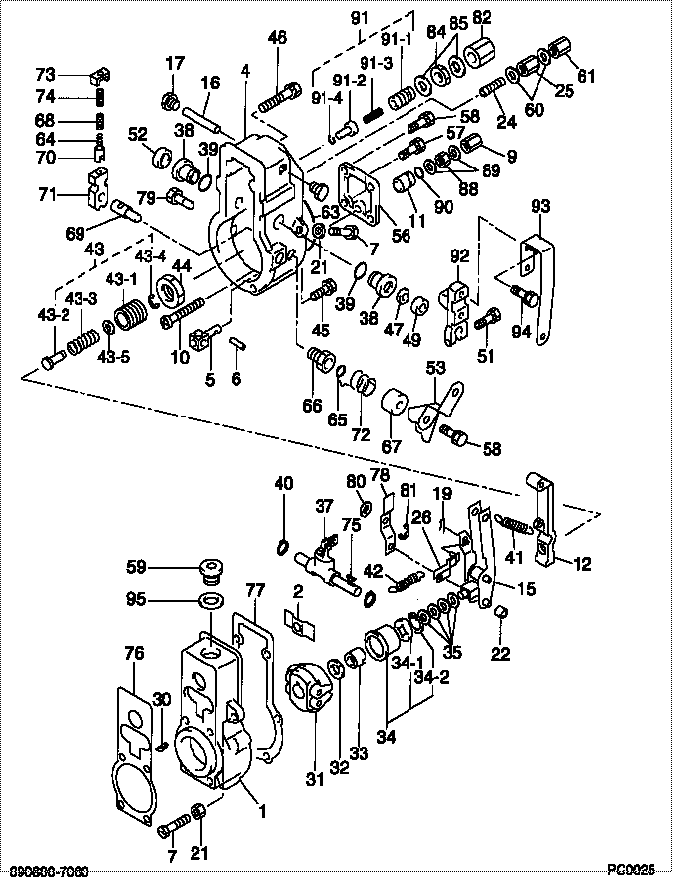

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-07060 GOVERNOR ASSY, MEC ME019317
001. [01] 09081-10631 HOUSING, GOVERNOR
001. [01] 09081-10810 HOUSING, GOVERNOR ME703401
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
003. [01] 09082-10080 STOPPER MM500495
004. [01] 09101-11950 COVER, GOVERNOR ME728300
005. [01] 09101-40090 PIN, STOP ME703487
005. [01] 09101-40071 PIN, STOP
006. [01] 09101-40080 PIN, STOP
007. [01] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-00140 LEVER ASSY, TENSIO ME703488
012. [01] 09090-00220 LEVER ASSY, TENSIO ME703407
012. [01] 09090-00140 LEVER ASSY, TENSIO ME703488
015. [01] 09093-00270 LEVER ASSY, CONTRO ME736954
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
018. [01] 09094-00270 LEVER SUB-ASSY, CO
019. [02] 90400-02101 PIN, SPLIT ME023402
020. [01] 09098-70010 SHIM MM500848
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
022. [01] 09104-60010 SLIDER, SUPPORTING ME728045
023. [01] 09102-70011 SPRING, IDLING 09102-70011
024. [01] 09091-00780 ADAPTER ASSY ME703490
024-001. [01] 09091-10290 SCREW, ADPTER ME728824
024-002. [01] 09091-81540 SPRING, MECHANICAL ME703499
024-003. [01] 09091-90310 ADAPTER ME728825
024-004. [01] 09089-40010 E-RING ME702112
025. [01] 94905-02460 NUT, HEXAGON ME703908
026. [01] 09097-00170 SHACKLE ASSY ME703411
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00310 FLYWEIGHT ASSY ME728293
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-00200 SLEEVE SUB-ASSY, F ME728046
034-001. [01] 09086-80040 PLATE, THRUST ME728294
034-002. [01] 90567-30000 RING, HOLE SNAP ME728356
035. [4C] 94901-34100 WASHER, PLATE, SK ME702893
035. [4C] 94901-34090 WASHER, PLATE, SK ME702892
035. [4C] 94901-34080 WASHER, PLATE, SK ME702891
035. [4C] 94901-34070 WASHER, PLATE, SK ME702890
035. [4C] 94901-34060 WASHER, PLATE, SK ME702889
036. [01] 94910-00010 BEARING, BALL ME702914
037. [01] 09088-00120 LEVER ASSY, SWIEVE ME703413
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20051 SPRING, SPEED CONT ME022444
042. [01] 09099-30260 SPRING, START ME728039
043. [01] 09091-00700 ADAPTER ASSY
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [01] 09091-80260 SPRING, MECHANICAL ME703419
043-003. [01] 09091-90010 ADAPTER ME703418
043-004. [01] 09089-40010 E-RING ME702112
043-005. [ C] 94901-33880 WASHER, PLATE, SK ME022484
043-005. [ C] 94901-34020 WASHER, PLATE, SK ME728059
043-005. [ C] 94901-34030 WASHER, PLATE, SK ME022517
043-005. [ C] 94901-37880 WASHER, PLATE, SK ME703917
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
049. [01] 94919-24580 COLLAR, STEEL
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-00410 LEVER SUB-ASSY, ST ME703420
054. [01] 09069-10660 BRACKET, STOP WIRE
056. [01] 09105-10480 PLATE, COVER ME703502
057. [02] 94904-71790 BOLT, W/WASHER ME702203
058. [01] 91418-06141 BOLT, W/WASHER ME702592
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10010 NUT, CAP ME703911
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
066. [01] 09101-60360 BUSHING, BEARING ME743361
067. [01] 09104-30010 COVER, SPRING ME702122
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40130 LEVER, SUPPORT ME728056
072. [01] 09104-20030 SPRING, RETURN ME702119
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 94913-00030 KEY, WOODRUFF ME702205
076. [01] 09082-30240 GASKET ME702107
076. [01] 09082-30460 GASKET ME736516
077. [01] 09082-30420 GASKET ME736188
077. [01] 09082-30180 GASKET ME703429
078. [01] 09117-00050 LEVER SUB-ASSY ME703430
079. [01] 09108-40050 PIN, TORQUE CONTRO ME703431
080. [01] 90218-08250 WASHER, PLATE ME703432
081. [01] 09089-40030 E-RING ME022443
082. [01] 09003-20040 CAP ME702858
084. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
085. [02] 94901-80350 WASHER, COPPER PLA ME702922
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434
091. [01] 09091-00730 ADAPTER ASSY ME703435
091-001. [01] 09002-60080 SCREW, ADJUSTING ME703439
091-002. [01] 09091-90240 ADAPTER ME703437
091-003. [01] 09002-70150 SPRING, TORQUE ME703438
091-004. [01] 90567-12000 RING, HOLE SNAP ME703436
092. [01] 09107-11930 LEVER, ADJUSTING ME703440
093. [01] 09107-11940 LEVER, ADJUSTING ME703441
094. [02] 91418-06161 BOLT, W/WASHER ME702149
095. [01] 94901-81550 WASHER, COPPER PLA ME039681

Include in #3:

09080-07060 as GOVERNOR ASSY, MEC
09300-00240
19000-06510

Cross reference number



Part num Firm num Firm Name
09080-07060  ME019317  GOVERNOR ASSY, MEC
ME019317    MITSUBISHI GOVERNOR ASSY, MEC




Information:


Table 1
Revision Summary of Changes
01 Added prefix S/N:8811-8299 Description Of Change: The new Diesel Exhaust Fluid (DEF) control unit software now used, has been released to improve the priming performance of DEF pumps in cold environments.Adaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former part numbers are listed in Table 2.
Table 2
Required Parts
Qty Dosing Control Unit (DCU) Dosing Control Unit (DCU) Voltage New Part Number Part Name Former Part Numbers(1)
1 Restriction on Hazardous Substance (RoHS) (DCU) 24V 593-7031 Engine Software 567-5763
1 Restriction on Hazardous Substance (RoHS) (DCU) 12V 593-7030 Engine Software 567-5761
1 Non-Restriction on Hazardous Substance (RoHS) (DCU) 24V 593-7033 Engine Software 539-3577
1 Non-Restriction on Hazardous Substance (RoHS) (DCU) 12V 593-7032 Engine Software 539-3576
(1) The former part number listed is for reference only and may differ.The new software is available in the form of a flash file through the Caterpillar Service Information System (SIS). A newer part number may be available. SIS web only displays the latest available flash file.
