09080-06881 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06881 GOVERNOR ASSY, MEC
Rating:
12
Buy GOVERNOR ASSY, MEC 09080-06881 genuine, new aftermarket engine parts with delivery

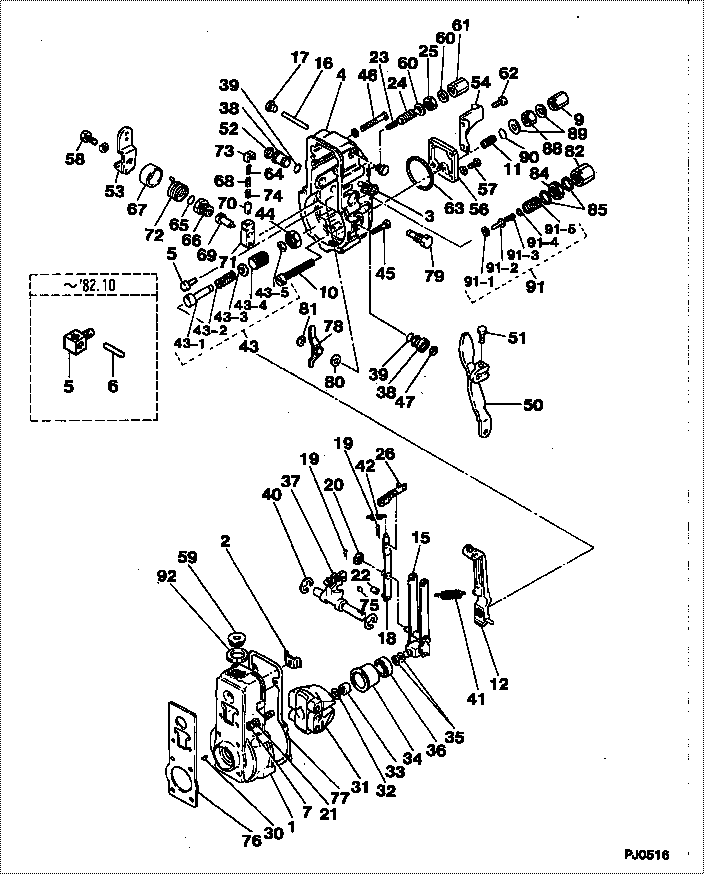

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06881 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
003. [01] 09082-10080 STOPPER 09082-10080
004. [01] 09101-11383 COVER, GOVERNOR 09101-11380
004. [01] 09101-11382 COVER, GOVERNOR 09101-11380
004. [01] 09101-11380 COVER, GOVERNOR 09101-11380
005. [01] 09101-40071 PIN, STOP
005. [01] 09101-40090 PIN, STOP
006. [01] 09101-40080 PIN, STOP
007. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [01] 09103-10151 NUT, CAP 09103-10150
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-00170 LEVER ASSY, TENSIO 09090-00170
012. [01] 09090-00230 LEVER ASSY, TENSIO
012. [01] 09090-00170 LEVER ASSY, TENSIO 09090-00170
015. [01] 09095-90190 LEVER ASSY, GUIDE 09095-90190
015. [01] 09095-90040 LEVER ASSY, GUIDE 09095-90040
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
018. [01] 09094-00270 LEVER SUB-ASSY, CO 09094-00270
019. [02] 90400-02101 PIN, SPLIT 90400-02101
020. [01] 09098-70010 SHIM 85264-0048
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING 09104-60010
023. [01] 09102-70011 SPRING, IDLING 09102-70011
024. [01] 09102-80050 SCREW, ADJUSTING 09102-80050
025. [01] 94905-02460 NUT, HEXAGON 85264-00061
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00320 FLYWEIGHT ASSY 09084-00320
031. [01] 09084-00570 FLYWEIGHT ASSY
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-10010 SLEEVE, GOVERNOR 85264-00027
035. [ C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [ C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [ C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [ C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [ C] 94901-34060 WASHER, PLATE, SK 94901-34060
036. [01] 94910-00010 BEARING, BALL 85264-00028
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE 09088-00120
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20020 SPRING, SPEED CONT 09099-20020
042. [01] 09099-30010 SPRING, START 09099-30010
043. [01] 09091-01110 ADAPTER ASSY
043-001. [01] 09091-90010 ADAPTER 09091-90010
043-002. [01] 09091-81690 SPRING, MECHANICAL
043-003. [ C] 94901-33880 WASHER, PLATE, SK 94901-33880
043-003. [ C] 94901-34020 WASHER, PLATE, SK 94901-34020
043-003. [ C] 94901-34030 WASHER, PLATE, SK 94901-34030
043-003. [ C] 94901-34040 WASHER, PLATE, SK 94901-34040
043-004. [01] 09091-10010 SCREW, ADPTER 09091-10010
043-005. [01] 09089-40010 E-RING 09089-40010
044. [01] 09092-30011 NUT, ADAPTER LOCK 85264-00044
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
049. [01] 94919-24580 COLLAR, STEEL 94919-24580
050. [01] 09107-00600 LEVER SUB-ASSY, AD 09107-00600
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00500 LEVER SUB-ASSY, ST 09109-00500
054. [01] 09069-10660 BRACKET, STOP WIRE 09069-10660
056. [01] 09105-00380 PLATE SUB-ASSY, CO 09105-00380
056. [01] 09105-00491 PLATE SUB-ASSY, CO
057. [02] 94904-72700 BOLT, W/WASHER
058. [01] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10010 NUT, CAP 09103-10010
062. [02] 94904-71190 BOLT, W/WASHER 94904-71190
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
066. [01] 09101-60360 BUSHING, BEARING
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40130 LEVER, SUPPORT 09103-40130
071. [01] 09103-40161 LEVER, SUPPORT
072. [01] 09104-20220 SPRING, RETURN 09104-20220
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30170 GASKET 09082-30170
076. [01] 09082-30240 GASKET
076. [01] 09082-30460 GASKET
077. [01] 09082-30180 GASKET 09082-30180
077. [01] 09082-30420 GASKET
078. [01] 09117-00070 LEVER SUB-ASSY 09117-00070
079. [01] 09108-40050 PIN, TORQUE CONTRO 09108-40050
080. [01] 90218-08250 WASHER, PLATE 90218-08250
081. [01] 09089-40030 E-RING 09089-40030
082. [01] 09003-20040 CAP 09003-20040
084. [01] 94905-30090 NUT, HEXAGON, W/ H
085. [01] 94901-80350 WASHER, COPPER PLA 94901-80350
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
088. [01] 94905-01020 NUT, HEXAGON 85264-00056
089. [01] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081
091. [01] 09091-00930 ADAPTER ASSY
091-001. [01] 90567-12000 RING, HOLE SNAP 90567-12000
091-002. [01] 09091-90240 ADAPTER 09091-90240
091-003. [01] 09091-80251 SPRING, MECHANICAL
091-004. [ C] 94901-33880 WASHER, PLATE, SK 94901-33880
091-004. [ C] 94901-34020 WASHER, PLATE, SK 94901-34020
091-004. [ C] 94901-34030 WASHER, PLATE, SK 94901-34030
091-004. [ C] 94901-34040 WASHER, PLATE, SK 94901-34040
091-005. [01] 09002-60080 SCREW, ADJUSTING 09002-60080
092. [01] 94901-81550 WASHER, COPPER PLA

Include in #3:

09080-06881 as GOVERNOR ASSY, MEC
19000-05633
19100-02200

Cross reference number



Part num Firm num Firm Name
09080-06881    GOVERNOR ASSY, MEC




Information:


Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.

Have questions with 09080-06881?





19080-02390 GOVERNOR ASSY, MEC 09130-00302 09130-00292 09130-00281 09130-00275
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 09080-06881
