09080-06660 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06660 GOVERNOR ASSY, MEC
Rating:
54
Buy GOVERNOR ASSY, MEC 09080-06660 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

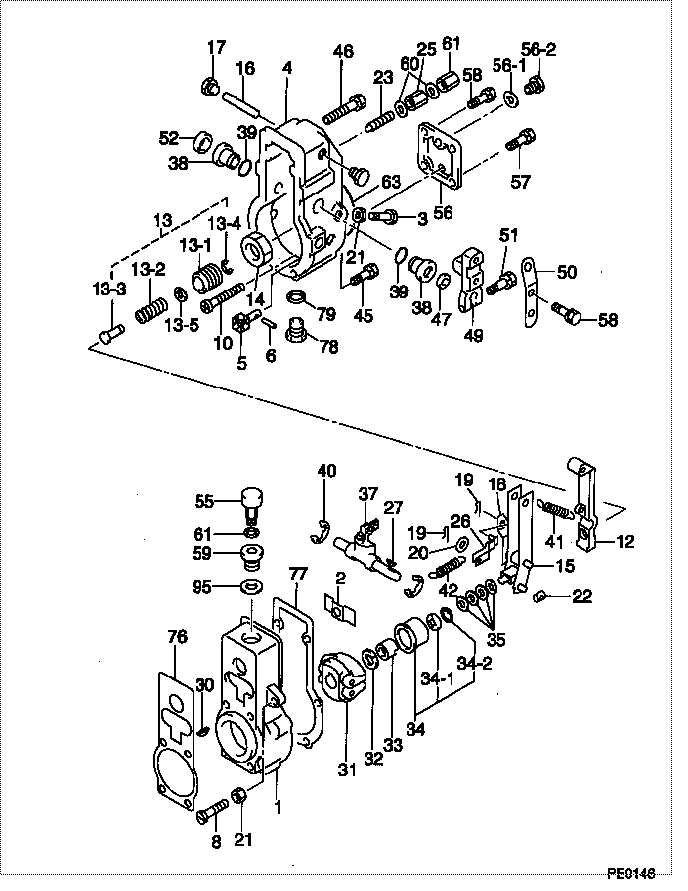

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06660 GOVERNOR ASSY, MEC
001. [01] 09081-10631 HOUSING, GOVERNOR 09081-10631
002. [01] 09087-80030 PLATE
003. [01] 09082-10080 STOPPER 09082-10080
004. [01] 09101-11490 COVER, GOVERNOR
005. [01] 09101-30050 JOINT, FORK 09101-30050
006. [01] 09101-40080 PIN, STOP
008. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
010. [01] 09100-60101 SCREW, STROKE ADJU
011. [01] 90166-06051 NUT, HEXAGON
012. [01] 09090-10150 LEVER, TENSION 09090-10150
013. [01] 09091-00590 ADAPTER ASSY 09091-00590
013-001. [01] 09091-10010 SCREW, ADPTER 09091-10010
013-002. [01] 09091-80741 SPRING, MECHANICAL 09091-80740
013-003. [01] 09091-90010 ADAPTER 09091-90010
013-004. [01] 09089-40010 E-RING 09089-40010
013-005. [ C] 94901-37880 WASHER, PLATE, SK
013-005. [ C] 94901-34040 WASHER, PLATE, SK 94901-34040
013-005. [ C] 94901-34030 WASHER, PLATE, SK 94901-34030
013-005. [ C] 94901-34020 WASHER, PLATE, SK 94901-34020
013-005. [ C] 94901-33880 WASHER, PLATE, SK 94901-33880
014. [01] 09092-30011 NUT, ADAPTER LOCK 09092-30010
015. [01] 09095-90190 LEVER ASSY, GUIDE 09095-90190
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
018. [01] 09094-00270 LEVER SUB-ASSY, CO 09094-00270
019. [02] 90400-02101 PIN, SPLIT 90400-02101
020. [01] 09098-70010 SHIM 09098-70010
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING
023. [01] 09056-00140 CAPSULE, FULL STOP 09056-00140
025. [01] 09092-30060 NUT, ADAPTER LOCK 09092-30060
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00310 FLYWEIGHT ASSY 09084-00310
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 09084-40010
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 09086-00200
034-001. [01] 09086-80030 PLATE, THRUST
034-002. [01] 90567-30000 RING, HOLE SNAP
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
037. [01] 09088-00120 LEVER ASSY, SWIEVE 09088-00120
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 94907-10090
041. [01] 09099-20051 SPRING, SPEED CONT 09099-20051
042. [01] 09099-30110 SPRING, START 09099-30110
045. [04] 94904-71760 BOLT, W/WASHER
046. [02] 94904-71750 BOLT, W/WASHER
047. [01] 94915-00210 SEAL, OIL 94915-00210
049. [01] 09107-11420 LEVER, ADJUSTING 09107-11420
050. [01] 09107-12080 LEVER, ADJUSTING
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
055. [01] 09028-00010 CLEANER, INJECTION 09028-00010
056. [01] 09105-00370 PLATE SUB-ASSY, CO
057. [02] 94904-71790 BOLT, W/WASHER
058. [04] 91418-06141 BOLT, W/WASHER
059. [01] 09081-50020 SEAT, BREATHER 09081-50020
060. [03] 09024-10010 WASHER, AIR BLEEDE 09024-10010
061. [01] 09103-10030 NUT, CAP 09103-10030
061. [01] 09103-10010 NUT, CAP 09103-10010
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
075. [01] 94913-00030 KEY, WOODRUFF 94913-00030
076. [01] 09082-30170 GASKET 09082-30170
076. [01] 09082-30240 GASKET 09082-30240
077. [01] 09082-30180 GASKET 09082-30180
078. [01] 09116-70031 PLUG, SCREW 09116-70031
079. [01] 09022-20060 WASHER, FUEL PIPE 09022-20060

Include in #3:

09080-06660 as GOVERNOR ASSY, MEC
19000-05310
19000-05320

Cross reference number



Part num Firm num Firm Name
09080-06660    GOVERNOR ASSY, MEC




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The Disassembly and Assembly publication has been updated to reflect the increased assembly torque on the injector hold down bolts. Refer to the updated torque specification in the appropriate Disassembly and Assembly manuals listed in the reference section above.

Have questions with 09080-06660?





19080-02390 GOVERNOR ASSY, MEC 09130-00302 09130-00292 09130-00281 09130-00275
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 09080-06660
