09080-06480 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06480 GOVERNOR ASSY, MEC
Rating:
36
Buy GOVERNOR ASSY, MEC 09080-06480 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900190
Governor assy, mec 1908900190

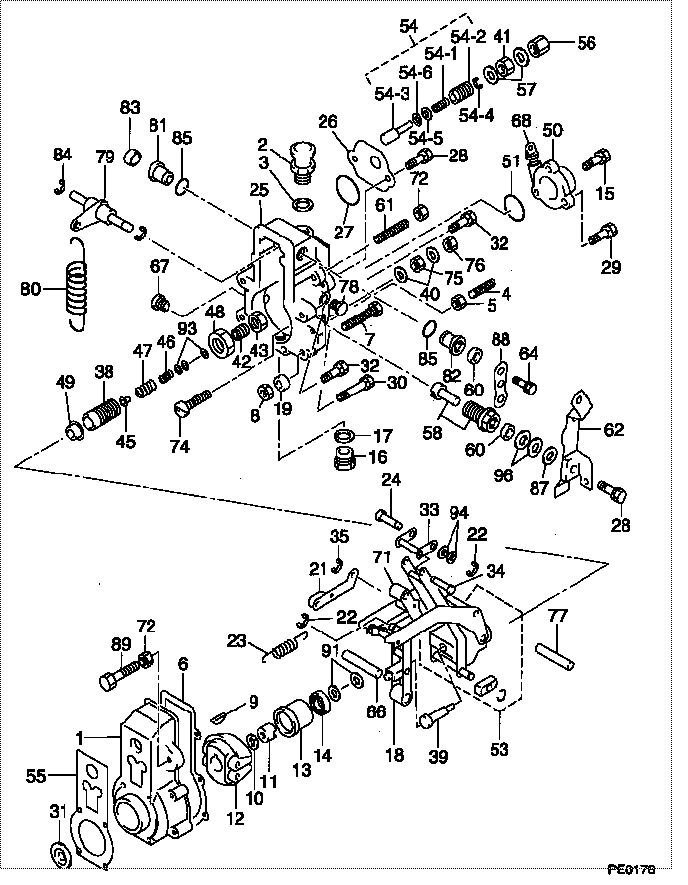

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06480 GOVERNOR ASSY, MEC
001. [01] 09081-00102 HOUSING SUB-ASSY, 6 306 1310 90
002. [01] 09083-00030 BREATHER ASSY, MEC 6 303 1303 41
003. [01] 94901-81040 WASHER, COPPER PLA 22843-1430A
004. [01] 09152-40081 SCREW, STOPPER 22395-1260A
005. [01] 94805-30130 NUT, HEXAGON, W/HO 22825-1060A
006. [01] 09082-30400 GASKET 22847-2390A
006. [01] 09082-30141 GASKET 22847-1800A
007. [01] 09128-40080 SCREW, ADJUSTING 22395-1470A
008. [01] 09634-20010 NUT, LOCK 22821-1530A
008. [01] 90160-06051 NUT, HEXAGON 22825-1480A
009. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
010. [01] 94901-50500 WASHER, SPRING 22877-1540A
011. [01] 09084-40010 NUT, ROUND 22353-1070A
012. [01] 09084-00490 FLYWEIGHT ASSY 22304-1270
013. [01] 09086-10010 SLEEVE, GOVERNOR 22305-1110A
014. [01] 94910-00010 BEARING, BALL 22837-1120A
015. [01] 94904-71770 BOLT, W/WASHER 22815-1450A
016. [01] 09116-70031 PLUG, SCREW 22845-1320A
017. [01] 09022-20060 WASHER, FUEL PIPE 6 366 1331 10
018. [01] 09095-90090 LEVER ASSY, GUIDE 22307-1550
021. [01] 09097-00090 SHACKLE ASSY 22409-1020
022. [03] 90577-05000 E-RING 22887-1170A
023. [01] 09099-30160 SPRING, START 6 306 1333 30
024. [01] 09098-30191 PIN, CONNECTING 22455-1040A
025. [01] 09101-11100 COVER, GOVERNOR 22302-1050
026. [01] 09105-10200 PLATE, COVER 22386-1240A
027. [01] 94914-02030 O-RING 22817-1310A
028. [03] 91418-06201 BOLT, W/WASHER 22815-1290A
029. [02] 91418-06161 BOLT, W/WASHER 22815-1380A
030. [04] 94904-71740 BOLT, W/WASHER 22815-1460A
031. [01] 94915-00030 SEAL, OIL 22827-1290A
032. [02] 94904-71780 BOLT, W/WASHER 22815-1470A
033. [01] 09094-00080 LEVER SUB-ASSY, CO 22309-1620
034. [01] 09098-30130 PIN, CONNECTING 6 306 1314 30
035. [01] 90577-07000 E-RING 22887-1240A
038. [01] 09091-10111 SCREW, ADPTER 22385-1410
039. [01] 09091-90160 ADAPTER 22385-1390
040. [02] 09025-10010 WASHER, INJECTION 22865-1290A
041. [01] 94805-30090 NUT, HEXAGON, W/HO 22825-1270A
042. [01] 09091-10120 SCREW, ADPTER 6 306 1314 50
043. [01] 94905-02460 NUT, HEXAGON 22825-1240A
045. [01] 09091-70031 SEAT, SPRING 22351-1310
046. [01] 09091-81760 SPRING, MECHANICAL
047. [01] 09091-81040 SPRING, MECHANICAL 22411-1060A
048. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
049. [01] 09104-90081 COLLAR 6 306 1315 50
050. [01] 09105-00130 PLATE SUB-ASSY, CO 6 306 1315 60
051. [01] 94914-01900 O-RING 22817-1550A
053. [01] 09092-00021 LEVER KIT, CONTROL 6 306 1332 40
054. [01] 09091-00421 ADAPTER ASSY 22404-1480A
054-001. [01] 09091-80441 SPRING, MECHANICAL 22411-1550
054-002. [01] 09091-10061 SCREW, ADPTER 22385-1370
054-003. [01] 09091-90170 ADAPTER 6 306 1341 80
054-004. [01] 09089-40010 E-RING 22863-1810A
054-005. [01] 90208-05000 WASHER, PLATE
054-006. [1C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
054-006. [1C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
055. [01] 09082-30240 GASKET 22847-1570A
055. [01] 09082-30460 GASKET 22847-2490A
056. [01] 09003-20040 CAP 22342-1110A
057. [02] 94901-80350 WASHER, COPPER PLA 22847-1950A
058. [01] 09102-60010 SHAFT & BUSHING KI 22420-1010A
060. [02] 94915-01150 SEAL, OIL 22827-1150A
061. [01] 09082-10010 STOPPER 22395-1290A
062. [01] 09107-01330 LEVER SUB-ASSY, AD
064. [01] 94904-70620 BOLT, W/WASHER 22815-1620A
066. [01] 09098-90020 SHAFT, LEVER SUPPO 22338-1060A
067. [01] 09099-10010 PLUG, SCREW 22845-1210A
068. [01] 09106-00020 GAUGE SUB-ASSY, GO 6 056 1326 10
071. [01] 09094-00130 LEVER SUB-ASSY, CO 22307-1560
072. [02] 94905-30140 NUT, HEXAGON, W/ H 22825-1250A
074. [01] 09100-60070 SCREW, STROKE ADJU 22396-1170A
075. [01] 94905-03060 NUT, HEXAGON 22825-1260A
076. [01] 09003-20080 CAP 22342-1180A
077. [01] 09103-50183 SHAFT, MECHANICAL 22318-1020A
078. [02] 09101-60172 BUSHING, BEARING 22837-1070
079. [01] 09104-80072 LEVER SUB-ASSY, SU 22306-1180
080. [01] 09099-20270 SPRING, SPEED CONT 22321-1820
081. [01] 09089-20011 BUSHING, LEVER 22322-1440A
082. [01] 09089-20040 BUSHING, LEVER 22322-1590A
083. [01] 09109-40010 CAP, LEVER 22855-1060A
084. [02] 94907-10090 WASHER, SNAP 22887-1050A
085. [02] 94914-00080 O-RING 22817-1190A
087. [2C] 09154-60010 SHIM 22885-1800A
088. [01] 09107-10941 LEVER, ADJUSTING 22415-1400A
091. [1C] 94901-34100 WASHER, PLATE, SK 22885-5160A
091. [1C] 94901-34090 WASHER, PLATE, SK 22885-5150A
091. [1C] 94901-34080 WASHER, PLATE, SK 22885-5140A
091. [1C] 94901-34070 WASHER, PLATE, SK 22885-5130A
091. [1C] 94901-34060 WASHER, PLATE, SK 22885-5120A
093. [1C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
093. [1C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
094. [02] 94901-33970 WASHER, PLATE, SK 22885-1740A
096. [2C] 09154-60030 SHIM 22885-5090A
096. [2C] 09154-60040 SHIM 22885-5100A
096. [2C] 09154-60050 SHIM 22885-5110A
096. [2C] 09154-60080 SHIM 22885-1700A

Include in #3:

09080-06480 as GOVERNOR ASSY, MEC
19000-05080

Cross reference number



Part num Firm num Firm Name
09080-06480    GOVERNOR ASSY, MEC




Information:


Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.
