09080-06450 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

GOVERNOR ASSY, MEC DA
  • *1:090560-0170 AND 090910-0780 ARE INTERCHANGEABLE,
  • IF NO.25 AND NO.61 ARE CHANGED AT THE SAME TIME.
09080-06450 GOVERNOR ASSY, MEC
Rating:
44
Buy GOVERNOR ASSY, MEC 09080-06450 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

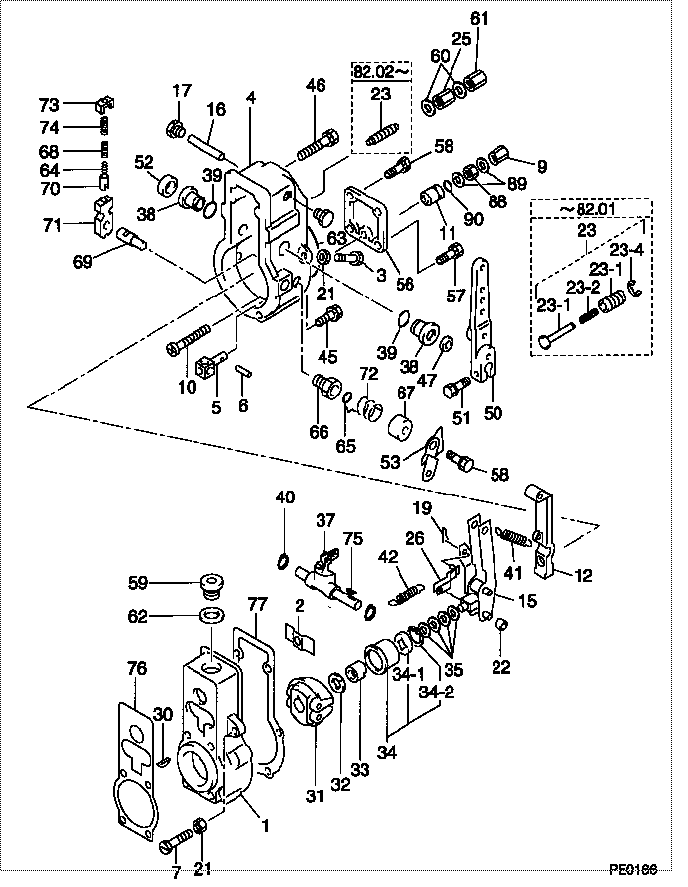

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06450 GOVERNOR ASSY, MEC 22310-1850
001. [01] 09081-10631 HOUSING, GOVERNOR
001. [01] 09081-10810 HOUSING, GOVERNOR 22301-1230A
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE 22343-1460A
003. [01] 09082-10080 STOPPER 22395-1590A
004. [01] 09101-11311 COVER, GOVERNOR
004. [01] 09101-11640 COVER, GOVERNOR 22302-1220A
004. [01] 09101-11670 COVER, GOVERNOR 22302-1420A
005. [01] 09101-40090 PIN, STOP 22393-1100A
005. [01] 09101-40071 PIN, STOP
006. [01] 09101-40080 PIN, STOP
007. [01] 09102-40031 SCREW, ADJUSTING 22395-1010A
009. [01] 09103-10150 NUT, CAP 22342-1430A
010. [01] 09100-60150 SCREW, STROKE ADJU 22396-1060A
011. [01] 09094-40310 BUSHING 22322-1370A
012. [01] 09090-10150 LEVER, TENSION 22308-1170A
015. [01] 09093-00270 LEVER ASSY, CONTRO 22307-1990A
016. [01] 09098-90010 SHAFT, LEVER SUPPO 22318-1240A
017. [02] 09099-10010 PLUG, SCREW 22845-1210A
019. [01] 90400-02101 PIN, SPLIT 22863-1820A
021. [02] 94805-30051 NUT, HEXAGON, W/HO 22825-1080A
022. [01] 09104-60010 SLIDER, SUPPORTING 22322-1620A
023. [01] 09091-00780 ADAPTER ASSY
023. [01] 09056-00170 CAPSULE, FULL STOP 22412-1160A
023-001. [01] 09091-10290 SCREW, ADPTER
023-002. [01] 09091-81540 SPRING, MECHANICAL
023-003. [01] 09091-90310 ADAPTER 22385-2140A
023-004. [01] 09089-40010 E-RING 22863-1810A
025. [01] 94905-02460 NUT, HEXAGON 22825-1240A
025. [01] 09092-30060 NUT, ADAPTER LOCK 22825-1400A
026. [01] 09097-00170 SHACKLE ASSY 22317-1140A
030. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
031. [01] 09084-00310 FLYWEIGHT ASSY 22360-1380A
032. [01] 94901-50500 WASHER, SPRING 22877-1540A
033. [01] 09084-40010 NUT, ROUND 22353-1070A
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 22305-1080A
035. [4C] 94901-34100 WASHER, PLATE, SK 22885-5160A
035. [4C] 94901-34090 WASHER, PLATE, SK 22885-5150A
035. [4C] 94901-34080 WASHER, PLATE, SK 22885-5140A
035. [4C] 94901-34070 WASHER, PLATE, SK 22885-5130A
035. [4C] 94901-34060 WASHER, PLATE, SK 22885-5120A
037. [01] 09088-00140 LEVER ASSY, SWIEVE 22306-1300A
037. [01] 09088-00120 LEVER ASSY, SWIEVE 22360-1090A
038. [02] 09089-20080 BUSHING, LEVER 22322-1360A
039. [02] 90801-20160 O-RING 22817-1060A
040. [02] 94907-10090 WASHER, SNAP 22887-1050A
041. [01] 09099-20500 SPRING, SPEED CONT
042. [01] 09099-30010 SPRING, START 22331-1280A
045. [04] 94904-71760 BOLT, W/WASHER 22815-1860A
046. [02] 94904-71750 BOLT, W/WASHER 22815-1490A
047. [01] 94915-00210 SEAL, OIL 22827-1370A
050. [01] 09107-00350 LEVER SUB-ASSY, AD 22309-1070A
051. [01] 94904-71190 BOLT, W/WASHER 22815-1230A
052. [01] 09109-40060 CAP, LEVER 22322-1350A
053. [01] 09109-80400 STOPPER
056. [01] 09105-10480 PLATE, COVER 22386-1540A
057. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
058. [03] 91418-06141 BOLT, W/WASHER 22815-1480A
059. [01] 09022-40110 SCREW,PLUG 22845-1110A
060. [02] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
061. [01] 09103-10010 NUT, CAP 6 056 1320 40
061. [01] 09103-10030 NUT, CAP 22825-2060A
062. [01] 94901-81550 WASHER, COPPER PLA 96542-2150A
063. [01] 94906-21270 PACKING, RUBBER PL 22817-1070A
064. [01] 09103-80040 SPRING, B 22341-1610A
065. [01] 94914-00130 O-RING 22817-1440A
066. [01] 09101-60020 BUSHING, BEARING 22322-1180A
067. [01] 09104-30010 COVER, SPRING 22351-1650A
068. [01] 09103-80050 SPRING, B 22341-1620A
069. [01] 09103-50240 SHAFT, MECHANICAL 22349-1120A
070. [01] 09103-60010 CUP, SPRING 22358-1490A
071. [01] 09103-40130 LEVER, SUPPORT 22045-1030A
072. [01] 09104-20030 SPRING, RETURN 22341-2500A
073. [01] 09103-30030 PLATE, CAP 22351-1330A
074. [01] 09103-80030 SPRING, B 22351-1320A
075. [01] 94913-00030 KEY, WOODRUFF 22891-1060A
076. [01] 09082-30240 GASKET 22847-1570A
076. [01] 09082-30460 GASKET 22847-2490A
077. [01] 09082-30180 GASKET 22847-1200A
077. [01] 09082-30230 GASKET 22847-2070A
077. [01] 09082-30420 GASKET 22847-2630A
088. [01] 94905-03390 NUT, HEXAGON 22825-1100A
089. [02] 94901-81020 WASHER, COPPER PLA 22867-1500A
090. [01] 90801-10120 O-RING 22817-1080A

Include in #3:

09080-06450 as GOVERNOR ASSY, MEC
19000-04980
19000-07480

Cross reference number



Part num Firm num Firm Name
09080-06450  22310-1850  GOVERNOR ASSY, MEC
22310-1850A    HINO GOVERNOR ASSY, MEC
22310-1850    HINO GOVERNOR ASSY, MEC
