09080-06270 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06270 GOVERNOR ASSY, MEC
Rating:
2
Buy GOVERNOR ASSY, MEC 09080-06270 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

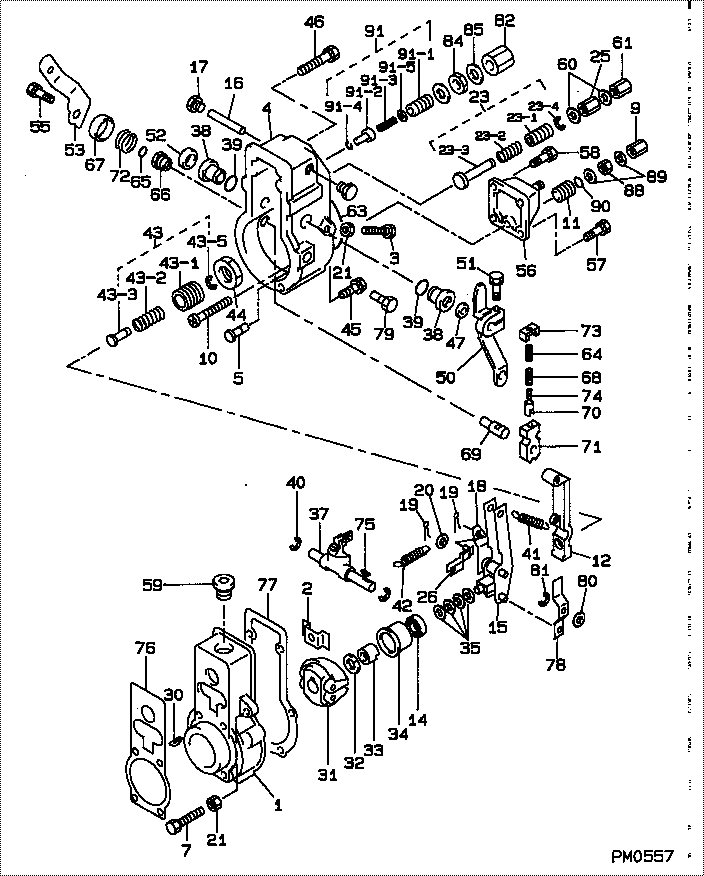

Scheme ###:

000. [01] 09080-06270 GOVERNOR ASSY, MEC
001. [01] 09081-10810 HOUSING, GOVERNOR ME703401
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
003. [01] 09082-10080 STOPPER MM500495
004. [01] 09101-11351 COVER, GOVERNOR ME703521
005. [01] 09101-40090 PIN, STOP ME703487
007. [01] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-00170 LEVER ASSY, TENSIO ME728310
012. [01] 09090-00230 LEVER ASSY, TENSIO ME703522
014. [01] 94910-00010 BEARING, BALL ME702914
015. [01] 09095-90040 LEVER ASSY, GUIDE 90959-0040
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
018. [01] 09094-00270 LEVER SUB-ASSY, CO
019. [01] 90400-02101 PIN, SPLIT ME023402
020. [01] 09098-70010 SHIM MM500848
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
023. [01] 09091-00780 ADAPTER ASSY ME703490
023-001. [01] 09091-10290 SCREW, ADPTER ME728824
023-002. [01] 09091-81540 SPRING, MECHANICAL ME703499
023-003. [01] 09091-90310 ADAPTER ME728825
023-004. [01] 09089-40010 E-RING ME702112
025. [01] 94905-02460 NUT, HEXAGON ME703908
026. [01] 09097-00170 SHACKLE ASSY ME703411
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00550 FLYWEIGHT ASSY ME703412
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
035. [4C] 94901-34060 WASHER, PLATE, SK ME702889
035. [4C] 94901-34070 WASHER, PLATE, SK ME702890
035. [4C] 94901-34080 WASHER, PLATE, SK ME702891
035. [4C] 94901-34090 WASHER, PLATE, SK ME702892
035. [4C] 94901-34100 WASHER, PLATE, SK ME702893
037. [01] 09088-00120 LEVER ASSY, SWIEVE ME703413
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20310 SPRING, SPEED CONT MM500744
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-00490 ADAPTER ASSY ME703498
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [01] 09091-80990 SPRING, MECHANICAL MM501000
043-003. [01] 09091-90010 ADAPTER ME703418
043-005. [01] 09089-40010 E-RING ME702112
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
050. [01] 09107-00310 LEVER SUB-ASSY, AD ME703912
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-80011 STOPPER 09109-80010
055. [01] 91418-06141 BOLT, W/WASHER ME702592
056. [01] 09105-00380 PLATE SUB-ASSY, CO ME703492
057. [02] 94904-72700 BOLT, W/WASHER ME702204
058. [02] 91418-06161 BOLT, W/WASHER ME702149
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10010 NUT, CAP ME703911
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
067. [01] 09104-30010 COVER, SPRING ME702122
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40161 LEVER, SUPPORT ME703426
072. [01] 09104-20220 SPRING, RETURN ME703975
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 94913-00030 KEY, WOODRUFF ME702205
076. [01] 09082-30240 GASKET ME702107
076. [01] 09082-30460 GASKET
077. [01] 09082-30180 GASKET ME703429
077. [01] 09082-30420 GASKET ME736188
078. [01] 09117-00070 LEVER SUB-ASSY ME703527
079. [01] 09108-40050 PIN, TORQUE CONTRO ME703431
080. [01] 90218-08250 WASHER, PLATE ME703432
081. [01] 09089-40030 E-RING ME022443
082. [01] 09003-20040 CAP ME702858
084. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
085. [02] 94901-80350 WASHER, COPPER PLA ME702922
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434
091. [01] 09091-00890 ADAPTER ASSY
091-001. [01] 09002-60080 SCREW, ADJUSTING ME703439
091-002. [01] 09091-90240 ADAPTER ME703437
091-003. [01] 09091-80260 SPRING, MECHANICAL ME703419
091-004. [01] 90567-12000 RING, HOLE SNAP ME703436
091-005. [1C] 94901-33880 WASHER, PLATE, SK ME022484
091-005. [1C] 94901-34020 WASHER, PLATE, SK ME728059
091-005. [1C] 94901-34030 WASHER, PLATE, SK ME022517
091-005. [1C] 94901-34040 WASHER, PLATE, SK ME022485
091-005. [1C] 94901-37880 WASHER, PLATE, SK ME703917

Include in #3:

09080-06270 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
09080-06270    GOVERNOR ASSY, MEC




Information:


REM06-41
Reman
November 2006 REMAN FUEL INJECTORS FOR VARIOUS MACHINE, INDUSTRIAL AND ON-HIGHWAY TRUCK APPLICATIONS AnnouncementThe Remanufacturing Division announces the addition of the following Remanufactured Fuel Injectors to complement the existing product offerings for various machine, industrial and on-highway truck applications. CoverageThe addition of these Reman Fuel Injectors provides dealers with a lower cost repair option. The table below lists coverage by part number.
Reman Part Number New Part Number Engine Model Part Name
10R3071 2490697 C13 Injector Gp- Fuel
10R3147 2490712 C11 Injector Gp- Fuel
10R3262 2490713 C11 Injector Gp- Fuel
10R3263 2530614 C15 Injector Gp- Fuel
10R3264 2530615 C15 Injector Gp- Fuel
10R3266 2530617 C27 Injector Gp- Fuel Features and BenefitsCat? Remanufactured fuel injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured fuel injectors. Cat Remanufactured fuel injectors provide immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar parts distribution system
Customer access regardless of location
Off-the-shelf availability
Downtime reduced through exchange product
Same-as-new Caterpillar warranty
Consistent support
Core AcceptanceCore Acceptance Criteria for Caterpillar? Remanufactured fuel injectors is a simple, visual inspection, and requires no special tools. Consult our Core Acceptance Guide online for complete details.WarrantyPlease consult the appropriate warranty statement for your area.Core ManagementPlease refer to the Caterpillar? Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date.For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman website at https://reman.cat and click on Procedures and Policies (listed under Reman Program Information). If you have any questions regarding core return processing, feel free to call your Corinth Dealer Service Representative toll free at (800) 537-2928 or use our e-mail address -- reman_core_operations. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our e-mail address -- Reman_Help.
PELJ0719 CATERPILLAR? ?2006 Caterpillar
