09080-06250 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06250 GOVERNOR ASSY, MEC
Rating:
7
Buy GOVERNOR ASSY, MEC 09080-06250 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

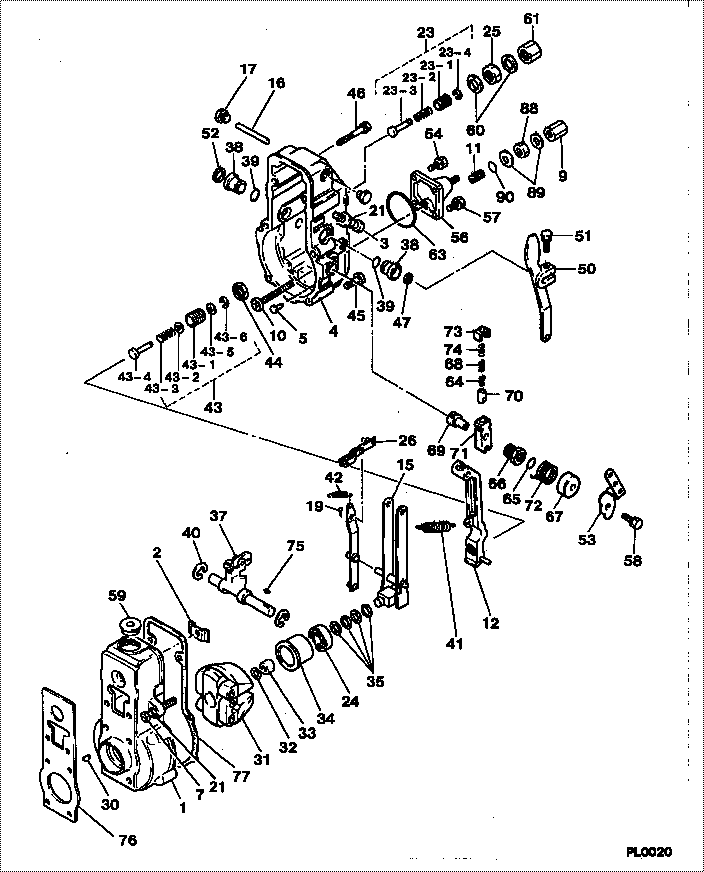

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06250 GOVERNOR ASSY, MEC ME728817
001. [01] 09081-10810 HOUSING, GOVERNOR ME703401
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
003. [01] 09082-10080 STOPPER MM500495
004. [01] 09101-11670 COVER, GOVERNOR ME728821
005. [01] 09101-40090 PIN, STOP ME703487
007. [01] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-10150 LEVER, TENSION ME703906
012. [01] 09090-10200 LEVER, TENSION ME728822
015. [01] 09093-00041 LEVER ASSY, CONTRO ME703907
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
019. [01] 90400-02101 PIN, SPLIT ME023402
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
023. [01] 09091-01000 ADAPTER ASSY ME728823
023-001. [01] 09091-10290 SCREW, ADPTER ME728824
023-002. [01] 09091-80960 SPRING, MECHANICAL ME728840
023-003. [01] 09091-90310 ADAPTER ME728825
023-004. [01] 09089-40010 E-RING ME702112
024. [01] 94910-00010 BEARING, BALL ME702914
025. [01] 94905-02460 NUT, HEXAGON ME703908
026. [01] 09097-00170 SHACKLE ASSY ME703411
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00630 FLYWEIGHT ASSY ME703535
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
035. [4C] 94901-34100 WASHER, PLATE, SK ME702893
035. [4C] 94901-34090 WASHER, PLATE, SK ME702892
035. [4C] 94901-34080 WASHER, PLATE, SK ME702891
035. [4C] 94901-34070 WASHER, PLATE, SK ME702890
035. [4C] 94901-34060 WASHER, PLATE, SK ME702889
037. [01] 09088-00120 LEVER ASSY, SWIEVE ME703413
037. [01] 09088-00140 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20020 SPRING, SPEED CONT ME703947
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-00020 ADAPTER ASSY ME703909
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [ C] 94901-33880 WASHER, PLATE, SK ME022484
043-002. [ C] 94901-34020 WASHER, PLATE, SK ME728059
043-002. [ C] 94901-34030 WASHER, PLATE, SK ME022517
043-002. [ C] 94901-34040 WASHER, PLATE, SK ME022485
043-003. [01] 09091-80020 SPRING, MECHANICAL MM500517
043-004. [01] 09091-90010 ADAPTER ME703418
043-005. [01] 09092-10010 WASHER ME728311
043-006. [01] 09089-40010 E-RING ME702112
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
050. [01] 09107-01370 LEVER SUB-ASSY, AD ME728826
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-80690 STOPPER ME728843
054. [02] 91418-06161 BOLT, W/WASHER ME702149
056. [01] 09105-00380 PLATE SUB-ASSY, CO ME703492
057. [02] 94904-72700 BOLT, W/WASHER ME702204
058. [01] 91418-06141 BOLT, W/WASHER ME702592
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10010 NUT, CAP ME703911
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
067. [01] 09104-30010 COVER, SPRING ME702122
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40161 LEVER, SUPPORT ME703426
072. [01] 09104-20250 SPRING, RETURN MM500547
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 09082-30240 GASKET ME702107
075. [01] 94913-00030 KEY, WOODRUFF ME702205
075. [01] 09082-30460 GASKET
077. [01] 09082-30420 GASKET ME736188
077. [01] 09082-30180 GASKET ME703429
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434

Include in #3:

09080-06250 as GOVERNOR ASSY, MEC
19000-08650

Cross reference number



Part num Firm num Firm Name
09080-06250  ME728817  GOVERNOR ASSY, MEC
ME728817    MITSUBISHI GOVERNOR ASSY, MEC




Information:


When auxiliary devices, accessories or consumables (filters, oil, additives, catalysts, fuel, etc.) made by other manufacturers are used on Cat products, the Caterpillar warranty is not affected simply because of such use. Failures that result from the installation or usage of other manufacturers auxiliary devices, accessories or consumables, however, are not Caterpillar factory defects and therefore are NOT covered by Caterpillar's warranty.Caterpillar is not in a position to evaluate the many auxiliary devices, accessories or consumables promoted by other manufacturers and their effect on Cat products. Installation or use of such items is at the discretion of the customer who assumes ALL risks for the effects that result from this usage.Furthermore, Caterpillar does not authorize the use of its trade name, trademark, or logo in a manner which implies our endorsement of these aftermarket products.

Have questions with 09080-06250?





19080-02390 GOVERNOR ASSY, MEC 09130-00302 09130-00292 09130-00281 09130-00275
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 09080-06250
