09080-06150 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-06150 GOVERNOR ASSY, MEC
Rating:
35
Buy GOVERNOR ASSY, MEC 09080-06150 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

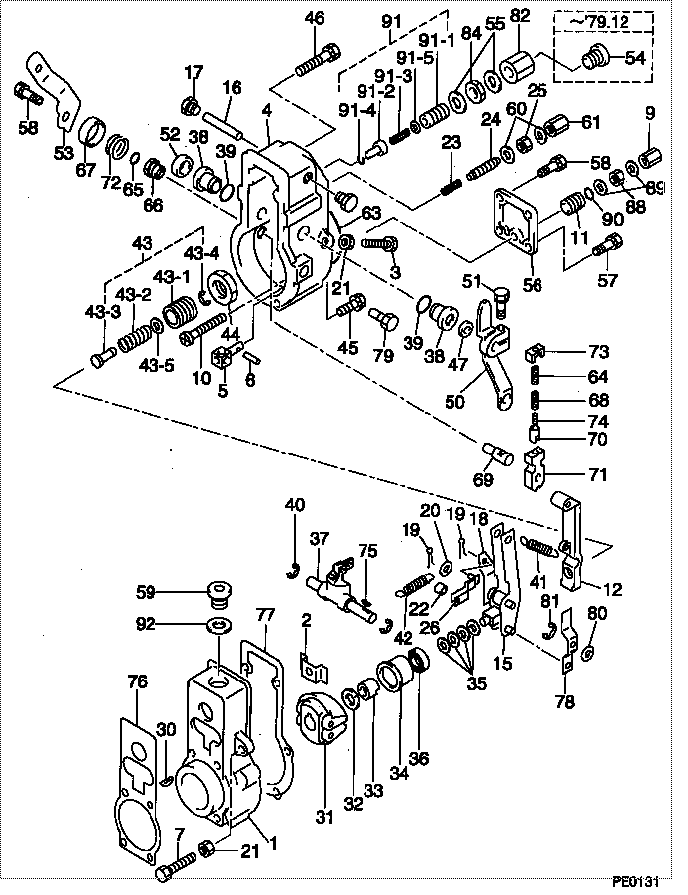

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-06150 GOVERNOR ASSY, MEC
001. [01] 09081-10631 HOUSING, GOVERNOR 09081-10631
001. [01] 09081-10810 HOUSING, GOVERNOR
001. [01] 09081-00660 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE
003. [01] 09082-10080 STOPPER 09082-10080
004. [01] 09101-11383 COVER, GOVERNOR 09101-11381
005. [01] 09101-40071 PIN, STOP
005. [01] 09101-40090 PIN, STOP
006. [01] 09101-40080 PIN, STOP
007. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [01] 09103-10151 NUT, CAP 09103-10151
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION
012. [01] 09090-00170 LEVER ASSY, TENSIO 09090-00170
012. [01] 09090-00230 LEVER ASSY, TENSIO
012. [01] 09090-00170 LEVER ASSY, TENSIO 09090-00170
015. [01] 09095-90190 LEVER ASSY, GUIDE 09095-90190
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
018. [01] 09094-00270 LEVER SUB-ASSY, CO 09094-00270
019. [02] 90400-02101 PIN, SPLIT 90400-02101
020. [01] 09098-70010 SHIM 85264-0048
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING 09104-60010
023. [01] 09102-70011 SPRING, IDLING 09102-70011
024. [01] 09102-80050 SCREW, ADJUSTING 09102-80050
025. [01] 94905-02460 NUT, HEXAGON 85264-00061
026. [01] 09097-00170 SHACKLE ASSY 09097-00170
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00320 FLYWEIGHT ASSY 09084-00320
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 09086-00200
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
037. [01] 09088-00140 LEVER ASSY, SWIEVE
037. [01] 09088-00120 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20020 SPRING, SPEED CONT 09099-20020
042. [01] 09099-30010 SPRING, START 09099-30010
043. [01] 09091-00700 ADAPTER ASSY
043-001. [01] 09091-10010 SCREW, ADPTER 09091-10010
043-002. [01] 09091-80260 SPRING, MECHANICAL
043-003. [01] 09091-90010 ADAPTER 09091-90010
043-004. [01] 09089-40010 E-RING 09089-40010
043-005. [1C] 94901-37880 WASHER, PLATE, SK
043-005. [1C] 94901-34030 WASHER, PLATE, SK 94901-34030
043-005. [1C] 94901-34020 WASHER, PLATE, SK 94901-34020
043-005. [1C] 94901-33880 WASHER, PLATE, SK 94901-33880
044. [01] 09092-30011 NUT, ADAPTER LOCK 85264-00044
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
050. [01] 09107-01210 LEVER SUB-ASSY, AD
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00371 LEVER SUB-ASSY, ST
054. [01] 09022-40081 SCREW,PLUG MM500485
055. [02] 94901-80350 WASHER, COPPER PLA 94901-80350
056. [01] 09105-10480 PLATE, COVER 09105-10480
057. [02] 94904-71790 BOLT, W/WASHER 94904-71790
058. [03] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10010 NUT, CAP 09103-10010
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40130 LEVER, SUPPORT 09103-40130
072. [01] 09104-20010 SPRING, RETURN 09104-20010
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09082-30170 GASKET 09082-30170
076. [01] 09082-30240 GASKET
076. [01] 09082-30460 GASKET
077. [01] 09082-30420 GASKET
077. [01] 09082-30230 GASKET
077. [01] 09082-30180 GASKET 09082-30180
078. [01] 09117-00070 LEVER SUB-ASSY 09117-00070
079. [01] 09108-40050 PIN, TORQUE CONTRO 09108-40050
080. [01] 90218-08250 WASHER, PLATE 90218-08250
081. [01] 09089-40030 E-RING 09089-40030
082. [01] 09003-20040 CAP 09003-20040
084. [01] 94805-30090 NUT, HEXAGON, W/HO 00905-30090
088. [01] 94905-03390 NUT, HEXAGON 94905-03390
089. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081
091. [01] 09091-00970 ADAPTER ASSY
091-001. [01] 09002-60080 SCREW, ADJUSTING 09002-60080
091-002. [01] 09091-90240 ADAPTER 09091-90240
091-003. [01] 09091-80300 SPRING, MECHANICAL 09091-80300
091-004. [01] 90567-12000 RING, HOLE SNAP 90567-12000
091-005. [1C] 94901-33880 WASHER, PLATE, SK 94901-33880
091-005. [1C] 94901-34020 WASHER, PLATE, SK 94901-34020
091-005. [1C] 94901-34030 WASHER, PLATE, SK 94901-34030
091-005. [1C] 94901-34040 WASHER, PLATE, SK 94901-34040
091-005. [01] 94901-37880 WASHER, PLATE, SK
092. [01] 94901-81550 WASHER, COPPER PLA

Include in #3:

09080-06150 as GOVERNOR ASSY, MEC
19000-04240
19000-05010

Cross reference number



Part num Firm num Firm Name
09080-06150    GOVERNOR ASSY, MEC




Information:


Table 1
Revision Summary of Changes
01 Added serial number prefixes Description Of Change: The improved Diesel Exhaust Fluid (DEF) filters have updated material to reduce debris passing to the DEF pump.Adaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former DEF filter part numbers are listed in Table 2.
Table 2
Required Parts
Qty New Part Number Part Name Former Part Numbers(1)
1 584-8135 Diesel Exhaust Fluid Filter Gp 453-1604
1 584-8136 Diesel Exhaust Fluid Filter Gp 453-1605
1 584-8137 Diesel Exhaust Fluid Filter Gp 453-1606
(1) The former part number listed is for reference only and may differ.

Have questions with 09080-06150?





19080-02390 GOVERNOR ASSY, MEC 09130-00302 09130-00292 09130-00281 09130-00275
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 09080-06150
