Information governor assy, mec
Rating:

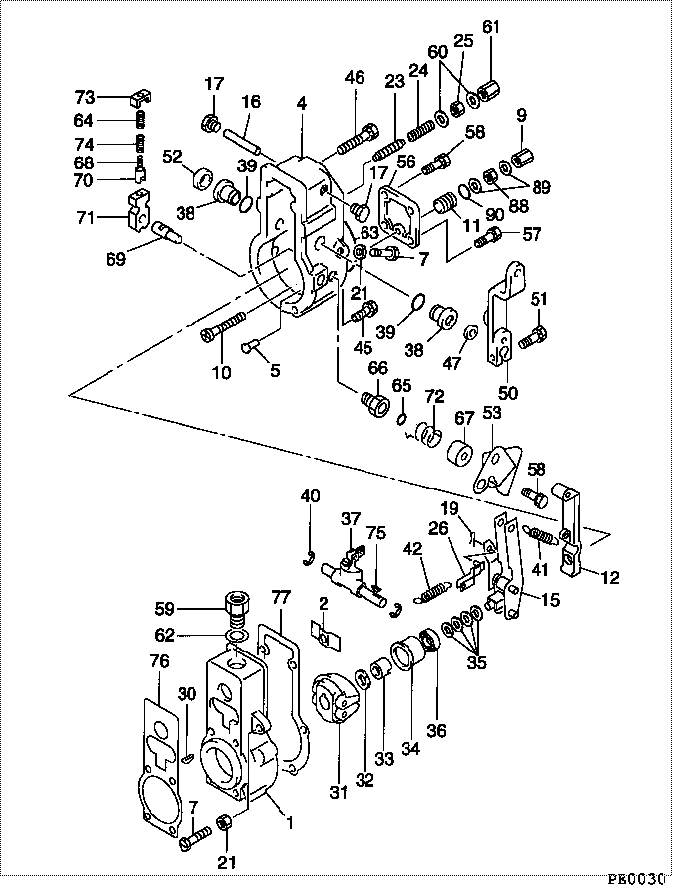

Scheme ###:
| 000. | [01] | 09080-05942 | GOVERNOR ASSY, MEC | |
| 001. | [01] | 09081-10631 | HOUSING, GOVERNOR | |
| 001. | [01] | 09081-10810 | HOUSING, GOVERNOR | |
| 001. | [01] | 09081-00660 | HOUSING SUB-ASSY, | |
| 002. | [01] | 09087-80030 | PLATE | |
| 004. | [01] | 09101-11321 | COVER, GOVERNOR | |
| 004. | [01] | 09101-11800 | COVER, GOVERNOR | |
| 005. | [01] | 09101-40071 | PIN, STOP | |
| 005. | [01] | 09101-40090 | PIN, STOP | |
| 006. | [01] | 09101-40080 | PIN, STOP | |
| 007. | [02] | 09102-40031 | SCREW, ADJUSTING | 09102-40031 |
| 009. | [01] | 09103-10150 | NUT, CAP | 09103-10151 |
| 010. | [01] | 09100-60150 | SCREW, STROKE ADJU | 09100-60150 |
| 011. | [01] | 09094-40310 | BUSHING | 09094-40310 |
| 012. | [01] | 09090-10150 | LEVER, TENSION | |
| 015. | [01] | 09093-00270 | LEVER ASSY, CONTRO | |
| 015. | [01] | 09093-00041 | LEVER ASSY, CONTRO | |
| 016. | [01] | 09098-90010 | SHAFT, LEVER SUPPO | 09098-90010 |
| 017. | [02] | 09099-10010 | PLUG, SCREW | 09099-10010 |
| 019. | [01] | 90400-02101 | PIN, SPLIT | 90400-02101 |
| 021. | [02] | 94805-30051 | NUT, HEXAGON, W/HO | 94805-30051 |
| 023. | [01] | 09102-80050 | SCREW, ADJUSTING | 09102-80050 |
| 024. | [01] | 09102-70020 | SPRING, IDLING | |
| 025. | [01] | 94905-02460 | NUT, HEXAGON | 85264-00061 |
| 026. | [01] | 09097-00170 | SHACKLE ASSY | 09097-00170 |
| 030. | [01] | 94913-00050 | KEY, WOODRUFF | 94913-00050 |
| 031. | [01] | 09084-00510 | FLYWEIGHT ASSY | |
| 032. | [01] | 94901-50500 | WASHER, SPRING | 94901-50500 |
| 033. | [01] | 09084-40010 | NUT, ROUND | 85264-00026 |
| 034. | [01] | 09086-10010 | SLEEVE, GOVERNOR | 85264-00027 |
| 035. | [4C] | 94901-34060 | WASHER, PLATE, SK | 94901-34060 |
| 035. | [4C] | 94901-34070 | WASHER, PLATE, SK | 94901-34070 |
| 035. | [4C] | 94901-34080 | WASHER, PLATE, SK | 94901-34080 |
| 035. | [4C] | 94901-34090 | WASHER, PLATE, SK | 94901-34090 |
| 035. | [4C] | 94901-34100 | WASHER, PLATE, SK | 94901-34100 |
| 036. | [01] | 94910-00010 | BEARING, BALL | 85264-00028 |
| 037. | [01] | 09088-00120 | LEVER ASSY, SWIEVE | 09088-00120 |
| 037. | [01] | 09088-00140 | LEVER ASSY, SWIEVE | |
| 038. | [02] | 09089-20080 | BUSHING, LEVER | 09089-20080 |
| 039. | [02] | 90801-20160 | O-RING | 90801-20160 |
| 040. | [02] | 94907-10090 | WASHER, SNAP | 85264-00037 |
| 041. | [01] | 09099-20030 | SPRING, SPEED CONT | |
| 042. | [01] | 09099-30010 | SPRING, START | 09099-30010 |
| 045. | [04] | 94904-71760 | BOLT, W/WASHER | 94904-71760 |
| 046. | [02] | 94904-71750 | BOLT, W/WASHER | 94904-71750 |
| 047. | [01] | 94915-00210 | SEAL, OIL | 94915-00210 |
| 050. | [01] | 09107-00360 | LEVER SUB-ASSY, AD | 09107-00360 |
| 051. | [01] | 94904-71190 | BOLT, W/WASHER | 94904-71190 |
| 052. | [01] | 09109-40060 | CAP, LEVER | 09109-40060 |
| 053. | [01] | 09109-00750 | LEVER SUB-ASSY, ST | |
| 056. | [01] | 09105-10480 | PLATE, COVER | 09105-10480 |
| 057. | [02] | 94904-71790 | BOLT, W/WASHER | 94904-71790 |
| 058. | [03] | 91418-06141 | BOLT, W/WASHER | 91418-06141 |
| 059. | [01] | 09116-70050 | PLUG, SCREW | 09116-70050 |
| 060. | [02] | 09024-10010 | WASHER, AIR BLEEDE | MM500486 |
| 061. | [01] | 09103-10010 | NUT, CAP | 09103-10010 |
| 063. | [01] | 94906-21270 | PACKING, RUBBER PL | 94906-21270 |
| 064. | [01] | 09103-80040 | SPRING, B | 09103-80040 |
| 065. | [01] | 94914-00130 | O-RING | 85264-00073 |
| 066. | [01] | 09101-60020 | BUSHING, BEARING | 09101-60020 |
| 067. | [01] | 09104-30010 | COVER, SPRING | 85264-00075 |
| 068. | [01] | 09103-80050 | SPRING, B | 09103-80050 |
| 069. | [01] | 09103-50240 | SHAFT, MECHANICAL | 09103-50240 |
| 070. | [01] | 09103-60010 | CUP, SPRING | 85264-00065 |
| 071. | [01] | 09103-40161 | LEVER, SUPPORT | |
| 072. | [01] | 09104-20250 | SPRING, RETURN | |
| 073. | [01] | 09103-30030 | PLATE, CAP | 09103-30030 |
| 074. | [01] | 09103-80030 | SPRING, B | 09103-80030 |
| 075. | [01] | 94913-00030 | KEY, WOODRUFF | 94913-00031 |
| 076. | [01] | 09082-30460 | GASKET | |
| 076. | [01] | 09082-30240 | GASKET | |
| 076. | [01] | 09082-30170 | GASKET | 09082-30170 |
| 077. | [01] | 09082-30180 | GASKET | 09082-30180 |
| 077. | [01] | 09082-30230 | GASKET | |
| 077. | [01] | 09082-30420 | GASKET | |
| 088. | [01] | 94905-01020 | NUT, HEXAGON | 85264-00056 |
| 089. | [02] | 94901-81020 | WASHER, COPPER PLA | 94901-81020 |
| 090. | [01] | 90801-10120 | O-RING | EZ40058081 |
| 092. | [01] | 94901-81550 | WASHER, COPPER PLA |
Include in #3:
09080-05942
as GOVERNOR ASSY, MEC
Cross reference number
| Part num | Firm num | Firm | Name |
| 09080-05942 | GOVERNOR ASSY, MEC |
