Information governor assy, mec
Rating:
KIT List:
| Governor assy, mec | 1908900170 |
| Governor assy, mec | 1908900170 |

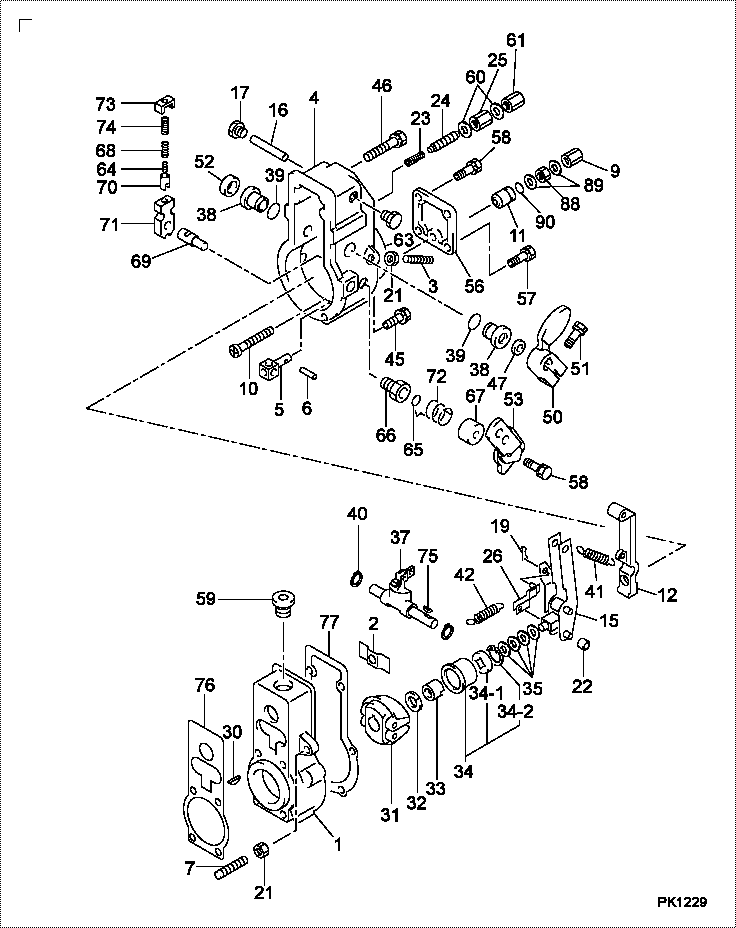

Scheme ###:
| 000. | [01] | 09080-05650 | GOVERNOR ASSY, MEC | |
| 001. | [01] | 09081-10631 | HOUSING, GOVERNOR | |
| 001. | [01] | 09081-10810 | HOUSING, GOVERNOR | |
| 002. | [01] | 09087-80030 | PLATE | 27771-87301-000 |
| 003. | [01] | 09082-10010 | STOPPER | 22443-67010-000 |
| 004. | [01] | 09101-11321 | COVER, GOVERNOR | |
| 004. | [01] | 09101-11800 | COVER, GOVERNOR | |
| 005. | [01] | 09101-40071 | PIN, STOP | 22134-73600-71 |
| 005. | [01] | 09101-40090 | PIN, STOP | |
| 006. | [01] | 09101-40080 | PIN, STOP | 22135-73600-71 |
| 007. | [01] | 09082-10180 | STOPPER | |
| 009. | [01] | 09103-10150 | NUT, CAP | 22437-87301-000 |
| 010. | [01] | 09100-60150 | SCREW, STROKE ADJU | 22136-73600-71 |
| 011. | [01] | 09094-40310 | BUSHING | 22425-87301-000 |
| 012. | [01] | 09090-10150 | LEVER, TENSION | 21469-87301-000 |
| 015. | [01] | 09093-00270 | LEVER ASSY, CONTRO | |
| 016. | [01] | 09098-90010 | SHAFT, LEVER SUPPO | 22478-87301-000 |
| 017. | [02] | 09099-10010 | PLUG, SCREW | 22477-87301-000 |
| 019. | [01] | 90400-02101 | PIN, SPLIT | 90095-02002-000 |
| 021. | [02] | 94805-30051 | NUT, HEXAGON, W/HO | 22441-31625-71 |
| 022. | [01] | 09104-60010 | SLIDER, SUPPORTING | 22761-87301-000 |
| 023. | [01] | 09102-70011 | SPRING, IDLING | 22152-73600-71 |
| 024. | [01] | 09102-80050 | SCREW, ADJUSTING | 22153-73600-71 |
| 025. | [01] | 94905-02460 | NUT, HEXAGON | 90099-05128-000 |
| 026. | [01] | 09097-00170 | SHACKLE ASSY | 22422-87301-000 |
| 030. | [01] | 94913-00050 | KEY, WOODRUFF | 90099-13002-000 |
| 031. | [01] | 09084-00310 | FLYWEIGHT ASSY | 22161-73600-71 |
| 032. | [01] | 94901-50500 | WASHER, SPRING | 22173-87301-000 |
| 033. | [01] | 09084-40010 | NUT, ROUND | 22451-77123-000 |
| 034. | [01] | 09086-00200 | SLEEVE SUB-ASSY, F | 22405-87301-000 |
| 035. | [4C] | 94901-34060 | WASHER, PLATE, SK | 90032-01107-000 |
| 035. | [4C] | 94901-34070 | WASHER, PLATE, SK | 90032-01108-000 |
| 035. | [4C] | 94901-34080 | WASHER, PLATE, SK | 90032-01109-000 |
| 035. | [4C] | 94901-34090 | WASHER, PLATE, SK | 90032-01110-000 |
| 035. | [4C] | 94901-34100 | WASHER, PLATE, SK | 90032-01111-000 |
| 037. | [01] | 09088-00120 | LEVER ASSY, SWIEVE | 21444-87301-000 |
| 037. | [01] | 09088-00140 | LEVER ASSY, SWIEVE | |
| 038. | [02] | 09089-20080 | BUSHING, LEVER | 22468-87301-000 |
| 039. | [02] | 90801-20160 | O-RING | 22173-73600-71 |
| 040. | [02] | 94907-10090 | WASHER, SNAP | 90035-23004-000 |
| 041. | [01] | 09099-20010 | SPRING, SPEED CONT | |
| 042. | [01] | 09099-30010 | SPRING, START | 22427-87301-000 |
| 045. | [04] | 94904-71760 | BOLT, W/WASHER | 90099-04328-000 |
| 046. | [02] | 94904-71750 | BOLT, W/WASHER | 22177-73600-71 |
| 047. | [01] | 94915-00210 | SEAL, OIL | 22178-73600-71 |
| 050. | [01] | 09107-00630 | LEVER SUB-ASSY, AD | |
| 051. | [01] | 94904-71190 | BOLT, W/WASHER | 22182-73600-71 |
| 052. | [01] | 09109-40060 | CAP, LEVER | 22457-87302-000 |
| 053. | [01] | 09109-00510 | LEVER SUB-ASSY, ST | 22707-87302-000 |
| 056. | [01] | 09105-10480 | PLATE, COVER | 22186-73600-71 |
| 057. | [02] | 94904-71790 | BOLT, W/WASHER | 90099-04997-000 |
| 058. | [03] | 91418-06141 | BOLT, W/WASHER | 22188-73600-000 |
| 059. | [01] | 09116-70050 | PLUG, SCREW | 22446-87301-000 |
| 060. | [02] | 09024-10010 | WASHER, AIR BLEEDE | 22119-77020-000 |
| 061. | [01] | 09103-10010 | NUT, CAP | 22192-73600-71 |
| 063. | [01] | 94906-21270 | PACKING, RUBBER PL | 22193-73600-71 |
| 064. | [01] | 09103-80040 | SPRING, B | 22727-87302-000 |
| 065. | [01] | 94914-00130 | O-RING | 22195-73600-71 |
| 066. | [01] | 09101-60020 | BUSHING, BEARING | 22418-87301-000 |
| 067. | [01] | 09104-30010 | COVER, SPRING | 22197-73600-71 |
| 068. | [01] | 09103-80050 | SPRING, B | 22727-87303-000 |
| 069. | [01] | 09103-50240 | SHAFT, MECHANICAL | 22429-87301-000 |
| 070. | [01] | 09103-60010 | CUP, SPRING | 22778-87302-000 |
| 071. | [01] | 09103-40130 | LEVER, SUPPORT | 22409-87301-000 |
| 072. | [01] | 09104-20030 | SPRING, RETURN | |
| 073. | [01] | 09103-30030 | PLATE, CAP | 22459-87302-000 |
| 074. | [01] | 09103-80030 | SPRING, B | 22727-87301-000 |
| 075. | [01] | 94913-00030 | KEY, WOODRUFF | 90099-13013-000 |
| 076. | [01] | 09082-30460 | GASKET | 22442-58260-000 |
| 076. | [01] | 09082-30240 | GASKET | 22442-78030-000 |
| 076. | [01] | 09082-30170 | GASKET | 22422-73500-71 |
| 077. | [01] | 09082-30180 | GASKET | 22217-73600-71 |
| 077. | [01] | 09082-30230 | GASKET | |
| 077. | [01] | 09082-30420 | GASKET | |
| 088. | [01] | 94905-03390 | NUT, HEXAGON | 22825-1100A-000 |
| 089. | [02] | 94901-81020 | WASHER, COPPER PLA | 90201-08106-000 |
| 090. | [01] | 90801-10120 | O-RING | 96711-19012-000 |
Include in #3:
09080-05650
as GOVERNOR ASSY, MEC
Cross reference number
| Part num | Firm num | Firm | Name |
| 09080-05650 | GOVERNOR ASSY, MEC |
