09080-04611 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-04611 GOVERNOR ASSY, MEC
Rating:
6
Buy GOVERNOR ASSY, MEC 09080-04611 genuine, new aftermarket engine parts with delivery

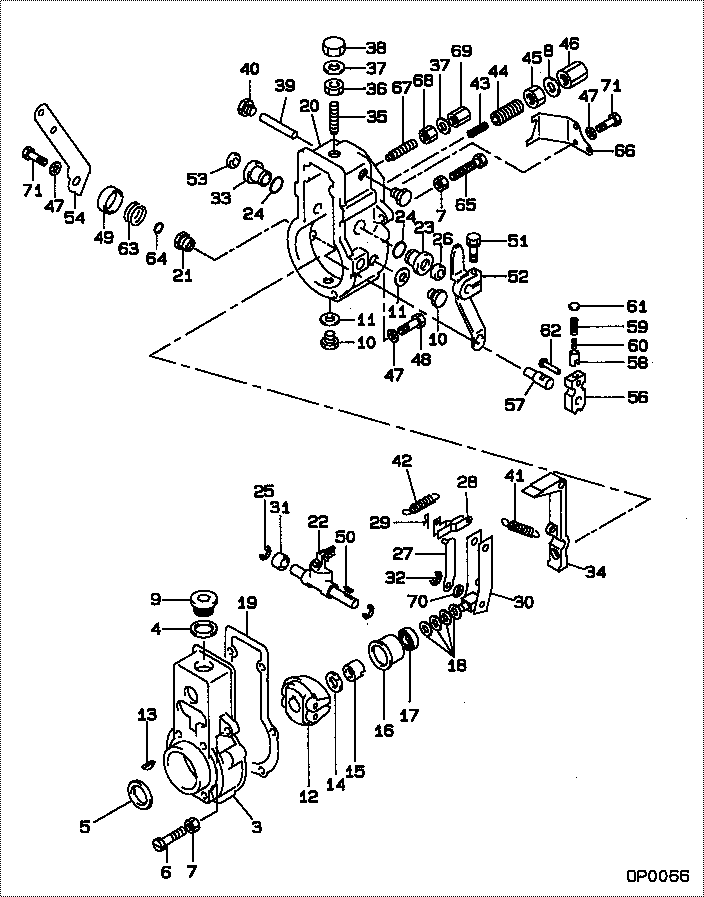

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-04611 GOVERNOR ASSY, MEC
003. [01] 09081-10502 HOUSING, GOVERNOR
004. [01] 94901-81040 WASHER, COPPER PLA 94901-81040
005. [01] 94901-15270 WASHER, STEEL PLAT 94901-15270
006. [01] 09082-10080 STOPPER 09082-10080
007. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
008. [02] 94901-81040 WASHER, COPPER PLA 94901-81040
008. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
008. [01] 09024-10010 WASHER, AIR BLEEDE MM500486
009. [01] 09027-80030 PLUG, OIL 09027-80030
010. [02] 09116-70031 PLUG, SCREW 09116-70031
011. [02] 09022-20060 WASHER, FUEL PIPE 09022-20060
012. [01] 09084-00040 FLYWEIGHT ASSY 85264-00024
013. [01] 94913-00050 KEY, WOODRUFF 94913-00050
014. [01] 94901-50500 WASHER, SPRING 94901-50500
015. [01] 09084-40010 NUT, ROUND 85264-00026
016. [01] 09086-10010 SLEEVE, GOVERNOR 85264-00027
017. [01] 94910-00010 BEARING, BALL 85264-00028
018. [ C] 94901-34100 WASHER, PLATE, SK 94901-34100
018. [ C] 94901-34090 WASHER, PLATE, SK 94901-34090
018. [ C] 94901-34080 WASHER, PLATE, SK 94901-34080
018. [ C] 94901-34070 WASHER, PLATE, SK 94901-34070
018. [ C] 94901-34060 WASHER, PLATE, SK 94901-34060
019. [01] 09082-30160 GASKET
020. [01] 09101-00821 COVER SUB-ASSY, GO
021. [01] 09101-60020 BUSHING, BEARING 09101-60020
021. [01] 09101-60360 BUSHING, BEARING
022. [01] 09088-00020 LEVER ASSY, SWIEVE 09088-00020
023. [01] 09089-20021 BUSHING, LEVER 85264-00036
024. [02] 94914-00080 O-RING 85264-00038
025. [02] 94907-10090 WASHER, SNAP 85264-00037
026. [01] 94915-00210 SEAL, OIL 94915-00210
027. [01] 09094-00211 LEVER SUB-ASSY, CO
028. [01] 09097-00111 SHACKLE ASSY
029. [01] 90400-02101 PIN, SPLIT 90400-02101
030. [01] 09095-90101 LEVER ASSY, GUIDE
031. [01] 94919-24040 COLLAR, STEEL
032. [01] 09089-40020 E-RING 09089-40020
033. [01] 09089-20011 BUSHING, LEVER 09089-20011
034. [01] 09090-10131 LEVER, TENSION
035. [01] 09100-60090 SCREW, STROKE ADJU
036. [01] 94905-30220 NUT, HEXAGON, W/ H
037. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
038. [01] 09103-10100 NUT, CAP
039. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
040. [02] 09099-10010 PLUG, SCREW 09099-10010
041. [01] 09099-20030 SPRING, SPEED CONT
042. [01] 09099-30010 SPRING, START 09099-30010
043. [01] 09102-70011 SPRING, IDLING 09102-70011
044. [01] 09102-80020 SCREW, ADJUSTING 09102-80020
045. [01] 94905-02460 NUT, HEXAGON 85264-00061
046. [01] 09103-10030 NUT, CAP 09103-10030
047. [11] 90258-06001 WASHER, SPRING 90258-06001
048. [07] 94904-01030 BOLT, HEXAGON 94904-01030
049. [01] 09104-30010 COVER, SPRING 85264-00075
050. [01] 94913-00030 KEY, WOODRUFF 94913-00031
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09107-00310 LEVER SUB-ASSY, AD 30861-45500
053. [01] 09109-40010 CAP, LEVER 09109-40010
054. [01] 09109-00271 LEVER SUB-ASSY, ST
056. [01] 09103-40112 LEVER, SUPPORT
057. [01] 09103-50020 SHAFT, MECHANICAL 85264-00064
058. [01] 09103-60010 CUP, SPRING 85264-00065
059. [01] 09103-80010 SPRING, B 09103-80010
060. [01] 09103-70010 SPRING, A 09103-70010
061. [01] 09103-90010 SEAT, SPRING 85264-00068
062. [01] 94903-60560 RIVET, FLAT
063. [01] 09104-20220 SPRING, RETURN 09104-20220
064. [01] 94914-00130 O-RING 85264-00073
065. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
066. [01] 09119-20032 PLATE, SIDE
067. [01] 09082-10010 STOPPER
068. [01] 94905-30051 NUT, HEXAGON, W/ H 85264-00017
069. [01] 09103-10042 NUT, CAP
070. [01] 90218-06140 WASHER, PLATE
071. [04] 90107-06141 BOLT, HEXAGON
072. [01] 09082-30240 GASKET
072. [01] 09082-30460 GASKET

Include in #3:

09080-04611 as GOVERNOR ASSY, MEC
19000-00691
19100-04930

Cross reference number



Part num Firm num Firm Name
09080-04611    GOVERNOR ASSY, MEC




Information:

Introduction
This publication contains information on the locking screw of the 341-8700 Fuel Injection Pump Gp . Locking Mechanism of the Three Lobe Fuel Pump
The locking screw is located on the side of the fuel injection pump. The locking screw is tightened with the washer in an Upward position. The washer is placed in the Upward position for shipping purposes prior to installation. Refer to Illustration 1. The locking screw must be moved to the Unlocked position after installation and prior to starting the engine. Loosen the screw and reposition the washer to the Downward position. Tighten the screw after moving the washer to the Downward position. Refer to Illustration 2
Illustration 1 g02166847
Locked position (1) Locking screw (2) Washer is moved in the upward position
Illustration 2 g02168035
Unlocked position (1) Locking Screw (2) Washer is moved in the downward position
