09080-04492 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-04492 GOVERNOR ASSY, MEC
Rating:
15
Buy GOVERNOR ASSY, MEC 09080-04492 genuine, new aftermarket engine parts with delivery

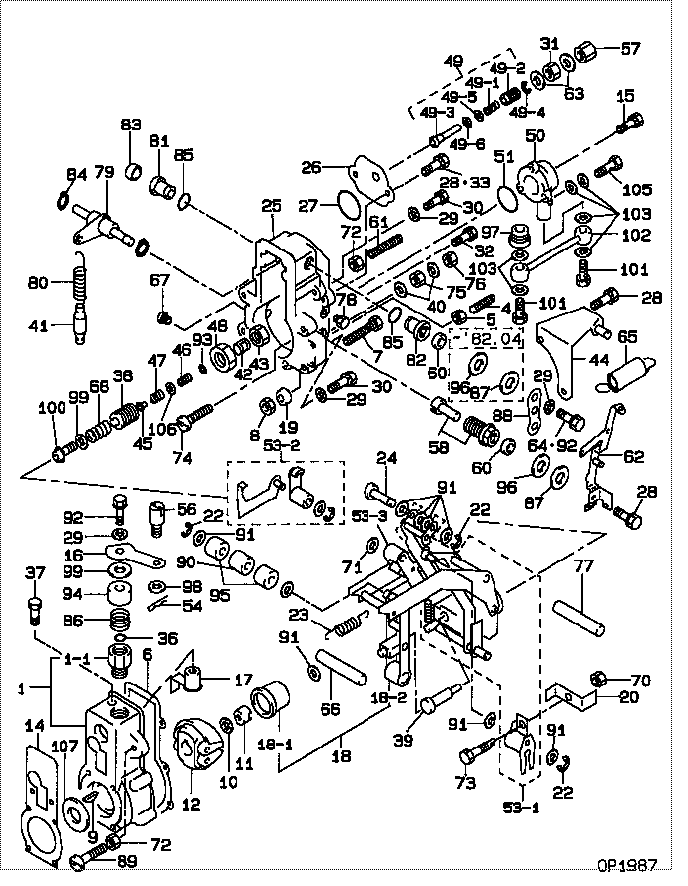

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-04492 GOVERNOR ASSY, MEC 22310-1140
001. [01] 09081-00231 HOUSING SUB-ASSY, 22390-1160A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
004. [01] 09152-40081 SCREW, STOPPER 22395-1260A
005. [01] 94805-30130 NUT, HEXAGON, W/HO 22825-1060A
006. [01] 09082-30141 GASKET 22847-1800A
006. [01] 09082-30400 GASKET 22847-2390A
007. [01] 09128-40080 SCREW, ADJUSTING 22395-1470A
008. [01] 90160-06051 NUT, HEXAGON 22825-1480A
008. [01] 09634-20010 NUT, LOCK 22821-1530A
009. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
010. [01] 94901-50500 WASHER, SPRING 22877-1540A
011. [01] 09084-40010 NUT, ROUND 22353-1070A
012. [01] 09084-00480 FLYWEIGHT ASSY 22360-1200A
012. [01] 09084-00350 FLYWEIGHT ASSY 22304-1060
014. [01] 09082-30170 GASKET 22847-1100
014. [01] 09082-30240 GASKET 22847-1570A
014. [01] 09082-30460 GASKET 22847-2490A
015. [01] 94904-71770 BOLT, W/WASHER 22815-1450A
015. [01] 94904-04060 BOLT, HEXAGON 6 306 1337 20
016. [01] 09109-80753 STOPPER 22348-1030
017. [01] 09115-90050 ARM SUB-ASSY 22317-1020
017. [01] 09115-90110 ARM SUB-ASSY 22348-1700A
018. [01] 09084-30010 ASSY DRAWING, SLEE
018. [01] 09084-30030 ASSY DRAWING, SLEE
018-001. [01] 09086-00180 SLEEVE SUB-ASSY, F 22305-1030A
018-001. [01] 09086-00230 SLEEVE SUB-ASSY, F 22305-1160A
018-002. [01] 09095-90200 LEVER ASSY, GUIDE 22307-1110A
019. [01] 09104-90120 COLLAR 22332-1040
020. [01] 09140-30100 WASHER, LOCK 22877-1210A
022. [03] 90577-05000 E-RING 22887-1170A
023. [01] 09099-30140 SPRING, START 22331-1130A
024. [01] 09098-30191 PIN, CONNECTING 22455-1040A
025. [01] 09101-11050 COVER, GOVERNOR 22302-1060
025. [01] 09101-11331 COVER, GOVERNOR 22302-1150
026. [01] 09105-10200 PLATE, COVER 22386-1240A
027. [01] 94914-02030 O-RING 22817-1310A
028. [03] 91418-06201 BOLT, W/WASHER 22815-1290A
028. [05] 91418-06201 BOLT, W/WASHER 22815-1290A
029. [07] 90258-06001 WASHER, SPRING 28219-1110A
029. [06] 90258-06001 WASHER, SPRING 28219-1110A
030. [04] 90107-06651 BOLT, HEXAGON 6 306 1337 60
030. [04] 94904-71740 BOLT, W/WASHER 22815-1460A
031. [01] 94805-30090 NUT, HEXAGON, W/HO 22825-1270A
032. [02] 94904-50130 BOLT, HEXAGON, W/ 6 306 1337 70
032. [02] 94904-71780 BOLT, W/WASHER 22815-1470A
033. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
036. [01] 94914-00130 O-RING 22817-1440A
037. [01] 09116-60040 SCREW, STOP 22395-1940A
038. [01] 09091-10200 SCREW, ADPTER 22375-1030A
039. [01] 09091-90220 ADAPTER
040. [02] 09025-10010 WASHER, INJECTION 22865-1290A
041. [01] 09133-70050 DAMPER, FLYWEIGHT 22385-1060A
042. [01] 09091-10250 SCREW, ADPTER
043. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
044. [01] 09097-50261 ARM, SPRING 22343-1190
045. [01] 09091-70080 SEAT, SPRING 22351-1050
046. [01] 09091-81281 SPRING, MECHANICAL
047. [01] 09091-81271 SPRING, MECHANICAL
048. [01] 09092-30050 NUT, ADAPTER LOCK 22825-1030A
049. [01] 09091-00421 ADAPTER ASSY 22404-1480A
049-001. [01] 09091-80441 SPRING, MECHANICAL 22411-1550
049-002. [01] 09091-10061 SCREW, ADPTER 22385-1370
049-003. [01] 09091-90170 ADAPTER 6 306 1341 80
049-004. [01] 09089-40010 E-RING 22863-1810A
049-005. [01] 90208-05000 WASHER, PLATE
049-006. [1C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
049-006. [1C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
050. [01] 09105-00211 PLATE SUB-ASSY, CO 22386-1090
050. [01] 09105-00261 PLATE SUB-ASSY, CO 22386-1190A
051. [01] 94914-01900 O-RING 22817-1550A
053. [01] 09092-90010 ASSY DRAWING, CONT
053-001. [01] 09092-00080 LEVER KIT, CONTROL 22350-1060
053-002. [01] 09093-00210 LEVER ASSY, CONTRO 22041-1340A
053-003. [01] 09093-00180 LEVER ASSY, CONTRO 22041-1050A
054. [01] 90400-02151 PIN, SPLIT 22456-1040A
056. [01] 09096-40263 PIN 22455-1071A
057. [01] 09003-20040 CAP 22342-1110A
058. [01] 09102-60010 SHAFT & BUSHING KI 22420-1010A
060. [02] 94915-01150 SEAL, OIL 22827-1150A
061. [01] 09082-10010 STOPPER 22395-1290A
062. [01] 09107-00800 LEVER SUB-ASSY, AD 22309-1130
063. [02] 94901-80350 WASHER, COPPER PLA 22847-1950A
064. [01] 94904-70620 BOLT, W/WASHER 22815-1620A
065. [01] 09104-10010 SPRING SUB-ASSY, R 22341-1590
066. [01] 09098-90020 SHAFT, LEVER SUPPO 22338-1060A
067. [01] 09099-10010 PLUG, SCREW 22845-1210A
068. [01] 09091-81230 SPRING, MECHANICAL 22414-1050A
070. [01] 90177-06361 NUT, HEXAGON 22825-1220A
071. [02] 94901-02480 WASHER 22847-1940A
072. [02] 94905-30140 NUT, HEXAGON, W/ H 22825-1250A
073. [01] 09152-40150 SCREW, STOPPER 22865-1120
074. [01] 09100-60070 SCREW, STROKE ADJU 22396-1170A
075. [01] 94905-03060 NUT, HEXAGON 22825-1260A
076. [01] 09003-20080 CAP 22342-1180A
077. [01] 09103-50183 SHAFT, MECHANICAL 22318-1020A
078. [02] 09101-60221 BUSHING, BEARING 22845-1370A
079. [01] 09104-80110 LEVER SUB-ASSY, SU 22306-1050A
080. [01] 09099-20431 SPRING, SPEED CONT 22321-1120A
081. [01] 09089-20011 BUSHING, LEVER 22322-1440A
082. [01] 09089-20040 BUSHING, LEVER 22322-1590A
083. [01] 09109-40010 CAP, LEVER 22855-1060A
084. [02] 94907-10090 WASHER, SNAP 22887-1050A
085. [02] 94914-00080 O-RING 22817-1190A
086. [01] 09104-20250 SPRING, RETURN 22341-1050
087. [01] 09154-60010 SHIM 22885-1800A
087. [02] 09154-60010 SHIM 22885-1800A
088. [01] 09107-10941 LEVER, ADJUSTING 22415-1400A
089. [01] 09082-10070 STOPPER 22395-1670A
090. [01] 09104-90260 COLLAR 22332-1150A
090. [01] 09104-90350 COLLAR 22322-1820A
090. [01] 09104-90260 COLLAR 22332-1150A
091. [ C] 94901-34100 WASHER, PLATE, SK 22885-5160A
091. [ C] 94901-34090 WASHER, PLATE, SK 22885-5150A
091. [ C] 94901-34080 WASHER, PLATE, SK 22885-5140A
091. [ C] 94901-34070 WASHER, PLATE, SK 22885-5130A
091. [ C] 94901-34060 WASHER, PLATE, SK 22885-5120A
092. [01] 90100-06121 BOLT, HEXAGON 22815-1250
092. [01] 91418-06141 BOLT, W/WASHER 22815-1480A
092. [01] 91418-06141 BOLT, W/WASHER 22815-1480A
092. [02] 91418-06141 BOLT, W/WASHER 22815-1480A
093. [1C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
093. [1C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
094. [01] 09104-30010 COVER, SPRING 22351-1650A
095. [02] 09104-90250 COLLAR 22332-1140A
095. [02] 09104-90340 COLLAR 22877-1730A
096. [1C] 09154-60080 SHIM 22885-1700A
096. [2C] 09154-60080 SHIM 22885-1700A
096. [1C] 09154-60050 SHIM 22885-5110A
096. [2C] 09154-60050 SHIM 22885-5110A
096. [1C] 09154-60040 SHIM 22885-5100A
096. [2C] 09154-60040 SHIM 22885-5100A
096. [1C] 09154-60030 SHIM 22885-5090A
096. [2C] 09154-60030 SHIM 22885-5090A
097. [01] 09051-50070 NIPPLE 22131-1140
098. [01] 90200-08221 WASHER, PLATE 22867-1050A
098. [01] 90200-06241 WASHER, PLATE 28241-1030A
099. [ C] 94901-32220 WASHER, PLATE, SK 22885-5220A
099. [ C] 94901-31980 WASHER, PLATE, SK 22885-3450A
099. [ C] 94901-31970 WASHER, PLATE, SK 22885-3440A
099. [ C] 94901-31960 WASHER, PLATE, SK 22885-3430A
100. [01] 09104-90270 COLLAR 22351-1620A
101. [02] 94918-00621 SCREW, HOLLOW 22835-1120
102. [01] 09025-00230 NIPPLE SUB-ASSY, O 22134-1020
103. [04] 94901-81580 WASHER, COPPER PLA 22847-1170
103. [06] 94901-81580 WASHER, COPPER PLA 22847-1170
105. [01] 94918-00050 SCREW, HOLLOW 22835-1280A
106. [1C] 94901-35040 WASHER, PLATE, SK 22885-1210A
106. [1C] 94901-31360 WASHER, PLATE, SK 22885-1200A
107. [01] 94915-00030 SEAL, OIL 22827-1290A

Include in #3:

09080-04492 as GOVERNOR ASSY, MEC
19000-00351
19000-01663
19000-01673

Cross reference number



Part num Firm num Firm Name
09080-04492  22310-1140  GOVERNOR ASSY, MEC




Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The fuel fill nozzle is being deactivated before the tank is full. The early deactivation causes the technician to hold the nozzle active in order to fill the fuel tank completely.Solution
Illustration 1 g03818479
773G / 775G (1) 308-0415 Vent As (2) 8J-6875 Shuttle Valve Gp (3) 252-5806 Shutoff Valve Assembly (4) 376-1308 Receiver As (5) 376-6616 Hose As
Illustration 2 g03818481
777G (1) 308-0415 Vent As (2) 8J-6875 Shuttle Valve Gp (3) 252-5806 Shutoff Valve Assembly (4) 376-1308 Receiver As (5) 376-6616 Hose As Perform the procedure in Troubleshooting, UENR2276, "Fluids Service System Troubleshooting". Report all failures through the DSN and replace with current parts as needed.
