09080-04350 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-04350 GOVERNOR ASSY, MEC
Rating:
1
Buy GOVERNOR ASSY, MEC 09080-04350 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900150
Governor assy, mec 1908900150

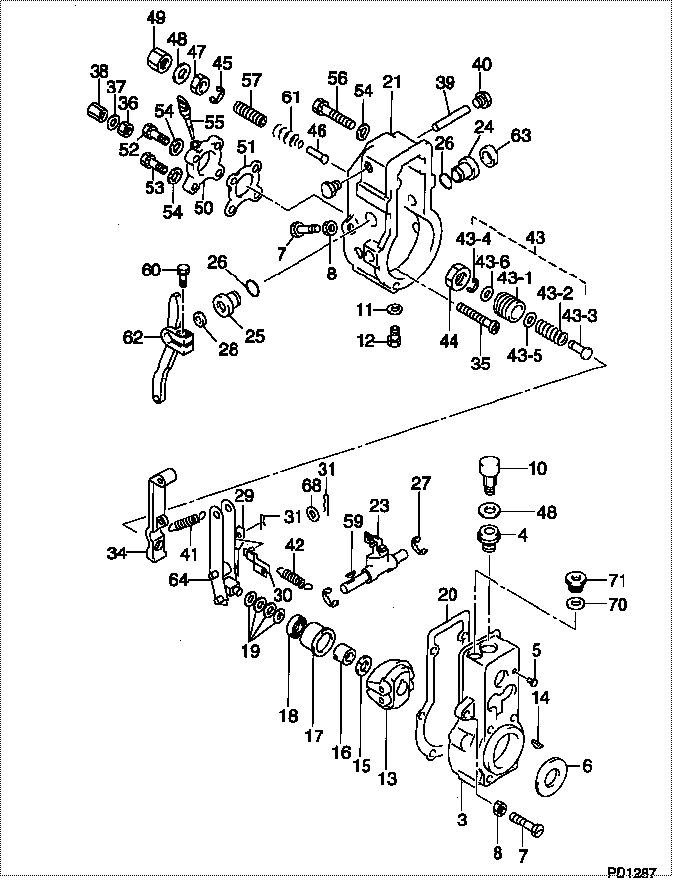

Scheme ###:

000. [01] 09080-04350 GOVERNOR ASSY, MEC MM500960
003. [01] 09081-10470 HOUSING, GOVERNOR MM500490
004. [01] 09081-50020 SEAT, BREATHER 09081-50020
005. [01] 09081-30010 PIN 09081-30010
006. [01] 94915-00030 SEAL, OIL ME022161
007. [02] 09082-10080 STOPPER MM500495
008. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
010. [01] 09028-00040 CLEANER, INJECTION ME022089
011. [01] 09022-20060 WASHER, FUEL PIPE ME702927
012. [01] 09116-70031 PLUG, SCREW ME702130
013. [01] 09084-00030 FLYWEIGHT ASSY 09084-00030
014. [01] 94913-00050 KEY, WOODRUFF ME702747
015. [01] 94901-50500 WASHER, SPRING ME008373
016. [01] 09084-40010 NUT, ROUND ME702749
017. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
018. [01] 94910-00010 BEARING, BALL ME702914
019. [4C] 94901-34100 WASHER, PLATE, SK ME702893
019. [4C] 94901-34090 WASHER, PLATE, SK ME702892
019. [4C] 94901-34080 WASHER, PLATE, SK ME702891
019. [4C] 94901-34070 WASHER, PLATE, SK ME702890
019. [4C] 94901-34060 WASHER, PLATE, SK ME702889
020. [01] 09082-30021 GASKET 09082-30021
021. [01] 09101-00840 COVER SUB-ASSY, GO MM500849
023. [01] 09088-00030 LEVER ASSY, SWIEVE MM500504
024. [01] 09089-20011 BUSHING, LEVER ME702792
025. [01] 09089-20021 BUSHING, LEVER ME022763
026. [02] 94914-00080 O-RING ME702863
027. [02] 94907-10090 WASHER, SNAP ME702795
028. [01] 94915-00210 SEAL, OIL ME022455
029. [01] 09094-00270 LEVER SUB-ASSY, CO
030. [01] 09097-00010 SHACKLE ASSY 09097-00010
031. [02] 90400-02101 PIN, SPLIT ME023402
034. [01] 09090-10071 LEVER, TENSION MM500966
035. [01] 09100-60030 SCREW, STROKE ADJU 09100-60030
036. [01] 94905-01020 NUT, HEXAGON ME022476
037. [01] 94901-81020 WASHER, COPPER PLA ME022309
038. [01] 09103-10020 NUT, CAP ME703373
039. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
040. [02] 09099-10010 PLUG, SCREW ME702777
041. [01] 09099-20020 SPRING, SPEED CONT ME703947
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-00660 ADAPTER ASSY MM500967
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [01] 09091-81220 SPRING, MECHANICAL
043-003. [01] 09091-90010 ADAPTER ME703418
043-004. [01] 09089-40010 E-RING ME702112
043-005. [1C] 94901-34040 WASHER, PLATE, SK ME022485
043-005. [1C] 94901-34030 WASHER, PLATE, SK ME022517
043-005. [1C] 94901-34020 WASHER, PLATE, SK ME728059
043-005. [1C] 94901-33880 WASHER, PLATE, SK ME022484
043-006. [01] 09092-10010 WASHER ME728311
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [01] 09089-40010 E-RING ME702112
046. [01] 09091-90150 ADAPTER 09091-90150
047. [01] 94905-02460 NUT, HEXAGON ME703908
048. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
049. [01] 09103-10010 NUT, CAP ME703911
050. [01] 09105-00120 PLATE SUB-ASSY, CO MM500550
051. [01] 09105-70022 GASKET, COVER PLAT 09105-70022
052. [02] 91418-06201 BOLT, W/WASHER ME702041
053. [02] 94904-72700 BOLT, W/WASHER ME702204
054. [06] 90258-06001 WASHER, SPRING ME702596
055. [01] 09106-00020 GAUGE SUB-ASSY, GO MM500552
056. [06] 94904-01030 BOLT, HEXAGON ME022456
057. [01] 09091-10100 SCREW, ADPTER 09091-10100
059. [01] 94913-00030 KEY, WOODRUFF ME702205
060. [01] 94904-71190 BOLT, W/WASHER MM500583
061. [01] 09091-80950 SPRING, MECHANICAL MM500518
062. [01] 09107-00310 LEVER SUB-ASSY, AD ME703912
063. [01] 09109-40010 CAP, LEVER ME702794
064. [01] 09095-90010 LEVER ASSY, GUIDE MM500847
068. [01] 09098-70010 SHIM MM500848
070. [01] 94901-80350 WASHER, COPPER PLA ME702922
071. [01] 09022-40081 SCREW,PLUG MM500485

Include in #3:

09080-04350 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
09080-04350  MM500960  GOVERNOR ASSY, MEC
MM500960    MITSUBISHI GOVERNOR ASSY, MEC
