09080-00942 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

09080-00942 GOVERNOR ASSY, MEC
Rating:
8
Buy GOVERNOR ASSY, MEC 09080-00942 genuine, new aftermarket engine parts with delivery

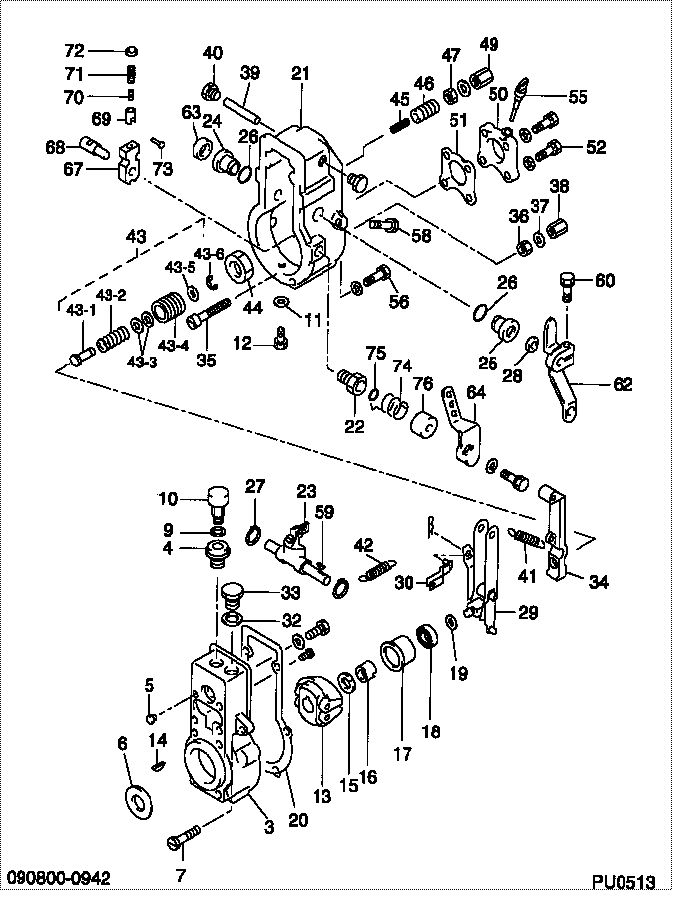

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 09080-00942 GOVERNOR ASSY, MEC 30061-03721
003. [01] 09081-10270 HOUSING, GOVERNOR
004. [01] 09081-50020 SEAT, BREATHER 09081-50020
005. [01] 09081-30010 PIN 09081-30010
006. [01] 94915-00030 SEAL, OIL ME022161
007. [01] 09082-10080 STOPPER MM500495
009. [01] 09024-10010 WASHER, AIR BLEEDE ME702102
010. [01] 09028-00040 CLEANER, INJECTION ME022089
011. [01] 09022-20060 WASHER, FUEL PIPE ME702927
012. [01] 09116-70031 PLUG, SCREW ME702130
013. [01] 09084-00040 FLYWEIGHT ASSY ME022503
014. [01] 94913-00050 KEY, WOODRUFF ME702747
015. [01] 94901-50500 WASHER, SPRING ME008373
016. [01] 09084-40010 NUT, ROUND ME702749
017. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
018. [01] 94910-00010 BEARING, BALL ME702914
019. [1C] 94901-34100 WASHER, PLATE, SK ME702893
019. [1C] 94901-34090 WASHER, PLATE, SK ME702892
019. [1C] 94901-34080 WASHER, PLATE, SK ME702891
019. [1C] 94901-34070 WASHER, PLATE, SK ME702890
019. [1C] 94901-34060 WASHER, PLATE, SK ME702889
020. [01] 09082-30022 GASKET 09082-30021
021. [01] 09101-00461 COVER SUB-ASSY, GO 09101-00461
022. [01] 09101-60360 BUSHING, BEARING ME743361
023. [01] 09088-00020 LEVER ASSY, SWIEVE ME022450
024. [01] 09089-20011 BUSHING, LEVER ME702792
025. [01] 09089-20021 BUSHING, LEVER ME022763
026. [02] 94914-00080 O-RING ME702863
027. [02] 94907-10090 WASHER, SNAP ME702795
028. [01] 94915-00210 SEAL, OIL ME022455
029. [01] 09095-90010 LEVER ASSY, GUIDE MM500847
030. [01] 09097-00010 SHACKLE ASSY 09097-00010
032. [01] 94901-80350 WASHER, COPPER PLA ME702922
033. [01] 09022-40081 SCREW,PLUG MM500485
034. [01] 09090-10050 LEVER, TENSION 09090-10050
035. [01] 09100-60030 SCREW, STROKE ADJU 09100-60030
036. [01] 94905-01020 NUT, HEXAGON ME022476
037. [01] 94901-81020 WASHER, COPPER PLA ME022309
038. [01] 09103-10020 NUT, CAP ME703373
039. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
040. [02] 09099-10010 PLUG, SCREW ME702777
041. [01] 09099-20010 SPRING, SPEED CONT MM500527
042. [01] 09099-30010 SPRING, START MM500531
043. [01] 09091-00020 ADAPTER ASSY ME703909
043-001. [01] 09091-90010 ADAPTER ME703418
043-002. [01] 09091-80020 SPRING, MECHANICAL MM500517
043-003. [2C] 94901-34040 WASHER, PLATE, SK ME022485
043-003. [2C] 94901-34030 WASHER, PLATE, SK ME022517
043-003. [2C] 94901-34020 WASHER, PLATE, SK ME728059
043-003. [2C] 94901-33880 WASHER, PLATE, SK ME022484
043-004. [01] 09091-10010 SCREW, ADPTER ME022483
043-005. [01] 09092-10010 WASHER ME728311
043-006. [01] 09089-40010 E-RING ME702112
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [01] 09102-70011 SPRING, IDLING 09102-70011
046. [01] 09102-80020 SCREW, ADJUSTING
047. [01] 94905-02460 NUT, HEXAGON ME703908
049. [01] 09103-10010 NUT, CAP ME703911
050. [01] 09105-00100 PLATE SUB-ASSY, CO MM500549
051. [01] 09105-70022 GASKET, COVER PLAT 09105-70022
052. [02] 94904-72701 BOLT, W/WASHER ME702204
055. [01] 09106-00020 GAUGE SUB-ASSY, GO MM500552
056. [06] 94904-01030 BOLT, HEXAGON ME022456
058. [01] 09082-10010 STOPPER
059. [01] 94913-00030 KEY, WOODRUFF ME702205
060. [01] 94904-71190 BOLT, W/WASHER MM500583
062. [01] 09107-00310 LEVER SUB-ASSY, AD ME703912
063. [01] 09109-40010 CAP, LEVER ME702794
064. [01] 09109-00090 LEVER SUB-ASSY, ST ME728588
067. [01] 09103-40010 LEVER, SUPPORT 09103-40010
068. [01] 09103-50020 SHAFT, MECHANICAL 09103-50020
069. [01] 09103-60010 CUP, SPRING ME703953
070. [01] 09103-80010 SPRING, B 09103-80010
071. [01] 09103-70010 SPRING, A 09103-70010
072. [01] 09103-90010 SEAT, SPRING 09103-90010
073. [01] 94903-60560 RIVET, FLAT 94903-60560
074. [01] 09104-20010 SPRING, RETURN ME703585
075. [01] 94914-00130 O-RING ME702207
076. [01] 09104-30010 COVER, SPRING ME702122

Include in #3:

09000-03027 as GOVERNOR ASSY, MEC
09000-03900
09080-00942

Cross reference number



Part num Firm num Firm Name
09080-00942  30061-0372  GOVERNOR ASSY, MEC




Information:

December 9, 2005
U-389
A-289
D-306
O-325
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN FUEL INJECTORS FROM DEALERS PARTS STOCK
7750 PI70111
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
March 31, 2006PROBLEM
A machining error can cause the valve body tocrack through the high-pressure line. This crack can result in fuel inthe engine oil.ACTION REQUIRED
All 10R-0957 unit injectors within serial numberrange 848368-850132 should be removed from parts stock. All 10R-0960, 10R-0961,and 10R-0963 within serial number range 188029-188914 should be removedfrom parts stock.SERVICE CLAIM ALLOWANCES
Submit one claim for all 10R0957, 10R0960, 10R0961,and 10R0963 Injectors removed from parts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70111.***** U.S. and Canadian Dealers *****Return all 10R0957, 10R0960, 10R0961, and 10R0963Injectors that are removed from parts stock and a copy of the claim to:Caterpillar Inc.
Attn: Supplier Recovery PI70111
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
