09024-20010 NIPPLE, AIR BLEEDE Denso Cross




Information nipple, air bleede

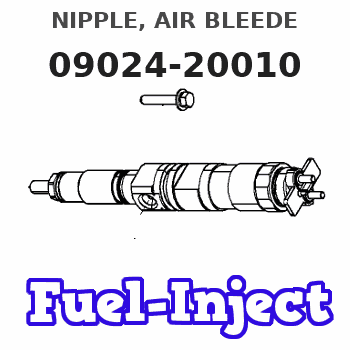

09024-20010 NIPPLE, AIR BLEEDE
Rating:
11
Buy NIPPLE, AIR BLEEDE 09024-20010 genuine, new aftermarket engine parts with delivery

Cross reference number



Part num Firm num Firm Name
09024-20010  22118-7702  NIPPLE, AIR BLEEDE
85265-00013    MITSUBISHI NIPPLE, AIR BLEEDE
22873-1250    HINO NIPPLE, AIR BLEEDE
22118-77020-000    DAIHATSU NIPPLE, AIR BLEEDE
22118-77020    TOYOTA NIPPLE, AIR BLEEDE
15101-51611    KUBOTA NIPPLE, AIR BLEEDE
09024-20010    KOMATSU NIPPLE, AIR BLEEDE
ME022094    MITSUBISHI NIPPLE, AIR BLEEDE




Information:


DO NOT adjust the linkage so the treadle can be used to shut off the engine. If the operator is in a standing position and places a foot on the treadle, the engine could be unexpectedly shut off, creating a situation where the machine can be difficult to control.
814B, 815B, 816B, 966D
1. Set governor shaft to the off position (approximately 35° right of twelve o'clock) and attach lever (1).2. Adjust cable assembly (2) to within 3 mm (.12 in) of the end of travel and tighten bulkhead (3) nuts to ... 100 15 N m (75 11 lb ft)3. With pedal (4) in off position (approximately 66 3° up from floor plate) attach cable assembly (2) to lever (6).4. Tighten bulkhead nuts at pedal end of cable assembly to ... 100 15 N m (75 11 lb ft)5. Set governor lever (1) to high idle and adjust bolt (5) until it contacts pedal.528
1. Move governor shaft (3) to Shutoff position and install lever (2) on shaft (3) at angle shown.2. Position pedal assembly (1) to dimension A above stop (4) by adjusting rod assembly (5). Dimension A ... 49 1 mm (1.93 .04 in)3. Tighten nut (6) to a torque of ... 45 7 N m (33 5 lb ft)
