09010-09110 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-09110 BODY ASSY, INJECTI
Rating:
71
Buy BODY ASSY, INJECTI 09010-09110 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

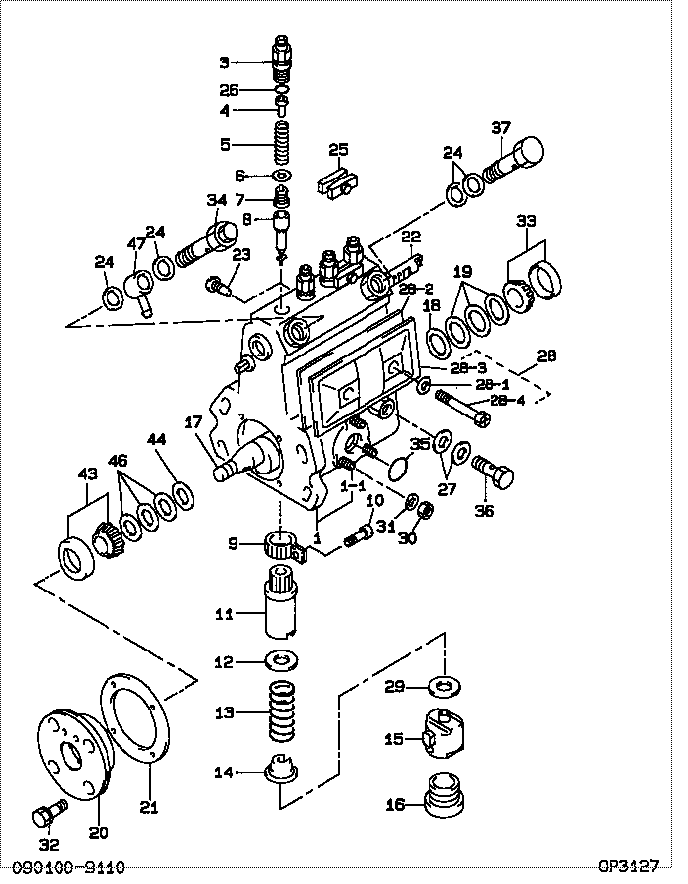

Scheme ###:

000. [01] 09010-09110 BODY ASSY, INJECTI ME728268
001. [01] 19011-04500 HOUSING KIT, INJEC ME728351
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10710 HOLDER, DELIVERY V ME702050
004. [04] 09013-30261 STOPPER, DELIVERY ME702051
005. [04] 09013-60920 SPRING, DELIVERY V ME703729
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-01990 VALVE SUB-ASSY, IN ME703730
008. [04] 09015-04810 ELEMENT SUB-ASSY, ME728568
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40350 SPRING, PUMP PLUNG ME736081
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [04] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-11020 CAMSHAFT, INJECTIO ME703058
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20441 RACK, CONTROL ME703731
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-001. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-002. [01] 09027-20210 GASKET, INJECTION ME703052
028-003. [01] 09027-50182 PROCESSING DRAWING ME703051
028-004. [02] 09027-60030 SCREW ME703028
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00310 VALVE ASSY, OVERFL ME703733
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
047. [01] 09221-70570 NIPPLE, SWIVEL ME728184

Cross reference number



Part num Firm num Firm Name
09010-09110  ME728268  BODY ASSY, INJECTI
ME728268    MITSUBISHI BODY ASSY, INJECTI




Information:

Maintenance Intervals
The Maintenance Schedule requires all previous interval maintenance items to be performed first. For instance, if the Every 250 Hour maintenance is being done, then the Every 50 Hour and Daily maintenance items must be completed BEFORE performing the Every 250 Hour maintenance.Engines may be equipped with various optional components and the charts may recommend maintenance for items not installed on your engine. Simply disregard reference to any extraneous items. If unsure of any item, consult your Caterpillar dealer.Overhaul Interval
The last interval in the chart lists the components inspected, rebuilt, exchanged or replaced at overhaul. OVERHAUL is defined as the interval at which the major wear items in the engine should be replaced. The Overhaul interval represents overhaul of a non-failed engine. In other words, the engine is being rebuilt with certain new parts replacing worn parts such as piston rings, engine rod and main bearings, valves and valve seats., etc.Incidental to the replacement of these relatively few parts is the complete inspection of all other parts that are visible during the overhaul of the engine. The disassembly required to do an overhaul means that disturbed seals and gaskets, etc., will be replaced, and the internal passages of the engine and block be cleaned.* The OVERHAUL interval assumes that regular maintenance recommendations in the rest of the chart have been carefully followed.* Some users may obtain significantly longer or shorter life than the chart recommends between overhauls, but if the recommended intervals are followed, OVERHAULS will occur BEFORE actual FAILURE, and the total COST of operation will be minimized.Although most users will obtain more life between overhauls than the chart recommends, Caterpillar has determined that these limits are the best (least cost) for the vast majority of our engine users. Extend the intervals to overhaul ONLY if your experience shows strong evidence that the intervals are too short for your application and maintenance practices.Interval Terminology
Engine components can generally be grouped into speed sensitive and load sensitive categories. Therefore, the maintenance interval for each item listed in the Maintenance Schedule is primarily based on the item and its relationship to either engine speed or load. Speed sensitive items such as water pumps, alternators, air compressors, etc., are not primarily affected by the load on your engine during operation. The load on an engine will not significantly accelerate the repair or replacement cycle for speed sensitive items. Therefore, the maintenance intervals established for speed sensitive items are based on calendar time and service hours. Load sensitive items such as piston rings, cylinder liners, bearings, etc., are affected by the load on your engine during operation. Generally speaking, the lower the load, the longer the engine life and conversely, the higher the load, the shorter the engine life. A heavy load on an engine will accelerate the repair or replacement cycle for load sensitive items.Load sensitive items are normally internal engine components. The amount of
