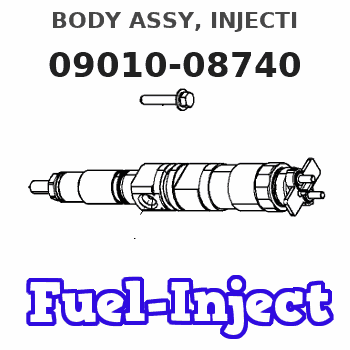

09010-08740 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-08740 BODY ASSY, INJECTI
Rating:
12
Buy BODY ASSY, INJECTI 09010-08740 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

Scheme ###:

000. [01] 09010-08740 BODY ASSY, INJECTI ME728138
001. [01] 19011-04500 HOUSING KIT, INJEC ME728351
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10710 HOLDER, DELIVERY V ME702050
004. [04] 09013-30261 STOPPER, DELIVERY ME702051
005. [04] 09013-60920 SPRING, DELIVERY V ME703729
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-02060 VALVE SUB-ASSY, IN ME728778
008. [04] 09015-04810 ELEMENT SUB-ASSY, ME728568
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
012. [04] 09016-30010 SEAT, SPRING, UPR ME702061
013. [04] 09016-40320 SPRING, PUMP PLUNG ME728173
013. [04] 09016-40350 SPRING, PUMP PLUNG ME736081
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [02] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-11020 CAMSHAFT, INJECTIO ME703058
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME728352
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60040 GASKET, BEARING CO ME702078
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20441 RACK, CONTROL ME703731
023. [01] 09021-50011 SCREW, RACK GUIDE ME702080
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028. [01] 09027-01200 COVER SUB-ASSY, IN ME703732
028-001. [01] 09027-50182 PROCESSING DRAWING ME703051
028-002. [01] 09027-20210 GASKET, INJECTION ME703052
028-003. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-004. [02] 09027-60030 SCREW ME703028
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00310 VALVE ASSY, OVERFL ME703733
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
045. [01] 07630-00660 PICKUP ASSY, TACHO ME016373
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME728353
047. [01] 09221-70570 NIPPLE, SWIVEL ME728184
050. [01] 07630-01000 PICKUP ASSY, TACHO ME016460

Include in #3:

Cross reference number



Part num Firm num Firm Name
09010-08740  ME728138  BODY ASSY, INJECTI
ME728138    MITSUBISHI BODY ASSY, INJECTI




Information:

Air Or Water In Fuel System
With air in the fuel system, the engine will normally be difficult to start, run rough, and release a large amount of white smoke. If the engine will not start, loosen a fuel injection line nut at the through the head adapter and crank the engine until fuel comes out. Tighten the fuel line nut. Start the engine. If the engine does not run smooth or releases a large amount of white smoke, loosen the fuel line nuts one at a time at the through the head adapters until the fuel that comes out is free of air. Tighten the fuel line nuts. If the air cannot be removed in this way, put 35 kPa (5 psi) of air pressure to the fuel tank.
Do not use more than 55 kPa (8 psi) of air pressure in the fuel tank or damage to the tank may result.
Check for leaks at the connection between the fuel tank and the fuel transfer pump. If leaks are found, tighten the connections or replace the lines. If there are no visual leaks, remove the fuel supply line from the tank and connect it to an outside furl supply. If this corrects the problem, the suction line (standpipe) inside the fuel tank has a leak.Water in the fuel can cause rough running and possible fuel system damage.Valve Adjustment Not Correct
Check and make necessary adjustments as in Testing And Adjusting Section of the Service Manual. Intake valve lash is 0.38 mm (.015 in) and exhaust valve lash is 0.64 mm (.025 in). Also check for a bent or broken push rod.Defective Fuel Nozzle(s)
Find a defective nozzle by running engine at the rpm where it runs rough. Loosen the fuel line nut at the through the head adapter enough to stop fuel supply to that cylinder. Each cylinder must be checked this way. If a cylinder is found where loosening of the nut makes no difference in the rough running, test the nozzle for that cylinder. To test a nozzle, remove the nozzle from the engine and test as in Testing and Adjusting Section of this Service Manual.Fuel Leakage From Fuel Injection Line Nut
Tighten nut to 40 7 N m (30 5 lb ft). Again check for leakage. Be sure to check fuel injection lines inside valve cover base.Defective Fuel Injection Pump
An injection pump can have a good fuel flow coming from it but cause rough running because of slow timing that is caused by wear on the bottom end of the plunger. See the Testing and Adjusting Section in this Service Manual for the correct specifications and procedure to check plungers and lifters.Fuel pumps which are severely scored from debris can cause rough running but fuel dilution usually occurs before horsepower is affected.Low installation torque on the fuel pump retaining nut can cause misfire, rough running and low power.Fuel Has A High "Cloud Point"
In cold weather operation this condition should be checked first. The fuel "cloud point" is
