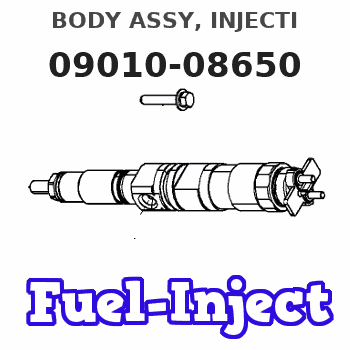

09010-08650 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-08650 BODY ASSY, INJECTI
Rating:
60
Buy BODY ASSY, INJECTI 09010-08650 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300

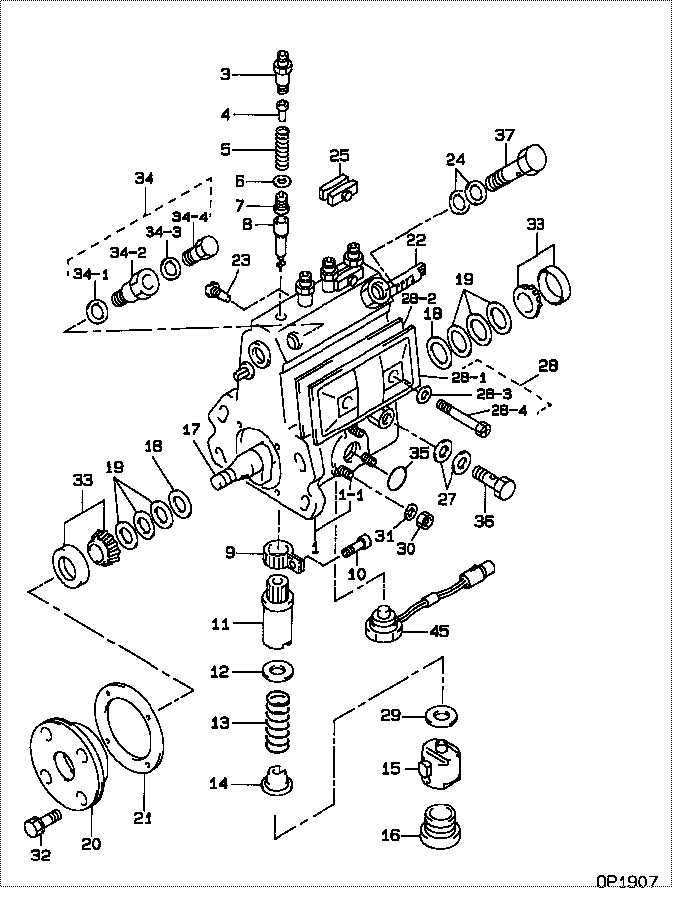

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-08650 BODY ASSY, INJECTI ME728116
001. [01] 19011-04480 HOUSING KIT, INJEC ME728813
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10010 HOLDER, DELIVERY V ME022081
004. [04] 09013-30030 STOPPER, DELIVERY ME022082
005. [04] 09013-60200 SPRING, DELIVERY V ME022083
005. [04] 09013-61180 SPRING, DELIVERY V
006. [04] 09013-70010 GASKET, DELIVERY V ME022084
007. [04] 09014-00021 VALVE SUB-ASSY, IN ME022085
008. [04] 09015-04800 ELEMENT SUB-ASSY, ME728775
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30010 SEAT, SPRING, UPR ME702061
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40320 SPRING, PUMP PLUNG ME728173
013. [04] 09016-40350 SPRING, PUMP PLUNG ME736081
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [03] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-10082 CAMSHAFT, INJECTIO MM500682
018. [02] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [6C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [6C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [6C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [6C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [6C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [6C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [6C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [6C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [6C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [6C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [6C] 09019-40010 PLATE, CAMSHAFT SH ME728352
020. [01] 09020-10521 COVER, BEARING ME703050
021. [01] 09020-60010 GASKET, BEARING CO ME703584
021. [01] 09020-60160 GASKET, BEARING CO ME728820
022. [01] 09021-20441 RACK, CONTROL ME703731
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [02] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00031 PLATE SET, VALVE H ME702082
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01090 COVER SUB-ASSY, IN ME703787
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-001. [01] 09027-50182 PROCESSING DRAWING ME703051
028-002. [01] 09027-20210 GASKET, INJECTION ME703052
028-003. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-004. [02] 09027-60030 SCREW ME703028
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [02] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09024-00010 BLEEDER SUB-ASSY, ME702083
034-001. [01] 09024-10010 WASHER, AIR BLEEDE ME702102
034-002. [01] 09024-20010 NIPPLE, AIR BLEEDE ME022094
034-003. [01] 09024-30030 PACKING, AIR BLEED ME702057
034-004. [01] 09024-40010 SCREW, AIR BLEEDER MM501930
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
045. [01] 07630-00670 PICKUP ASSY, TACHO ME016374

Include in #3:

09010-08650 as BODY ASSY, INJECTI
09300-03221
09300-04261

Cross reference number



Part num Firm num Firm Name
09010-08650  ME728116  BODY ASSY, INJECTI
ME728116    MITSUBISHI BODY ASSY, INJECTI
