09010-08564 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

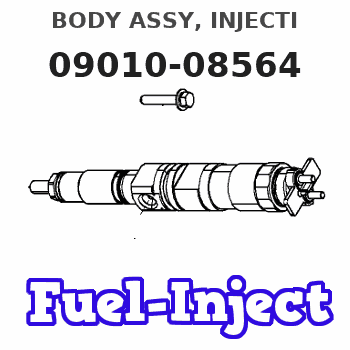

09010-08564 BODY ASSY, INJECTI
Rating:
74
Buy BODY ASSY, INJECTI 09010-08564 genuine, new aftermarket engine parts with delivery

Scheme ###:

000. [01] 09010-08564 BODY ASSY, INJECTI
001. [01] 09011-04431 HOUSING SUB-ASSY,
001. [01] 09011-05730 HOUSING SUB-ASSY,
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
002. [06] 09013-00311 HOLDER SUB-ASSY, D
002. [06] 09013-00540 HOLDER SUB-ASSY, D
002. [06] 09013-00510 HOLDER SUB-ASSY, D
002. [06] 09013-00311 HOLDER SUB-ASSY, D
003. [06] 09013-60910 SPRING, DELIVERY V
004. [06] 94914-02570 O-RING 94914-02570
005. [06] 09014-01960 VALVE SUB-ASSY, IN 33A6500213
006. [06] 09015-04223 ELEMENT SUB-ASSY,
006. [06] 09015-06220 ELEMENT SUB-ASSY,
007. [06] 09016-00150 SLEEVE SUB-ASSY, C 09016-00150
008. [01] 09021-20471 RACK, CONTROL
008. [01] 09021-20700 RACK, CONTROL
009. [06] 09016-30160 SEAT, SPRING, UPR 09016-30160
010. [06] 09016-40250 SPRING, PUMP PLUNG
011. [06] 09016-50150 SEAT, SPRING, LWR
012. [06] 09017-00320 TAPPET SUB-ASSY,IN
013. [ C] 09043-80471 SHIM, ELEMENT HOLD
013. [ C] 09043-80481 SHIM, ELEMENT HOLD
013. [ C] 09043-80491 SHIM, ELEMENT HOLD
013. [ C] 09043-80501 SHIM, ELEMENT HOLD
013. [ C] 09043-80511 SHIM, ELEMENT HOLD
013. [ C] 09043-80521 SHIM, ELEMENT HOLD
013. [ C] 09043-80461 SHIM, ELEMENT HOLD
013. [ C] 09043-80451 SHIM, ELEMENT HOLD
013. [ C] 09043-80441 SHIM, ELEMENT HOLD
013. [ C] 09043-80431 SHIM, ELEMENT HOLD
013. [ C] 09043-80421 SHIM, ELEMENT HOLD
013. [ C] 09043-80411 SHIM, ELEMENT HOLD
013. [ C] 09043-80401 SHIM, ELEMENT HOLD
013. [ C] 09043-80391 SHIM, ELEMENT HOLD
014. [12] 90196-08651 NUT, HEXAGON
015. [12] 94901-35880 WASHER, PLATE, SK
016. [12] 90258-08001 WASHER, SPRING CSA915D100
017. [01] 09020-60070 GASKET, BEARING CO
017. [01] 09020-60240 GASKET, BEARING CO
018. [18] 09013-90020 O-RING
018. [12] 09013-90340 O-RING
019. [06] 94901-81730 WASHER, COPPER PLA
020. [01] 09019-11251 CAMSHAFT, INJECTIO
020. [01] 09019-11250 CAMSHAFT, INJECTIO
021. [01] 94910-10140 BEARING, ROLLER
022. [01] 09019-30050 RING, CAMSHAFT ADJ
023. [3C] 09019-40410 PLATE, CAMSHAFT SH
023. [3C] 09019-40360 PLATE, CAMSHAFT SH
023. [3C] 09019-40350 PLATE, CAMSHAFT SH
023. [3C] 09019-40340 PLATE, CAMSHAFT SH
023. [3C] 09019-40100 PLATE, CAMSHAFT SH 09019-40100
023. [3C] 09019-40090 PLATE, CAMSHAFT SH 09019-40090
023. [3C] 09019-40080 PLATE, CAMSHAFT SH 09019-40080
023. [3C] 09019-40070 PLATE, CAMSHAFT SH 09019-40070
025. [01] 94915-02820 SEAL, OIL
025. [01] 94915-01420 SEAL, OIL
026. [01] 09020-10501 COVER, BEARING
027. [04] 91418-06201 BOLT, W/WASHER 91418-06201
028. [01] 09043-30020 RETAINER, BEARING
029. [01] 09036-10240 BEARING, CENTER
029. [01] 09036-10180 BEARING, CENTER 09036-10180
030. [02] 90015-06181 SCREW, SLOTTED OVA
030. [02] 94900-66510 SCREW
030. [02] 94900-67300 SCREW
031. [04] 09024-80010 WASHER, DRAIN SCRE 09024-80010
032. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
033. [01] 09031-70140 PLUG, SCREW
034. [01] 94910-10130 BEARING, ROLLER
035. [01] 09019-30060 RING, CAMSHAFT ADJ
036. [04] 09022-20070 WASHER, FUEL PIPE 85265-00079
038. [01] 94918-00310 SCREW, HOLLOW 85265-00078
039. [3C] 09019-40420 PLATE, CAMSHAFT SH
039. [3C] 09019-40390 PLATE, CAMSHAFT SH
039. [3C] 09019-40380 PLATE, CAMSHAFT SH
039. [3C] 09019-40370 PLATE, CAMSHAFT SH
039. [3C] 09019-40330 PLATE, CAMSHAFT SH
039. [3C] 09019-40320 PLATE, CAMSHAFT SH
039. [3C] 09019-40310 PLATE, CAMSHAFT SH
039. [3C] 09019-40300 PLATE, CAMSHAFT SH
040. [02] 09011-40110 BUSHING, CONTROL R
041. [01] 09036-70040 BUSHING, CONTROL R
046. [01] 94914-00380 O-RING 85265-00084
047. [03] 90258-06001 WASHER, SPRING 90258-06001
048. [03] 90160-06051 NUT, HEXAGON 85265-00085
049. [02] 09024-40160 SCREW, AIR BLEEDER
055. [01] 09031-00210 VALVE ASSY, OVERFL
059. [01] 94901-80350 WASHER, COPPER PLA 94901-80350

Include in #3:

09010-08564 as BODY ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09010-08564    BODY ASSY, INJECTI




Information:

Start By:a. remove governor **See Disassemble Governor story
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove the bolts and the plate from the side of the fuel injection pump housing. 2. Install tool (A) in the fuel injection pump housing. Move the rack until tool (A) can be installed to hold the rack in the center position to remove the fuel injection pumps.3. Use tool (B) to remove bushing (1).4. Remove the O-ring seal from the fuel injection pump housing. 5. Install tool (C) on the bonnet and remove the fuel injection pump. 6. Remove spacer (2). Keep the spacers (2) from the fuel injection pumps together with identification as to their location in the pump housing.7. Perform steps 3 through 6 to remove the other fuel injection pumps. The following steps are to install the fuel injection pumps.8. Install spacer (2).9. Install tool (A). Move the rack until tool (A) can be installed to hold the rack in the center position. The rack must be in the center position to install the fuel injection pumps.10. Turn camshaft until the lobe of the camshaft is down for the pump to be installed.11. Install tool (C) on the bonnet on the fuel injection pump.12. Install the fuel injection pump in the pump housing with saw cut slot in the gear in alignment with the small pin and groove in the barrel in alignment with dowel in the pump housing.13. Put clean oil on O-ring seal and install it in the fuel injection pump housing.14. Install the bushing by hand until the bushing is even with the top of the housing. If the bushing can not be installed this far by hand, remove it. Remove the fuel injection pump ad put the pump in alignment again and install the bushing again.15. Install tool (B) on the bushing and tighten the bushing to a torque of 190 14 N m (140 10 lb ft).16. Install tooling (D) to measure total rack travel. Correct rack travel is 15.7 mm (.618 in). A smaller measurement is an indication of improper fuel injection pump installation.17. Perform Steps 1 through 9 to install the other fuel pumps18. Install the cover and gasket on the fuel injection pump housing.End By:a. install governor **See Assemble Governor storyDisassemble And Assemble Fuel Injection Pumps
Start By:a. remove fuel injection pumps
When the injection pumps are disassembled, handle the parts carefully. Do not damage the surfaces of the plungers, barrels and bonnets. Any scratches will cause leakage inside the fuel injection pump. The plunger and barrel for each pump are made as a set. Do not intermix the plunger of one pump in the barrel with another pump. If one part is worn, install a complete new pump assembly. Be careful when placing the plunger into the bore of the barrel.
1. Pull plunger (1) and washer (5) out of barrel (3) and spring (2).
Do not remove the gear from
