09010-08360 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-08360 BODY ASSY, INJECTI
Rating:
76
Buy BODY ASSY, INJECTI 09010-08360 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300

Scheme ###:

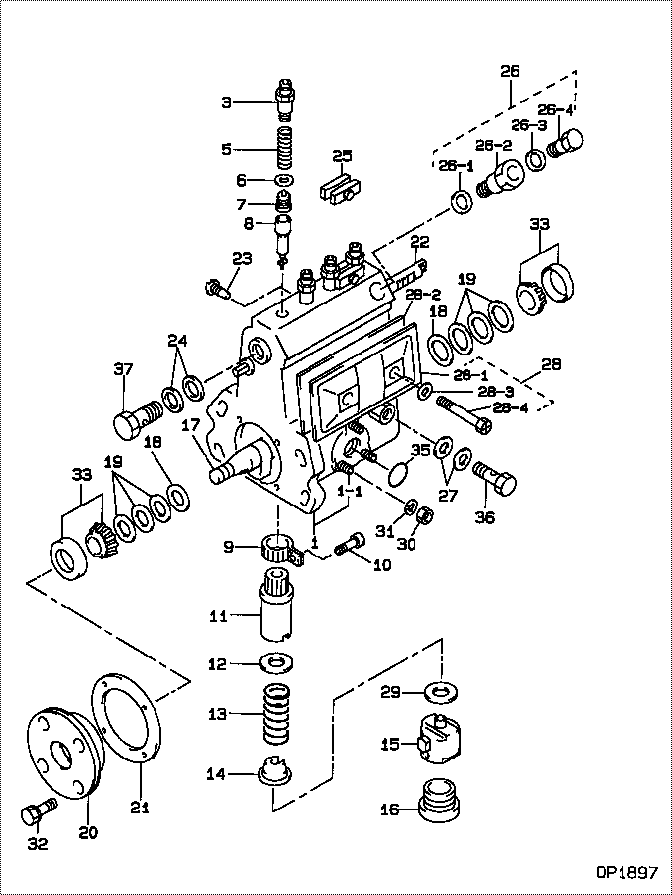

BODY ASSY, INJECTI
000. [01] 09010-08360 BODY ASSY, INJECTI
001. [01] 19011-02381 HOUSING KIT, INJEC
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
003. [04] 09013-10010 HOLDER, DELIVERY V 09013-10010
005. [04] 09013-60040 SPRING, DELIVERY V 09013-60040
006. [04] 09013-70010 GASKET, DELIVERY V 85265-00019
007. [04] 09014-00960 VALVE SUB-ASSY, IN
008. [04] 09015-00350 ELEMENT SUB-ASSY, 09015-00350
009. [04] 09015-60010 PINION, PLUNGER CO 85265-00074
010. [04] 09015-70010 SCREW, PLUNGER CON 85265-00027
011. [04] 09016-10330 SLEEVE, PLUNGER CO
012. [04] 09016-30010 SEAT, SPRING, UPR 09016-30010
012. [04] 09016-30191 SEAT, SPRING, UPR
013. [04] 09016-40090 SPRING, PUMP PLUNG 09016-40090
014. [04] 09016-50020 SEAT, SPRING, LWR 09016-50020
015. [04] 09017-00070 TAPPET SUB-ASSY,IN 09017-00070
016. [04] 09018-90090 PLUG, INJECTION PU 09018-90090
017. [01] 09019-10082 CAMSHAFT, INJECTIO 09019-10081
018. [02] 09019-30020 RING, CAMSHAFT ADJ 09019-30020
019. [6C] 09019-40290 PLATE, CAMSHAFT SH
019. [6C] 09019-40150 PLATE, CAMSHAFT SH
019. [6C] 09019-40140 PLATE, CAMSHAFT SH
019. [6C] 09019-40110 PLATE, CAMSHAFT SH 09019-40110
019. [6C] 09019-40060 PLATE, CAMSHAFT SH 09019-40060
019. [6C] 09019-40050 PLATE, CAMSHAFT SH 09019-40050
019. [6C] 09019-40040 PLATE, CAMSHAFT SH 09019-40040
019. [6C] 09019-40030 PLATE, CAMSHAFT SH 09019-40030
019. [6C] 09019-40020 PLATE, CAMSHAFT SH 09019-40020
019. [6C] 09019-40010 PLATE, CAMSHAFT SH 09019-40010
020. [01] 09020-10420 COVER, BEARING
021. [01] 09020-60060 GASKET, BEARING CO
021. [01] 09020-60170 GASKET, BEARING CO
022. [01] 09021-20020 RACK, CONTROL 09021-20020
023. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
024. [02] 09022-20070 WASHER, FUEL PIPE 85265-00079
025. [02] 09023-00031 PLATE SET, VALVE H 85265-00052
026. [01] 09024-00010 BLEEDER SUB-ASSY, 09024-00010
026-001. [01] 09024-10010 WASHER, AIR BLEEDE MM500486
026-002. [01] 09024-20010 NIPPLE, AIR BLEEDE 85265-00013
026-003. [01] 09024-30030 PACKING, AIR BLEED 85265-00016
026-004. [01] 09024-40010 SCREW, AIR BLEEDER 09024-40010
027. [02] 09025-10010 WASHER, INJECTION 85265-00077
028. [01] 09027-01051 COVER SUB-ASSY, IN
028-001. [01] 09027-50182 PROCESSING DRAWING
028-002. [01] 09027-20210 GASKET, INJECTION
028-003. [02] 09024-30030 PACKING, AIR BLEED 85265-00016
028-004. [02] 09027-60030 SCREW
029. [4C] 09031-10290 PLATE, TAPPET ADJU
029. [4C] 09031-10150 PLATE, TAPPET ADJU 09031-10150
029. [4C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
029. [4C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
029. [4C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
029. [4C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
029. [4C] 09031-10100 PLATE, TAPPET ADJU 09031-10100
029. [4C] 09031-10090 PLATE, TAPPET ADJU 09031-10090
029. [4C] 09031-10080 PLATE, TAPPET ADJU 09031-10080
029. [4C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
029. [4C] 09031-10020 PLATE, TAPPET ADJU 09031-10020
029. [4C] 09031-10030 PLATE, TAPPET ADJU 09031-10030
029. [4C] 09031-10040 PLATE, TAPPET ADJU 09031-10040
029. [4C] 09031-10050 PLATE, TAPPET ADJU 09031-10050
029. [4C] 09031-10060 PLATE, TAPPET ADJU 09031-10060
029. [4C] 09031-10070 PLATE, TAPPET ADJU 09031-10070
030. [03] 90160-06051 NUT, HEXAGON 85265-00085
031. [03] 90258-06001 WASHER, SPRING 90258-06001
032. [04] 94904-71360 BOLT, W/WASHER 94904-71360
033. [02] 94910-10120 BEARING, ROLLER 94910-10121
035. [01] 94914-00380 O-RING 85265-00084
036. [01] 94918-00060 SCREW, HOLLOW 85265-00076
037. [01] 94918-00310 SCREW, HOLLOW 85265-00078

Include in #3:

09010-08360 as BODY ASSY, INJECTI
19100-04810
19100-04820

Cross reference number



Part num Firm num Firm Name
09010-08360    BODY ASSY, INJECTI
