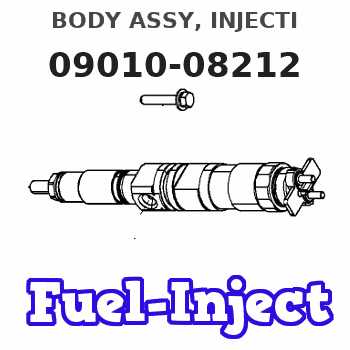

09010-08212 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-08212 BODY ASSY, INJECTI
Rating:
10
Buy BODY ASSY, INJECTI 09010-08212 genuine, new aftermarket engine parts with delivery

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-08212 BODY ASSY, INJECTI
001. [01] 09011-04250 HOUSING SUB-ASSY, 09011-04250
001. [01] 09011-05710 HOUSING SUB-ASSY,
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
003. [06] 09013-60730 SPRING, DELIVERY V
004. [06] 94914-02570 O-RING 94914-02570
005. [06] 09014-01510 VALVE SUB-ASSY, IN K599903311
006. [06] 09015-04413 ELEMENT SUB-ASSY, 09015-04410
006. [06] 09015-06150 ELEMENT SUB-ASSY,
007. [06] 09016-00150 SLEEVE SUB-ASSY, C 09016-00150
008. [01] 09021-20471 RACK, CONTROL
009. [06] 09016-30160 SEAT, SPRING, UPR 09016-30160
010. [06] 09016-40250 SPRING, PUMP PLUNG
011. [06] 09016-50150 SEAT, SPRING, LWR
012. [06] 09017-00230 TAPPET SUB-ASSY,IN
012. [06] 09017-00320 TAPPET SUB-ASSY,IN
013. [ C] 09043-80481 SHIM, ELEMENT HOLD
013. [ C] 09043-80491 SHIM, ELEMENT HOLD
013. [ C] 09043-80501 SHIM, ELEMENT HOLD
013. [ C] 09043-80511 SHIM, ELEMENT HOLD
013. [ C] 09043-80521 SHIM, ELEMENT HOLD
013. [ C] 09043-80901 SHIM, ELEMENT HOLD
013. [ C] 09043-80911 SHIM, ELEMENT HOLD
013. [ C] 09043-80471 SHIM, ELEMENT HOLD
013. [ C] 09043-80461 SHIM, ELEMENT HOLD
013. [ C] 09043-80391 SHIM, ELEMENT HOLD
013. [ C] 09043-80401 SHIM, ELEMENT HOLD
013. [ C] 09043-80411 SHIM, ELEMENT HOLD
013. [ C] 09043-80421 SHIM, ELEMENT HOLD
013. [ C] 09043-80431 SHIM, ELEMENT HOLD
013. [ C] 09043-80441 SHIM, ELEMENT HOLD
013. [ C] 09043-80451 SHIM, ELEMENT HOLD
014. [12] 90196-08651 NUT, HEXAGON
015. [12] 94901-35880 WASHER, PLATE, SK
016. [12] 90258-08001 WASHER, SPRING CSA915D100
017. [01] 09020-60240 GASKET, BEARING CO
017. [01] 09020-60070 GASKET, BEARING CO
018. [18] 09013-90020 O-RING
018. [12] 09013-90340 O-RING
019. [06] 94901-81730 WASHER, COPPER PLA
020. [01] 09019-10950 CAMSHAFT, INJECTIO
021. [01] 94910-10140 BEARING, ROLLER
022. [01] 09019-30050 RING, CAMSHAFT ADJ
023. [3C] 09019-40420 PLATE, CAMSHAFT SH
023. [3C] 09019-40410 PLATE, CAMSHAFT SH
023. [3C] 09019-40360 PLATE, CAMSHAFT SH
023. [3C] 09019-40350 PLATE, CAMSHAFT SH
023. [3C] 09019-40340 PLATE, CAMSHAFT SH
023. [3C] 09019-40100 PLATE, CAMSHAFT SH 09019-40100
023. [3C] 09019-40090 PLATE, CAMSHAFT SH 09019-40090
023. [3C] 09019-40080 PLATE, CAMSHAFT SH 09019-40080
023. [3C] 09019-40070 PLATE, CAMSHAFT SH 09019-40070
025. [01] 94915-01420 SEAL, OIL
025. [01] 94915-02820 SEAL, OIL
026. [01] 09020-10501 COVER, BEARING
027. [04] 91410-06201 BOLT, W/WASHER
027. [04] 91418-06201 BOLT, W/WASHER 91418-06201
028. [01] 09043-30020 RETAINER, BEARING
029. [01] 09036-10180 BEARING, CENTER 09036-10180
029. [01] 09036-10240 BEARING, CENTER
030. [02] 90015-06181 SCREW, SLOTTED OVA
030. [02] 94900-66510 SCREW
030. [02] 94900-67300 SCREW
031. [04] 09024-80010 WASHER, DRAIN SCRE 09024-80010
032. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
033. [01] 09031-70140 PLUG, SCREW
034. [01] 94910-10130 BEARING, ROLLER
035. [01] 09019-30060 RING, CAMSHAFT ADJ
036. [04] 09022-20070 WASHER, FUEL PIPE 85265-00079
038. [01] 94918-00310 SCREW, HOLLOW 85265-00078
039. [3C] 09019-40300 PLATE, CAMSHAFT SH
039. [3C] 09019-40310 PLATE, CAMSHAFT SH
039. [3C] 09019-40320 PLATE, CAMSHAFT SH
039. [3C] 09019-40330 PLATE, CAMSHAFT SH
039. [3C] 09019-40370 PLATE, CAMSHAFT SH
039. [3C] 09019-40380 PLATE, CAMSHAFT SH
039. [3C] 09019-40390 PLATE, CAMSHAFT SH
040. [02] 09011-40110 BUSHING, CONTROL R
041. [01] 09036-70040 BUSHING, CONTROL R
045. [02] 09024-40160 SCREW, AIR BLEEDER
046. [01] 94914-00380 O-RING 85265-00084
047. [03] 90258-06001 WASHER, SPRING 90258-06001
048. [03] 90160-06051 NUT, HEXAGON 85265-00085
053. [06] 09013-10680 HOLDER, DELIVERY V
054. [06] 09013-30261 STOPPER, DELIVERY
055. [01] 94901-80350 WASHER, COPPER PLA 94901-80350

Include in #3:

09010-08212 as BODY ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09010-08212    BODY ASSY, INJECTI




Information:

1. Turn the fuel supply line valve to the "OFF" position.2. Remove tube assembly (2) and tube assembly (4).2. Remove tube assembly (2) and tube assembly (4).3. Remove bolts (1) and (5). Remove fuel transfer pump (3). Remove the O-ring seal from the fuel transfer pump if necessary. Assemble in reverse order.Disassemble And Assemble Fuel Transfer Pump
Start By:a. remove fuel transfer pump
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove bolts (2) and cover (1) from fuel transfer pump housing (11). Remove seals (5) and (6), and valve (4).2. Remove spring (3), washer (7), valve (13), seal (8), sleeve (9), and piston (10). Remove seal (19).3. Remove seal (14) and guide and tappet assembly (12).4. Remove screw (17), cover (18) and seal (16). Remove valve assembly (15).5. To assemble fuel transfer pump, install valve assembly (15) in the fuel transfer pump housing. Lubricate seal (16) lightly and install it with cover (18) and screw (17).
The tappet and guide of the guide and tappet assembly must be serviced as a unit.
6. Install seal (14) and guide and tappet assembly (12) in the fuel transfer pump housing.7. Install seal (19) on sleeve (9). Install piston (10), sleeve (9), seal (8), valve (13), and washer (7). Install spring (3).8. Install seal (5), seal (6), and valve (4). Install cover (1) and bolts (2).End By:a. install fuel transfer pump
