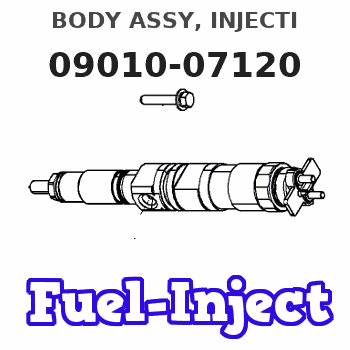

09010-07120 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-07120 BODY ASSY, INJECTI
Rating:
18
Buy BODY ASSY, INJECTI 09010-07120 genuine, new aftermarket engine parts with delivery

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-07120 BODY ASSY, INJECTI
001. [01] 09011-03850 HOUSING SUB-ASSY,
001-001. [03] 94904-30010 BOLT, STUD
003. [06] 09013-60730 SPRING, DELIVERY V
004. [06] 94914-02570 O-RING
005. [06] 09014-01870 VALVE SUB-ASSY, IN
006. [06] 09015-04210 ELEMENT SUB-ASSY,
007. [06] 09016-00150 SLEEVE SUB-ASSY, C
008. [01] 09021-20630 RACK, CONTROL
009. [06] 09016-30160 SEAT, SPRING, UPR
010. [06] 09016-40250 SPRING, PUMP PLUNG
011. [06] 09016-50150 SEAT, SPRING, LWR
012. [06] 09017-00320 TAPPET SUB-ASSY,IN
013. [ C] 09043-80911 SHIM, ELEMENT HOLD
013. [ C] 09043-80901 SHIM, ELEMENT HOLD
013. [ C] 09043-80431 SHIM, ELEMENT HOLD
013. [ C] 09043-80421 SHIM, ELEMENT HOLD
013. [ C] 09043-80411 SHIM, ELEMENT HOLD
013. [ C] 09043-80401 SHIM, ELEMENT HOLD
013. [ C] 09043-80391 SHIM, ELEMENT HOLD
014. [12] 90196-08651 NUT, HEXAGON
015. [12] 94901-35880 WASHER, PLATE, SK
016. [12] 90258-08001 WASHER, SPRING
017. [01] 09020-60120 GASKET, BEARING CO
017. [01] 09020-60250 GASKET, BEARING CO
018. [18] 09013-90020 O-RING
019. [06] 94901-81730 WASHER, COPPER PLA
020. [01] 09019-11120 CAMSHAFT, INJECTIO
021. [01] 94910-10140 BEARING, ROLLER
022. [01] 09019-30050 RING, CAMSHAFT ADJ
023. [3C] 09019-40410 PLATE, CAMSHAFT SH
023. [3C] 09019-40360 PLATE, CAMSHAFT SH
023. [3C] 09019-40350 PLATE, CAMSHAFT SH
023. [3C] 09019-40340 PLATE, CAMSHAFT SH
023. [3C] 09019-40100 PLATE, CAMSHAFT SH
023. [3C] 09019-40090 PLATE, CAMSHAFT SH
023. [3C] 09019-40080 PLATE, CAMSHAFT SH
023. [3C] 09019-40070 PLATE, CAMSHAFT SH
025. [01] 94915-02820 SEAL, OIL
025. [01] 94915-01420 SEAL, OIL
026. [01] 09020-10710 COVER, BEARING
028. [01] 09043-30020 RETAINER, BEARING
029. [01] 09036-10180 BEARING, CENTER
030. [06] 94900-66510 SCREW
030. [06] 90015-06181 SCREW, SLOTTED OVA
031. [02] 09024-80010 WASHER, DRAIN SCRE
032. [01] 09021-50060 SCREW, RACK GUIDE
033. [01] 09031-70140 PLUG, SCREW
034. [01] 94910-10130 BEARING, ROLLER
035. [01] 09019-30060 RING, CAMSHAFT ADJ
039. [3C] 09019-40420 PLATE, CAMSHAFT SH
039. [3C] 09019-40390 PLATE, CAMSHAFT SH
039. [3C] 09019-40380 PLATE, CAMSHAFT SH
039. [3C] 09019-40370 PLATE, CAMSHAFT SH
039. [3C] 09019-40330 PLATE, CAMSHAFT SH
039. [3C] 09019-40320 PLATE, CAMSHAFT SH
039. [3C] 09019-40310 PLATE, CAMSHAFT SH
039. [3C] 09019-40300 PLATE, CAMSHAFT SH
040. [02] 09011-40110 BUSHING, CONTROL R
041. [01] 09036-70040 BUSHING, CONTROL R
042. [02] 90200-06241 WASHER, PLATE
043. [04] 94901-50740 WASHER, SPRING
044. [02] 90107-06101 BOLT, HEXAGON
045. [01] 09010-80010 NEEDLE SUB-ASSY, T
046. [01] 94914-00380 O-RING
047. [05] 90258-06001 WASHER, SPRING
048. [03] 90160-06051 NUT, HEXAGON
049. [01] 09116-70031 PLUG, SCREW
050. [01] 09024-10010 WASHER, AIR BLEEDE
053. [01] 94901-80350 WASHER, COPPER PLA
055. [01] 09031-00160 VALVE ASSY, OVERFL
058. [06] 09013-00311 HOLDER SUB-ASSY, D
059. [01] 94901-80550 WASHER, COPPER PLA

Include in #3:

09010-07120 as BODY ASSY, INJECTI
19100-03090
19100-03250

Cross reference number



Part num Firm num Firm Name
09010-07120    BODY ASSY, INJECTI




Information:

3. Remove the connecting rod caps (1) from these pistons, and push the pistons upward until the rings clear the cylinder liner. 4. Remove the two pistons.5. Repeat Step 2 through 4 for the remaining pistons.Install Pistons
1. Thoroughly lubricate the crankshaft bearing journals and cylinder liners with clean SAE 30 engine oil.2. Lubricate the piston rings and connecting rod bearings with clean SAE 30 engine oil. 3. Using compressor (A), install the pistons with "V" mark on piston aligned with "V" mark on cylinder block. Guide the lower end of the rod over the crankshaft journal to prevent damage to the crankshaft.4. Lubricate the threads of cap retaining bolts with clean SAE 30 engine oil.5. Position the caps on the connecting rods, and install retaining nuts. Tighten nuts initially to 30 3 lb. ft. (4,1 0,4 mkg). Mark the nut and end of bolt, and tighten nut an additional 90° from mark.
When installing connecting rod cap, be sure that the number marked on side of cap is adjacent to and corresponds to the number marked on side of connecting rod.
6. Rotate the crankshaft until the next two bearing journals are at bottom dead center.7. Repeat Steps 2 through 5 for the remaining two pistons.concluding steps: a) install oil pumpb) install cylinder head assemblyDisassemble Pistons
preparatory step: a) remove pistons 1. Remove piston pin retaining rings (2).2. Remove piston pin (1) and remove piston from the connecting rod. 3. Remove the piston rings using ring expander (A).Assemble Pistons
1. Using ring expander (A), install the piston rings. The two compression rings are marked "UP - 1" and "UP - 2". The rings must be installed with these marks toward the top of the piston with "UP - 1" being the top ring. After all three rings have been installed on piston, stagger the ring caps 120° apart.2. Lubricate the piston pin with clean SAE 30 engine oil. 3. Position the piston on the connecting rod with the "V" mark (2) on the piston and number (1) on the connecting rod on the same side.4. Install the piston pin retaining rings. Make certain the retaining rings are seated in their grooves.concluding step: a) install pistons
