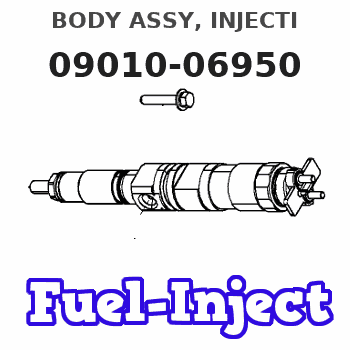

09010-06950 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-06950 BODY ASSY, INJECTI
Rating:
16
Buy BODY ASSY, INJECTI 09010-06950 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-06950 BODY ASSY, INJECTI 22120-58410
001. [01] 19011-03400 HOUSING KIT, INJEC 22190-58270
001-001. [03] 94904-30010 BOLT, STUD 90099-04071
001-002. [01] 09022-10070 UNION, INJECTION P
001-003. [01] 09022-10310 UNION, INJECTION P
001-003. [01] 09022-10010 UNION, INJECTION P 22127-76010
003. [01] 09031-00130 VALVE ASSY, OVERFL 22160-78030
004. [03] 90160-06051 NUT, HEXAGON 90092-10101
005. [04] 09013-10320 HOLDER, DELIVERY V 22131-78030
006. [04] 09013-60120 SPRING, DELIVERY V 22148-78030
007. [04] 09013-70100 GASKET, DELIVERY V 22149-78030
008. [04] 09014-01610 VALVE SUB-ASSY, IN 22104-58340
009. [04] 09015-03930 ELEMENT SUB-ASSY,
010. [04] 09015-60010 PINION, PLUNGER CO 22155-76010
011. [04] 09015-70010 SCREW, PLUNGER CON 22156-76010
012. [02] 09016-10330 SLEEVE, PLUNGER CO 22142-58230
013. [04] 09016-30010 SEAT, SPRING, UPR 22143-77020
013. [04] 09016-30191 SEAT, SPRING, UPR
014. [04] 09016-40090 SPRING, PUMP PLUNG 22144-46010
015. [04] 09016-50160 SEAT, SPRING, LWR 22145-78030
016. [04] 09017-00070 TAPPET SUB-ASSY,IN 22106-46010
018. [04] 09018-90090 PLUG, INJECTION PU
019. [01] 09019-10970 CAMSHAFT, INJECTIO 22146-58230
019. [01] 09019-10880 CAMSHAFT, INJECTIO
020. [01] 09019-30020 RING, CAMSHAFT ADJ 22147-77020
021. [ C] 09019-40060 PLATE, CAMSHAFT SH 22166-76010
021. [ C] 09019-40050 PLATE, CAMSHAFT SH 22165-76010
021. [ C] 09019-40040 PLATE, CAMSHAFT SH 22164-76010
021. [ C] 09019-40030 PLATE, CAMSHAFT SH 22163-76010
021. [ C] 09019-40020 PLATE, CAMSHAFT SH 22162-76010
021. [ C] 09019-40010 PLATE, CAMSHAFT SH 22161-76010
022. [01] 94914-03690 O-RING 90099-14079
023. [04] 94900-72471 SCREW, W/WASHER 90099-00928
024. [01] 94910-10120 BEARING, ROLLER 90099-10087
026. [01] 94900-62961 SCREW 90099-00894
027. [01] 09021-20020 RACK, CONTROL 22114-36010
028. [01] 09021-50060 SCREW, RACK GUIDE 22115-78140
029. [01] 09020-40240 FLANGE, INJECTION 22181-58230
030. [02] 09022-20070 WASHER, FUEL PIPE 94712-77121
031. [01] 94918-00310 SCREW, HOLLOW 90099-18010
032. [02] 09023-00050 PLATE SET, VALVE H 22102-58230
033. [02] 09024-10010 WASHER, AIR BLEEDE 22119-77020
035. [01] 94918-00680 SCREW, HOLLOW 90401-10006
036. [02] 94901-81570 WASHER, COPPER PLA 90099-01451
038. [01] 94901-81020 WASHER, COPPER PLA 90201-08106
039. [01] 94914-00380 O-RING 90099-14015
040. [01] 09027-00961 COVER SUB-ASSY, IN
040-002. [02] 09024-30030 PACKING, AIR BLEED 22121-77020
040-003. [02] 09027-60030 SCREW
040-006. [01] 09027-50182 PROCESSING DRAWING 22563-78050
040-007. [01] 09027-20210 GASKET, INJECTION 22153-78030
041. [ C] 09031-10150 PLATE, TAPPET ADJU 22186-48010
041. [ C] 09031-10140 PLATE, TAPPET ADJU 22186-46010
041. [ C] 09031-10130 PLATE, TAPPET ADJU 22185-46010
041. [ C] 09031-10120 PLATE, TAPPET ADJU 22184-46010
041. [ C] 09031-10110 PLATE, TAPPET ADJU 22183-46010
041. [ C] 09031-10100 PLATE, TAPPET ADJU 22182-46010
041. [ C] 09031-10090 PLATE, TAPPET ADJU 22189-48036
041. [ C] 09031-10080 PLATE, TAPPET ADJU 22189-48035
041. [ C] 09031-10070 PLATE, TAPPET ADJU 22189-48034
041. [ C] 09031-10010 PLATE, TAPPET ADJU 22187-46010
041. [ C] 09031-10020 PLATE, TAPPET ADJU 22188-46010
041. [ C] 09031-10030 PLATE, TAPPET ADJU 22189-46010
041. [ C] 09031-10040 PLATE, TAPPET ADJU 22189-48031
041. [ C] 09031-10050 PLATE, TAPPET ADJU 22189-48032
041. [ C] 09031-10060 PLATE, TAPPET ADJU 22189-48033
043. [03] 90258-06001 WASHER, SPRING 94511-00600
046. [01] 09020-60080 GASKET, BEARING CO 22195-58230
046. [01] 09020-60180 GASKET, BEARING CO
047. [04] 94914-02570 O-RING 90099-14070
048. [04] 09013-30010 STOPPER, DELIVERY 22194-78030
049. [01] 94910-10071 BEARING, ROLLER 90099-10151
050. [ C] 09019-40360 PLATE, CAMSHAFT SH 22166-78144
050. [ C] 09019-40350 PLATE, CAMSHAFT SH 22166-78143
050. [ C] 09019-40340 PLATE, CAMSHAFT SH 22166-78142
050. [ C] 09019-40100 PLATE, CAMSHAFT SH 22166-78035
050. [ C] 09019-40090 PLATE, CAMSHAFT SH 22166-78034
050. [ C] 09019-40080 PLATE, CAMSHAFT SH 22166-78033
050. [ C] 09019-40070 PLATE, CAMSHAFT SH 22166-78032
051. [01] 09019-30050 RING, CAMSHAFT ADJ 22147-78030

Include in #3:

09010-06950 as BODY ASSY, INJECTI
09300-01850
19100-02331

Cross reference number



Part num Firm num Firm Name
09010-06950  22120-5841  BODY ASSY, INJECTI
22120-58410    TOYOTA BODY ASSY, INJECTI




Information:

(1) Diameter of the valve seat insert ... 54.610 0.013 mm (2.1500 .0005 in) Bore in head for valve seat insert ... 54.534 0.013 mm (2.1470 .0005 in)(2) Depth of bore in head for valve seat insert ... 11.23 0.05 mm (.442 .002 in)(3) Maximum permissible width of the face of the valve seat insert ... 3.05 mm (.120 in)(4) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 1.73 mm (.068 in)Minimum permissible (valve closed) ... 0.91 mm (.036 in)(5) Angle of the face of the valve seat insert ... 30 1/2 1/2°(6) Outside diameter of the face of the valve seat insert ... 52.23 0.13 mm (2.045 .005 in) Maximum permissible ... 52.45 mm (2.065 in)(7) Angle to grind face of seat insert (to get a reduction of maximum seat diameter) ... 15°Intake Valve (without valve seat insert)
(1) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 1.73 mm (.068 in)Minimum permissible (valve closed) ... 0.91 mm (.036 in)(2) Maximum permissible width of the face of the valve seat ... 3.05 mm (.120 in)(3) Outside diameter of the valve seat ... 52.23 0.13 mm (2.045 .005 in) Maximum permissible ... 52.45 mm (2.065 in)(4) Angle of the face of the valve seat ... 30 1/2 1/2°(5) Diameter of the bore ... 54.61 mm (2.150 in)(6) Maximum permissible depth of the bore to make the face of the valve seat smaller ... 4.32 mm (.170 in)Exhaust Valve
(1) Depth of bore in head for valve seat insert ... 11.23 0.13 mm (.442 .005 in)(2) Diameter of valve seat insert ... 48.565 0.013 mm (1.9120 .0005 in) Bore in head for valve seat insert ... 48.489 0.013 mm (1.9090 .0005 in)(3) Maximum permissible width of the face of the valve seat insert ... 2.67 mm (.105 in)(4) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 2.16 mm (.085 in)Minimum permissible (valve closed) ... 1.27 mm (.050 in)(5) Angle of the face of the valve seat insert ... 45 1/2 1/2°(6) Outside diameter of the face of the valve seat insert ... 44.07 0.13 mm (1.735 .005 in) Maximum permissible ... 44.70 mm (1.760 in)(7) Angle to grind face of seat insert (to get a reduction of maximum seat diameter) ... 15°
