09010-06840 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-06840 BODY ASSY, INJECTI
Rating:
52
Buy BODY ASSY, INJECTI 09010-06840 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application

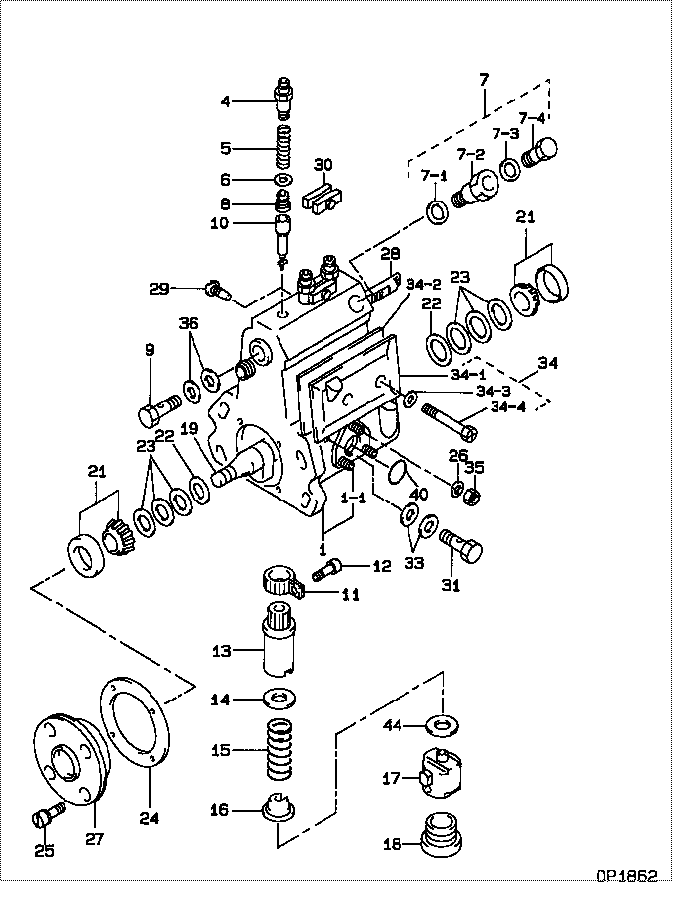

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-06840 BODY ASSY, INJECTI
001. [01] 19011-02021 HOUSING KIT, INJEC
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
004. [03] 09013-10540 HOLDER, DELIVERY V
005. [03] 09013-60040 SPRING, DELIVERY V 09013-60040
006. [03] 09013-70010 GASKET, DELIVERY V 85265-00019
007. [01] 09024-00010 BLEEDER SUB-ASSY, 09024-00010
007-001. [01] 09024-10010 WASHER, AIR BLEEDE MM500486
007-002. [01] 09024-20010 NIPPLE, AIR BLEEDE 85265-00013
007-003. [01] 09024-30030 PACKING, AIR BLEED 85265-00016
007-004. [01] 09024-40010 SCREW, AIR BLEEDER 09024-40010
008. [03] 09014-00010 VALVE SUB-ASSY, IN 09014-00010
009. [01] 94918-00310 SCREW, HOLLOW 85265-00078
010. [03] 09015-00050 ELEMENT SUB-ASSY, 09015-00050
011. [03] 09015-60010 PINION, PLUNGER CO 85265-00074
012. [03] 09015-70010 SCREW, PLUNGER CON 85265-00027
013. [03] 09016-10330 SLEEVE, PLUNGER CO
013. [03] 09016-10160 SLEEVE, PLUNGER CO 85265-00073
014. [03] 09016-30010 SEAT, SPRING, UPR 09016-30010
014. [03] 09016-30191 SEAT, SPRING, UPR
015. [03] 09016-40090 SPRING, PUMP PLUNG 09016-40090
016. [03] 09016-50160 SEAT, SPRING, LWR 09016-50160
017. [03] 09017-00070 TAPPET SUB-ASSY,IN 09017-00070
018. [03] 09018-90090 PLUG, INJECTION PU 09018-90090
019. [01] 09019-10201 CAMSHAFT, INJECTIO 09019-10200
021. [02] 94910-10120 BEARING, ROLLER 94910-10121
022. [02] 09019-30020 RING, CAMSHAFT ADJ 09019-30020
023. [6C] 09019-40290 PLATE, CAMSHAFT SH
023. [6C] 09019-40150 PLATE, CAMSHAFT SH
023. [6C] 09019-40140 PLATE, CAMSHAFT SH
023. [6C] 09019-40110 PLATE, CAMSHAFT SH 09019-40110
023. [6C] 09019-40060 PLATE, CAMSHAFT SH 09019-40060
023. [6C] 09019-40050 PLATE, CAMSHAFT SH 09019-40050
023. [6C] 09019-40040 PLATE, CAMSHAFT SH 09019-40040
023. [6C] 09019-40030 PLATE, CAMSHAFT SH 09019-40030
023. [6C] 09019-40020 PLATE, CAMSHAFT SH 09019-40020
023. [6C] 09019-40010 PLATE, CAMSHAFT SH 09019-40010
024. [01] 09020-60010 GASKET, BEARING CO 09020-60010
024. [01] 09020-60160 GASKET, BEARING CO
025. [04] 94904-71360 BOLT, W/WASHER 94904-71360
026. [03] 90258-06001 WASHER, SPRING 90258-06001
027. [01] 09020-10300 COVER, BEARING 09020-10300
028. [01] 09021-20050 RACK, CONTROL EZ40057028
029. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
030. [02] 09023-00031 PLATE SET, VALVE H 85265-00052
031. [01] 94918-00690 SCREW, HOLLOW
033. [02] 09025-10010 WASHER, INJECTION 85265-00077
034. [01] 09027-01140 COVER SUB-ASSY, IN
034. [01] 09027-01150 COVER SUB-ASSY, IN
034-001. [01] 09027-50133 PROCESSING DRAWING
034-002. [01] 09027-20200 GASKET, INJECTION
034-003. [02] 09024-30030 PACKING, AIR BLEED 85265-00016
034-004. [02] 09027-60030 SCREW
035. [03] 90160-06051 NUT, HEXAGON 85265-00085
036. [02] 09022-20070 WASHER, FUEL PIPE 85265-00079
040. [01] 94914-00380 O-RING 85265-00084
044. [4C] 09031-10090 PLATE, TAPPET ADJU 09031-10090
044. [4C] 09031-10100 PLATE, TAPPET ADJU 09031-10100
044. [4C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
044. [4C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
044. [4C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
044. [4C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
044. [4C] 09031-10080 PLATE, TAPPET ADJU 09031-10080
044. [4C] 09031-10070 PLATE, TAPPET ADJU 09031-10070
044. [4C] 09031-10060 PLATE, TAPPET ADJU 09031-10060
044. [4C] 09031-10050 PLATE, TAPPET ADJU 09031-10050
044. [4C] 09031-10040 PLATE, TAPPET ADJU 09031-10040
044. [4C] 09031-10030 PLATE, TAPPET ADJU 09031-10030
044. [4C] 09031-10020 PLATE, TAPPET ADJU 09031-10020
044. [4C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
044. [4C] 09031-10150 PLATE, TAPPET ADJU 09031-10150

Include in #3:

09010-06840 as BODY ASSY, INJECTI
19100-01990
19100-02000
19100-02010
19100-02020
19100-02490
19100-04340

Cross reference number



Part num Firm num Firm Name
09010-06840    BODY ASSY, INJECTI
