09010-06640 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

BODY ASSY, INJECTI DA
  • *1 THE ELEMENT KIT P/N IS 190450-370 (NO.100)
  • THE ELEMENT KIT INCLUDES NO.2, 3, 6, 7, 8, 9, 10, 11,
  • 12, 13, 14, 15, 65 AND 66.
09010-06640 BODY ASSY, INJECTI
Rating:
51
Buy BODY ASSY, INJECTI 09010-06640 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application
Body assy, injecti No Application

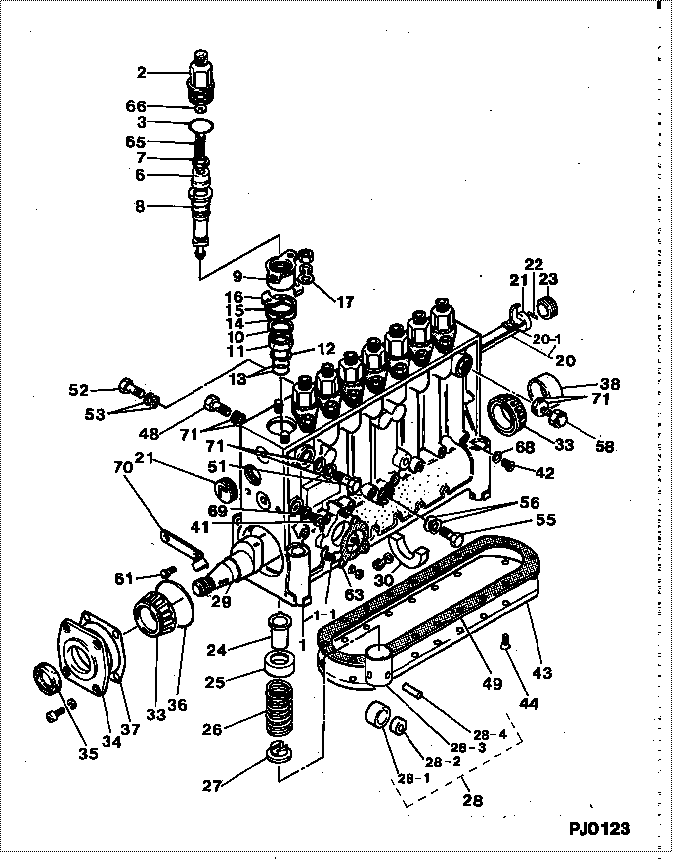

Scheme ###:

BODY ASSY, INJECTI
000. [01] 09010-06640 BODY ASSY, INJECTI 22110-2140
001. [01] 09011-03690 HOUSING SUB-ASSY, 22101-2140A
001-001. [03] 94904-30010 BOLT, STUD 22853-1020A
002. [08] 09013-00130 HOLDER SUB-ASSY, D 22108-1070A
003. [08] 94914-02710 O-RING 22817-1040A
006. [08] 09014-01460 VALVE SUB-ASSY, IN 22103-1540A
007. [08] 94901-81451 WASHER, COPPER PLA 22847-1210A
008. [08] 09015-03200 ELEMENT SUB-ASSY, 22103-1550A
008. [08] 09015-04590 ELEMENT SUB-ASSY,
009. [08] 09042-00030 HOLDER ASSY, ELMEN 22144-1050A
010. [08] 94901-34340 WASHER, PLATE, SK 22867-1110A
011. [08] 09043-60030 COVER, ELEMENT 22332-1300A
012. [08] 94907-20780 RING, SNAP 98191-9103A
013. [16] 94914-01120 O-RING 22817-1100A
013. [16] 09013-90170 O-RING
014. [08] 94914-00991 O-RING 22817-1030A
015. [08] 09044-80010 DISTANCE RING 22131-1160A
016. [ C] 09043-80180 SHIM, ELEMENT HOLD 22885-3990A
016. [ C] 09043-80190 SHIM, ELEMENT HOLD 22885-4000A
016. [ C] 09043-80200 SHIM, ELEMENT HOLD 22885-4010A
016. [ C] 09043-80210 SHIM, ELEMENT HOLD 22885-4020A
016. [ C] 09043-80220 SHIM, ELEMENT HOLD 22885-2130A
016. [ C] 09043-80170 SHIM, ELEMENT HOLD 22885-3980A
016. [ C] 09043-80160 SHIM, ELEMENT HOLD 22885-3970A
016. [ C] 09043-80150 SHIM, ELEMENT HOLD 22885-3960A
016. [ C] 09043-80100 SHIM, ELEMENT HOLD 22885-1990A
016. [ C] 09043-80110 SHIM, ELEMENT HOLD 22885-2000A
016. [ C] 09043-80120 SHIM, ELEMENT HOLD 22885-2010A
016. [ C] 09043-80130 SHIM, ELEMENT HOLD 22885-3940A
016. [ C] 09043-80140 SHIM, ELEMENT HOLD 22885-3950A
017. [16] 94901-17040 WASHER, STEEL PLAT 22877-1030A
020. [01] 09021-00390 RACK ASSY, CONTROL 22113-1120A
020-001. [01] 09108-30222 ARM 22317-1600A
021. [02] 09011-40060 BUSHING, CONTROL R 22114-1090A
022. [01] 94908-20290 PIN, STRAIGHT 22358-1260A
023. [01] 09036-70010 BUSHING, CONTROL R 22841-1510A
024. [08] 09016-00020 SLEEVE SUB-ASSY, C 22118-1020A
025. [08] 09016-30060 SEAT, SPRING, UPR 22119-1040A
026. [08] 09016-40130 SPRING, PUMP PLUNG 22121-1060A
027. [08] 09016-50041 SEAT, SPRING, LWR 22122-1080A
028. [08] 09017-00110 TAPPET SUB-ASSY,IN 22309-2180A
028-001. [08] 09018-10170 ROLLER, INJECTION 22569-1080A
028-002. [08] 09017-80060 BUSHING, INJECTION 22322-1410A
028-003. [08] 09017-10131 TAPPET, INJECTION
028-003. [08] 09016-90100 BODY, INJECTION PU 22568-1120A
028-004. [08] 09017-60080 PIN, INJECTION PUM 22358-1250A
028-005. [08] 09017-50040 SLIDER 6 306 1205 40
029. [01] 09019-10940 CAMSHAFT, INJECTIO 22123-1440A
030. [01] 09036-10140 BEARING, CENTER 22837-1210A
033. [02] 94910-10130 BEARING, ROLLER 22837-1050A
034. [01] 09020-10110 COVER, BEARING 22111-1190A
035. [01] 94915-01420 SEAL, OIL 22827-1020A
035. [01] 94915-02820 SEAL, OIL 22827-1750A
036. [01] 94914-03940 O-RING 22817-1470A
037. [ C] 09020-80070 PLATE, SHIM 22881-2920A
037. [ C] 09020-80060 PLATE, SHIM 22881-2910A
037. [ C] 09020-80050 PLATE, SHIM 22881-2900A
037. [ C] 09020-80040 PLATE, SHIM 22881-2890A
037. [ C] 09020-80030 PLATE, SHIM 22881-2880A
037. [ C] 09020-80020 PLATE, SHIM 22881-2870A
037. [ C] 09020-80010 PLATE, SHIM 22881-2860A
038. [01] 09043-30010 RETAINER, BEARING 22111-1200A
041. [01] 09031-70070 PLUG, SCREW 22845-1070A
042. [08] 09031-70060 PLUG, SCREW 22845-1060A
043. [01] 09027-10390 PLATE, INJECTION P 22127-1180A
044. [16] 90045-06121 SCREW, SLOTTED POL 22865-1130A
048. [01] 09024-50190 SCREW, HOLLOW 22835-1140A
049. [01] 09027-20270 GASKET, INJECTION 22847-1810A
051. [01] 94918-00310 SCREW, HOLLOW 22835-1310A
052. [01] 09024-50120 SCREW, HOLLOW 22835-1060A
053. [03] 94901-02470 WASHER 22877-1120A
055. [01] 09024-50130 SCREW, HOLLOW 22835-1070A
056. [02] 94901-02500 WASHER 22847-1920A
058. [01] 09031-00062 VALVE ASSY, OVERFL 22107-1030A
061. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
063. [01] 09010-60040 GASKET, FEED PUMP 22847-1520A
063. [01] 94914-00380 O-RING 22817-1540A
065. [08] 09013-60520 SPRING, DELIVERY V 22125-1030A
066. [ C] 94901-35100 WASHER, PLATE, SK 22885-1290A
066. [ C] 94901-35090 WASHER, PLATE, SK 22885-1280A
066. [ C] 94901-35080 WASHER, PLATE, SK 22885-1270A
066. [ C] 94901-35070 WASHER, PLATE, SK 22885-1260A
068. [08] 94901-81500 WASHER, COPPER PLA 22847-1120A
069. [01] 94901-80710 WASHER, COPPER PLA 22863-1300A
070. [ C] 09011-80100 NEEDLE, TIMING 22132-1070A
070. [ C] 09011-80110 NEEDLE, TIMING 22132-1080A
070. [ C] 09011-80120 NEEDLE, TIMING 22132-1090A
071. [08] 94901-02490 WASHER 22847-1910A
100. [01] 19045-00370 ELEMENT KIT, INJEC

Include in #3:

09010-06640 as BODY ASSY, INJECTI
19100-01570
19100-01580
19100-01670
19100-01680

Cross reference number



Part num Firm num Firm Name
09010-06640  22110-2140  BODY ASSY, INJECTI
22110-2140A    HINO BODY ASSY, INJECTI
22110-2140    HINO BODY ASSY, INJECTI




Information:


TIMING PIN AND PULLER INSTALLED (Typical Example)
1. FT887 Timing Pin. (Fabricated Tool.) 2. 9S8520 Puller Group.5. Install the 1P2320 Puller and remove the camshaft small outer gear.
PULLING SMALL OUTER GEAR6. Remove the spacer immediately behind the gear.7. Install the 1P2321 Puller and remove the camshaft large inner gear.
PULLING LARGE INNER GEARInstall Camshaft Gears
1. Heat both gears to a maximum temperature of 600° F (315° C) before installing on camshaft.2. Align keyway of large inner gear with key in camshaft. Install large inner gear on camshaft with timing mark on gear aligned with timing mark on crankshaft gear.
TIMING MARKS3. Install the spacer and small outer gear on the camshaft.
Do not drive gears onto camshaft. Serious damage can result to camshaft or camshaft thrust pin.
4. Position the automatic timing advance unit on the fuel injection pump camshaft.5. Install the tachometer drive adapter shaft and tighten shaft retaining nut to 32 2 lb. ft. (4.4 0.3 mkg).6. Remove timing pin from fuel injection pump housing and install the plug.
