09010-05780 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-05780 BODY ASSY, INJECTI
Rating:
32
Buy BODY ASSY, INJECTI 09010-05780 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300

Scheme ###:

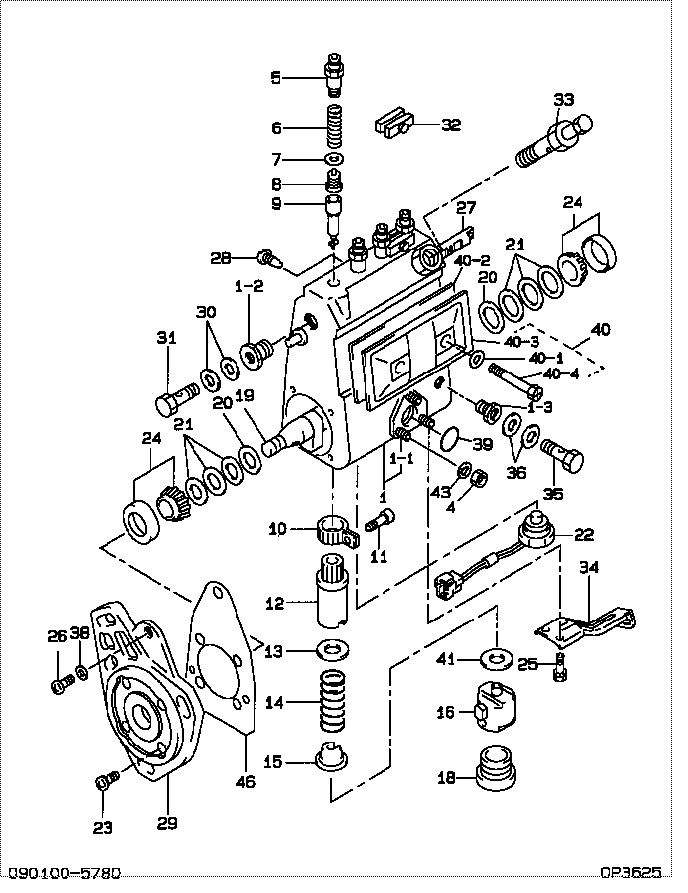

BODY ASSY, INJECTI
000. [01] 09010-05780 BODY ASSY, INJECTI 22120-56210-000
000. [01] 09010-05780 BODY ASSY, INJECTI 22120-56210
001. [01] 19011-02640 HOUSING KIT, INJEC 22190-56042-000
001. [01] 19011-02640 HOUSING KIT, INJEC 22190-56042
001-001. [03] 94904-30010 BOLT, STUD 90099-04071-000
001-001. [03] 94904-30010 BOLT, STUD 90099-04071
001-002. [01] 09022-10310 UNION, INJECTION P
001-002. [01] 09022-10310 UNION, INJECTION P
001-003. [01] 09012-10170 NIPPLE
001-003. [01] 09012-10170 NIPPLE
004. [03] 90160-06051 NUT, HEXAGON 94110-40600-000
004. [03] 90160-06051 NUT, HEXAGON 90092-10101
005. [04] 09013-10010 HOLDER, DELIVERY V 22131-77020-000
005. [04] 09013-10010 HOLDER, DELIVERY V 22131-77020
006. [04] 09013-60050 SPRING, DELIVERY V 22148-46010
006. [04] 09013-60050 SPRING, DELIVERY V 22148-46010-000
007. [04] 09013-70010 GASKET, DELIVERY V 22149-76010
007. [04] 09013-70010 GASKET, DELIVERY V 22149-76010-000
008. [04] 09014-00010 VALVE SUB-ASSY, IN 22104-77020-000
008. [04] 09014-00010 VALVE SUB-ASSY, IN 22104-77020
009. [04] 09015-02140 ELEMENT SUB-ASSY, 22105-56040
009. [04] 09015-02140 ELEMENT SUB-ASSY, 22105-56040-000
010. [04] 09015-60010 PINION, PLUNGER CO 22155-76010
010. [04] 09015-60010 PINION, PLUNGER CO 22155-76010-000
011. [04] 09015-70010 SCREW, PLUNGER CON 22156-76010
011. [04] 09015-70010 SCREW, PLUNGER CON 22156-76010-000
012. [04] 09016-10330 SLEEVE, PLUNGER CO 22142-58230
012. [04] 09016-10330 SLEEVE, PLUNGER CO 22142-58230-000
012. [04] 09016-10160 SLEEVE, PLUNGER CO 22142-77020-000
012. [04] 09016-10160 SLEEVE, PLUNGER CO 22142-77020
013. [04] 09016-30010 SEAT, SPRING, UPR 22143-77020
013. [04] 09016-30191 SEAT, SPRING, UPR 22143-78150-000
013. [04] 09016-30010 SEAT, SPRING, UPR 22143-77020-000
013. [04] 09016-30191 SEAT, SPRING, UPR 22143-78150
014. [04] 09016-40090 SPRING, PUMP PLUNG 22144-46010
014. [04] 09016-40090 SPRING, PUMP PLUNG 22144-46010-000
015. [04] 09016-50020 SEAT, SPRING, LWR 22145-46010
015. [04] 09016-50020 SEAT, SPRING, LWR 22145-46010-000
016. [04] 09017-00070 TAPPET SUB-ASSY,IN 22106-46010-000
016. [04] 09017-00070 TAPPET SUB-ASSY,IN 22106-46010
018. [03] 09018-90090 PLUG, INJECTION PU 22157-48024
018. [04] 09018-90090 PLUG, INJECTION PU 22157-87302-000
019. [01] 09019-10082 CAMSHAFT, INJECTIO 22146-56010
019. [01] 09019-10082 CAMSHAFT, INJECTIO 22146-56010-000
020. [02] 09019-30020 RING, CAMSHAFT ADJ 22147-77020-000
020. [02] 09019-30020 RING, CAMSHAFT ADJ 22147-77020
021. [6C] 09019-40050 PLATE, CAMSHAFT SH 22165-76010-000
021. [6C] 09019-40040 PLATE, CAMSHAFT SH 22164-76010-000
021. [6C] 09019-40060 PLATE, CAMSHAFT SH 22166-76010
021. [6C] 09019-40030 PLATE, CAMSHAFT SH 22163-76010-000
021. [6C] 09019-40020 PLATE, CAMSHAFT SH 22162-76010-000
021. [6C] 09019-40060 PLATE, CAMSHAFT SH 22166-76010-000
021. [6C] 09019-40010 PLATE, CAMSHAFT SH 22161-76010-000
021. [6C] 09019-40040 PLATE, CAMSHAFT SH 22164-76010
021. [6C] 09019-40050 PLATE, CAMSHAFT SH 22165-76010
021. [6C] 09019-40010 PLATE, CAMSHAFT SH 22161-76010
021. [6C] 09019-40020 PLATE, CAMSHAFT SH 22162-76010
021. [6C] 09019-40030 PLATE, CAMSHAFT SH 22163-76010
022. [01] 07630-00381 PICKUP ASSY, TACHO 83180-36010
022. [01] 07630-00381 PICKUP ASSY, TACHO 83180-36010-000
023. [04] 94900-72471 SCREW, W/WASHER 90099-00928-000
023. [04] 94900-72471 SCREW, W/WASHER 90099-00928
024. [02] 94910-10120 BEARING, ROLLER 90091-30203-000
024. [02] 94910-10120 BEARING, ROLLER 90099-10087
025. [02] 91410-08141 BOLT, W/WASHER 91611-40814-000
025. [02] 91410-08141 BOLT, W/WASHER 91611-40814
026. [01] 94900-62961 SCREW 90099-00894
026. [01] 94900-62961 SCREW 90099-00894-000
027. [01] 09021-20441 RACK, CONTROL 22114-48030
027. [01] 09021-20441 RACK, CONTROL 22114-48030-000
028. [01] 09021-50060 SCREW, RACK GUIDE 22115-78140-000
028. [01] 09021-50011 SCREW, RACK GUIDE 22115-77020-000
028. [01] 09021-50011 SCREW, RACK GUIDE 22115-77020
028. [01] 09021-50060 SCREW, RACK GUIDE 22115-78140
029. [01] 09020-40162 FLANGE, INJECTION 22181-56040-000
029. [01] 09020-40162 FLANGE, INJECTION 22181-56040
030. [02] 09022-20070 WASHER, FUEL PIPE 22125-87301-000
030. [02] 09022-20070 WASHER, FUEL PIPE 94712-77121
031. [01] 94918-00310 SCREW, HOLLOW 90099-18010-000
031. [01] 94918-00310 SCREW, HOLLOW 90099-18010
032. [02] 09023-00031 PLATE SET, VALVE H 22102-77021-000
032. [02] 09023-00031 PLATE SET, VALVE H 22102-77021
033. [01] 09024-00010 BLEEDER SUB-ASSY, 22150-67010
033. [01] 09024-00010 BLEEDER SUB-ASSY, 22150-67010-000
034. [01] 09045-30080 STAY, INJECTION PU 22177-56042
034. [01] 09045-30080 STAY, INJECTION PU 22177-56042-000
035. [01] 94918-00680 SCREW, HOLLOW 90401-10006
035. [01] 94918-00680 SCREW, HOLLOW 90401-10006-000
036. [02] 94901-81570 WASHER, COPPER PLA 90099-01451-000
036. [02] 94901-81570 WASHER, COPPER PLA 90099-01451
038. [01] 94901-81020 WASHER, COPPER PLA 90201-08106-000
038. [01] 94901-81020 WASHER, COPPER PLA 90201-08106
039. [01] 94914-00380 O-RING 90099-14015-000
039. [01] 94914-00380 O-RING 90099-14015
040. [01] 09027-01090 COVER SUB-ASSY, IN 22103-48030
040. [01] 09027-01090 COVER SUB-ASSY, IN 22103-48030-000
040-001. [02] 09024-30030 PACKING, AIR BLEED 22121-77020
040-001. [02] 09024-30030 PACKING, AIR BLEED 22121-77020-000
040-002. [01] 09027-20210 GASKET, INJECTION 22153-78030-000
040-002. [01] 09027-20210 GASKET, INJECTION 22153-78030
040-003. [01] 09027-50182 PROCESSING DRAWING 22563-78050-000
040-003. [01] 09027-50182 PROCESSING DRAWING 22563-78050
040-004. [02] 09027-60030 SCREW
040-004. [02] 09027-60030 SCREW
041. [4C] 09031-10130 PLATE, TAPPET ADJU 22185-46010
041. [4C] 09031-10150 PLATE, TAPPET ADJU 22186-48010
041. [4C] 09031-10010 PLATE, TAPPET ADJU 22187-46010
041. [4C] 09031-10020 PLATE, TAPPET ADJU 22188-46010
041. [4C] 09031-10030 PLATE, TAPPET ADJU 22189-46010
041. [4C] 09031-10040 PLATE, TAPPET ADJU 22189-48031
041. [4C] 09031-10140 PLATE, TAPPET ADJU 22186-46010
041. [4C] 09031-10060 PLATE, TAPPET ADJU 22189-48033
041. [4C] 09031-10070 PLATE, TAPPET ADJU 22189-48034
041. [4C] 09031-10080 PLATE, TAPPET ADJU 22189-48035
041. [4C] 09031-10090 PLATE, TAPPET ADJU 22189-48036
041. [4C] 09031-10100 PLATE, TAPPET ADJU 22182-46010
041. [4C] 09031-10110 PLATE, TAPPET ADJU 22183-46010
041. [4C] 09031-10120 PLATE, TAPPET ADJU 22184-46010
041. [4C] 09031-10050 PLATE, TAPPET ADJU 22189-48032
041. [4C] 09031-10040 PLATE, TAPPET ADJU 22189-48031-000
041. [4C] 09031-10020 PLATE, TAPPET ADJU 22188-46010-000
041. [4C] 09031-10150 PLATE, TAPPET ADJU 22186-48010-000
041. [4C] 09031-10140 PLATE, TAPPET ADJU 22186-46010-000
041. [4C] 09031-10130 PLATE, TAPPET ADJU 22185-46010-000
041. [4C] 09031-10120 PLATE, TAPPET ADJU 22184-46010-000
041. [4C] 09031-10110 PLATE, TAPPET ADJU 22183-46010-000
041. [4C] 09031-10100 PLATE, TAPPET ADJU 22182-46010-000
041. [4C] 09031-10090 PLATE, TAPPET ADJU 22189-48036-000
041. [4C] 09031-10080 PLATE, TAPPET ADJU 22189-48035-000
041. [4C] 09031-10070 PLATE, TAPPET ADJU 22189-48034-000
041. [4C] 09031-10060 PLATE, TAPPET ADJU 22189-48033-000
041. [4C] 09031-10050 PLATE, TAPPET ADJU 22189-48032-000
041. [4C] 09031-10030 PLATE, TAPPET ADJU 22189-46010-000
041. [4C] 09031-10010 PLATE, TAPPET ADJU 22187-46010-000
043. [03] 90258-06001 WASHER, SPRING 94511-00600
043. [03] 90258-06001 WASHER, SPRING 94511-00600-000
046. [01] 09020-60050 GASKET, BEARING CO 22195-48030-000
046. [01] 09020-60190 GASKET, BEARING CO 22195-87302-000
046. [01] 09020-60050 GASKET, BEARING CO 22195-48030
046. [01] 09020-60190 GASKET, BEARING CO 22195-58050

Include in #3:

09010-05780 as BODY ASSY, INJECTI
09010-05780
19000-08541
19000-08551
19100-01310
19100-01310

Cross reference number



Part num Firm num Firm Name
09010-05780  22120-5621  BODY ASSY, INJECTI
22120-56210-000    DAIHATSU BODY ASSY, INJECTI
22120-56210    TOYOTA BODY ASSY, INJECTI




Information:

start by: a) remove fuel injection pump housing and governor 1. Remove the fuel from the pump housing. Install the pump housing on tool (A).2. Remove priming pump (1). Remove the fuel filter.3. Remove fuel filter base assembly (2) from the top cover. 4. Remove elbow (3) and disc (4) from the fuel base assembly. The function of disc (4) is to keep the fuel in the pump housing from returning to the tank when the engine is not in operation. If the fuel tank is higher than the fuel pump housing, the disc is not needed. 5. Remove cover (5) and the fuel channel from the pump housing.6. Remove spring and bypass valve (6) from the housing.7. Remove check valve (7).8. Remove the fuel channel from cover (5). 9. Remove check valve (9) and spring from fuel channel (8) if so equipped. Earlier fuel systems have two check valves (7) and (9). Check valve (9) is not needed. Remove check valve (9) and the spring. Fill the hole in the fuel channel with weld, a rivet or a sheet metal drive screw that has sealant on it.Install Fuel Check Valve And Bypass Valve
1. Install fuel channel (1) on cover (2).2. Install spring and bypass valve (3) in the housing with the rounded end up. 3. Install check valve (4) evenly in the pump housing. Do not install a check valve that is bent.4. Install the cover on the pump housing. Be sure the bypass valve spring is in the cover groove. 5. Install disc (5). Install the elbow on the fuel base filter assembly. 6. Install fuel filter base assembly (6) on cover (2).7. Install priming pump (7). Install the fuel filter.8. Remove the fuel injection pump housing and governor from tool (A).end by: a) install fuel injection pump housing and governor
