09010-05250 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-05250 BODY ASSY, INJECTI
Rating:
24
Buy BODY ASSY, INJECTI 09010-05250 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360

Scheme ###:

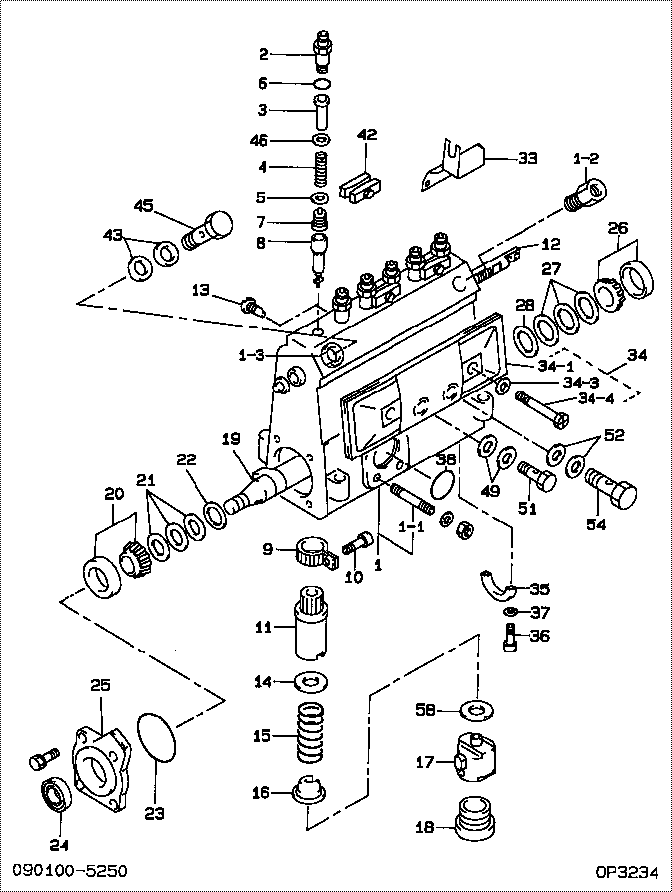

BODY ASSY, INJECTI
000. [01] 09010-05250 BODY ASSY, INJECTI 22110-1780
001. [01] 19011-03080 HOUSING KIT, INJEC 22101-1730A
001-001. [03] 94904-30010 BOLT, STUD 22853-1020A
001-002. [01] 09022-10070 UNION, INJECTION P 22131-1050A
001-003. [01] 09022-10330 UNION, INJECTION P
001-003. [01] 09022-10022 UNION, INJECTION P 22131-1040
002. [06] 09013-10530 HOLDER, DELIVERY V 22116-1080A
003. [06] 09013-30010 STOPPER, DELIVERY 22117-1040A
004. [06] 09013-60450 SPRING, DELIVERY V 22125-1020A
005. [06] 09013-70110 GASKET, DELIVERY V 22847-1090A
006. [06] 90801-10180 O-RING 22817-1130A
007. [06] 09014-01200 VALVE SUB-ASSY, IN 22103-1360A
008. [06] 09015-02610 ELEMENT SUB-ASSY, 22104-1620A
009. [06] 09015-60010 PINION, PLUNGER CO 22128-1020A
010. [06] 09015-70010 SCREW, PLUNGER CON 22865-1280A
011. [06] 09016-10500 SLEEVE, PLUNGER CO 22118-1280A
011. [06] 09016-10320 SLEEVE, PLUNGER CO 22118-1200A
012. [01] 09021-20010 RACK, CONTROL 22113-1320A
013. [01] 09021-50011 SCREW, RACK GUIDE 22811-1980A
013. [01] 09021-50060 SCREW, RACK GUIDE 22811-4850A
014. [06] 09016-30191 SEAT, SPRING, UPR 22119-1190A
014. [06] 09016-30120 SEAT, SPRING, UPR 22119-1010A
015. [06] 09016-40200 SPRING, PUMP PLUNG 22121-1031A
015. [06] 09016-40090 SPRING, PUMP PLUNG 22121-1170A
016. [06] 09016-50160 SEAT, SPRING, LWR 22122-1120A
017. [06] 09017-00070 TAPPET SUB-ASSY,IN 22105-1020A
018. [06] 09018-90060 PLUG, INJECTION PU 22845-1160A
019. [01] 09019-10870 CAMSHAFT, INJECTIO 22123-1400A
020. [01] 94910-10071 BEARING, ROLLER 22837-1100A
021. [ C] 09019-40170 PLATE, CAMSHAFT SH 22129-1180A
021. [ C] 09019-40160 PLATE, CAMSHAFT SH 22129-1170A
021. [ C] 09019-40100 PLATE, CAMSHAFT SH 22885-1580A
021. [ C] 09019-40090 PLATE, CAMSHAFT SH 22885-1570A
021. [ C] 09019-40080 PLATE, CAMSHAFT SH 22885-1560A
021. [ C] 09019-40070 PLATE, CAMSHAFT SH 22885-1550A
022. [01] 09019-30050 RING, CAMSHAFT ADJ 22124-1090A
023. [01] 94914-01550 O-RING 22817-1110A
024. [01] 94915-01620 SEAL, OIL 22827-1040A
025. [01] 09020-10410 COVER, BEARING 22111-1080A
026. [01] 94910-10120 BEARING, ROLLER 22837-1230A
027. [ C] 09019-40060 PLATE, CAMSHAFT SH 22885-4950A
027. [ C] 09019-40050 PLATE, CAMSHAFT SH 22885-4940A
027. [ C] 09019-40040 PLATE, CAMSHAFT SH 22885-4930A
027. [ C] 09019-40030 PLATE, CAMSHAFT SH 22885-4920A
027. [ C] 09019-40020 PLATE, CAMSHAFT SH 22885-4910A
027. [ C] 09019-40010 PLATE, CAMSHAFT SH 22885-4900A
028. [01] 09019-30020 RING, CAMSHAFT ADJ 22124-1160A
033. [01] 09069-10741 BRACKET, STOP WIRE 22343-2320A
034. [01] 09027-01041 COVER SUB-ASSY, IN 22170-1040A
034-001. [01] 09027-50083 PROCESSING DRAWING 22127-1220A
034-002. [01] 09027-20220 GASKET, INJECTION 22847-2180A
034-003. [02] 09024-30030 PACKING, AIR BLEED 22847-1890A
034-004. [02] 09027-60030 SCREW 22815-1550A
035. [01] 09036-10090 BEARING, CENTER 22837-1090
035. [01] 09036-10120 BEARING, CENTER
036. [02] 09036-60021 SCREW, GUIDE 22811-2640A
036. [02] 91050-05351 SCREW, CROSSRECESS 22815-2400A
037. [02] 94901-81030 WASHER, COPPER PLA 22867-1020A
038. [01] 94914-00380 O-RING 22817-1540A
042. [03] 09023-00050 PLATE SET, VALVE H 22131-1150A
043. [02] 94901-02490 WASHER 22877-1100A
045. [01] 94918-00310 SCREW, HOLLOW 22811-2630A
046. [ C] 94901-35050 WASHER, PLATE, SK 22885-1460A
046. [ C] 94901-35030 WASHER, PLATE, SK 22885-1450A
046. [ C] 94901-35020 WASHER, PLATE, SK 22885-1440A
049. [02] 94901-02470 WASHER 22847-1900A
051. [01] 94918-00060 SCREW, HOLLOW 27364-1290A
052. [02] 94901-02500 WASHER 22847-1920A
054. [01] 94918-00420 SCREW, HOLLOW 22835-1180A
058. [ C] 09031-10100 PLATE, TAPPET ADJU 22885-1230A
058. [ C] 09031-10110 PLATE, TAPPET ADJU 22885-1240A
058. [ C] 09031-10120 PLATE, TAPPET ADJU 22885-1350A
058. [ C] 09031-10130 PLATE, TAPPET ADJU 22885-1360A
058. [ C] 09031-10140 PLATE, TAPPET ADJU 22885-1370A
058. [ C] 09031-10150 PLATE, TAPPET ADJU 22885-1250A
058. [ C] 09031-10090 PLATE, TAPPET ADJU 22885-1340A
058. [ C] 09031-10080 PLATE, TAPPET ADJU 22885-1330A
058. [ C] 09031-10070 PLATE, TAPPET ADJU 22885-1190A
058. [ C] 09031-10060 PLATE, TAPPET ADJU 22885-1180A
058. [ C] 09031-10050 PLATE, TAPPET ADJU 22885-1170A
058. [ C] 09031-10040 PLATE, TAPPET ADJU 22885-1160A
058. [ C] 09031-10030 PLATE, TAPPET ADJU 22885-1150A
058. [ C] 09031-10020 PLATE, TAPPET ADJU 22885-1140A
058. [ C] 09031-10010 PLATE, TAPPET ADJU 22885-1130A
058. [ C] 09031-10290 PLATE, TAPPET ADJU 22885-2270A

Include in #3:

09010-05250 as BODY ASSY, INJECTI
19000-08385
19000-09350
19000-09371
19100-03202

Cross reference number



Part num Firm num Firm Name
09010-05250  22110-1780  BODY ASSY, INJECTI
22110-1780A    HINO BODY ASSY, INJECTI
22110-1780    HINO BODY ASSY, INJECTI
