09010-05121 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

09010-05121 BODY ASSY, INJECTI
Rating:
63
Buy BODY ASSY, INJECTI 09010-05121 genuine, new aftermarket engine parts with delivery

Scheme ###:

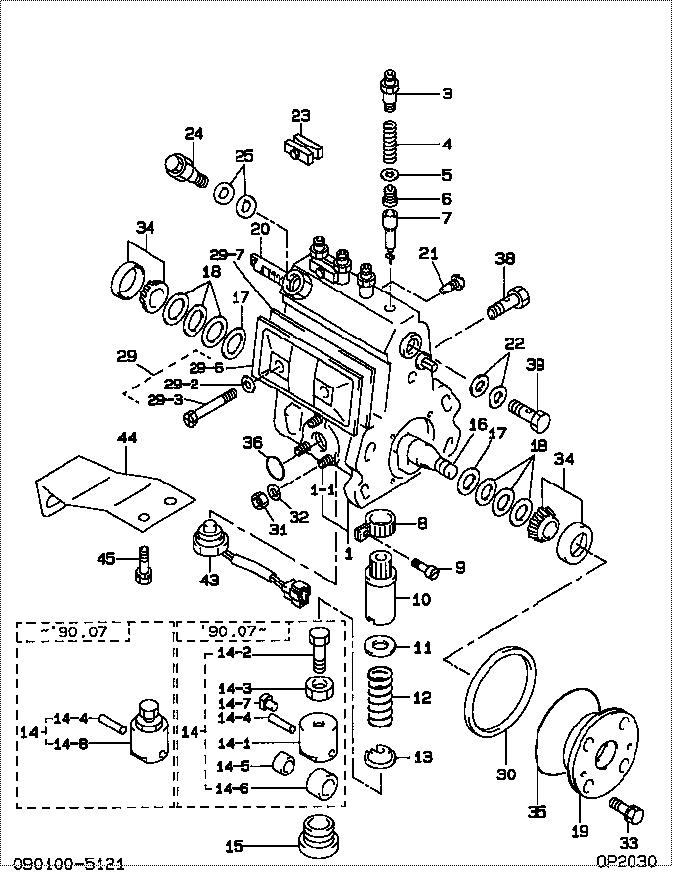

BODY ASSY, INJECTI
000. [01] 09010-05121 BODY ASSY, INJECTI 22120-87318-000
001. [01] 19011-03011 HOUSING KIT, INJEC 22190-87303-000
001-001. [03] 94904-30010 BOLT, STUD 90099-04071-000
001-002. [01] 09022-10070 UNION, INJECTION P
001-003. [01] 09022-10010 UNION, INJECTION P 22127-76010-000
001-003. [01] 09022-10310 UNION, INJECTION P
003. [04] 09013-10010 HOLDER, DELIVERY V 22131-77020-000
004. [04] 09013-60050 SPRING, DELIVERY V 22148-46010-000
005. [04] 09013-70010 GASKET, DELIVERY V 22149-76010-000
006. [04] 09014-00010 VALVE SUB-ASSY, IN 22104-77020-000
007. [04] 09015-02280 ELEMENT SUB-ASSY, 22105-87303-000
008. [04] 09015-60010 PINION, PLUNGER CO 22155-76010-000
009. [04] 09015-70010 SCREW, PLUNGER CON 22156-76010-000
010. [04] 09016-10160 SLEEVE, PLUNGER CO 22142-77020-000
010. [04] 09016-10330 SLEEVE, PLUNGER CO 22142-58230-000
011. [04] 09016-30191 SEAT, SPRING, UPR 22143-78150-000
011. [04] 09016-30010 SEAT, SPRING, UPR 22143-77020-000
012. [04] 09016-40060 SPRING, PUMP PLUNG 22144-87301-000
013. [04] 09016-50010 SEAT, SPRING, LWR 22145-77020-000
014. [04] 09017-00020 TAPPET SUB-ASSY,IN 22106-77020-000
014. [04] 09017-00130 TAPPET SUB-ASSY,IN
014-001. [04] 09017-10173 TAPPET, INJECTION
014-002. [04] 09017-30010 BOLT, INJECTION PU 22134-77020-000
014-003. [04] 09017-40010 NUT, INJECTION PUM 22135-77020-000
014-004. [04] 09017-60010 PIN, INJECTION PUM 09017-60010-000
014-005. [04] 09017-80030 BUSHING, INJECTION
014-006. [04] 09018-10030 ROLLER, INJECTION
014-007. [04] 09017-50040 SLIDER
014-008. [04] 09016-90110 BODY, INJECTION PU 22139-67022-000
015. [03] 09018-90060 PLUG, INJECTION PU 22157-48023-000
015. [03] 09018-90090 PLUG, INJECTION PU 22157-87302-000
016. [01] 09019-10082 CAMSHAFT, INJECTIO 22146-56010-000
017. [02] 09019-30020 RING, CAMSHAFT ADJ 22147-77020-000
018. [6C] 09019-40010 PLATE, CAMSHAFT SH 22161-76010-000
018. [6C] 09019-40020 PLATE, CAMSHAFT SH 22162-76010-000
018. [6C] 09019-40030 PLATE, CAMSHAFT SH 22163-76010-000
018. [6C] 09019-40040 PLATE, CAMSHAFT SH 22164-76010-000
018. [6C] 09019-40050 PLATE, CAMSHAFT SH 22165-76010-000
018. [6C] 09019-40060 PLATE, CAMSHAFT SH 22166-76010-000
019. [01] 09020-10390 COVER, BEARING 22111-87303-000
020. [01] 09021-20441 RACK, CONTROL 22114-48030-000
021. [01] 09021-50060 SCREW, RACK GUIDE 22115-78140-000
021. [01] 09021-50011 SCREW, RACK GUIDE 22115-77020-000
022. [02] 09022-20070 WASHER, FUEL PIPE 22125-87301-000
023. [02] 09023-00031 PLATE SET, VALVE H 22102-77021-000
024. [01] 09031-00130 VALVE ASSY, OVERFL 22160-78030-000
025. [02] 09024-10010 WASHER, AIR BLEEDE 22119-77020-000
029. [01] 09027-01090 COVER SUB-ASSY, IN 22103-48030-000
029-002. [02] 09024-30030 PACKING, AIR BLEED 22121-77020-000
029-003. [02] 09027-60030 SCREW
029-006. [01] 09027-50182 PROCESSING DRAWING 22563-78050-000
029-007. [01] 09027-20210 GASKET, INJECTION 22153-78030-000
030. [01] 09020-60060 GASKET, BEARING CO 22195-68010-000
030. [01] 09020-60170 GASKET, BEARING CO 22195-87601-000
031. [03] 90160-06051 NUT, HEXAGON 94110-40600-000
032. [03] 90258-06001 WASHER, SPRING 94511-00600-000
033. [04] 91418-06201 BOLT, W/WASHER 91611-60620-000
034. [02] 94910-10120 BEARING, ROLLER 90091-30203-000
035. [01] 94914-03990 O-RING 90043-01065-000
036. [01] 94914-00380 O-RING 90099-14015-000
038. [01] 94918-00570 SCREW, HOLLOW
039. [01] 94918-00310 SCREW, HOLLOW 90099-18010-000
043. [01] 07630-00071 PICKUP ASSY, TACHO 83275-87603-000
044. [01] 09045-30090 STAY, INJECTION PU 22177-87302-000
045. [02] 91410-08141 BOLT, W/WASHER 91611-40814-000

Include in #3:

09010-05121 as BODY ASSY, INJECTI
19100-01040
19100-01060

Cross reference number



Part num Firm num Firm Name
09010-05121  22120-8731  BODY ASSY, INJECTI
